2008 Outbound

The forward cabin features a centerline queen with stowage under, outboard lockers port and starboard, a hanging locker and shelves. The forward head has a slide out sink with shower. The saloon has a port side U-shaped seating around a fiddled table with hinged leaves and adjustable height. Beneath port settee, is a new holding tank for the forward head, along with additional storage. Below the starboard settee in the salon is the house battery bank, primary inverter/charger, wind gen charge controller, solar charge controllers, and air conditioner for fore and aft cabins.Moving aft, to port is the spacious U shaped galley, to starboard is a head and shower compartment oriented fore and aft for safety and stability in a seaway. Either side of the companionway is aft stateroom with double berth to starboard, navigation desk to port. The engine is accessed by lifting companionway stairs, as well as from side panels on both sides of the engine. From the nav desk there is convenient access through a door to the utility room which houses a heavily insulated freezer box easily cooled by the Frigoboat keel-cooler unit, generator, and access to mechanicals and steering, as well as generous (easily accessed) storage for tools, spares, and more.

100% hand-laid solid fiberglass single piece hull/keel laminationTwo outer layers of vinylester resin for blister resistanceForward watertight bulkheadOversized integral longitudinal/ floor/mast step/ engine bed grid for maximum hull stiffnessBulkheads laminated 360 degrees to hull and deck laminateInterlux Interprotect 2000 epoxy barrier coats below waterline

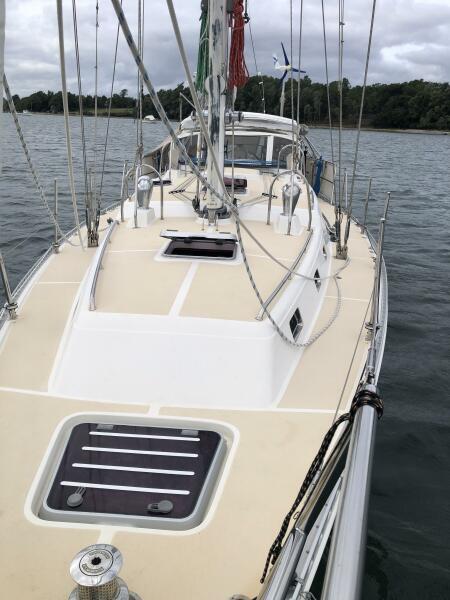

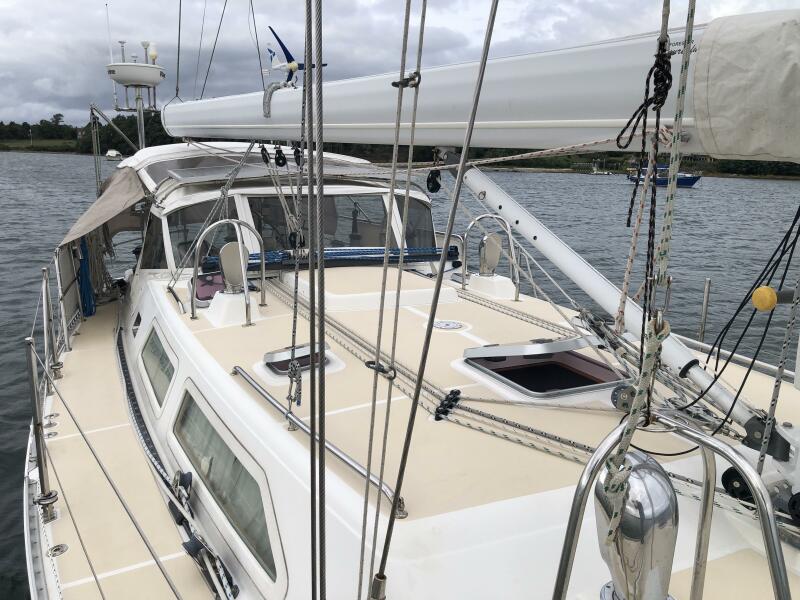

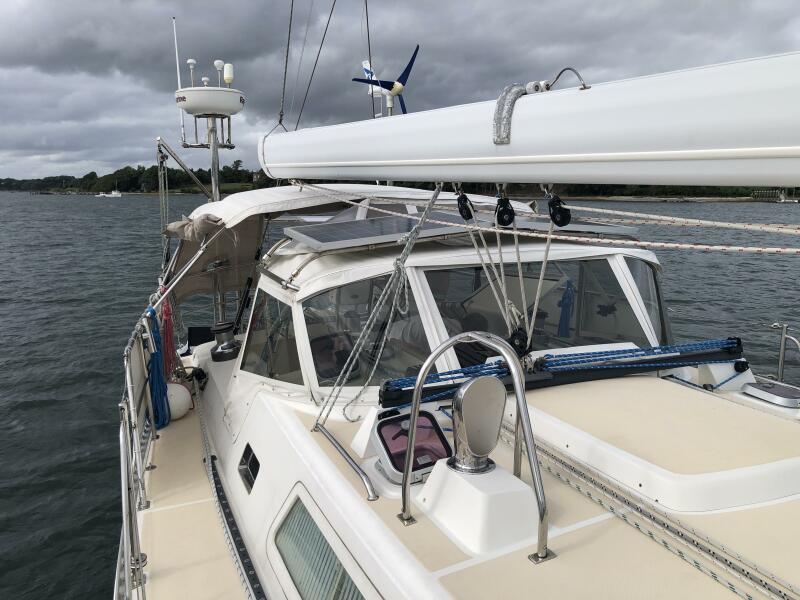

Baltek cored deckHulland deck bolted on 4” centers and sealed with 3M 5200 adhesive/sealantAluminum toe rail.Six polished 316 SS 8” mooring cleats30” x 1.25” 316 SS pulpit, pushpit, and stanchions with 1×19 uncoated lifelines316 SS custom double anchor rollerLewmar V4 windlass with wired handheld remote control-new motor gearbox, seals, and bearings (2024)77# Spade anchor w/ 325’ 5/16 G4 chainFortress FX-37 with 200’ rode and chainLarge bow storage locker forward of watertight bulkheadNine Lewmar Ocean series opening hatches – new seals and gaskets (2019)8 Stainless steel opening ports – all re-bedded 2019Four dorade vents with 1” 316 SS guardsTwo Lewmar 68 two-speed STC primary winches mounted on coamingOne electric powered Lewmar 46 two-speed STC winch mounted on starboard cabin top next to companionway for main halyard and main sheetOne Lewmar46 two-speed STC winch mounted on port cabin top next to companionwaySpinlock rope clutchesLewmar mainsheet traveler mounted forward of companionway – new double upright traveler car (2021)Lewmar genoa carsT shaped cockpit with 6’ seatsWalk-through transom for direct access to swim platform with concealed folding ladder316 SS radar pole with detachable hoist for outboard motorEdson outboard motor mountScheaffer snubber for Leisurefurl Boom

The Outbound’s unique semi-raised salon creates a bright and airy atmosphere and avoids the “dark cave” feeling of many sailboats and allows for good communication among crew in cockpit, galley and salon by virtue of a short three-step companionway ladder. The large portlights provide plenty of natural light.6’6″ HeadroomTeak & Holly SoleCorian CountertopsCenterline forward berth2 heads with showersScreen package for all hatchesUltraleather fabrics

Large Centerline Double berthLarge hanging lockerPlenty on storage spaceOverhead storage lockersFive opening Lewmar portsLewmarOcean hatchTwo dorade vents

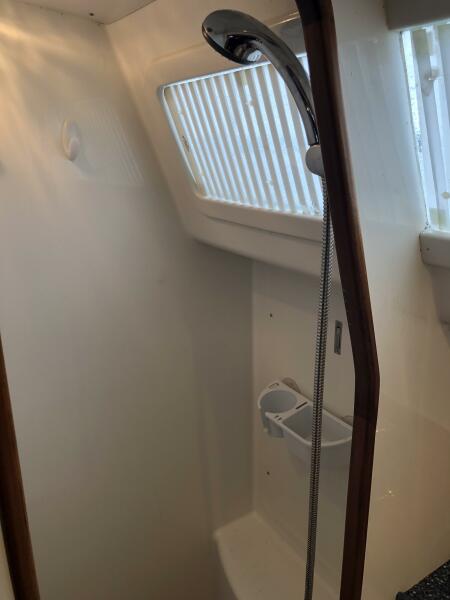

Fiberglass molded head with shower & gratePolished SS basinCorian counter topsTecma Electric Marine Toilet – fresh or salt – (macerator replaced 2024)

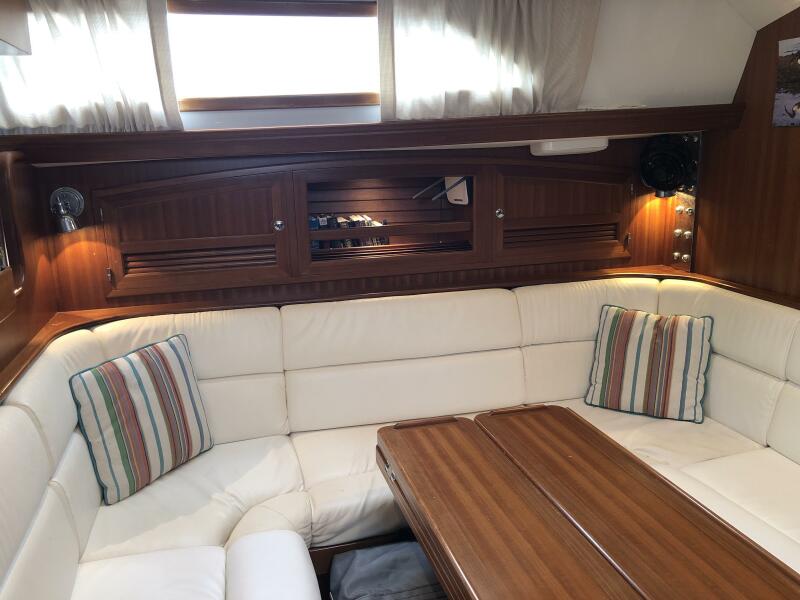

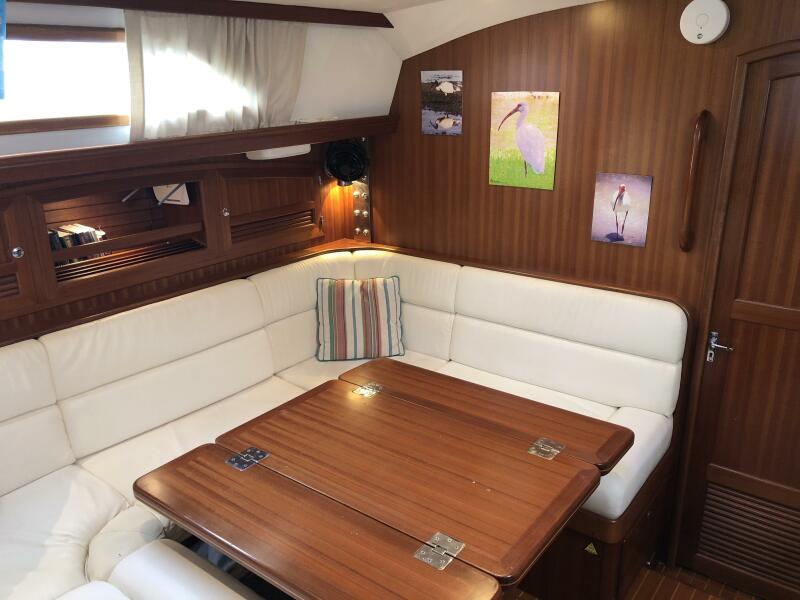

6’8”’ U-shaped dinetteFold down table to starboardBook shelfDrop leaf table with adjustable leg – converts to double berthStarboard Settee converts to sea berth5″ thick foam cushionsLockers and bookshelves outboard of settee and dinetteWestinghouse Roku TV (2024)Large easy access storage under settee and dinetteThree Lewmar Ocean hatches

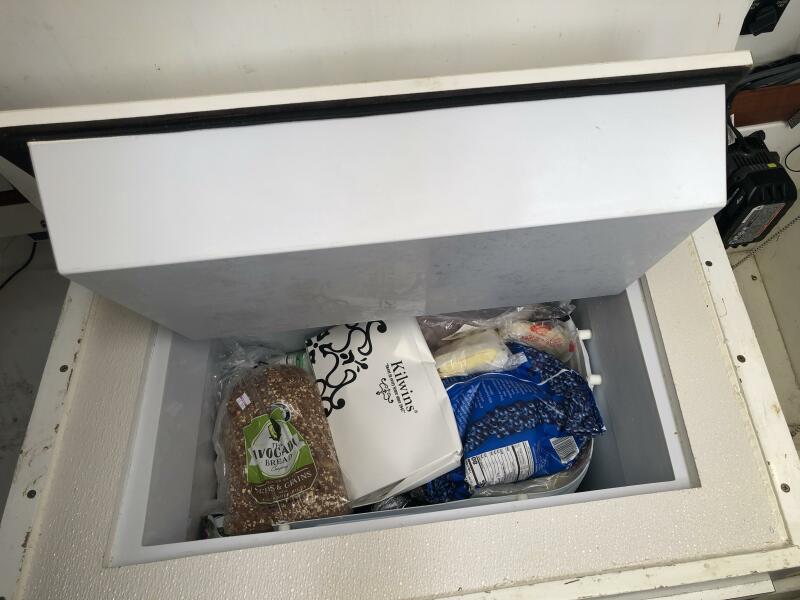

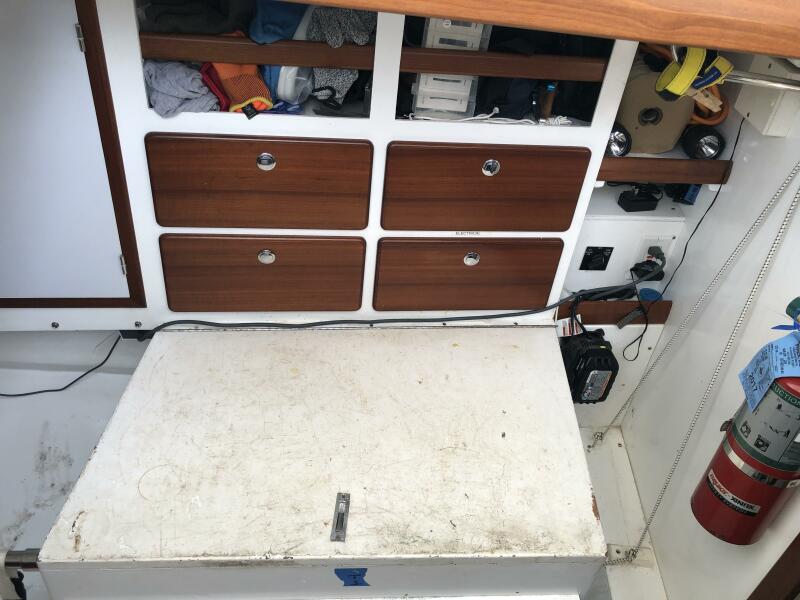

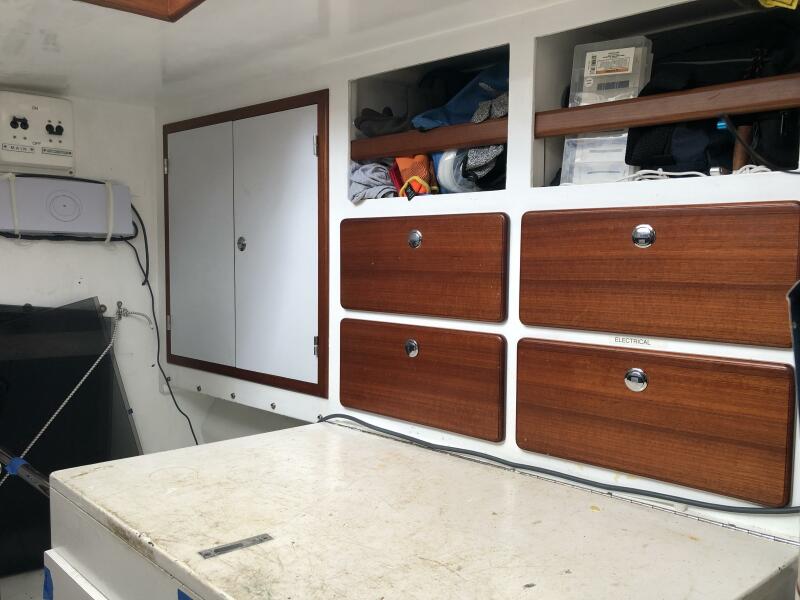

Standing room with lazarette hatch openWorkbench storage underStorage for spare plumbing, electrical, rigging and fastener kitsEasy access to steering link, generator, refrigerationDirect access from main cabin via doorCustom freezer box with 6″ of insulation and a new Frigoboat keel cooled DC system (2023)

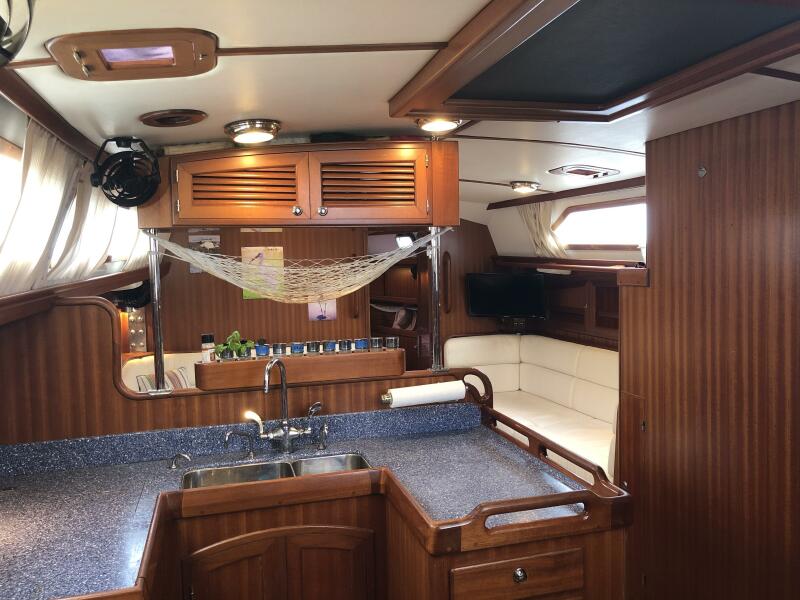

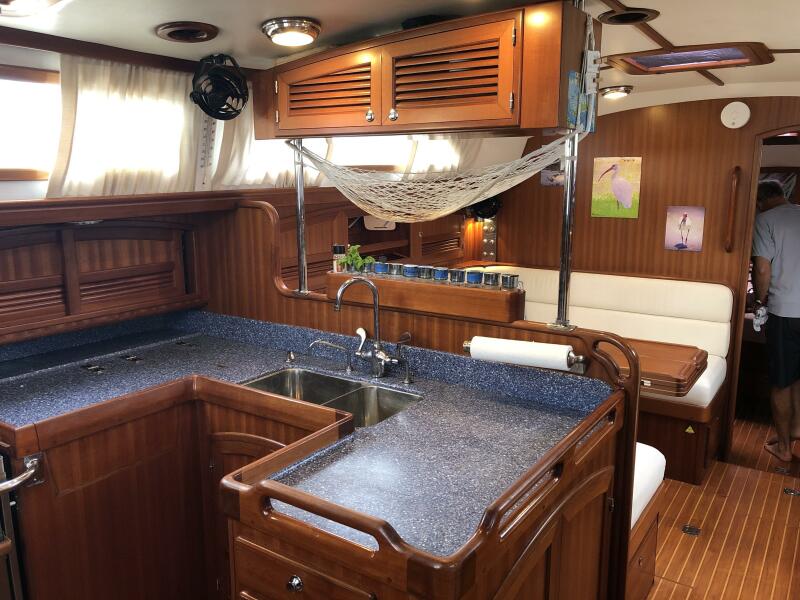

Corian counter with teak fiddlesDouble 10″ deep polished SS sinkScandvik SS faucetWhale fresh and salt water foot pumps in addition to pressurized hot and cold waterFrigoboat refrigerated icebox/freezer with 4″ high density foam insulation (New Frigoboat system 2021, and thermostat 2024)Overhead dish and glass holder3 Burner Force Ten propane stove with oven and broilerRemote propane shut off valveLewmarOcean HatchDorade ventSlide out trash bin under galley sink

48″ wide quarter berthHanging lockerDrawersStorage lockers above bunkTwo Lewmar opening portsLewmar Ocean hatch

Molded head/showerCorian counter with polished SS basinScandvik faucetTecma electric toilet – salt or fresh – (2015)Macerator – (2016)LewmarOcean opening hatchDorade vent

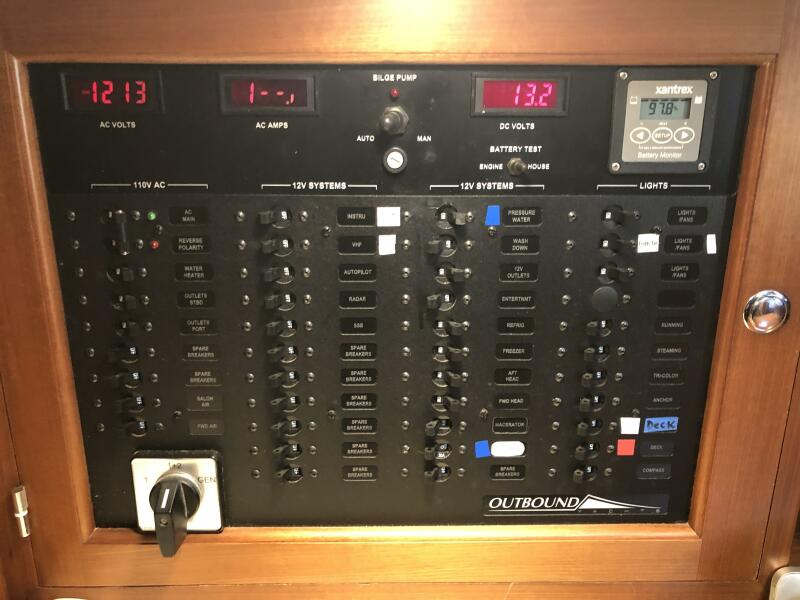

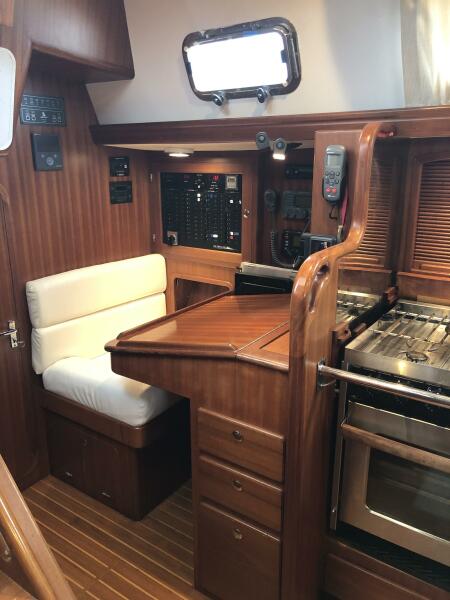

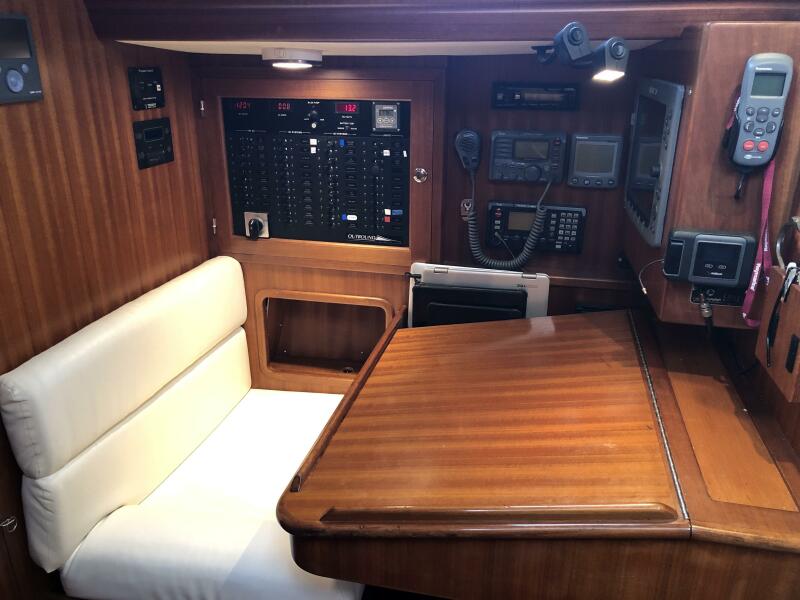

Forward facing chart tableTeak chart table with removable fiddlesDrawer unitFile drawer for ship’s papersCustom electric panelAC/DC volt and amp meters, batt monitor, auto bilge pump switchLewmar opening portLewmar Ocean hatch

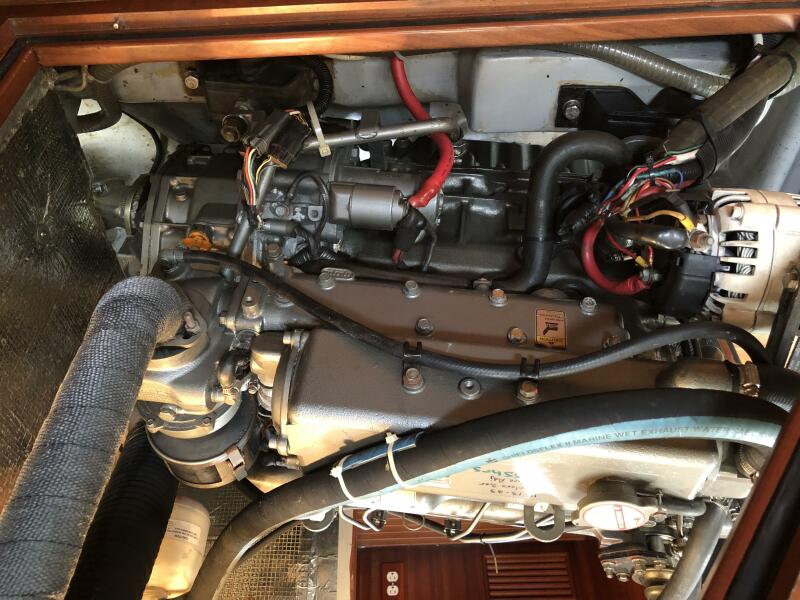

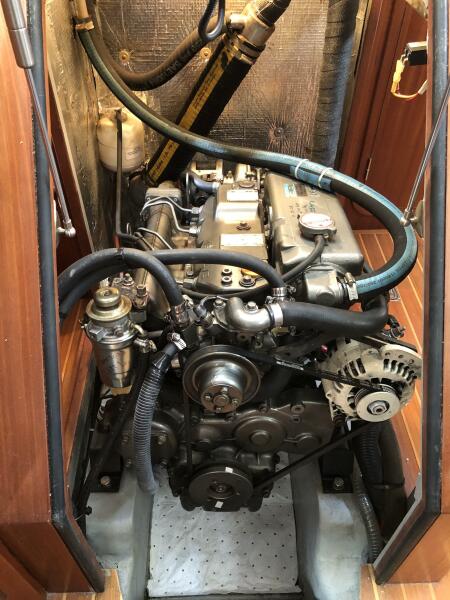

Yanmar 4 cyl. 75 hp turbo diesel – 3965 hours 9/16/2024– new turbo charger and alternator rebuild (2020)– 1000 hour engine service, new seawater pump, thermostat sensor, start relay, heat exchanger seals (2023)Yanmar flexible engine mounts (all mounts new 2017)New engine exhaust mixing elbow (2017)Stainless steel exhaust riser (2023)New Cutlass bearing (2017)Replaced engine water and fuel hoses (2017)Soundown lead and foam insulated engine box under hinged companionway for easy accessSoundown insulated access panels on both sides on engine boxMuffler waterlock systemPYI Pro dripless shaft seal with split shaft coupling (2023)1.5” Aquamet shaft3 Blade Max Prop –rebuilt at PYI with new blades and gears 20″ diameter with 20 pitch (2023)Frigoboat keel cooled refrigeration/freezer – 2 units (fridge new 2021, freezer new 2023)Single lever engine controls on pedestalSpurs line cutter on shaft

Lewmar (Whitlock) Cobra direct drive rack and ring gear system44” Steering wheel w/ elk hide coverEmergency tiller

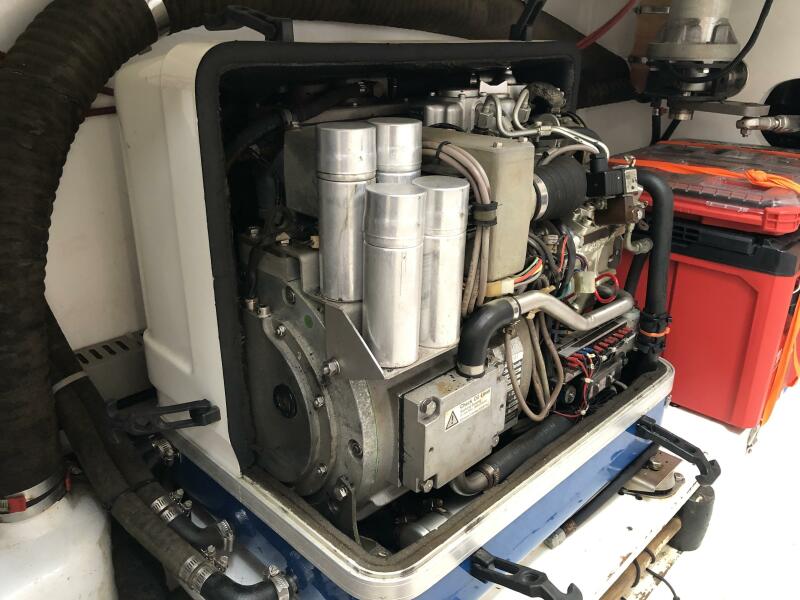

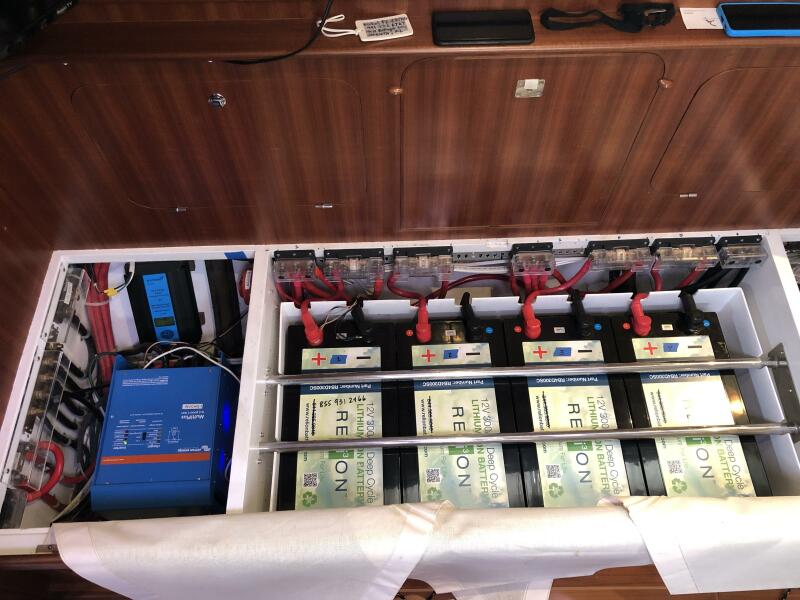

ABYC approved tinned wiringFour 300AH ReLion Lithium Ion Batteries – 300 x 4 = 1200 Ah total (new 2015)One 100AH ReLion Lithium ion dedicated starting battery – (new 2015)Balmar 100A alternatorBalmar 3 stage alternator regulator MC612Victron Multiplus 3000 Watt inverter/120 Amp battery charger (new 2018)2nd Victron 12/120/3000 Multiplus for charging off of generator in addition to primary Victron Multiplus for a total charging output of 240 amps (inverter not enabled) installed new (2021)Silent Wind wind generator with charge controller2 x 100 watt solar panels on dodger each panel has a dedicated Victron controller and bluetooth for Victron Connect app (2021)Xantrex battery monitor and Victron color control monitor for battery and primary Victron Multiplus2 x 30A shore power inlets; one set accessed in forward compartment and one set on transom (2023)50’ 30A power cord (2023)50A adapter splitter (2023)Fischer Panda 6 kW diesel generator 1195 hours (September 2024)- new Kubota front end engine (2021) and new seawater pump (2023)Marine Air reverse cycle air conditioning/ heat unit with vents to forward and aft cabinsTen 110V GFCI outletsWired for cable and telephoneGalvanic isolator

Aquasignal Series 41 running lightsAquasignal anchor and tri-color running light – both LEDAquasignal Steaming(masthead) light and deck lightLED deck lights at spreaders and forward red deck light (2015)Eleven Cantalupi red/white interior dome lights – converted to LED 2015Eight individual reading lights at bunks – converted to LED 2015Automatic hanging/stowage locker lightsCourtesy/safety lighting switched at companionwayEngine room, lazarette, foredeck locker lightsFloodlight on radar pole to illuminate the swim platform

Two 100 gallon water tanksJabsco 12V fresh water pressure pump (new 2017)11 gallon SS Isotemp hot water heater with integral engine heat exchanger (2021)190 gallons fuelDouble Racor Fuel Filters w/ switching valveTank Tender monitor for fuel and water tanksTecma electric toilet in aft head and forward head – (both new 2016) – Aft head discharge pump replaced 2024Sealand odor resistant hose20 gallon Ronco B233 polyethylene tank, head hoses, Jabsco macerator pump, and tank sensor (all new 2022)35 gallon fiberglass holding tank for aft head with gravity discharge & Jabsco Y-valve selector (2021).Fwd shower sump w/ overboard dischargeRule 2000 electric bilge pumpRule 3000 electric secondary bilge pumpAutomatic bilge pump switchesHelm mounted Whale Gusher 10 manual bilge pumpCabin mounted Whale Gusher 10 manual bilge pumpAll thru-hulls are flush mounted bronze seacocks with globe valvesShurflo fresh or saltwater wash down pumpTransom mounted Scandvik freshwater hot and cold shower All faucets and shower hardware are Scandvik MarineAft showe sump pump and strainer replaced 20242 x 20 lb. spun aluminum propane tanks w/ solenoid – (new tanks 2015) new Marshall propane regulator (2024)

Double spreader aluminum spar by Charleston SparForespare boom vangLeisurefurl Boom by Forespar – new upgraded gooseneck mast bracket, mast luff track, drive shaft and u-joint (2021)Carbon fiber spinnaker pole (mast mounted) – new pole track slides (2021)Harken roller furling GenoaHarken roller furling Solent (new 2015)Two Lewmar 46 winches mounted on mastSailtec Hydraulic backstay adjusterAll halyards and control lines are dyneema low-stretch have been replaced as neededHarken running rigging blocks – (2015)Boom preventer (2015)Fore/aft guy system (2015)

Mack Sails mainsail with 6 battens (new 2024)Hood Vectron 110% RF genoa w/ sunshield (serviced by as needed)Hood Vectron 90% solent staysail (serviced by as needed)Spinnaker with new ATN sock and new launch bag

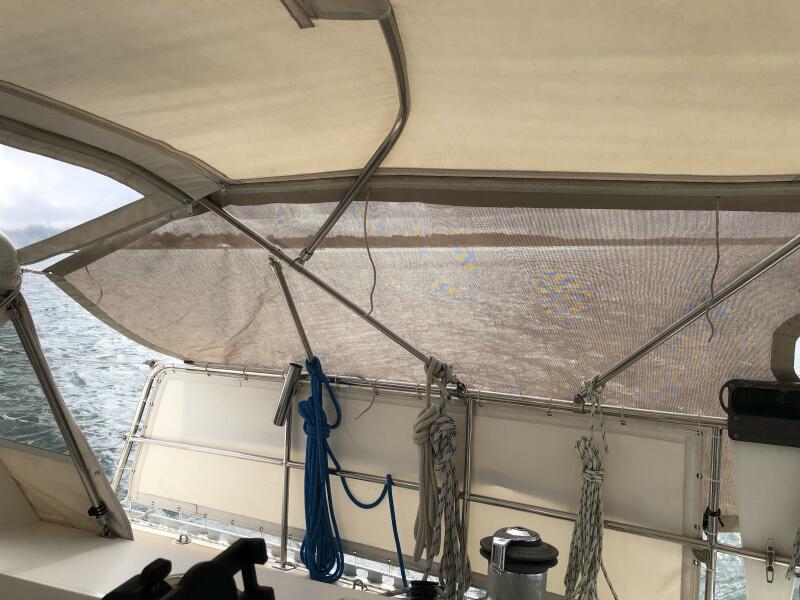

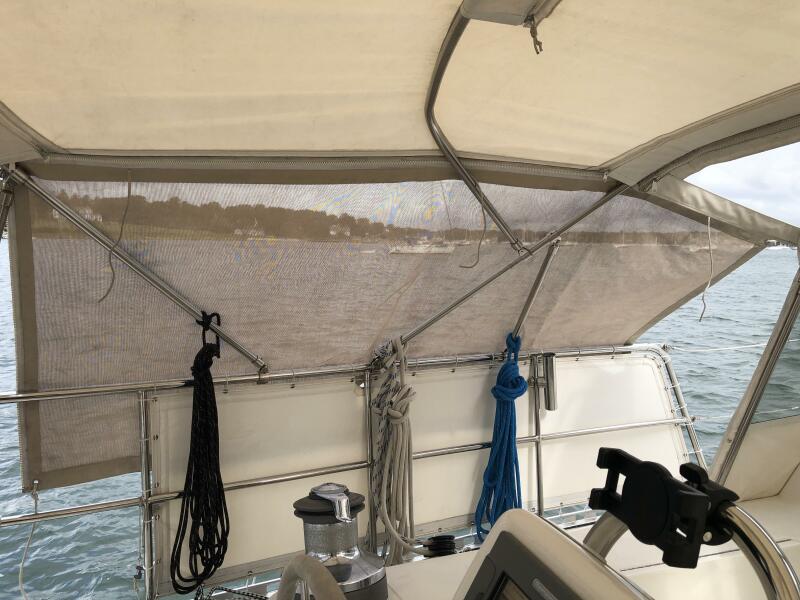

Stamoid Top Dodger with tinted Rainer glass with covers (2017)Stamoid Bimini (2017)Stamoid spray cloths (2017)Stamoid hatch covers (2017)Stamoid winch covers (2017)Stamoid windlass cover (2017)Deck awning/sunshade with water collection drain (2017)Perennials Prism cockpit cushions and matching pillows (2017)Lee cloth for starboard salon berthBungling board for aft cabin

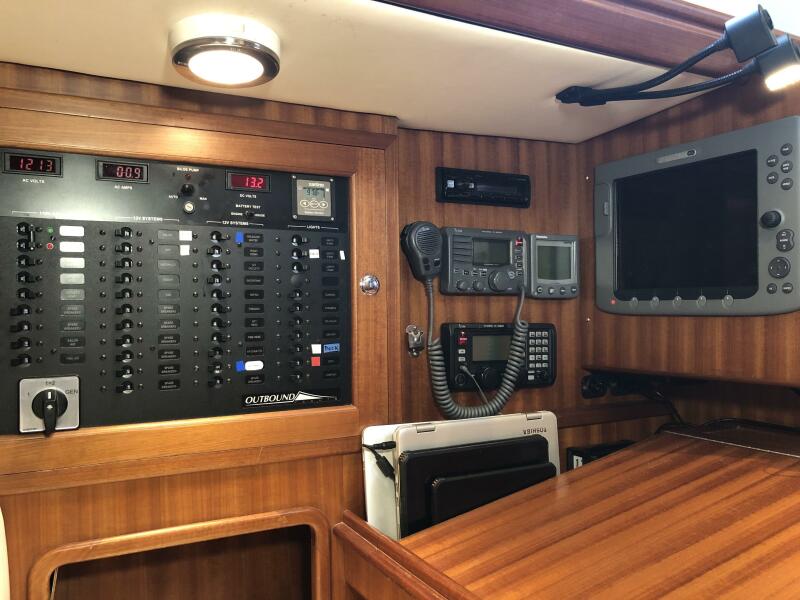

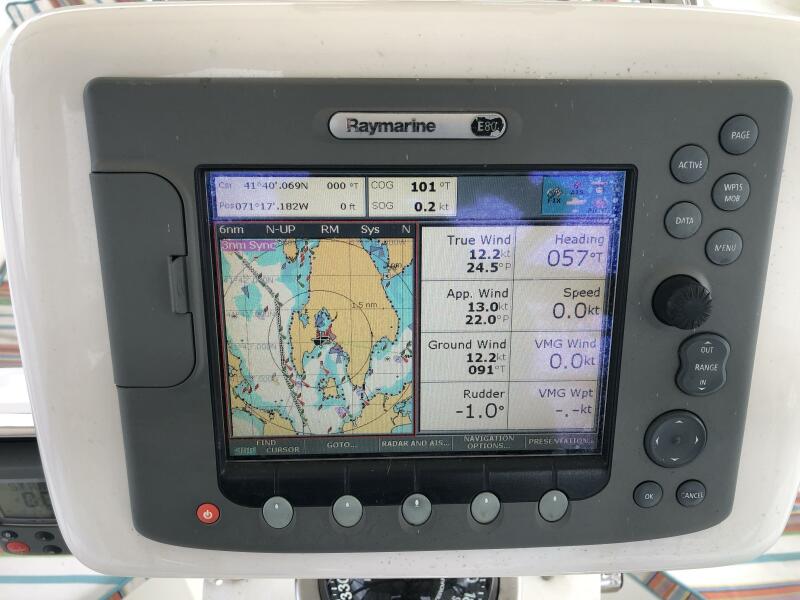

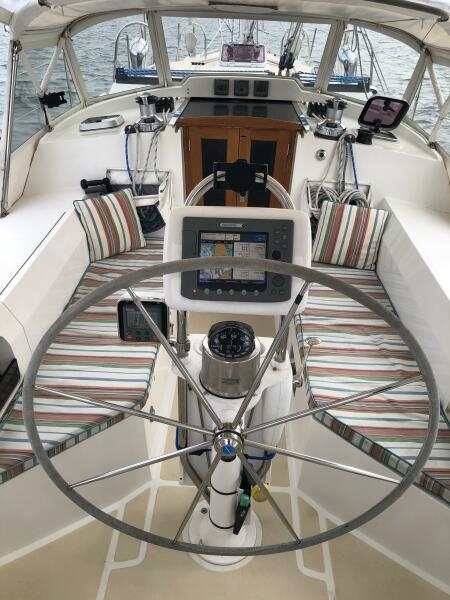

Raymarine E80 Series Radar/Plotter at helmRaymarine E120 Series Plotter at Nav StationRaymarine 4 kW radome on stern postRaymarine instruments linked via Seatalk bussRaymarine ST60 Graphic at nav deskRaymarine ST 6002 Control Head at Helm and wireless autopilot remoteRaymarine ST60 Wind, ST60Speed, ST60 Depth over companionwayRaymarine wind transducer (2024)ICOM M504 VHF at nav stationICOM Ram Mic at helmRaymarine Linear type 2 autopilot drive (2021)ICOM M 802 150W SSBSSB Modem (2015)ICOM M 130 automatic CouplerAIS class B (send and receive) – (2015)Sirius weather receiver (2015)Iridium Go! Sat phone with external antenna (2015)AXR Global FixiPro EPIRB (2015)Copper ground plane molded in to hullAlpine Stereo System with interior and cockpit speakersNMEA2K backbone, Wifi multiplexor NMEA2K/Seatalk/NMEA 0183, NMEA2K barometer (2024)Starlink V4 flat antenna and generation 3 router (2024)

Outbound Davits (2015)Added Outbound dish locker above sink in galley (2015)Spectra water maker – Catalina 240Z – (2015) with RO membrane (2021)Added Outbound wind generator pole and SilentWind wind generator (2015)Mast mounted radar reflector (2015)Re-bed chain plates (2017)Relocate stern running light (2017)Refinish companionway doors, including replacing door lock (2017)Replaced bobstay (2017)Four 40′ Mega Plait dock lines – (2015)Two 60″ Mega Plait dock lines – (2015)Stainless steel fishing rod holderRevere Regatta 4 person liferaft in valise (2023)
