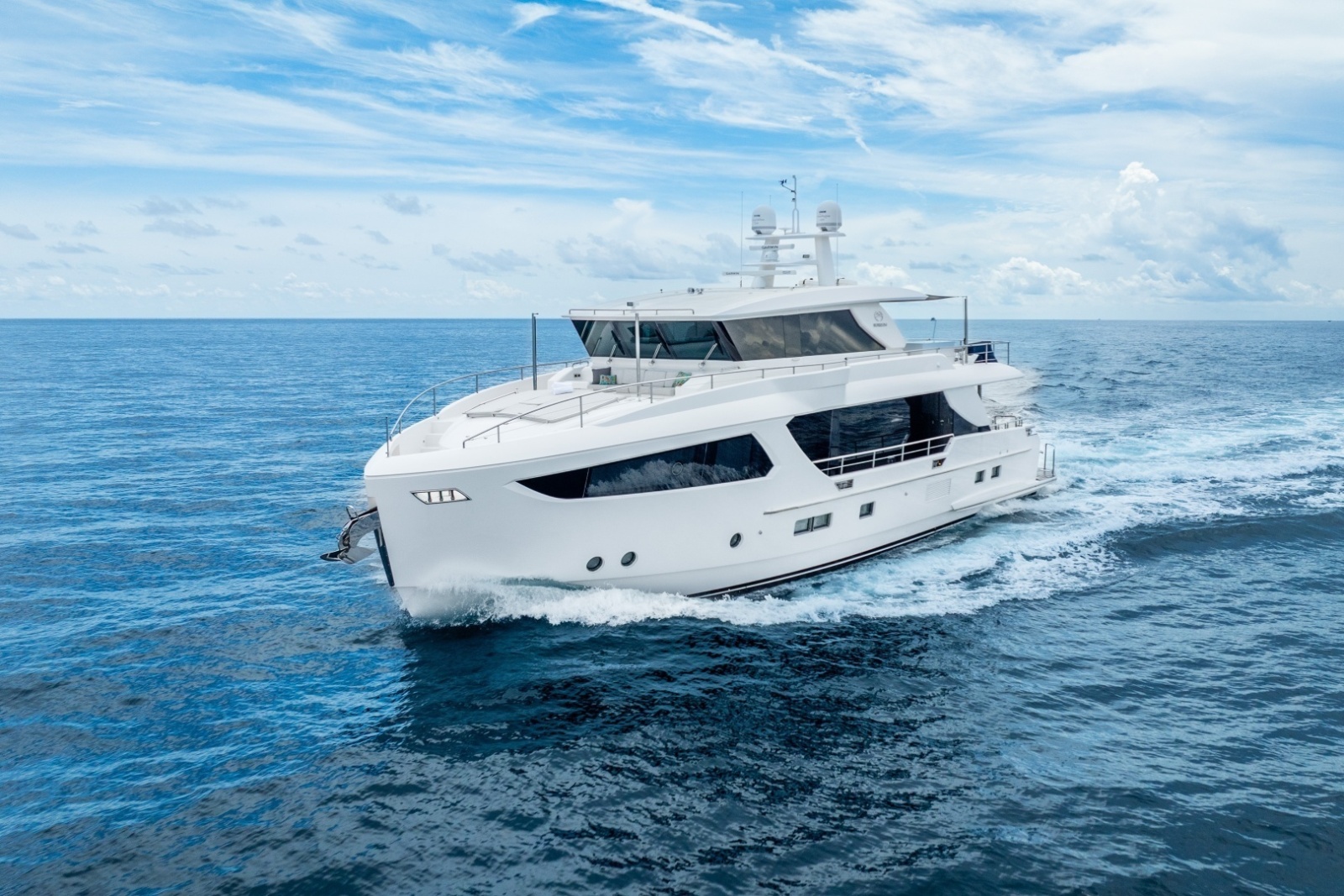

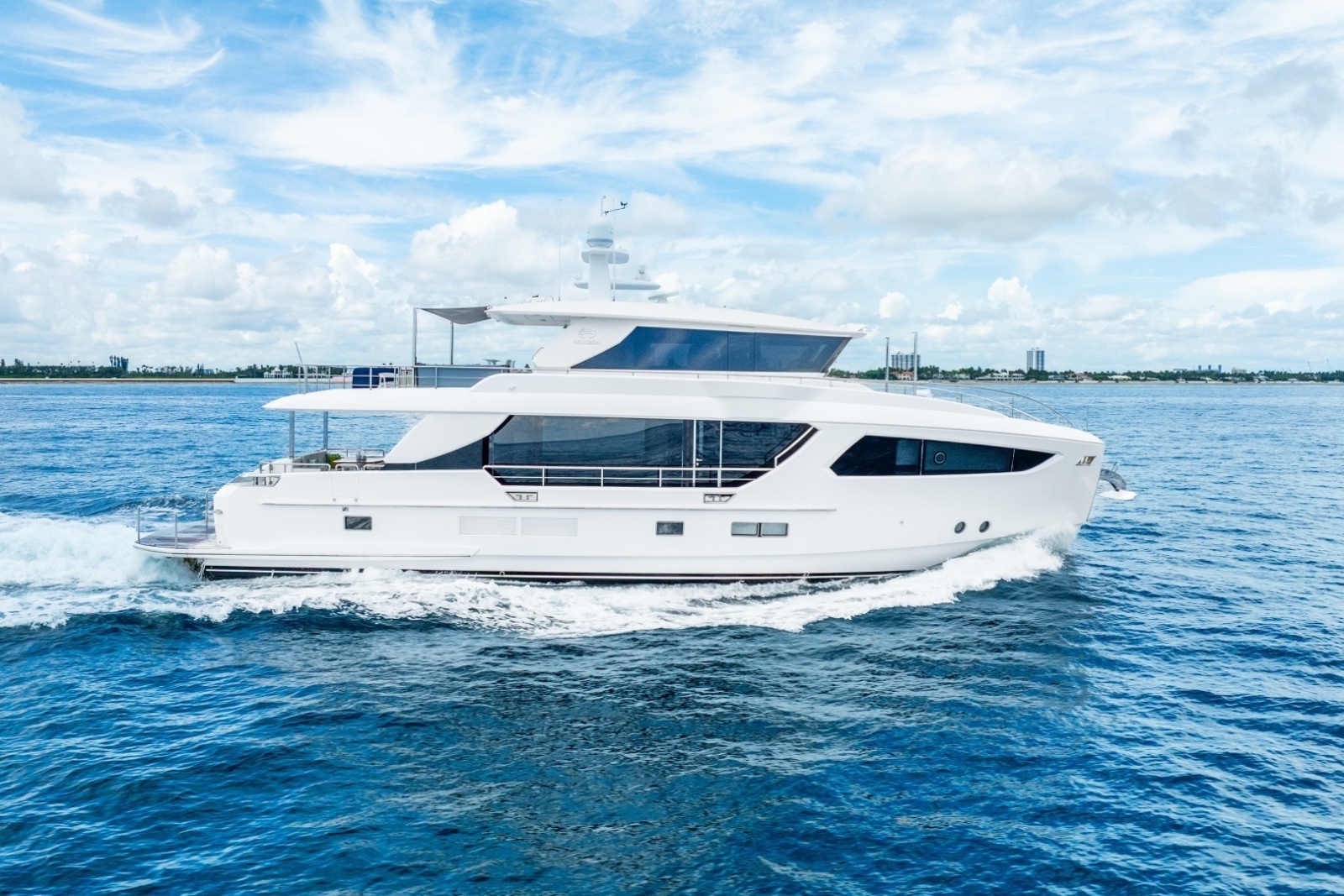

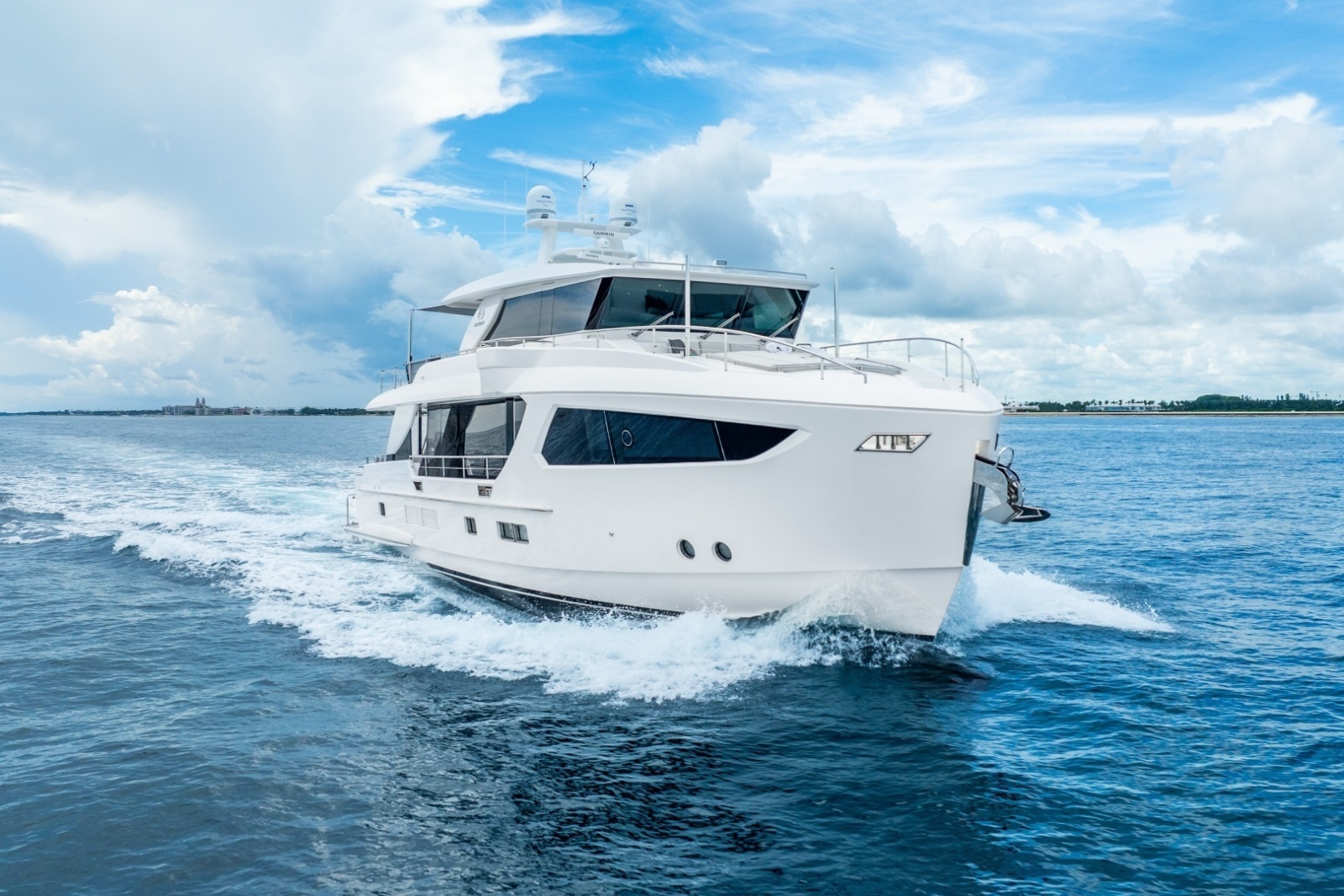

2020 Horizon FD80

Autopilot DVD Player Flat Screen TV GPS Navigation Center Radar Radio TV Set VHF Wi-Fi

Dishwasher Electric Bilge Pump Electric Head Fresh Water Maker Manual Bilge Pump Marine Head Microwave Oven Refrigerator Sea Water Pump Stern Thruster

Jacuzzi Underwater Lights Walk Around

Cockpit Cushions Cockpit Table Hydraulic Bathing Platform Hydraulic Swim Step Swimming Ladder Teak Sidedecks

Frameless windows w/ clear tempered laminated low-E glass for windshieldFrameless windows w/ tinted tempered laminated glass for side windowsHeavy duty 1 1/2" handrail w/ 1 1/4" S/S stanchions & steel cableForward and aft deck hawsers (4 total)Nonskid side decks and bow deckForedeck accessed from starboard staircase/walk around on main deck

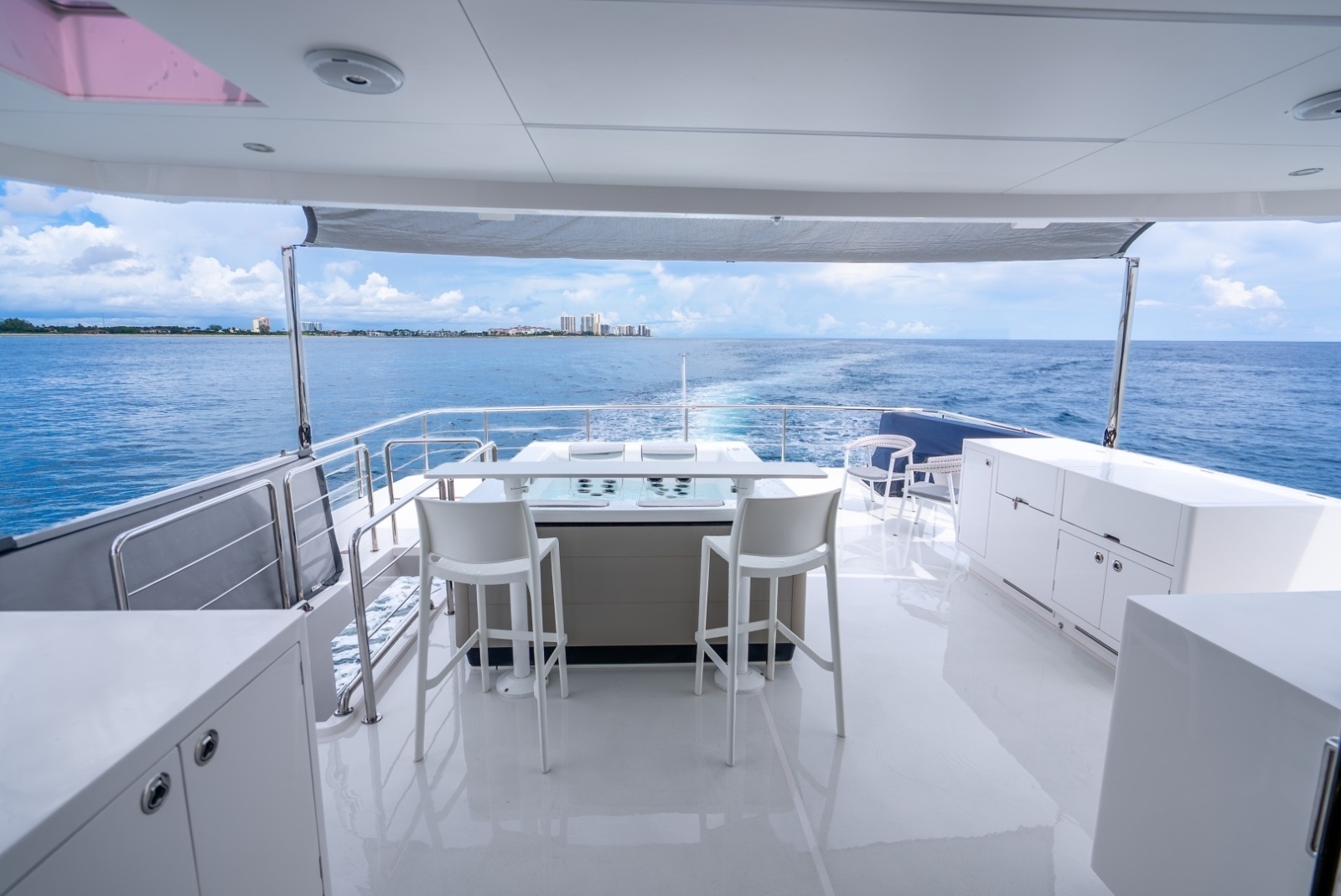

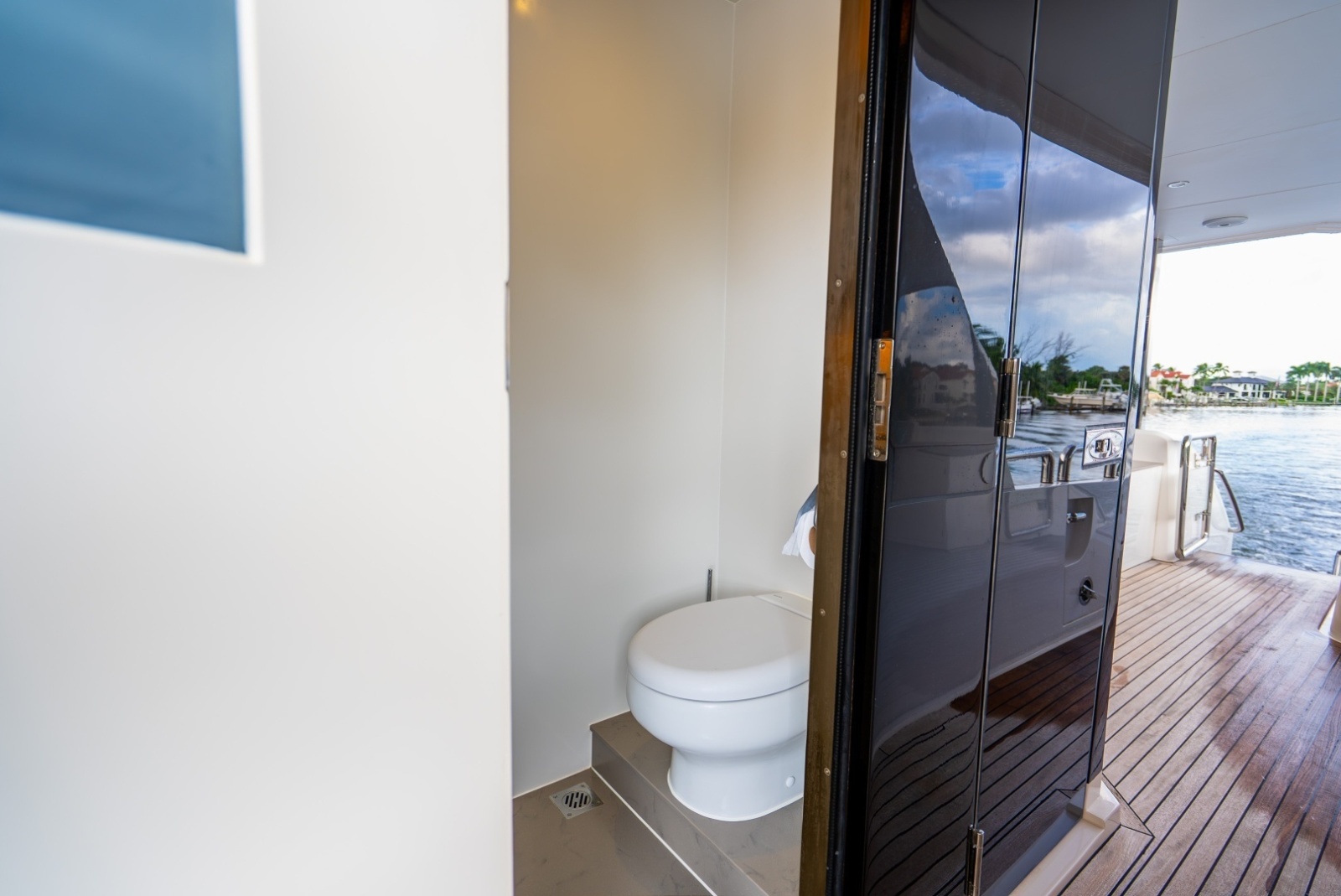

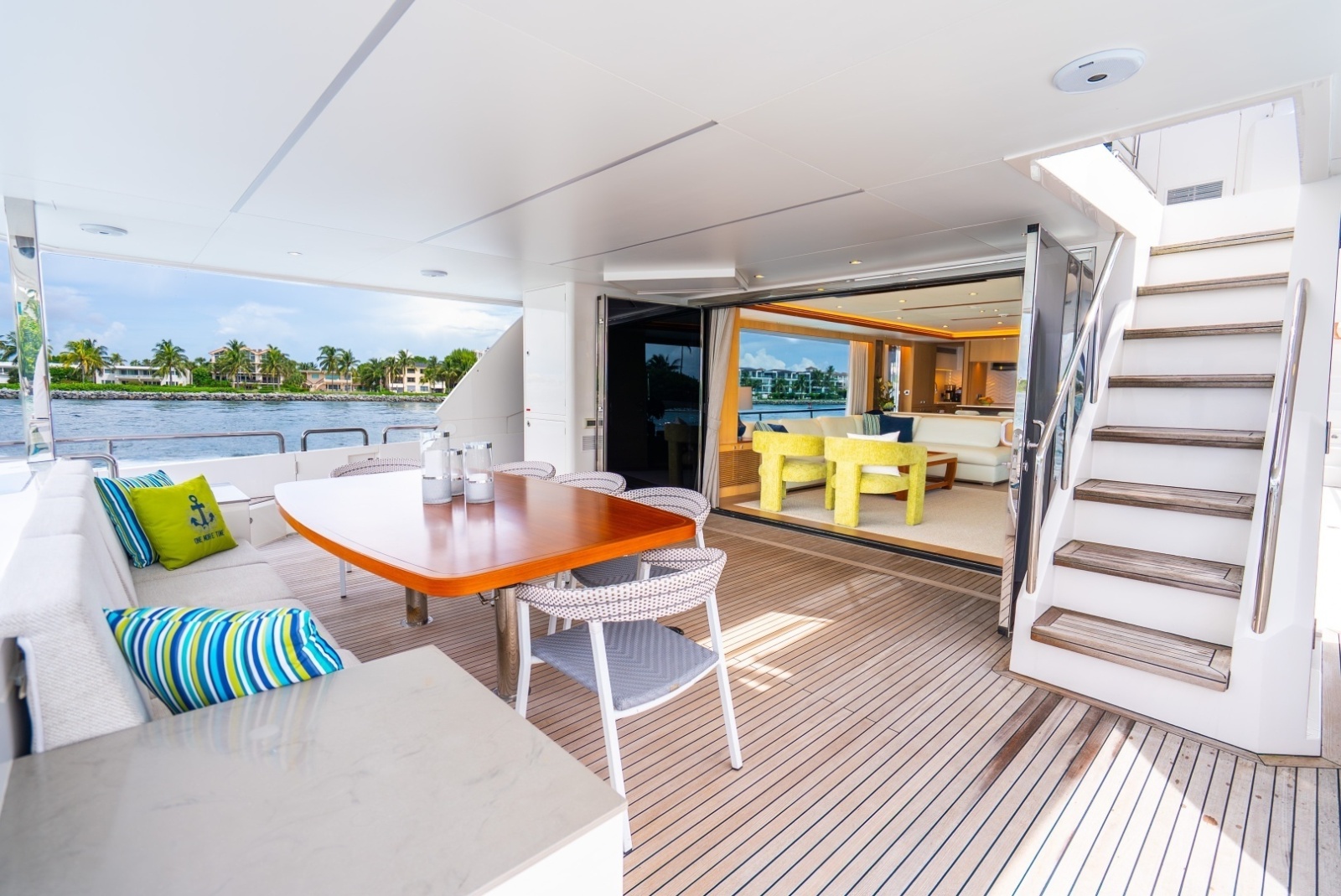

Foredeck built-in seating w/ folding tableForedeck sun pad w/ drink holders (& sun pad cushion to cover skylight)Sun awningPop-up LED lightsFreshwater and seawater washdown system350 ft high tensile 1/2" anchor chain w/ hidden cover120kg S/S anchorMaxwell VC3500 windlassBulwark side doors aft deck for boardingStaircase from aft deck to flybridgeTeak aft deck, teak swim platform and teak steps to swim platform, and stairs to flybridgeDay head on aft deckBuilt-in aft seating w/ Hi/Lo table w/ loose chairs (can be moved closer to built-in seating; two sets of table leg sockets)Full-height locker + refrigerator on port sideGlass windows on aft deck seating top for light into beach clubWing/weather doors to port & starboard leading to side decksElectric flip down Samsung 32" TV in ceilingPre-wired for LED boat name on sternFusion Marine stereo w/ speakers

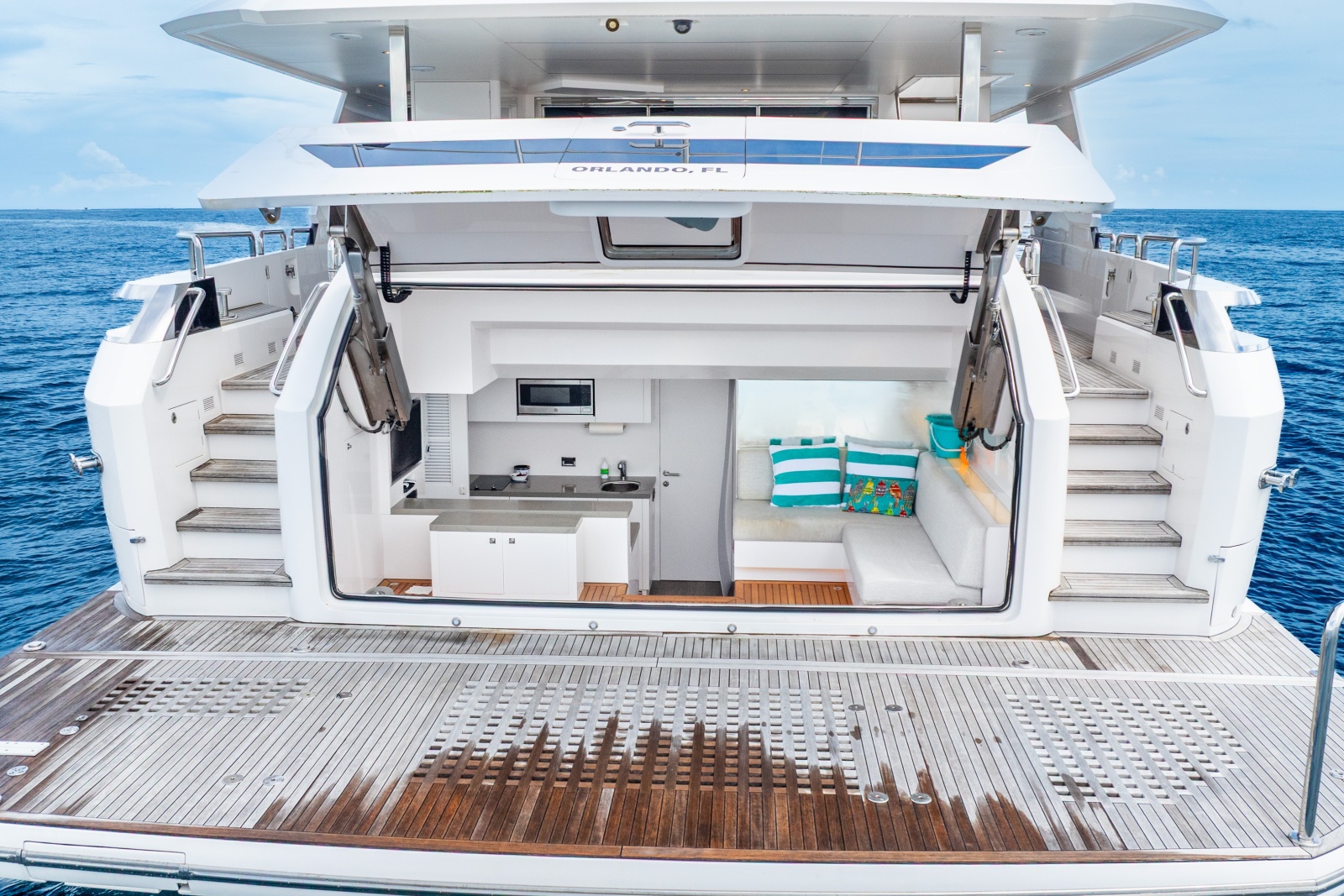

Hydraulic full-width stern door w/ pantograph door in the middle(2) Tinted windowsL-shaped seating w/ storageHydraulic Hi-Lo swim platform with 1500 lb. capacity(2) Pop-up cleats on swim platformBuilt-in shower w/ hot/cold water above swim platform(2) Removable corner rails w/ extra sockets on fixed platform section32" Samsung LED TVFusion Marine stereo w/ speakers

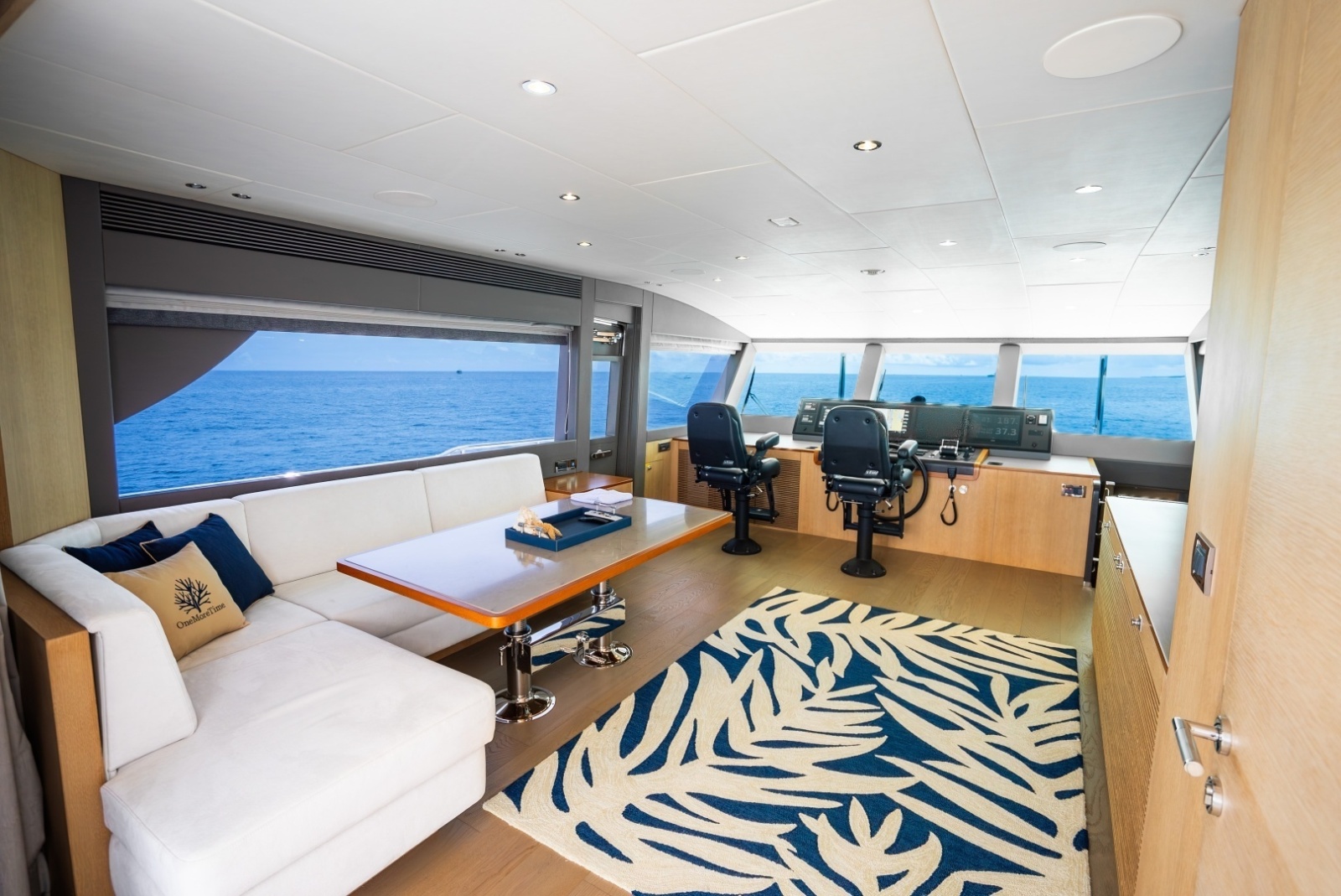

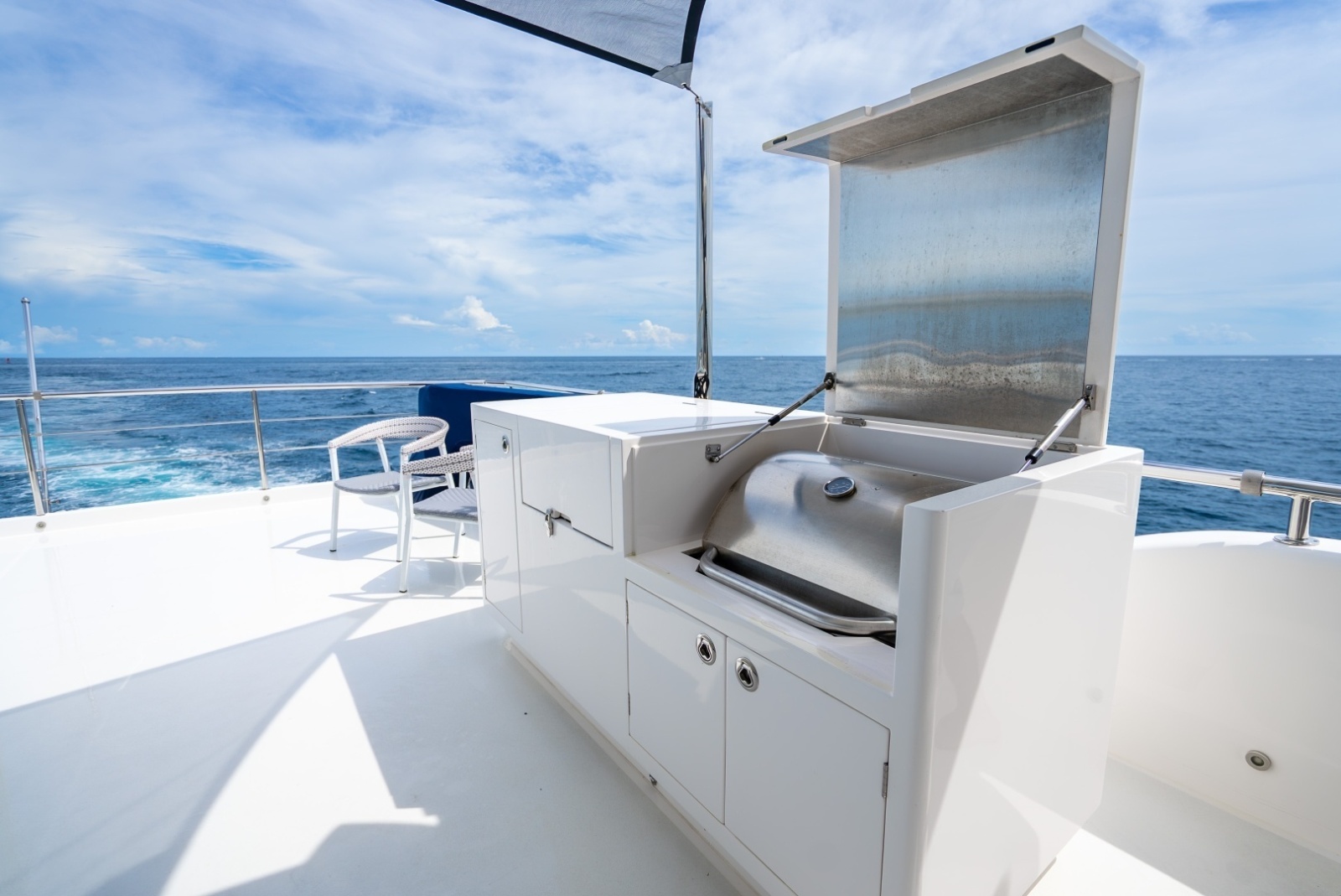

2-person hot tub on boat deckSkylounge design w/ sofa, Hi/Lo table, ottomans, day head(2) STIDD helm chairs at helm & Samsung 49" Hi/Lo TVCustom designed helm w/ full set of engine gauges, monitoring system for important equipment, fuel & water gauges, Ritchie Super Sport magnetic compassSurveillance camera system (PTZ cameras for aft deck & engine room), bilge pump panel & navigational lightsFusion Marine stereo w/ speakersNon-skid boat deckWalk-around bridge design; port side bridge leads forward to bow deckFree-standing sun padRefrigerator, sink & icemaker24" propane BBQ w/ Hi-Lo stand and propane storage in custom cabinetSun awningHydraulic Steelhead davit ES1500Oversize drains w/ strainers on each corner w/ internal overboard drains(1) Hatch on hardtop w/ a ship-loose retractable ladderRadar arch w/ antenna bracket(4) Flood lights total: (2) on mast & (2) on boat deck(2) Search lightsChrome-plated air horns on top of radar archPre-wired for LED boat name on port & starboard flybridge

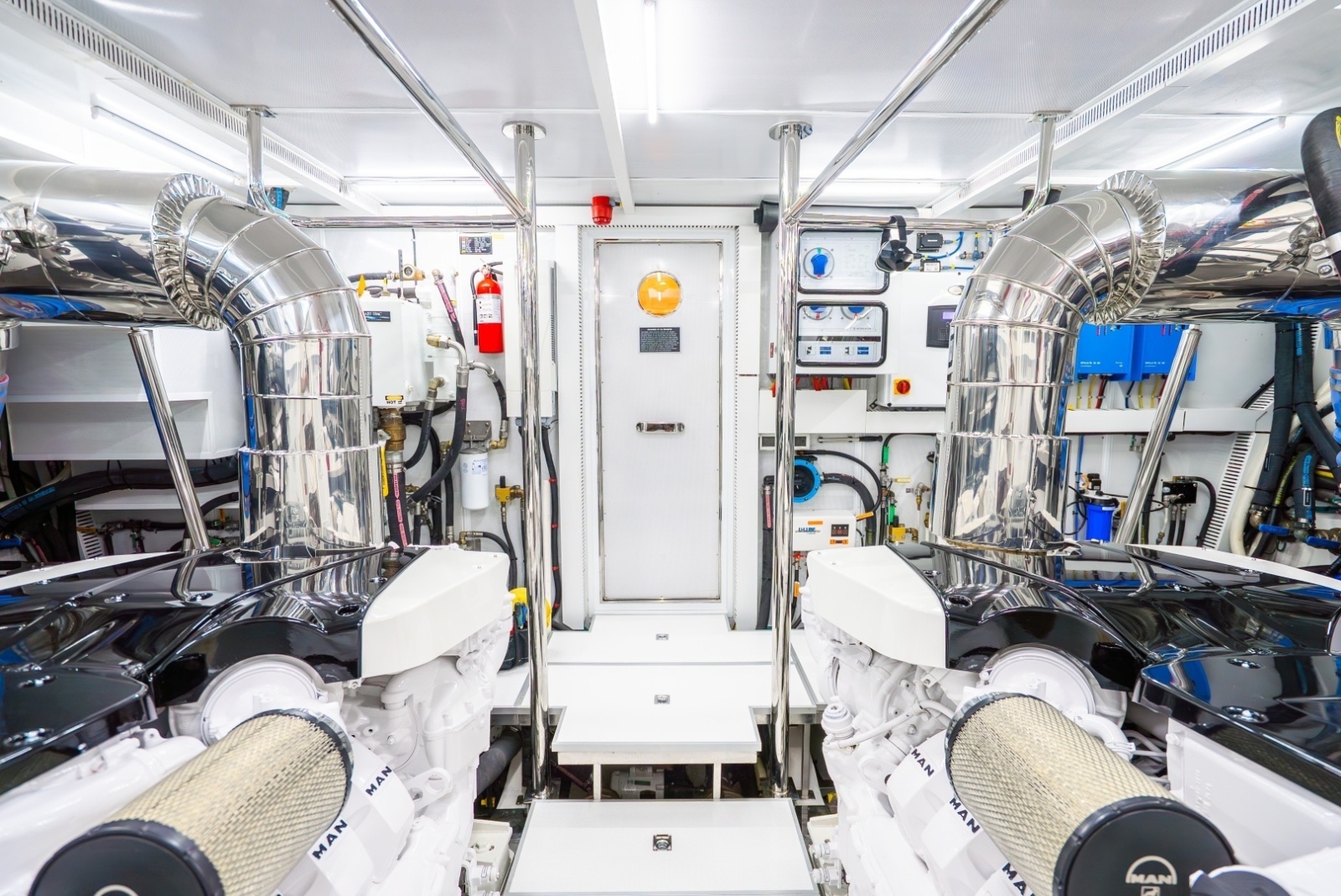

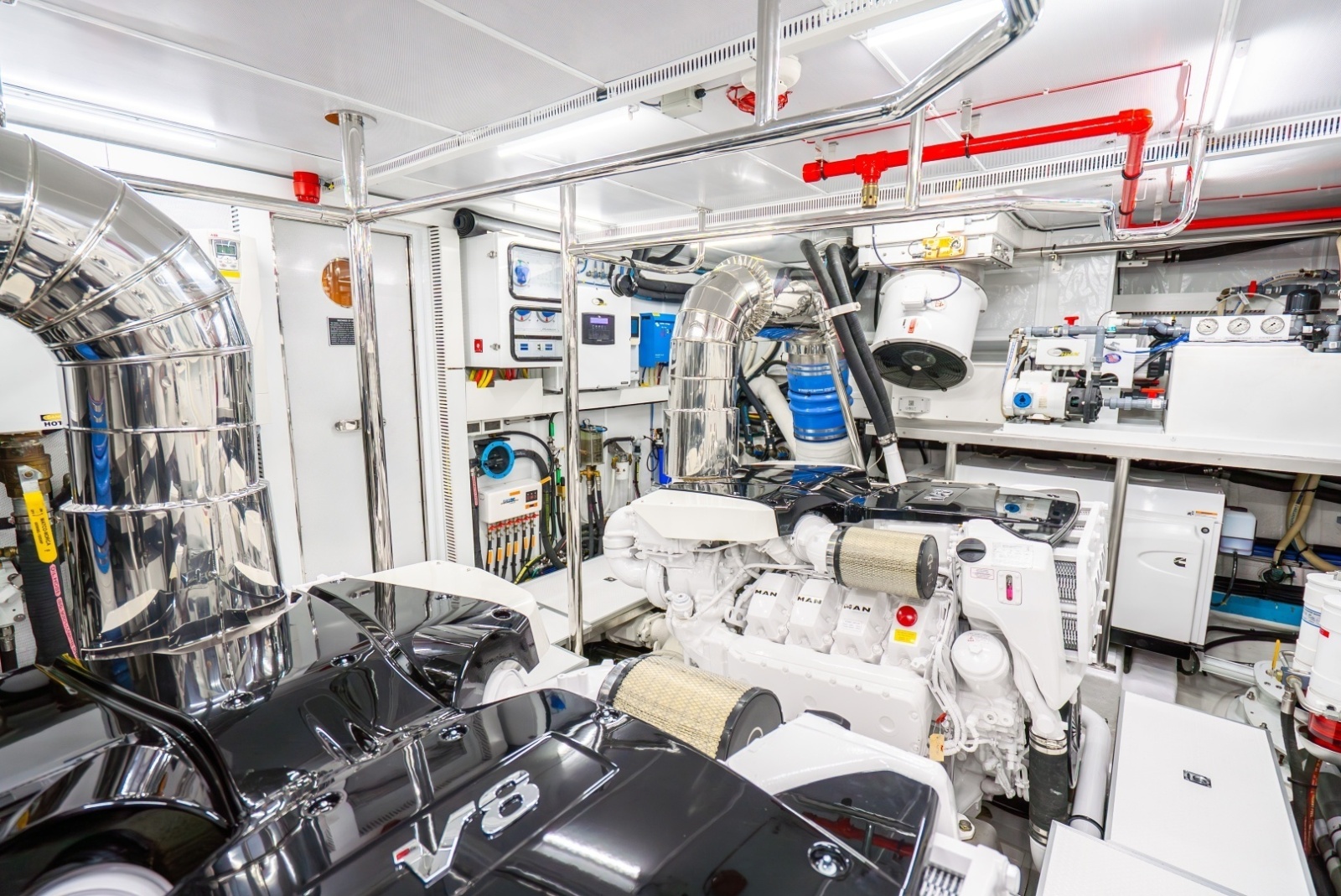

Twin MAN V8 1200HP diesel engines (30 hrs.) w/ZF reduction gearboxesEngine mounts on S/S engine bed bonded to FRP hull girderEngine alarm system as per engine standardRemote control (throttles, gears & thrusters) w/ plug on aft deck; extra plug at helmBosch Rexroth engine controlsS/S shafts Aqualoy 22HSHigh performance S class 5 blade propellersTeleflex SeaStar power steering systemS/S emergency tiller in rudder cabinUnderwater exhaust system for engines w/ bypass mufflersMain bronze strut w/ backing plateS/S rudders w/ zinc platesShaft & rudder packing glands w/ Tides Marine sealsABT Zero Speed Stabilizer (300/9X)ABT hydraulic bow and stern thrusters, 38 HP eachHydro-tab trim tabs w/ full automated 4DHC NMEA controlDelta T engine room ventilation systemHeavy-duty insulated engine room doorS/S grab rail on each side of engineEngine room LED ceiling lightsSwan air compressorPre-plumb and pre-wire for dive compressorER strainer plumbing with cross over line and fresh water flush

2,700-gallon (total capacity) fuel tanks w/ sight and electric gaugesDual Racor 75/1000 MA fuel filters/water separator, each engine(2) Electric fuel transfer pumpsReverso FPS210 fuel polishing systemOil change pump systems for engines, gears & generators(2) Racor 500 MA fuel filters400-gallon FRP water tankMarine grade lines for fresh water system(2) 20-gallon water heatersSea Recovery water maker, 700 gal/dayHigh volume AC fresh water pressure pump & back-up DC pumpFresh water charcoal filters plumbed into fresh water line: fresh water pump, shorewater inlet, galleyChilled water Marine Air Dometic VARC chiller & STIC AC systemBackup A/C sea water cooling pump (ship loose)Hot water circulation pumpTecma Silence Plus toilet system100 gallon holding tank w/ Y valve & deck fitting for dockside pump outSump pumps system for grey waterElectric level indicators for holding tankHeadhunter sanitary system(5) Electric Rule bilge pumps(2) Manual bilge pumps in ER & forward stateroomsHigh water level bilge pumpBilge exhaust ventilation fansFire insulation in ERFire resistant treatment for pipe penetrations(5) Portable fire extinguishersSea-Fire fixed fire extinguishing systemIntegrated fire system in Skylounge

LED lighting system throughout interior & exterior(2) Onan Generators 29kW (60Hz) with sound shieldMaretron monitoring & control systemOctoPlex multi-plexing power distribution system(2) Glendinning 100Amp shore power cable masters, each w/ 75’ power cable(2) Shore power Acme ISO boost transformers(4) Lifeline 255Ah start batteries for engines/generators w/ battery chargers(4) Lifeline 255Ah AGM batteries for ship’s DC 24V power w/ combined inverter/chargersGFI protection for all AC outlets in exterior, heads, galley, and engine roomElectrolysis bonding systemCathodic protection with zinc anodes for shafts, struts, etc.(6) Underwater lights

Guest accommodations include on-deck master stateroom, forward VIP cabin, port VIP cabin, and starboard twin guestroom, all ensuite Crew has a twin crew stateroom, full head & crew galley, w/ access from salon and transom Custom luxury interior package for interior décor & lighting Full set of Horizon logo galley tableware for 10, including dish holder, pots/pans, dishes, plates, knives, forks, glasses, etc.

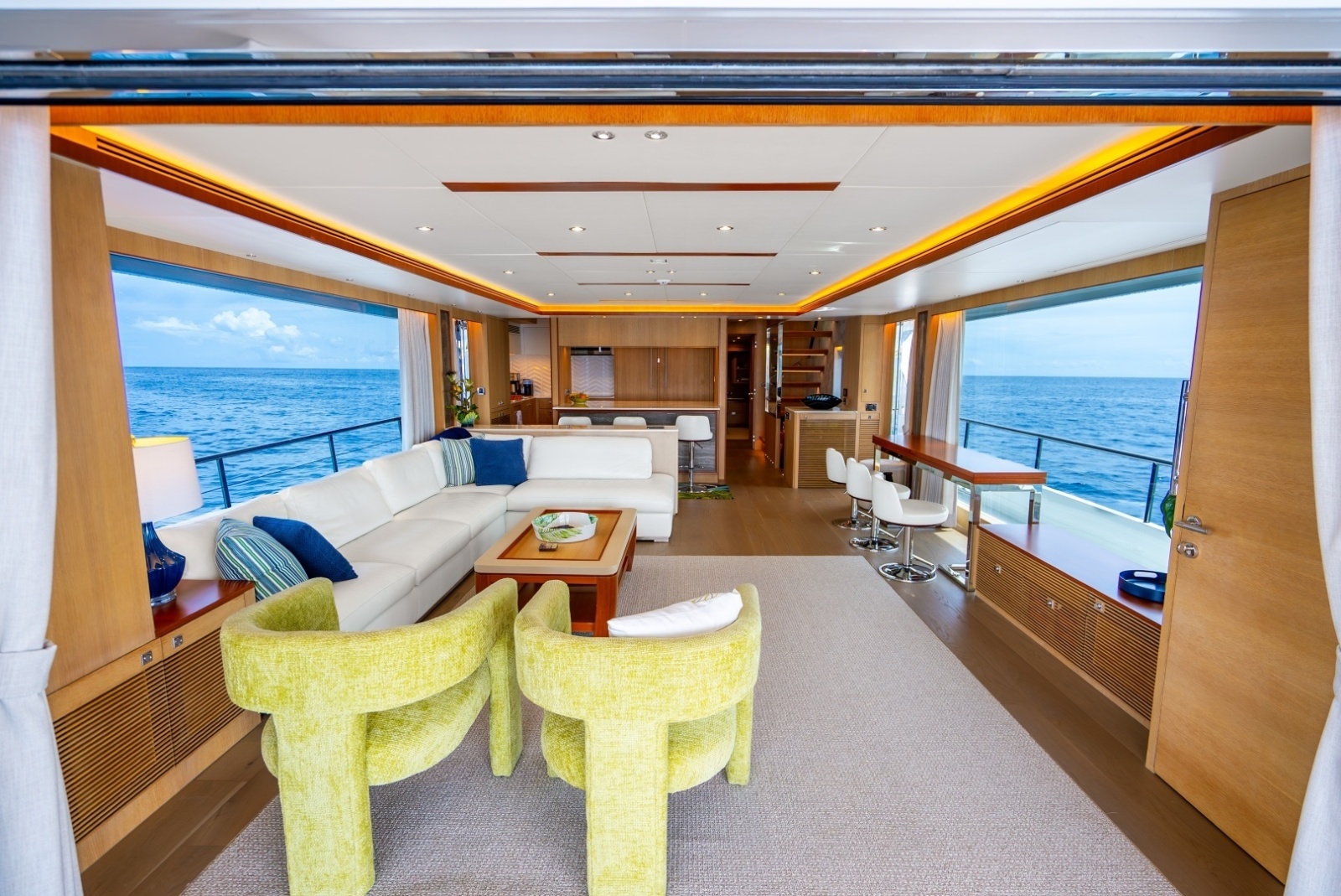

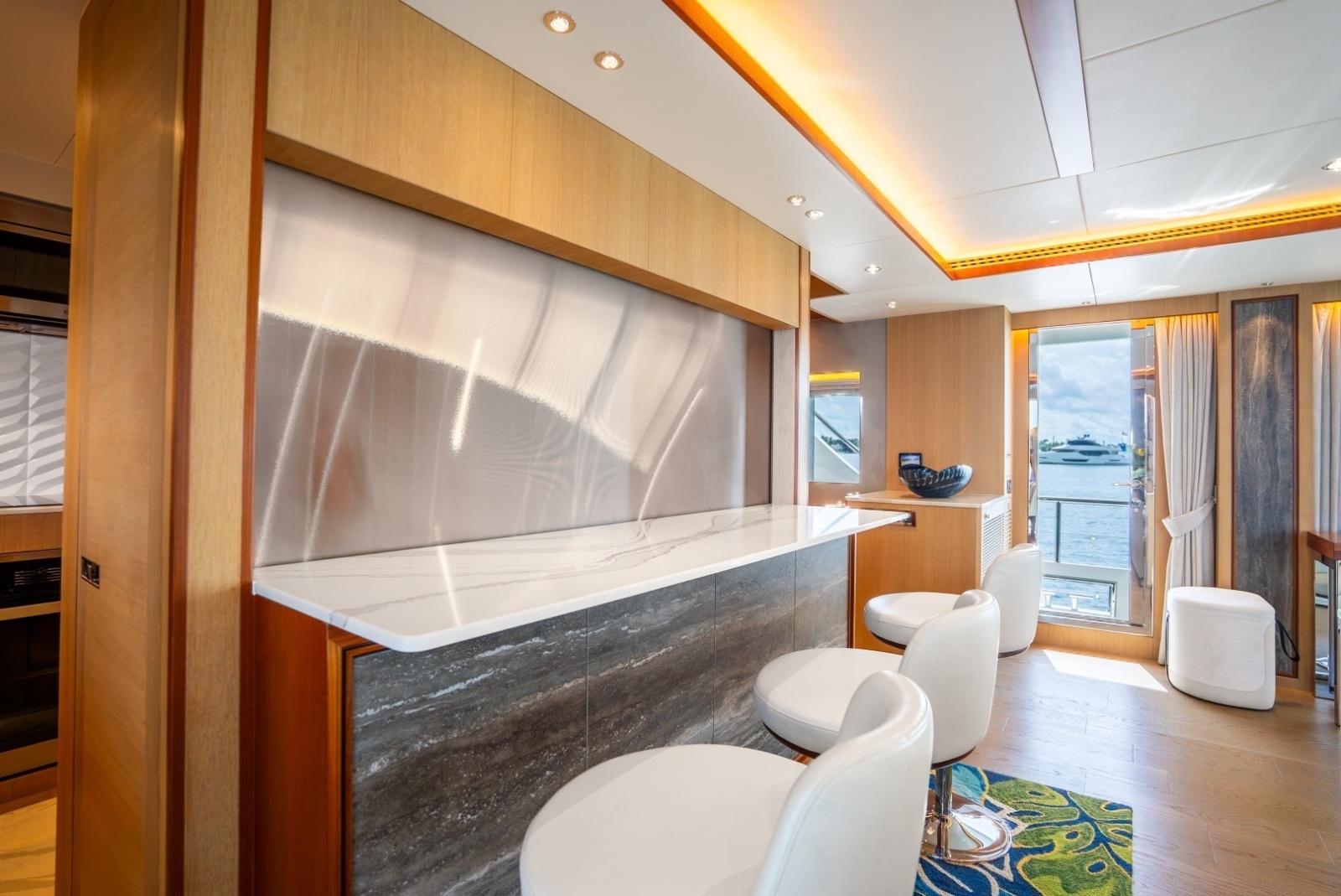

S/S folding & sliding salon entrance door, self-locking, with additional glass doorFull-height windows in main salon aftElectric single-treatment curtainL-shaped sofa w/coffee table & stoolsPort side cabinet + folding table & chairs55” Samsung LED TV, fold down from ceilingBose soundbar 700 home theatre systemBlu-Ray playerApple TVBreakfast bar design w/ 3 stools & under-counter glass storageWine coolerHinged opening doors to port & starboard

Storage lockersSub Zero full height refrigerator w/freezer drawersPantry w/ Sub Zero freezer drawers underneathMiele oven & cook topBosch microwave & range hoodMiele dishwasherBlanco double sink w/ garbage disposalKitchenAid trash compactorHi-Lo privacy screen between galley & salonHidden doors to enclose galley for privacy

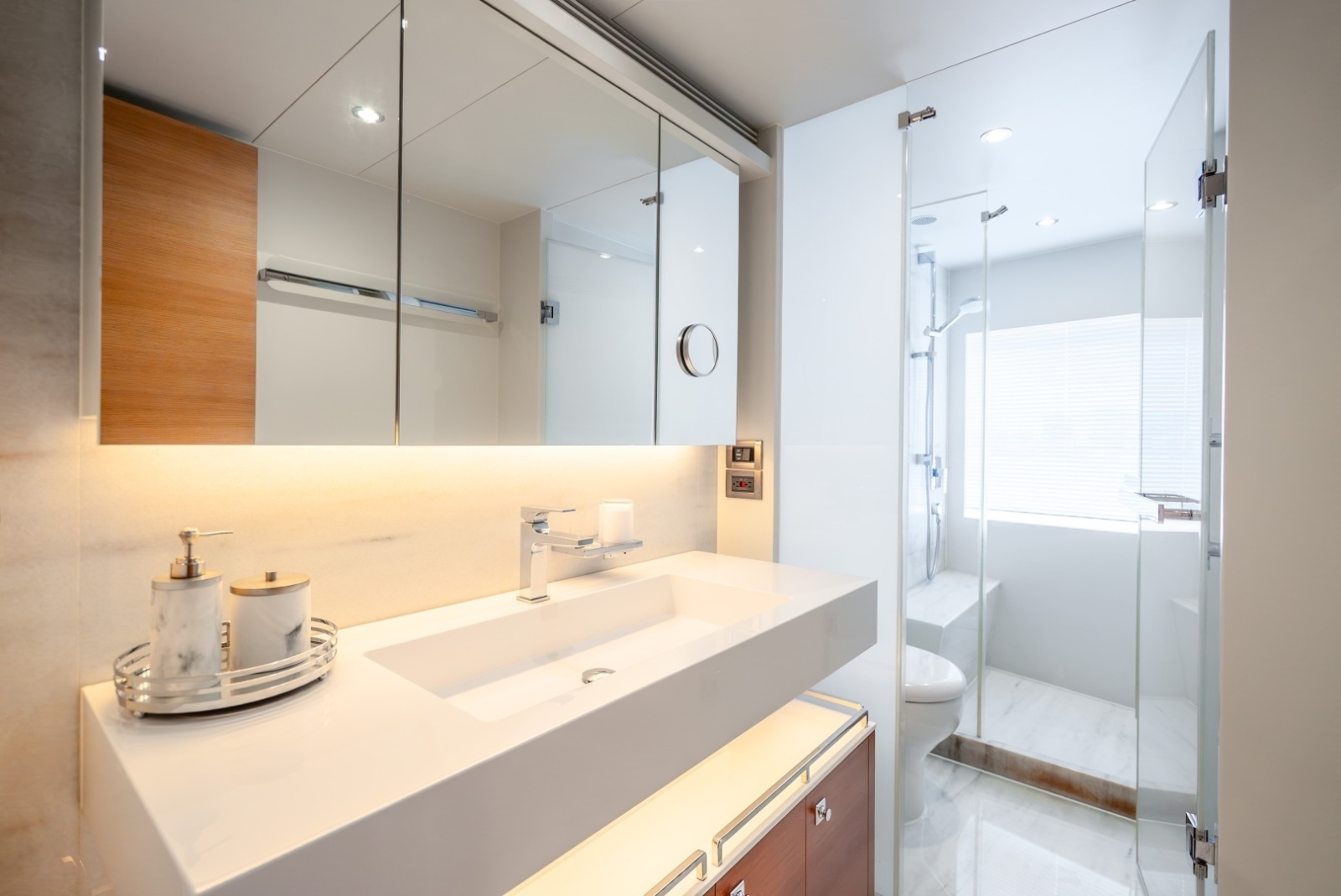

On-deck King bedWalk-in closet + additional storageSofa to portChest of drawers w/storage to starboardEnsuite head w/ shower, large sink, and toiletOpening port holes, 1 each in large window port & starboardSkylight w/ electric OceanAir blindElectric roman blinds49” Samsung LED TVBose soundbar 700 home theatre systemBlu-ray playerApple TV

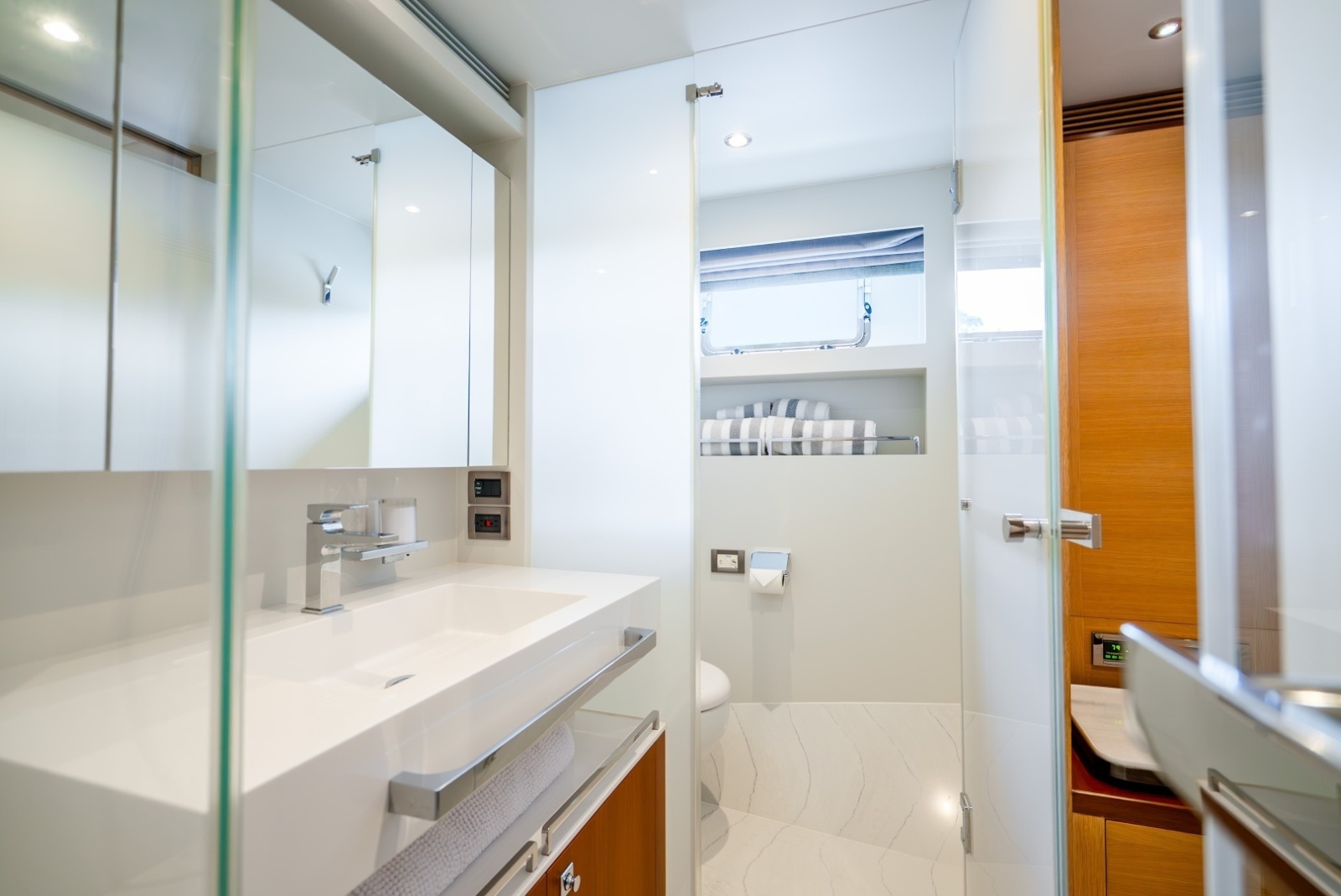

Walk-around Queen bedTwo hanging lockers, port & starboardEnsuite head w/ shower, sink, and toiletSamsung 32” LED TVFusion Marine stereo w/ speakers

Walk-around Queen Bed w/ drawersLarge hanging closetEnsuite head w/ shower, sink, and toiletSamsung 32” LED TVFusion Marine stereo w/ speakers

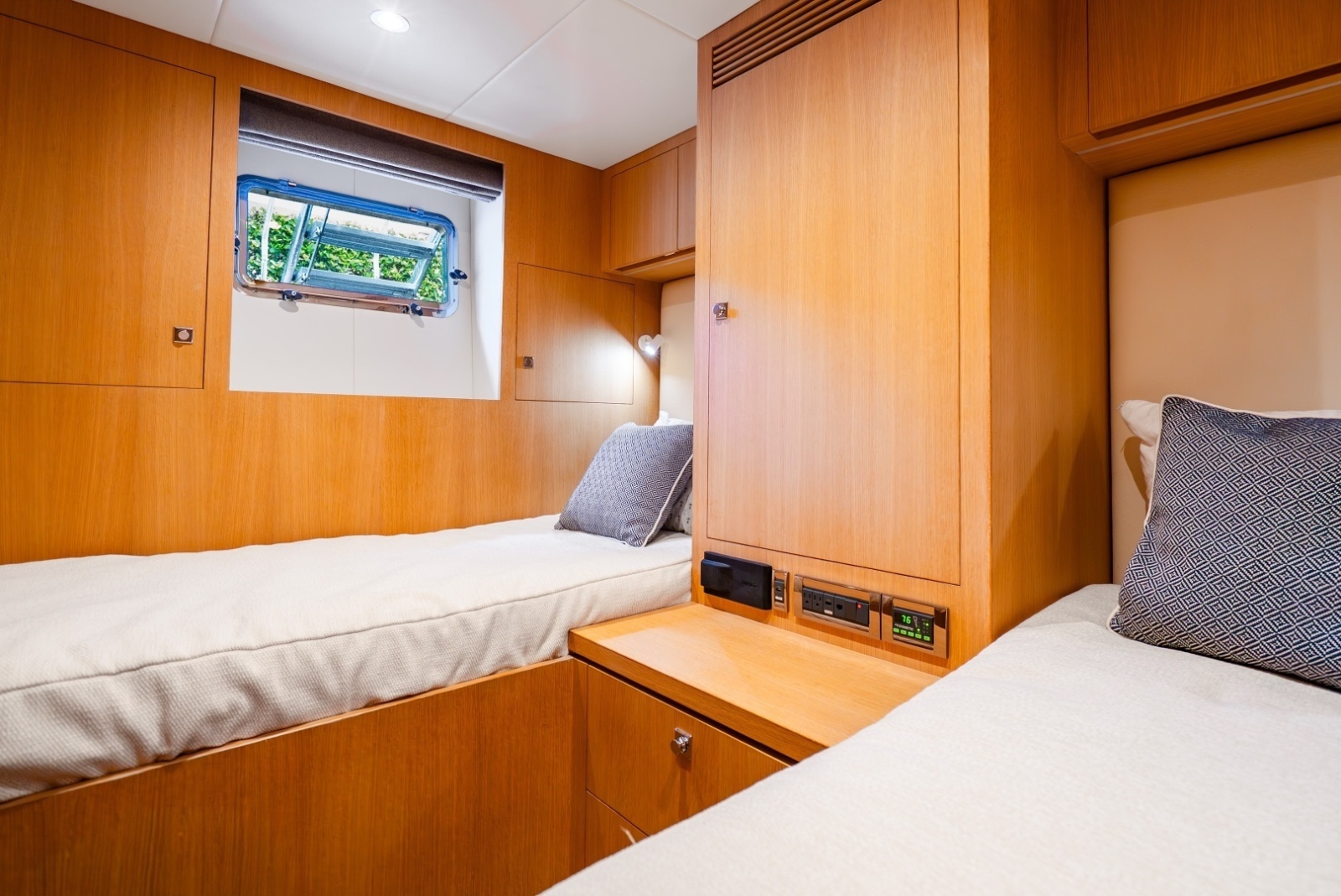

(2) Sliding twin bedsHanging closetEnsuite head w/ shower, sink, and toiletSamsung 32” LED TVFusion Marine stereo w/ speakers

Wood steps and flooringMiele stacked washer/dryerLinen lockerDyson cordless vacuum w/ built-in storage spot

GE microwave & Kenyon cooktopVitrifrigo fridge + freezer drawersGE stacked washer/dryerStorage lockersTwin stateroom w/ two beds & hanging lockerHead w/ shower, toilet & sinkFusion Marine stereo w/ speakersDyson cordless vacuum w/ built-in storage spot

TV antenna on top of radar arch(5) Panasonic PBX wireless telephonesExterior connector for shore phone and cable TVSAT TV (KVH TracVision HD7) + (1) KVH TracPhone V7-IP Empty DomeSAT phone pre-wire onlyCellular router system w/ Wi-Fi onboard

(4) GPSMAP 8617 MED 17” Multifunction displays(1) dedicated to MaretronGarmin GMR 1226 72” 12KW 72nm open array radar system + GMR Fantom 4 48” solid state open array radar &pedestalMBB300C for inputting Maretron info into GARMIN displayGarmin GPS 19 NMEA 2000Garmin Reactor 40 autopilot control unitGarmin instrument display w/ wind transducer; depth, speed & temp transducersGarmin fish finderGarmin weather receiver(2) Garmin VHF 215Garmin AIS 800
