Versilcraft Planet 120
CHOO CHOO
2007 • 119' (36.30 m)
• Power
HR
$3,317,040 USD

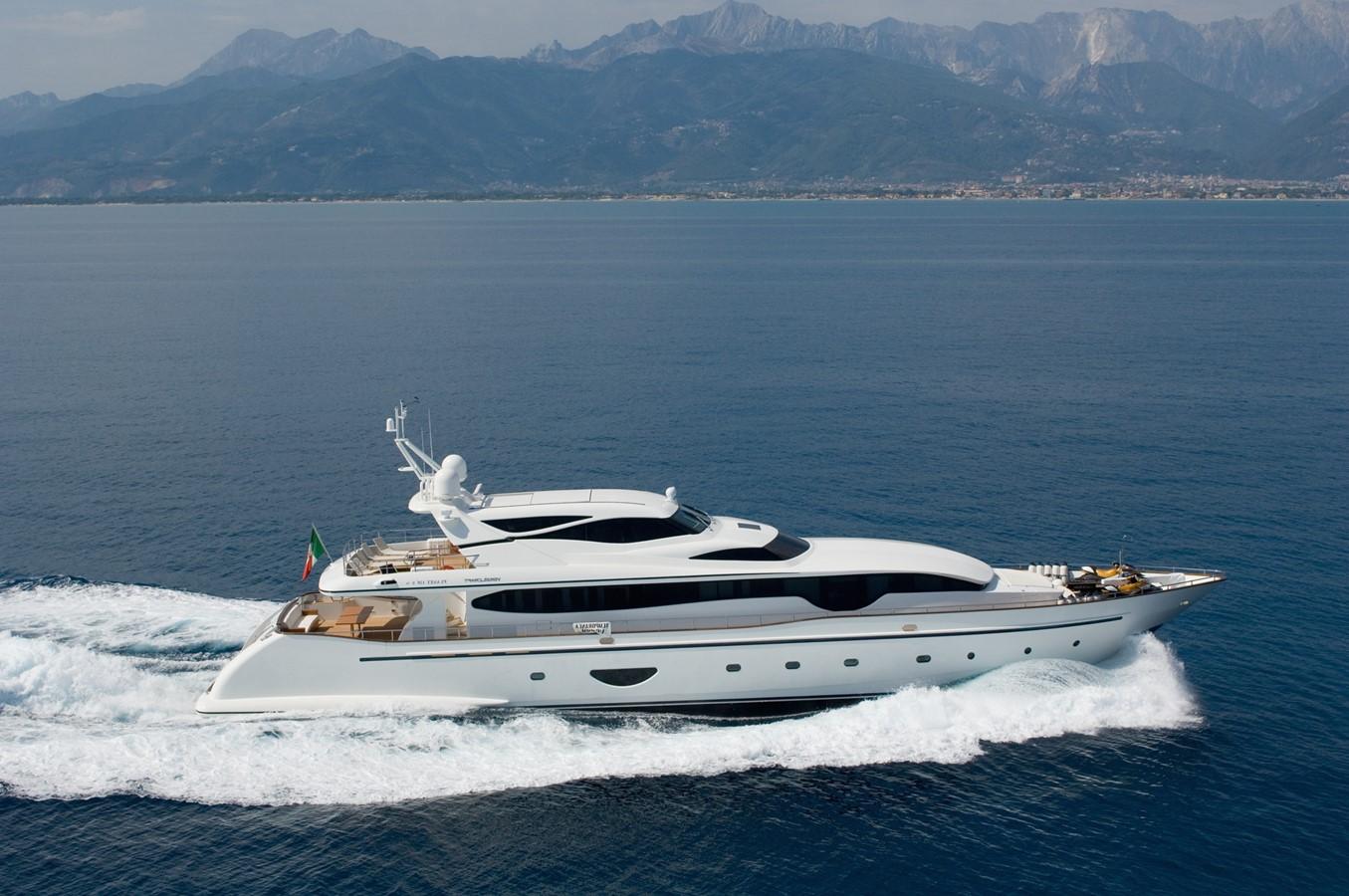

This vessel is not only able to hit a top speed of 27 knots but also cruise at 9 knots while maintaining a healthy engine load and consequently consuming as little as 100 lt / hr. The impressive engineering required behind being able to achieve this, is carried across the vessel as she is built and still owned by the same knowledgeable and experienced Owner.
This high specification includes zero speed stabilizers, bow and stern thruster, 360 lt / hr water marker, alfa laval fuel purifier, a transformer swim platform and a tender garage able to store a small car (or a 5.3m tender!).

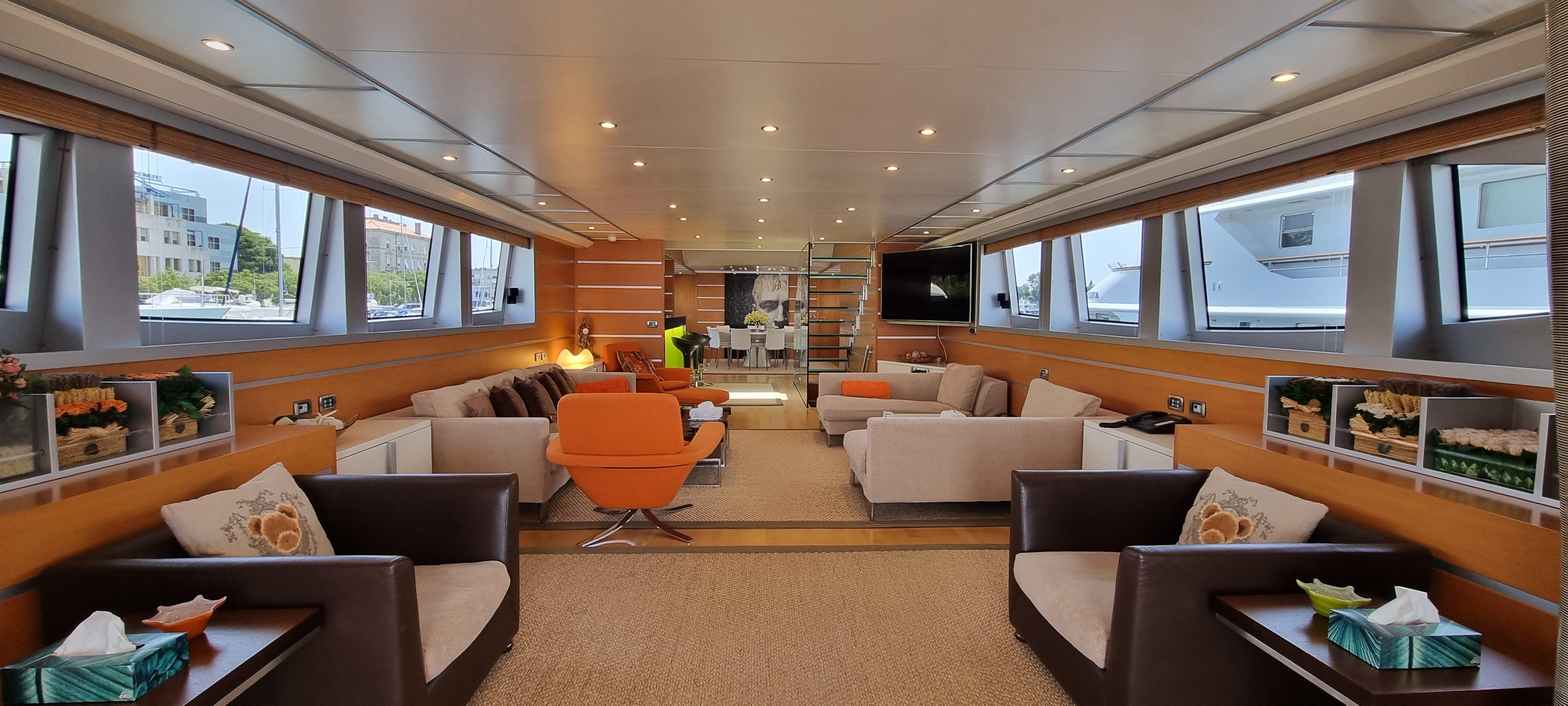

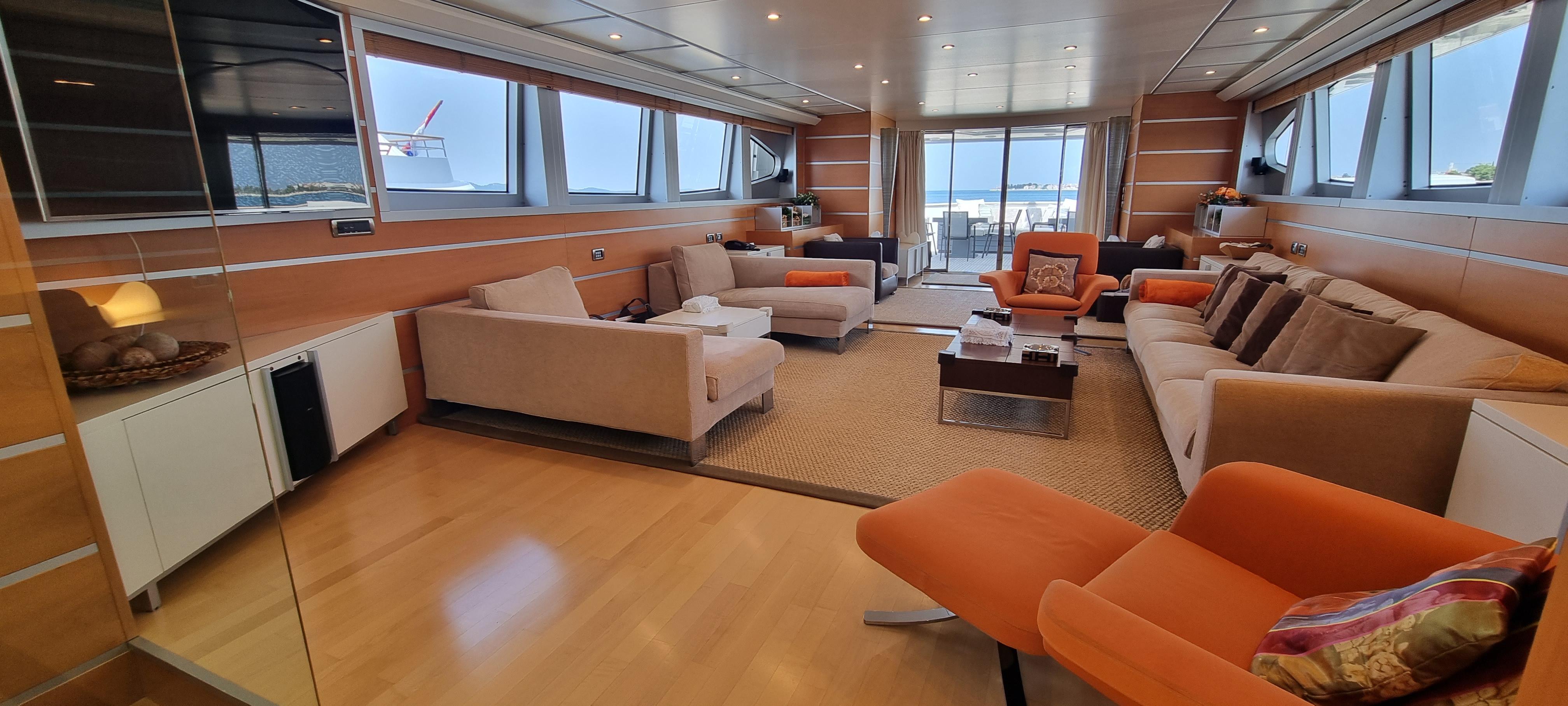

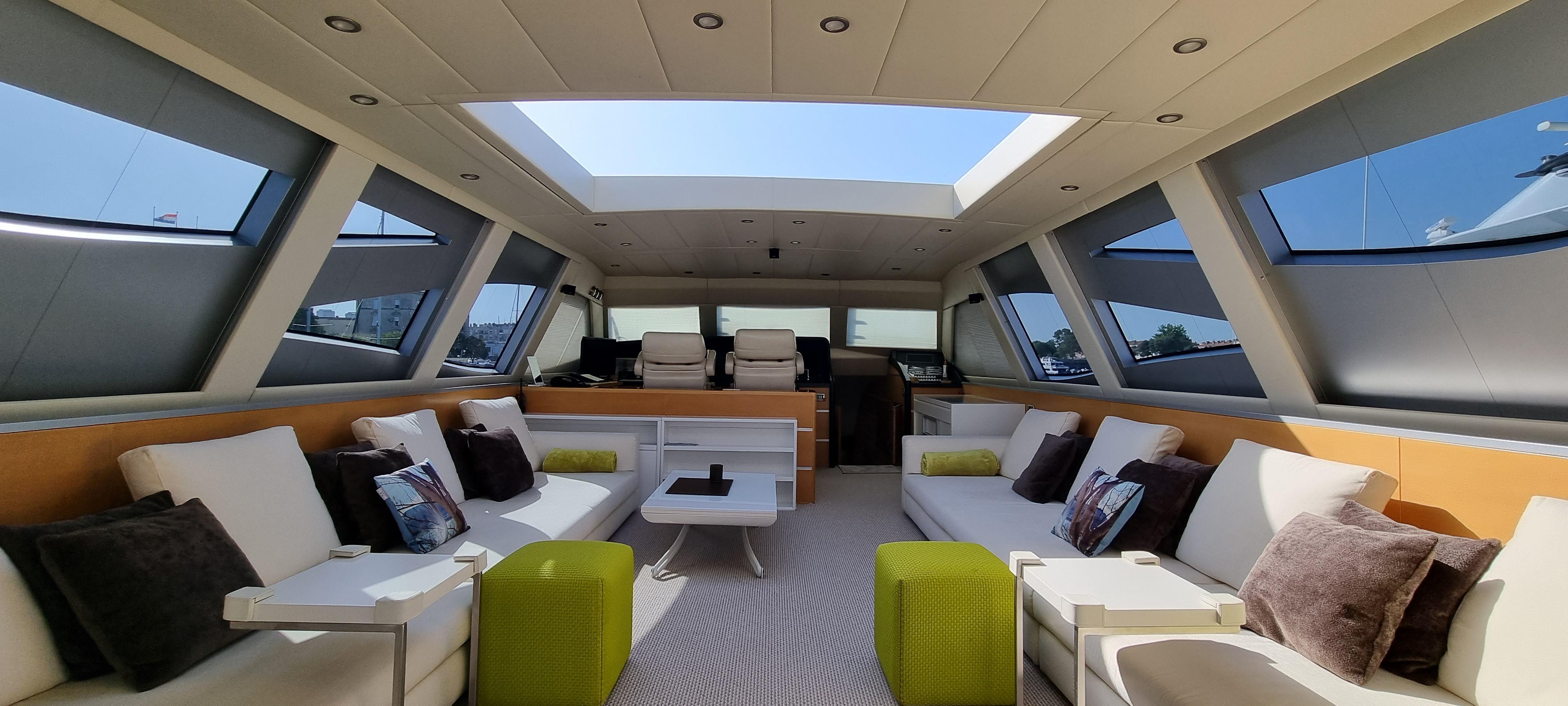

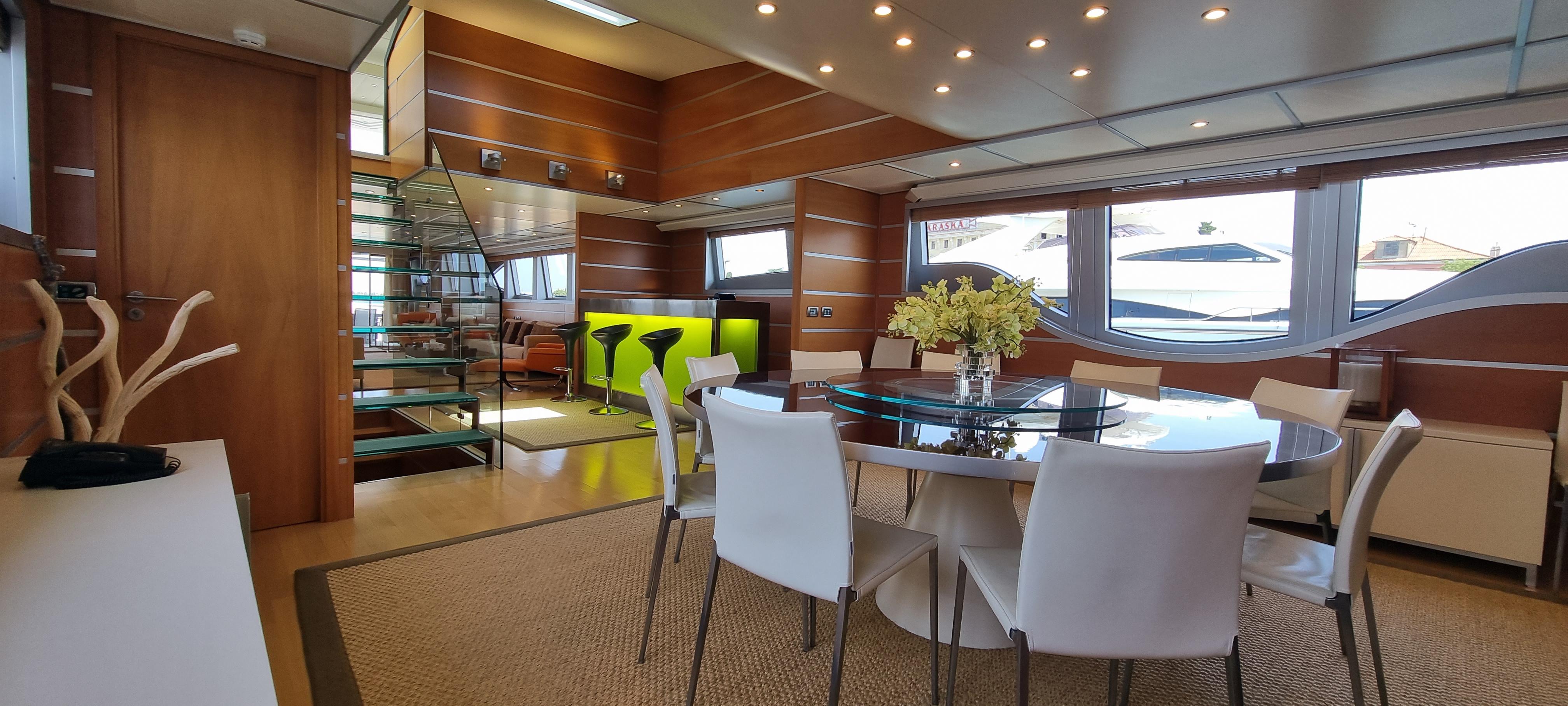

Her design has created unique features to the industry such as the longest open plan main salon of any competitor, average deck height of 210cm up to 260cm and a great feeling of large volume throughout.
Maintained by a full time professional crew including same Captain since build, nothing is left to chance in order to assure the vessel functions to her full capability.
Vessel Information
| Builder: | Versilcraft |
|---|---|
| Model: | Planet 120 |
| Model Year: | 2007 |
| Category: | Power |
| Sub Category: | Motor Yachts, Pilothouse |
| Condition: | Used |
| LOA: | 119' (36.30 m) |
|---|---|
| Engine Info: | Caterpillar C32 Direct diesel 1343|kilowatt Inboard 4 Blade 2006 2953 Port |
| Location: | Zadar, HR |
|---|---|
| City: | Zadar |
| Country: | HR |
Specifications
TYPE
Triple Screw, Planing Hull, Motor Yacht
FLAG
Cayman Islands [KY]
CLASSIFICATION
RINA + 100 – A – 1.1 ; Y [Yacht Engaged in Private Use]
Unrestricted navigation
DIMENSIONS
Length O.A. 36.35 m (119'2")
Length W.L 30.56 m (100'2")
Beam 7.10 m (23'2")
Draft 2.63 m (8'6")
Moulded Depth 3.50 m (11'4")
VOLUMES
GRT 235
Net 70 tons
YEAR BUILT
2007
YEAR REFIT
2013
BUILDER
Cantiere Navale Euroyacht s.r.l (New Versilcraft), Viareggio, Italy
HULL DESIGNER
C.L.M. Project
INTERIOR DESIGNER
Studio Neri Architetti
CONSTRUCTION
Hull: Glass Reinforced Plastic (GRP)
Superstructure: Glass Reinforced Plastic (GRP)
Deck: Teak Laid
Main Machinery
ENGINE HOURS 21/06/2022
Port: 2,914 hrs
Central: 4,540 hrs
Starboard: 2,917 hrs
GEARBOX
2 x ZF with independent oil pumps for windmill situations when running on one engine
1 x Central gearbox with two gear ratio to allow for healthy load at 10 knots
SHAFTS & PROPELLERS
3 x
Auxiliary / Ancillary Machinery
GENERATORS
2 x Kohler 70EFOZDJ 230/400V 50Hz 70kW (2017)
GENERATOR HOURS 21/10/2022
Port: 2,077hrs
Starboard:2,039 hrs
SHORE POWER
Yes
THRUSTER
1 x ABT Hydraulic Bow thruster
1 x ABT Hydraulic Stern Thruster
STABILISATION
ABT TRAC Zero Speed fin stabilizers 3000 9.0X (STAR) system
SEWAGE TREATMENT
Hamann 1cbm/hr
FUEL SEPARATOR AND FILTERS
Alfa Laval MM8 3045-11
AIR CONDITIONING
Giusti Cold Systems ACG2000 Unit with 3x Compressors The system has an optional "fresh air" system which can pull outside air into the cabin without any conditioning.
WATER MAKERS
2 x Idromar 180 lt / hr
BATTERY CHARGER
Victron Energy Skylla-i
FUEL PUMP
Tender fuelling station located in Garage
Maintenance and Upgrades
All main mechanical items are serviced according to the manufacturer's recommendations, to full effect and in anticipation for avoidance of any issues during the season. Below is a highlights list.
2012
Top end rebuild of the main engines
2013
Full repaint to Awlgrip at ISA shipyard in Ancona
Main deck teak fully replaced to 18mm
2017/18
Sika renewed on cap rails and sanded
Starboard and Port generators replaced to upgraded 70 kW
Main engine injectors and systems inspected and found in good order by Cat.
2020
Teak on swim platform and stairs replaced
Main propeller shafts and bearings fully replaced
New Starter batteries x 2
Water maker membranes replaced
All rubber on all hydraulic features of the vessel were replaced (pipes and seals)
2021
All rubber pipes on the main engines replaced.
New Battery chargers
New 2v Service batteries x 12
New tender battery
Fuel tanks opened and cleaned (done roughly every two years)
Main engines heat exchanger gaskets replaced
Sea water pumps replaced on A/C
Hamann pump replaced
New Fuel pump pipe in garage
2022
Engine room lights replaced to LED
New fuel pump nozzle in garage
