Custom Smart Trawler 50

2001 • 52' (15.88 m) • Power
CA

$350,000 USD

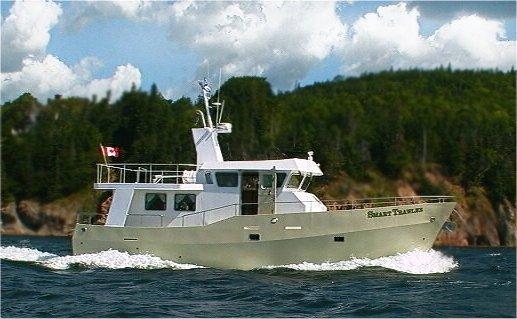

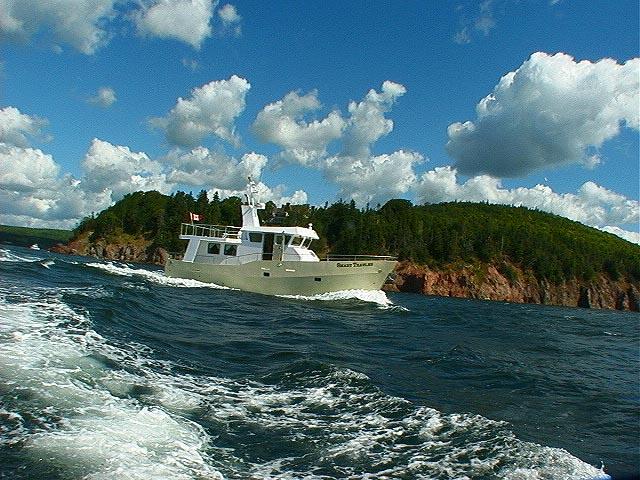

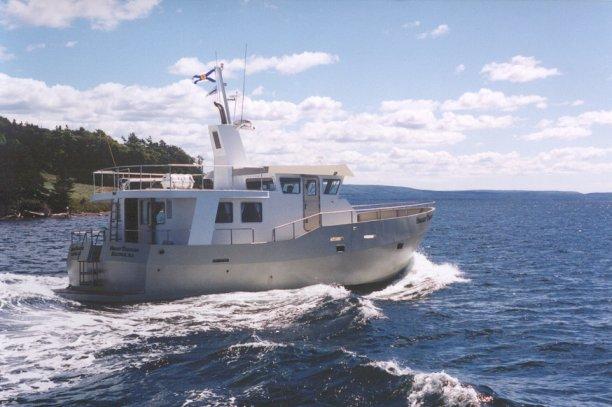

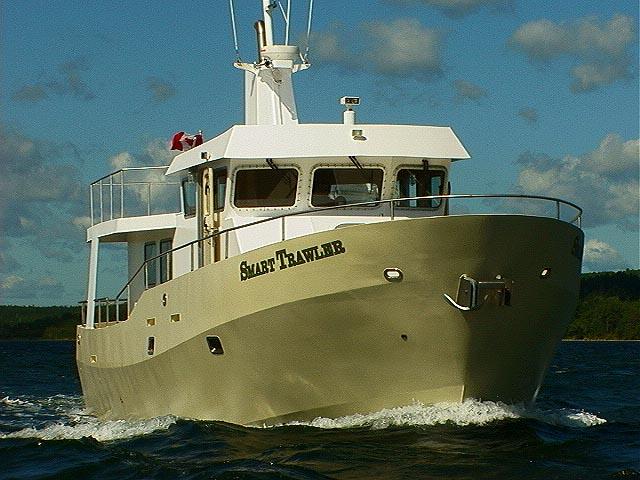

The Smart Trawler 50 is a full displacement motor cruiser based on successful traditional North Atlantic working craft hulls. It is designed for unrestricted ocean use and extended offshore cruising. The vessel is built to ABS and Lloyds scantlings with a steel hull construction and aluminum superstructure. It meets applicable ABYC standards. The Smart Trawler 50 provides sea kindliness, handling ease, easy maintenance and operational economy.

Hard chines and a substantial keel minimize roll and a bulbous bow reduces pitching and improves fuel efficiency. Two longitudinal fuel tanks keep the weight low while minimizing free surface effect providing a more comfortable and stable ride. Optional stabilizers can be added.

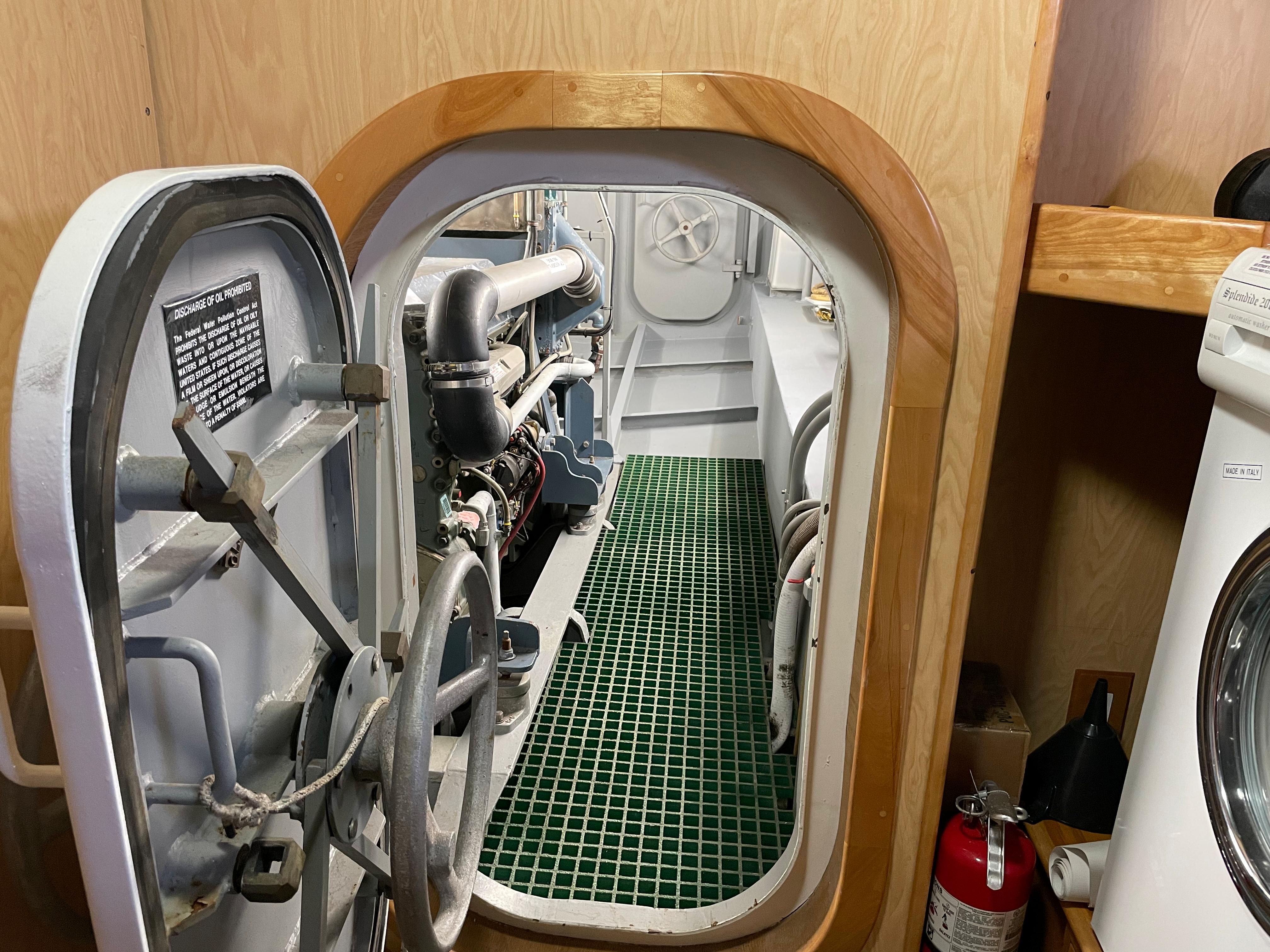

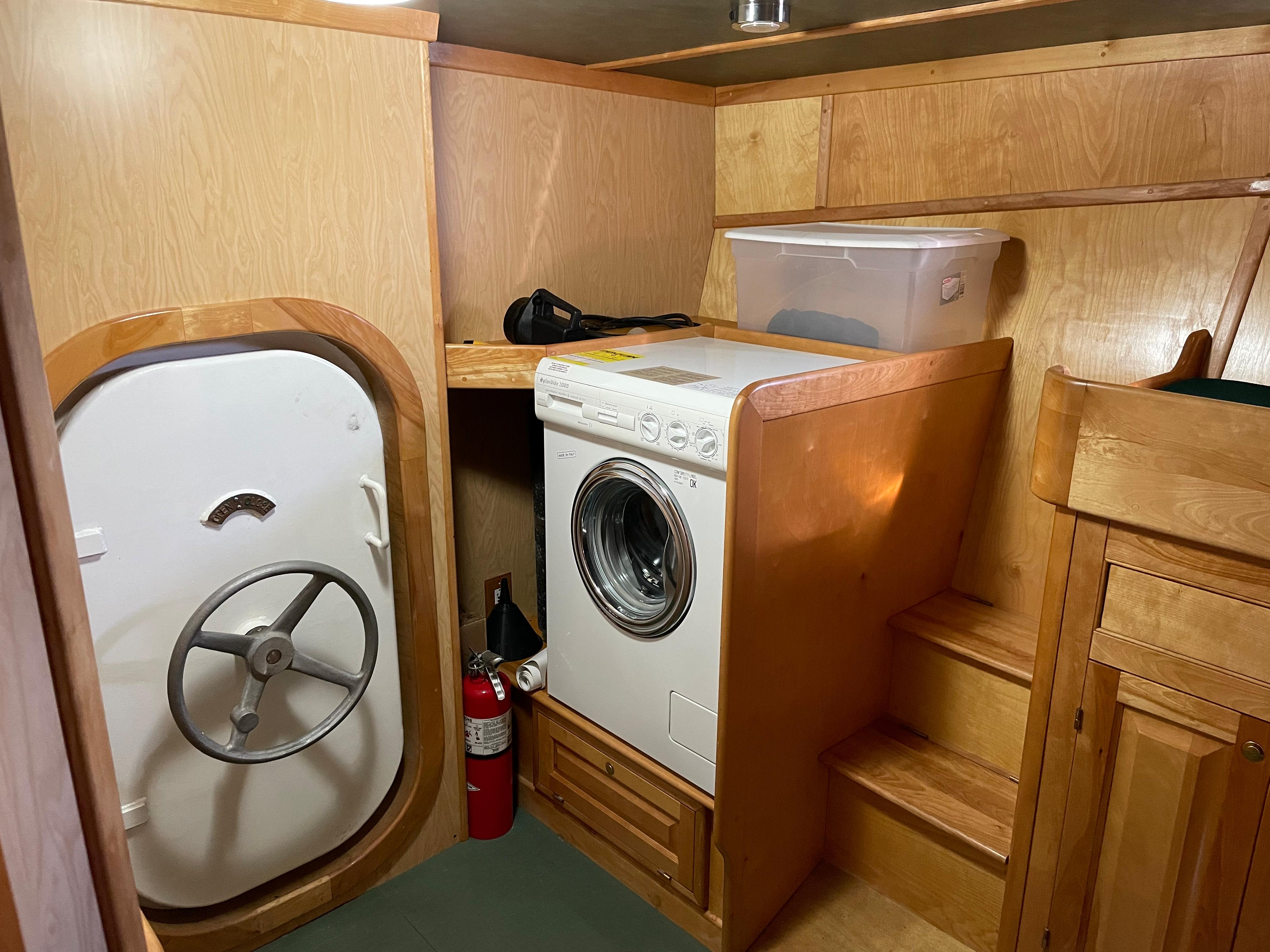

The vessel is subdivided in four compartments by three water tight transverse bulkheads; a collision bulkhead isolates the forepeak, a bulkhead with a water tight door separates the lower accommodation area from the engine room, and a bulkhead with a water tight door isolates the lazarette.

The vessel is powered by a 360 bhp, Series 60 Detroit Diesel with a ZF 350-A reduction gear. The engine is electronically controlled and meets even the strictest California emissions standards while extending a high level of fuel economy. The vessel's hydraulic system is driven off the main engine gearbox and powers the bow thruster and windlass and provides two additional hydraulic ports for equipment such as davits and stabilizers. All equipment and hardware were selected to be tough, reliable and readily available.

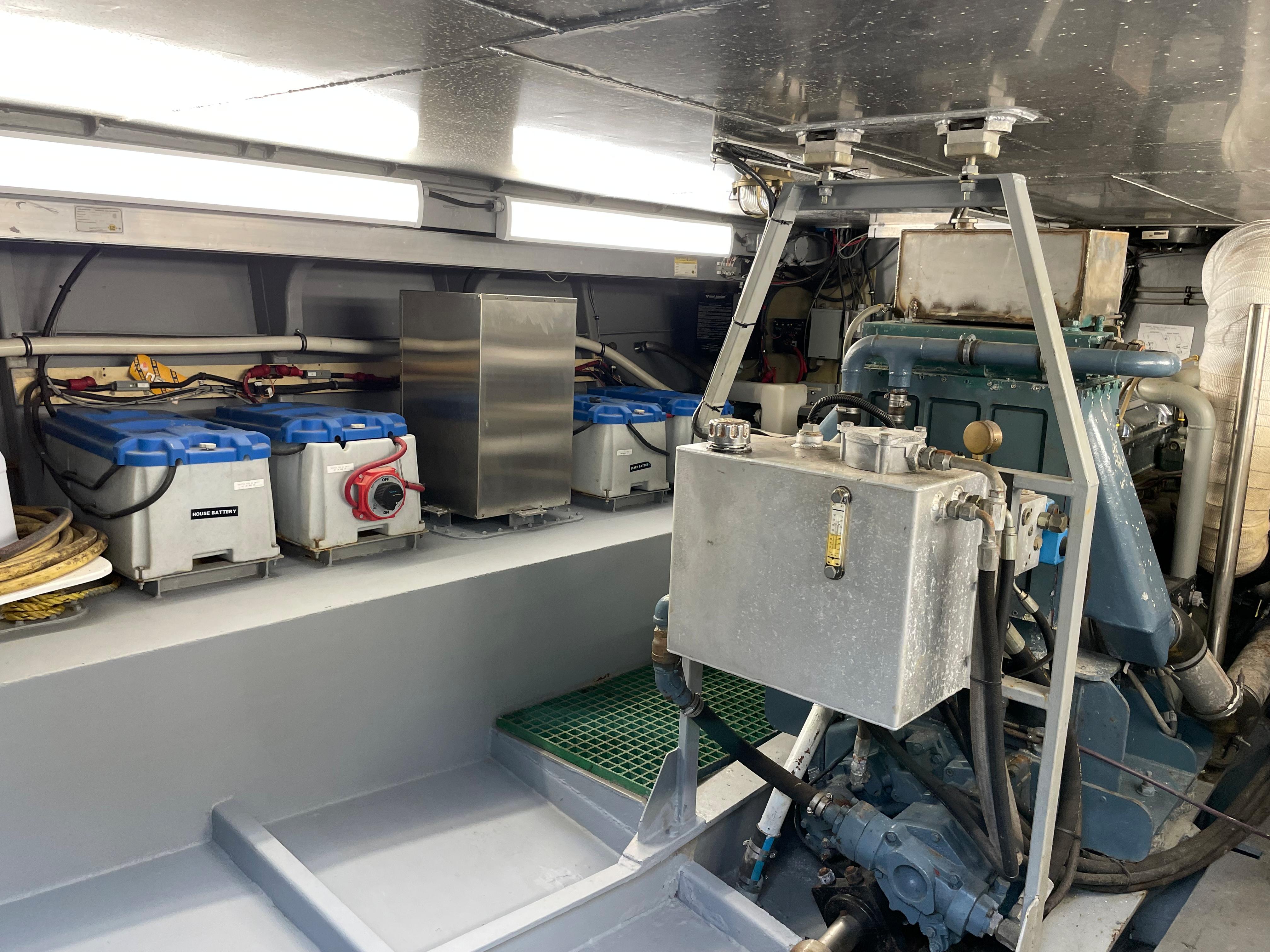

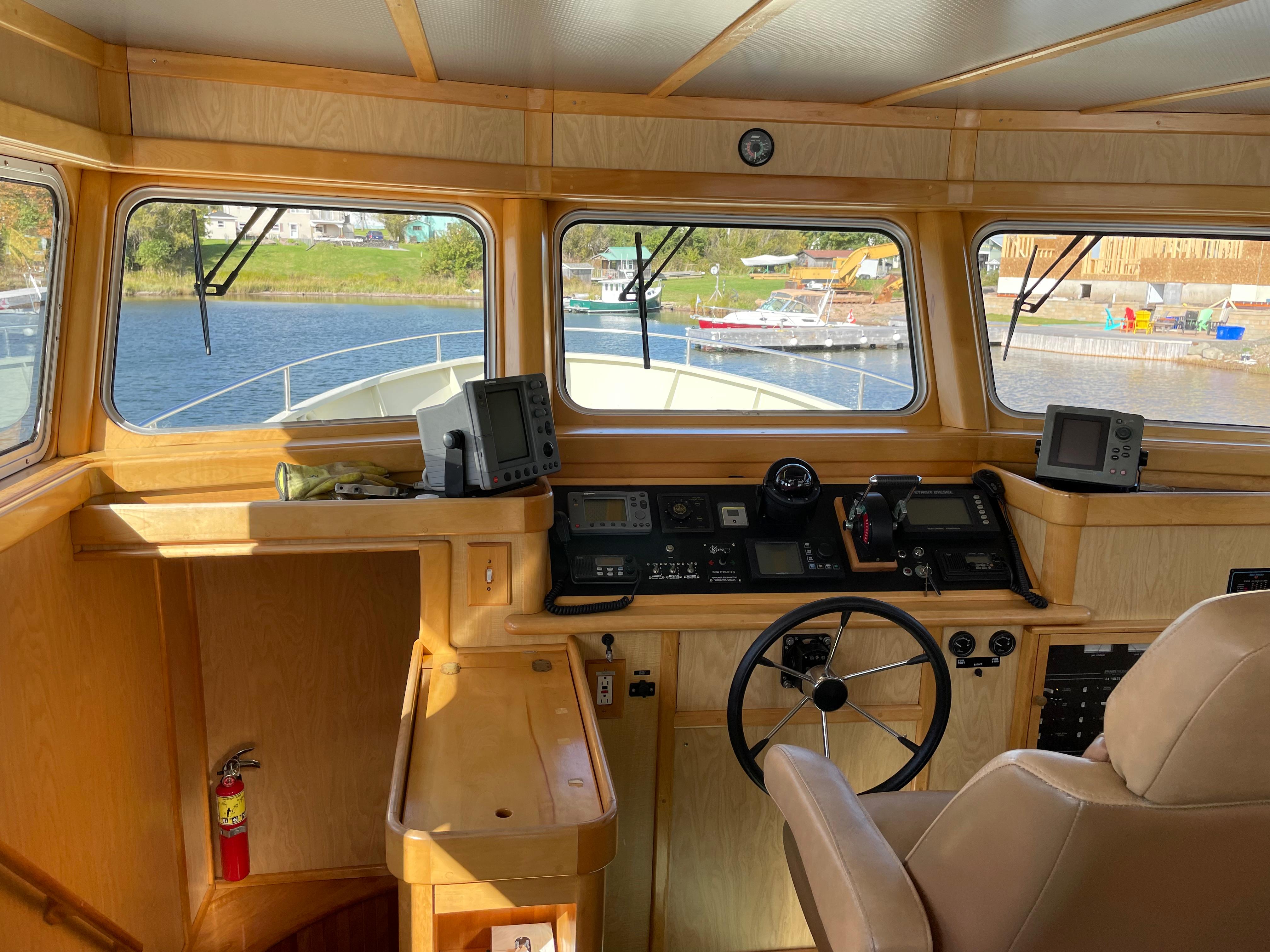

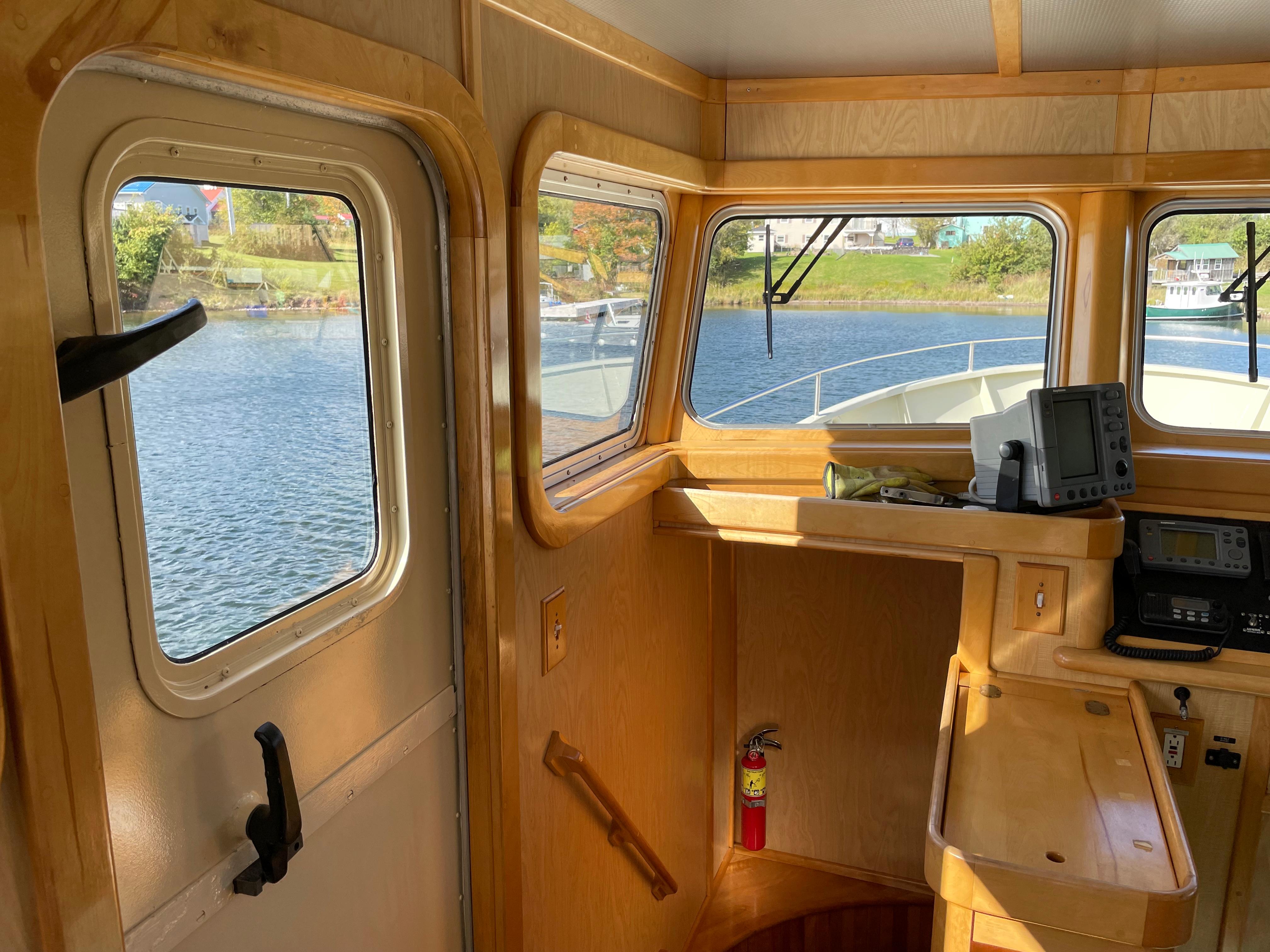

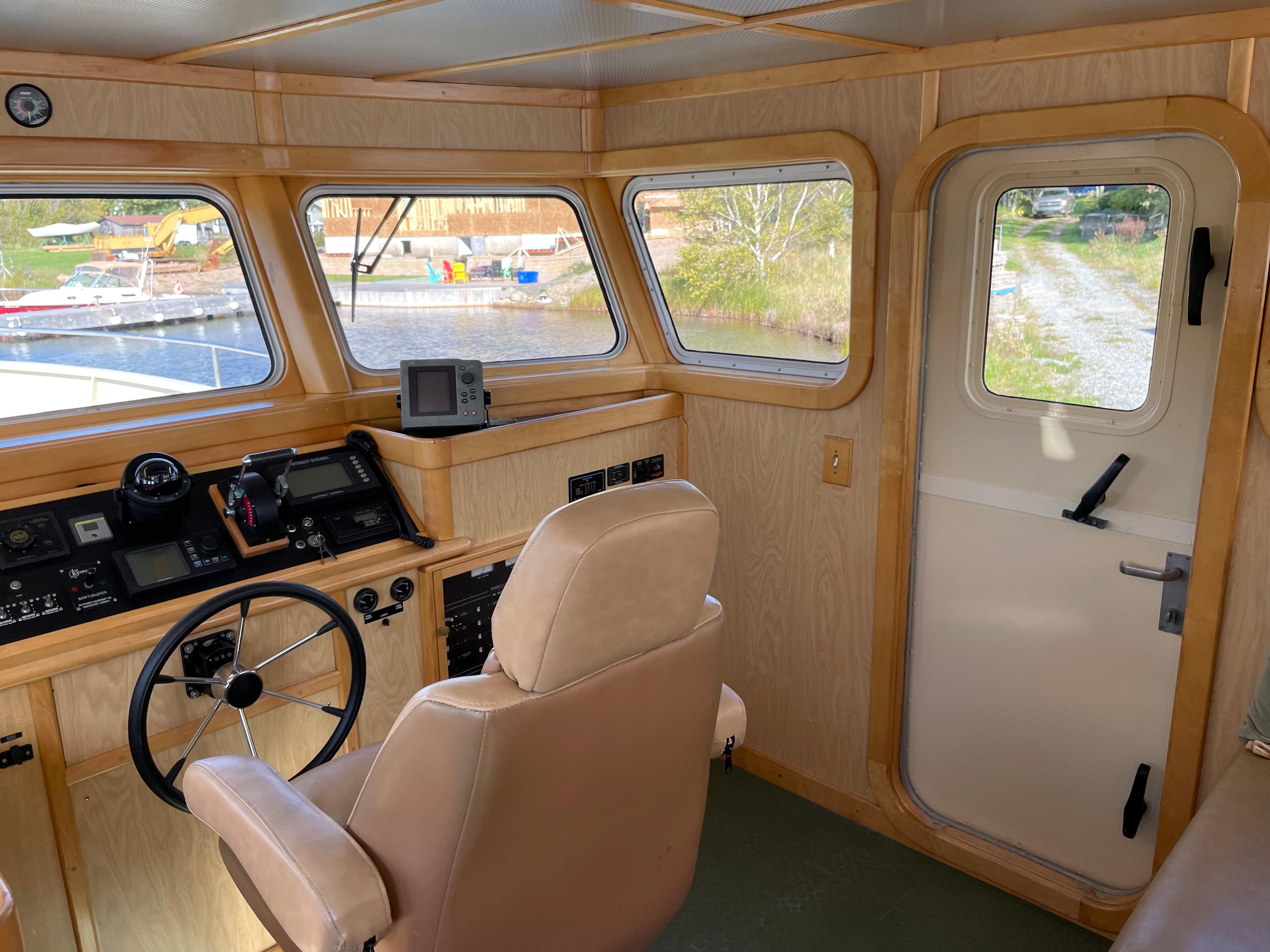

The engine room is large and well laid out with easy access to all equipment and systems. The pilot house is spacious and provides all round visibility. Weather tight Dutch doors in the pilot house further improved visibility during docking maneuvers as well as providing excellent ventilation. The wide walk-around decks are uncluttered and well protected. Safety is a foremost design consideration.

The boat is heavily insulated throughout for thermal as well as acoustic benefits. There is an aluminum deck head in the engine room and a second deck under the salon/galley. This provides a dead air space and heavy insulation between the machinery and accommodation areas which mitigates noise and provides fire protection equivalent to that found on commercial passenger vessels.

Bulwarks are plated inboard as well as outboard which gives a clean profile and eliminates high maintenance stanchions and framing. All windows and exterior doors are coast guard approved for offshore applications.

Interior partitions are constructed of 1" x 2" steel supports and sheathed with marine grade plywood and high quality laminates. Cabinets and interior joinery are constructed from indigenous hardwoods and have a natural finish.

Vessel Information

Builder:	Custom
Model:	Smart Trawler 50
Model Year:	2001
Category:	Power
Sub Category:	Trawlers
Condition:	Used

LOA:	52' (15.88 m)
Engine Info:	Detroit Diesel 60 Series diesel 360\|horsepower Inboard 4 Blade Center

Location:	Baddeck, NS CA
City:	Baddeck
Country:	CA

Design & Construction

Hull and decks: Class approved steel for plate and structural components

hull - 3/16 in. plate

bow section ice shield - 1/4" plate

keel - 3/8" plate, keel shoe - 3/4"

insert plates behind grid coolers and above propellor - 3/8"

frames and bulkheads - 3/16 in.

Bulbous bow: 7/16" steel with 3/16" domed stainless steel bow cap

Superstructure: 3/16" 5083 aluminum plate, 6061-T6 for frames and structural components

Aluminum superstructure is welded to the steel hull with DYNACLADtm explosion bonded bi-metal transition joint material between the components

Exterior doors: Beclawat, aluminum weld-in with large windows, sea dogs, Dutch doors in pilot house

Windows: Beclawat, aluminum fixed non-opening. Heavily constructed bolt-on type are used on the front of pilot house.

Portlights: Stainless steel, opening type with screens

Hatches: Freeman, aluminum - provide access to fore peak, engine room and deck locker

Hatch on escape way from lower accommodations with sky light

Hand rails: Main deck - 1.25" dia S/S welded to bulwarks, cabin top - 1.25" dia aluminum welded to deck

Fuel tanks: Two integral steel tanks in the engine room, baffles, three large (400 mm x 500 mm) bolt-on accesscovers on each tank, 2"dia vents with anti-flood device

Deck features: Walk-around deck, large open foredeck, large storage locker on foredeck for LPG, fenders and lines, S/S chocks, cleats and fairleads

Swim platform: Steel, integral with hull

Engine room deck: Composite grating with nonskid surface

Finish: Complete paint/corrosion protection system - All steel has been wheelabrated and primed with a weldable primer, Ameron Dimetcote 225". Immediately upon arriving at the boatyard, all welded joints are blasted and primed after welding. All interior steel surfaces are covered with 4 coats of Ameron Bar-Rust 235. Ameron, Amercoat 5401 Alkyd enamel topcoat is then applied to exterior of the hull and superstructure. Amercoat ABC#4 anti-fouling paint is applied to the bottom. Zinc anodes are bonded directly to the hull. The exterior decks have a nonskid surface applied.

Engine Details

Engine: Detroit Diesel 60 Series, 360 Horsepower, electronically controlled

Electronic instrumentation display with numerous alarms and data readouts

Kobelt single lever mechanical shift/electronic throttle controls

Fresh water keel cooling with Fernstrum Gridcoolers

Dry exhaust, S/S pipes

Racor 75/900FG x 2 fuel filter/water separators

Dual action anti-vibration engine mounts

Transmission: ZF IRM 350-A (2:1 ratio) with live PTO hydraulic pump for windlass and bow thruster

Propeller: High Torque, 4 blade, 32" x 29"

Prop shaft: 2.5 inch, 316 S/S

Rudder and shaft: Stainless steel

Shaft seal: Duramax Marine Shaft Seal - mechanical, drip-less

Coupling: Drive Saver model 8010Z

Bow thruster: Key Power, 12" HD, hydraulic, 38 hp

Steering: Kobelt manual hydraulic system with rudder angle indicator, Destroyer 18" wheel

Windlass : Maxwell model HWC3500-HYD, hydraulic with deck mounted foot operated electric controls

Davit: Atkins & Hoyle model 6500T, rotating, 24V, 650 lb capacity

Accommodations

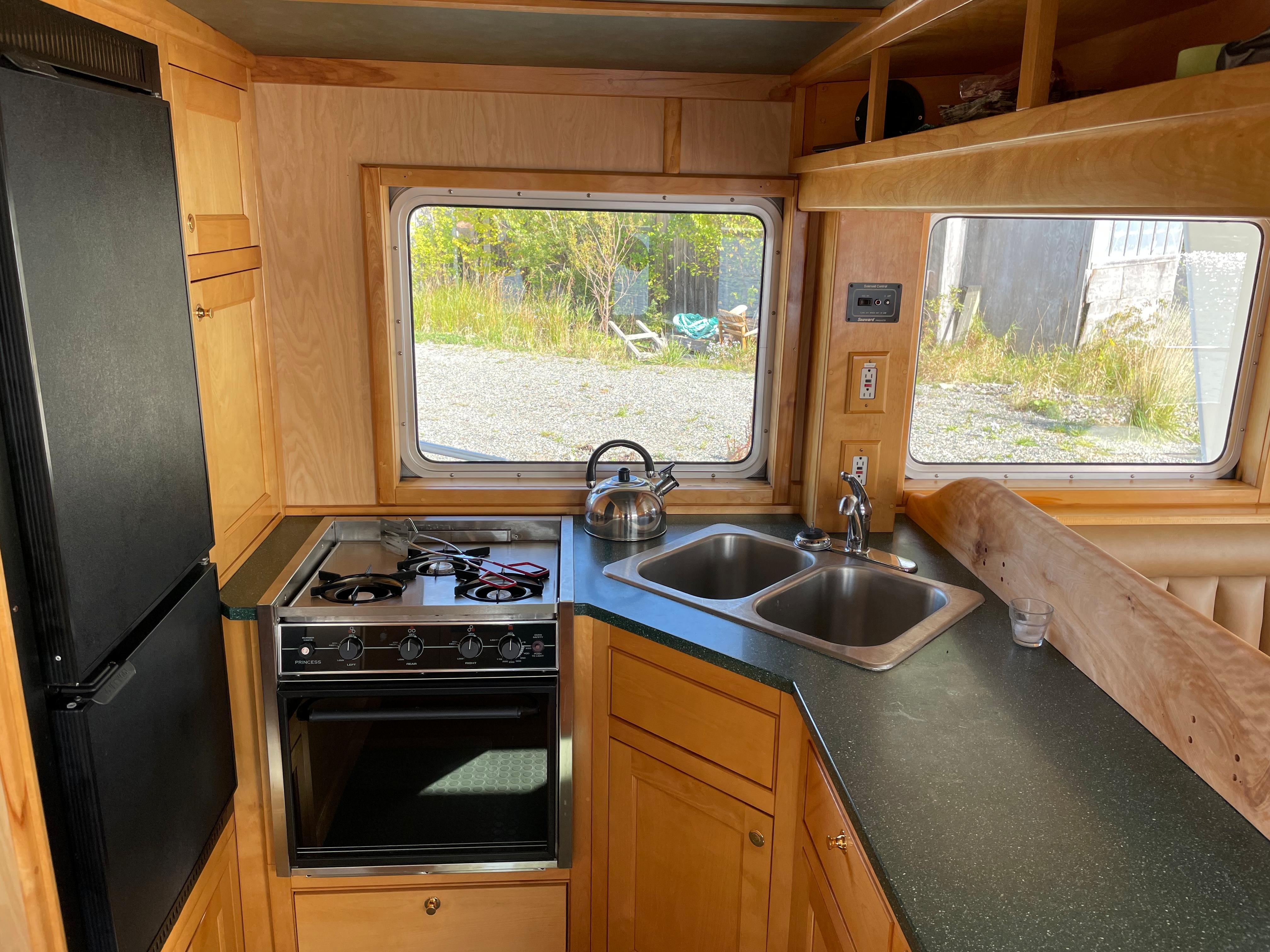

Fridge/Freezer: Nova Kool model RFU 8000 PS220, 220V/24V automatic switch over

Stove: Seward model 3372-1002, 3 burners, LPG, with oven and s/s top, LPG solenoid with remote panel, 2 x 40 lb aluminum LPG tanks

Air conditioning: Flagship Marine model FMAC16R(2 units) and FMAC9R(1 unit) with built in 2KW electric resistance heating elements.

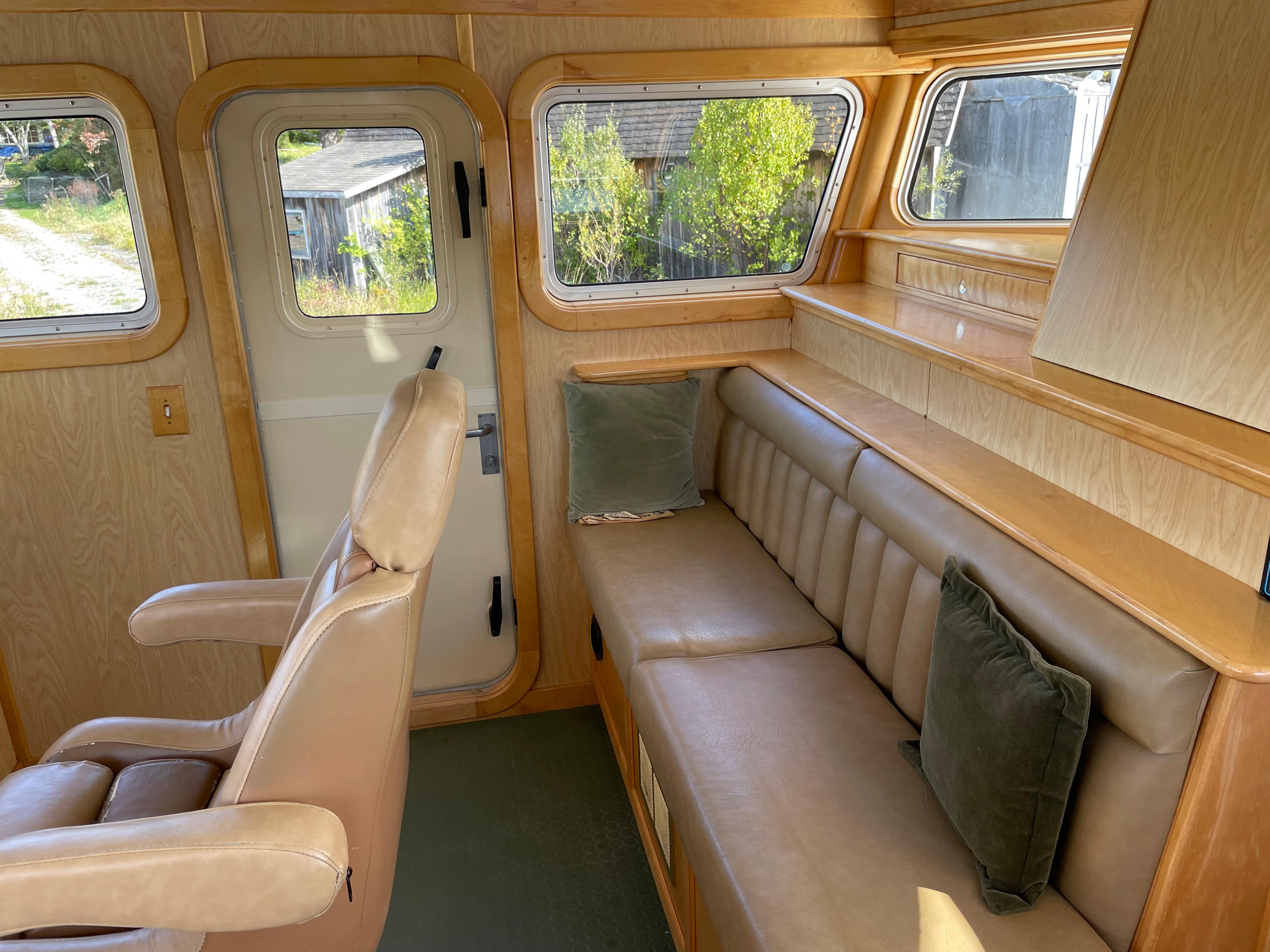

Helm seat: Tracy, model 2005-5BE

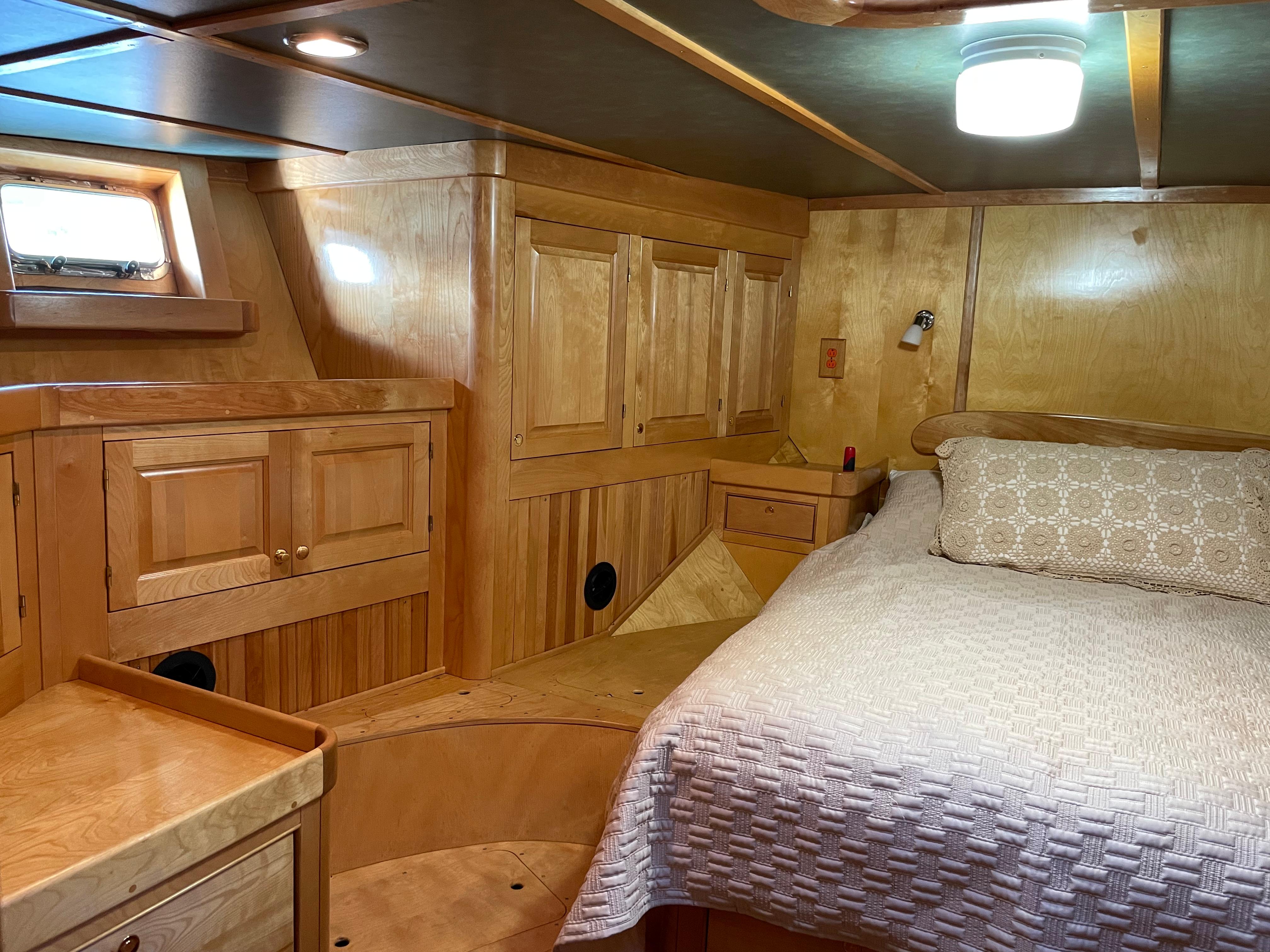

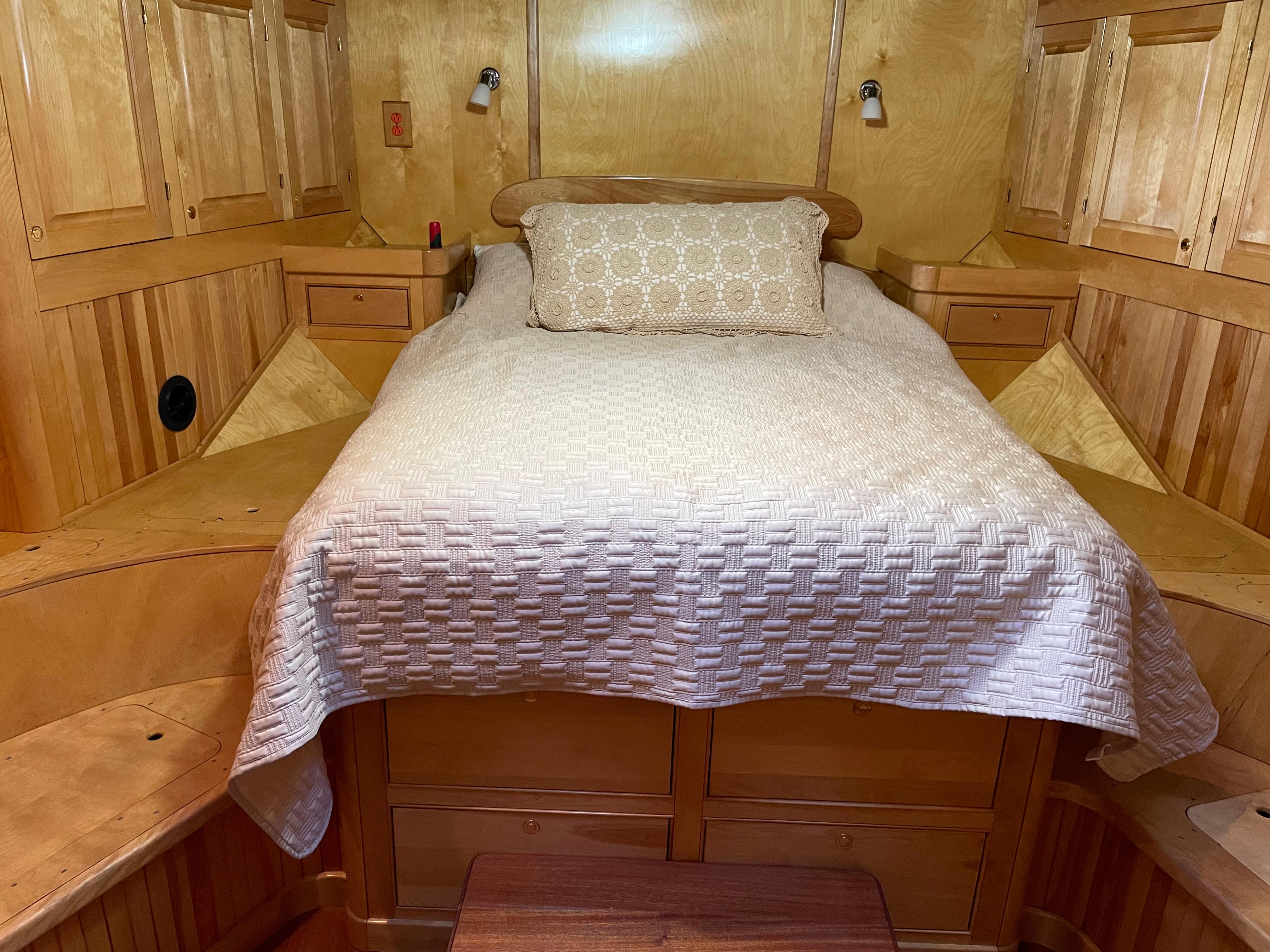

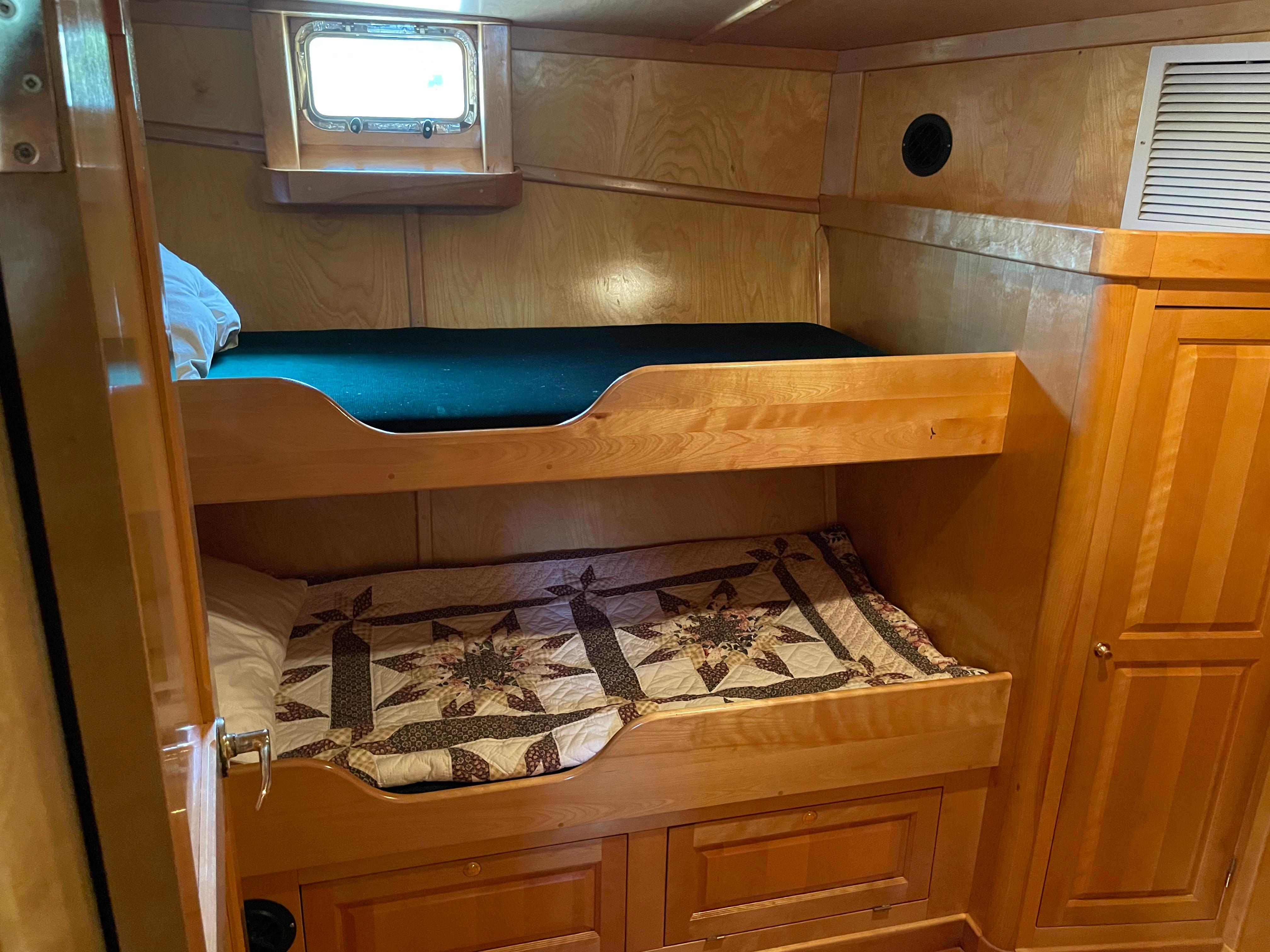

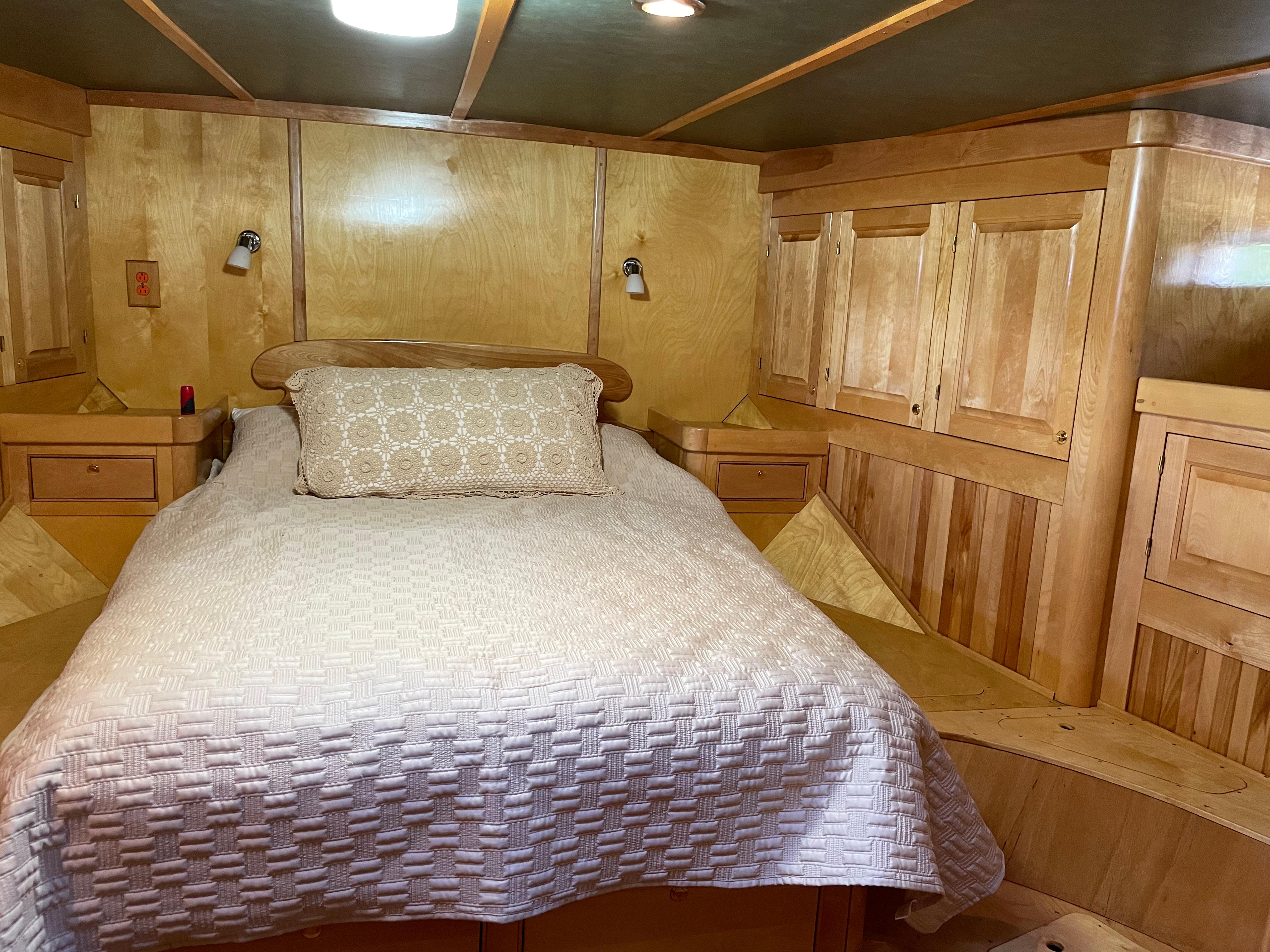

Berths: Double bed with a spring-filled mattress in the master stateroom, high density foam mattresses on single berths

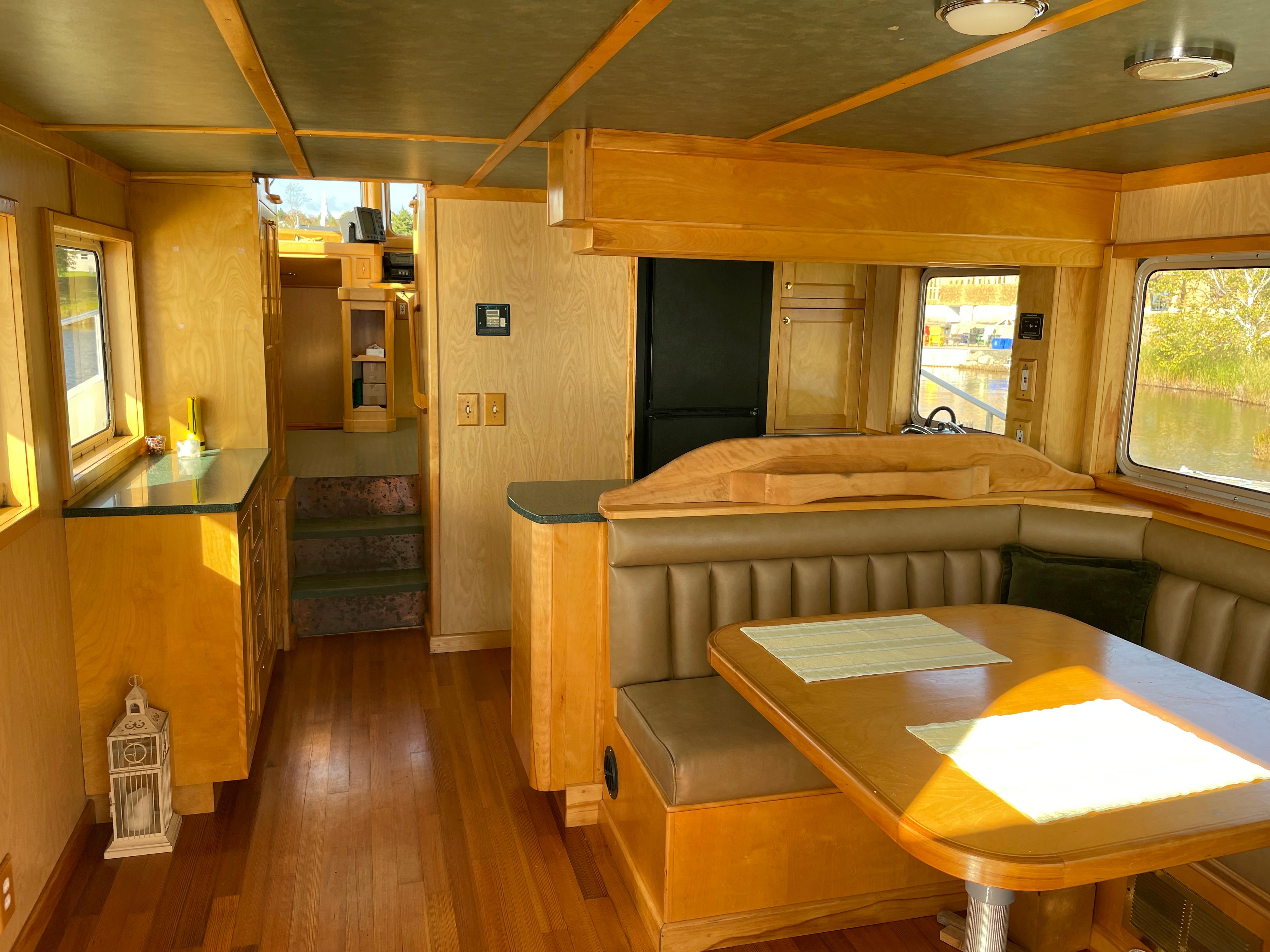

Decks/soles: Cabin soles are longleaf yellow pine in the salon and staterooms. Industrial rubber is used in high traffic areas such as the galley, pilot house and lower level hall. The deck in the head is nonslip ceramic tile.

Navigational & Electrical

The vessel has a 24V DC system with separate battery banks for ship services and engine starting. DC power is supplied by a 100A alternator on the main engine and a 65A battery charger. A 24V to 12V power converter provides power to the VHF radios, the depth sounder, a power outlet in the pilot house and some instrument lighting. AC power is provided by a 20 KW diesel generator. A 240V, 50A shore power service feeds a 15 KVA isolation transformer and 120V/240V power is available on the vessel. The air conditioner, water heater, bilge pump and other heavy loads are 240V. A 2500W inverter provides 120V power to separate AC outlets and the engine room lights so that if high load AC equipment is inadvertently left on it will not drain the batteries. When AC is available to the inverter it bypasses up to 30A to the output rather than drawing power from the batteries.

Shore power: 220V, 50A shore power service with an isolation breaker and a 15 KVA Delta isolation transformer, Hubble connectors and 50 ft. power cord.

Alternator: 24V 100 amp

Services batteries: 2 - 12H - 8D, 221 amp hours, 489 reserve minutes, 1150 cold cranking amps

Starting batteries: 2 - 8D-1250, 1250 cold cranking amps

Generator battery: 1 - 4D - 1000, 1000 cold cranking amps

Battery switches: Perko heavy duty

Battery boxes: Blue Sea System

Battery combiner: Heart Interface PathMaker model 100 AMP Two with remote control

Main electrical panel: Paneltronics, 100 AMP DC main breaker, 24V DC double pole breakers, 250 AMP fuses on main 24V supply cables, 50 AMP AC main breaker for shore power, 100 AMP main breaker for generator, analogue voltage and current meters

Charger/invertor: Heart Interface Freedom 25 Combi Inverter/Charger, 2500 Watt (5200 watt surge), 3-stage 24V, 65 Amp battery charger, 30 Amp AC automatic transfer switch, remote monitor in pilot house

Power converter: Newmar model 48-12-18I, 12V, 18 AMP power supply for selected electronics

Flood light: Hella 24V

Search light: ACR Electronics model RCL-100D (dual bulb, 24V), remote controlled with point pad

Wipers: 3 - Wynn model M30, 24V with auto park

Engine room blower: Delta T Systems, Inc., 11" Axial Fan, 24VDC

Engine room fans: Delta T systems, Inc., 9" Axial Fans, 24V

Lights/outlets: 24V & 110 VAC lighting throughout

GFI outlets in galley and heads

GFI outlet on aft deck

12V outlet in pilothouse

24V exterior deck lighting

120V engine room outlet

Wiring: ABS and Coast Guard approved Shawflex marine cable

Electronic/Navigation Equipment

VHF radios: 1-ICOM IC-M45A , 1- ICOM IC-M59,

2 - Shakespeare style 5202 - 8 ft VHF Marine Antennas

Radar: Raytheon Pathfinder 24", 4 kw Scanner with HAB. Series CRT Display

GPS/Plotter: Raytheon Raynav 300 GPS Plotter, serial port connection for PC computer or chart plotter

Auto Pilot: SIMRAD Robertson model AP20 Autopilot, RFC35R Rate Compass, RPU Reversible Pump 160

Depth sounder: JRC FF30 Color Sounder/Fish Finder

Horn: 24V air horn

Compass: Ritchie Navigator DNP-200 with night light

Navigation lights: PB YachtLights

Clock/Barometer: Chelsea Maritime

Television: SeaWatch Marine TV Antenna System

Phone: Raytheon Raycom Cellular phone system with 48" Shakespear Cellular Marine Antenna

Plumbing

All piping, hoses, pumps, valves and related equipment were selected to meet professional standards. As per classification society standards, all hoses which present a flooding hazard are fastened with dual 316 S/S clamps and all thru hull fittings are bronze or S/S and have both seacocks and back flow check valves. All seawater intakes are connected to a sea chest which has a S/S strainer that is easily cleaned while underway. The potable water tank is S/S with the fill pipe located high above deck level to minimize the opportunity for contamination from dirt or seawater. All water and waste tanks have tank level gauges with the display units in the pilot house. The vessel has a hot and cold pressure water system, a S/S grey water holding tank with pump and overboard discharge and fresh water Vacuflush toilets.

Pressure water system:Paragon-Model PSR Senior 24V automatic pressure pump, GROCO model PST- 5 storage tank

Hot water tank: Torrid, model MV-20- 240V, 3000 watt with engine heat exchanger

Grey water pump: Jabsco model 37202 diaphragm pump with Pumpgard strainer, 24V, 4.5 GPM, overboard discharge

Bilge pumps: 1- Pacer 2 in, 240V electric bilge pump

1- Jabsco 1.5 inch engine driven bilge pump with 24V clutch

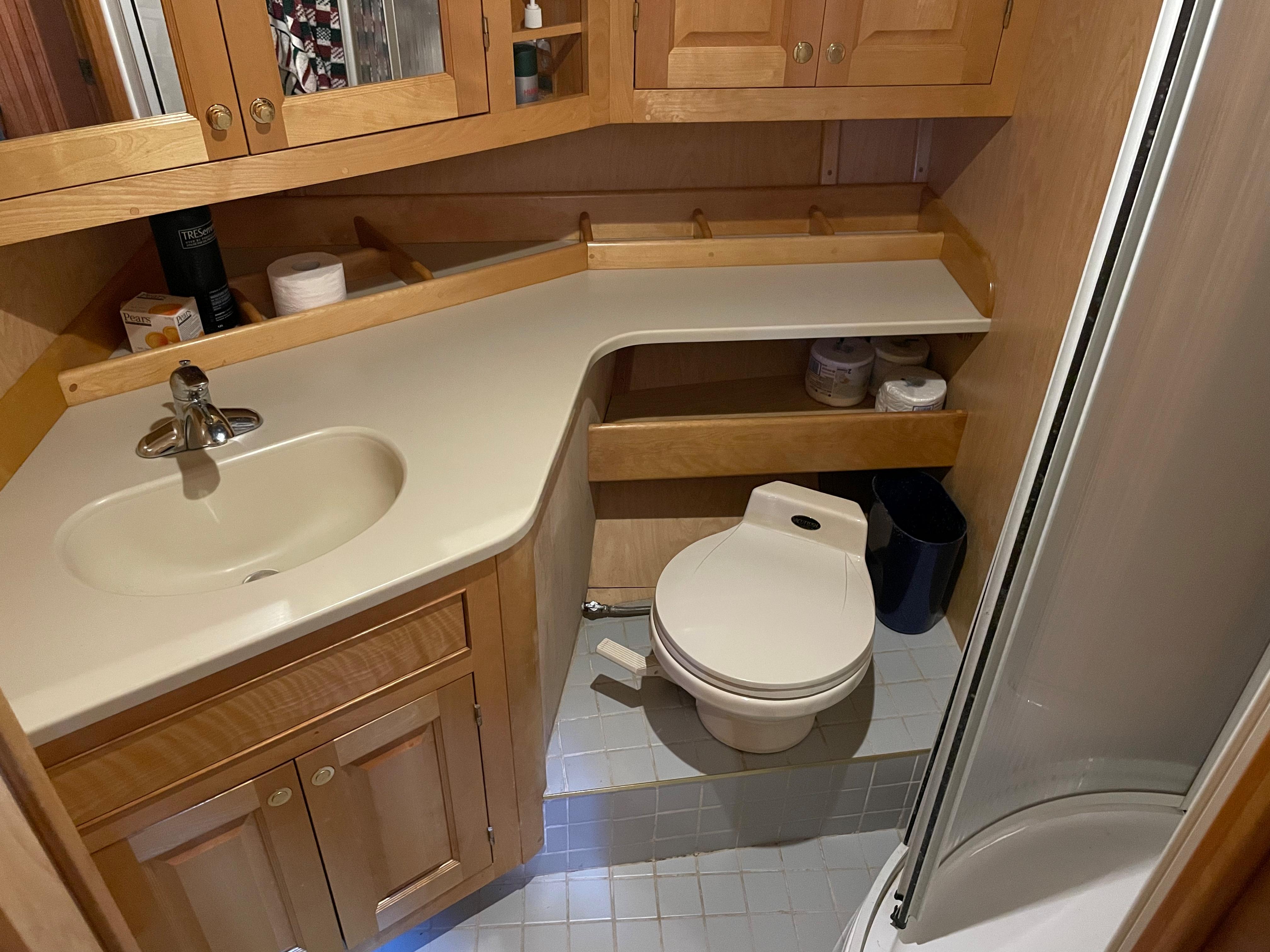

Heads: SeaLand Model 806 Vacuflush Toilets (fresh water), SeaLand vacuum generators, SeaLand 40HTS, 40 US gal. Holding Tank (117 flushes) with overboard discharge and pump out connections, Tankwatch 4 level monitor system

Additional Equipment

Bruce 30 kg anchor with 400 ft of hot galvanized G-30 chain

Double S/S anchor rollers

Boat hook

Dock lines

Fenders

Binoculars 10 x 50 WA
