WALKTHROUGH

TIVOLI has two guest staterooms with a nice sized master stateroom forward. The master has an en suite head while the starboard guest head has access from the companionway and starboard guest stateroom.

The L-galley is up on port with three SubZero refrigerator drawers and one freezer drawer. There is good cabinet storage both overhead with drop down dish lockers and numerous drawers; GB monogramed galleyware is included.

The salon has a large U-shaped settee with drop down teak dining table. In the down position it functions as a coffee table or makes into an additional berth. Abundant storage throughout including two large slide-out drawers under salon settee. Across from the settee is a pop-up TV, bar and glass storage plus entertainment electronics.

The aft cockpit deck has a large fixed settee, icemaker and storage cabinets. The focal point is the sweeping curved staircase to the large flybridge.

CONSTRUCTION

TIVOLI was built for a very knowledgeable and discerning owner; she has many custom features and upgrades.

• Hull Paint: Stars and Stripes Blue, Custom Upgrade
• Antifouling: (2) coats of Micron Extra #YBA 994 Black, Upgrade
• Bootstripe, painted White, Upgrade
• Cove stripe, painted Pale Gold, Upgrade
• (3) Bulkheads, watertight
• Epoxy barrier undercoat
• Gel-coated fiberglass w/cross-linked PVC foam core
• Hand-laid fiberglass
• Hull structural grid, fiberglass & foam
• Hull, solid fiberglass below & cored above waterline
• Hydrex resin skin coat in hull lamination
• Molded quarter guard with stainless steel rubrail

ENGINE & MECHANICAL EQUIPMENT

TIVOLI has straight shaft CAT C-18 Acert 1,015hp engines with bow and stern thrusters for performance and easy maneuverability. The 1000 hour service and oil cooler core replacement, June '22.

• Twin Caterpillar C-18 Acert diesel engines @ 1,015hp each - 535 hours as of 5/11/22
• (2) Glendinning hand-held remote control for engines and bow & stern thrusters with 30-ft. of cable; (1) at each helm, Upgrade
• Air conditioner sea water pump, back-up (in addition to primary), Upgrade
• Ball valve on thru hulls above waterline, chrome bronze
• (2) Bilge pumps, manual
• Engine raw water intake strainers
• Engine room faucet, freshwater
• Engine room sound insulation
• Exhaust system, seawater-cooled, with muffler
• Fire extinguisher, with engine, generator, blower shut down & override control
• Freshwater regulator, complete with hose fittings, at stbd side settee, Upgrade
• Fuel filters, Racor water separators on each engine (duel) & generator (single)
• Fuel tank, 2 fiberglass, 500 gallons each and baffled
• Gas/water separator on generator exhaust system
• Oil change system, with quick disconnect fittings
• Propellers, FASTER 5-blade nickel-aluminum-bronze
• Propellers, spares plus spare shaft stored off boat
• Line Cutters, SH25 hardened blade line cutters on both propeller shafts, Upgrade
• Seacocks, Groco Safety Seacocks on engine raw water inlets
• Seagull IV water purification system
• Shaft seals, Tides Marine shaft seals for both shafts, upgrade
• Shaft log, dripless
• Teak grate sole, engine room
• Steering, hydraulic with power assist, primary
• Steering pump, hydraulic, back-up, Upgrade
• Watermaker, Sea Recovery 1800gpd recently serviced

ELECTRICAL EQUIPMENT

TIVOLI has a diesel fired heating system for those chilly New England mornings as well as reverse cycle air-conditioning for those hot Florida days. She was built and outfitted for both climates. Her Flybridge is also air-conditioned for further cruising comfort in hot climates.

• AC/DC distribution panels
• Additional 8 circuit breakers for electronics, DC
• Air horn, Kahlenberg
• Air-conditioning, Dometic reverse cycle - separate control units for FB, Salon/Galley, port Guest stateroom (adjustable air-handler for stbd stateroom) and Master stateroom; both heads also have an air-con vent
• Heater system, single ESPAR D8LC 27.3k BTU, 24V DC rheostat switch with external temperature sensors in salon, galley, flybridge and each stateroom, Upgrade
• Alarm & indicator panel, each station
• Alternator, each engine & generator
• Batteries, AGM, with fiberglass boxes, lids & straps, 2x8D engine starting, 4x8D house, 1x2D generator starting - replaced 2020
• Batteries, AGM, with fiberglass boxes, lids & straps, 12V, two (2) additional, parallel to service battery, upgrade
• Battery charger, automatic, 12V 35-amp
• Battery charger, automatic, 24V 60-amp
• Battery disconnect switch, remote motorized system
• Battery switch, emergency paralleling
• Bilge pumps, automatic, DC
• Bonding system
• Bow thruster, Sleipner Side-Power SE170/250 TC, DC 24V
• Stern thruster, Sleipner Side-Power SE170/250 TC, DC 24 V
• Carbon monoxide detector in sleeping areas & salon
• Chain counter, Maxwell AA560 with display at both helms, Upgrade
• DC converters, 24-12V, 40-amp
• Engine room blowers, DC
• Engine room lights, DC, LED
• Entertainment system, Bose premium package AV35 Surround Sound, iPod interface, Blu-Ray player, (5) speakers with subwoofer and Panasonic 3D CD/DVD player, Upgrade
• Freshwater system, pressurized, DC
• Fuel transfer pump, DC
• Generator, Onan with Sound Shield, 17kW e-QD Series
• Helm outlet, DC
• Holding tank level indicators
• Holding tank, direct discharge pump, DC, with Y-valve to toilets
• Icemaker, Vitrifrigo AC
• Inverter, Mastervolt Mass 24V/2500W-60, with remote panel & AGM battery
• Isolation transformer(s)
• Navigation lights, DC
• Oil change kit, DC
• Outlets throughout, with GFCI protection
• Rudder angle indicator, DC
• Shore Power, Glendinning Cablemaster, 50-amp, 75-ft. white cord shore power at stern center, Upgrade
• Trim tabs, DC
• Trim tabs indicator, TPI 200 at both helms, Upgrade
• Washer/Dryer: Splendide 2100, combo unit, Upgrade
• Water heater, 20 USG, AC
• Windshield wiper control, electronic, includes intermittent control
• Wiring, marine-grade tin-plated copper

EXTERIOR EQUIPMENT

TIVOLI has painted non-skid on side and forward decks for ease of maintenance. Her Flybridge has a full clear polycarbonate enclosure that zips out for removal.

• Anchor & Chain, 100-lbs. Ultra anchor with shackle and 250-ft x 3/8" chain, Upgrade
• Anchor chain locker, divided for rope & chain
• Anchor chain locker, self-draining
• Anchor platform, stainless steel, double stainless steel rollers
• Anodes, zinc, shaft & hull
• Canvas package, Sunbrella "Toast" exterior covers for FB helm & steering, FB helmseats, FB table, FB settees, cockpit settee, dinghy, teak name boards and fore deck dorades, Upgrade
• Chocks & mooring cleats, stainless steel
• Cleats, fender, pop-up
• Decking, teak, epoxy bonded at cockpit
• Dorade boxes, with chrome cowl vents, varnished
• Engine room vents, Delta "T" air demisters
• Flagpole with holders, bow & stern
• Foredeck lockers, port & starboard
• Freshwater washdown and outlet at cockpit complete with fittings and hose, Upgrade
• Grab rails, stainless steel
• Mast, aluminum/FRP base, fixed
• Navigation light boards, teak
• Non-skid, Awlgrip, side & forward cabin house deck & hardtop (as fitted)
• Radar bracket
• Rail gates at port & starboard
• Rubrail, heavy-duty vinyl with stainless steel insert
• Searchlight, Jabsco with wireless controls at both helms, Upgrade
• Swim platform, Sealift system hydraulic lift (770-lbs. capacity) with build-in Sealift chocks and (2) wireless remote controls, Upgrade
• Novurania Deluxe series 360 tender with Yamaha 40hp 4-stroke outboard engine, Upgrade
• Skylight hatches with OceanAir black-out and bug screen in staterooms
• (1) Additional Skylight Hatch, Manship #20 hatch at centerline of foredeck between std port & aft skylight hatches, Upgrade
• Toe rail, teak
• Varnished exterior teak: teak toe rail, accent line & navigation light board, Upgrade
• Windlass, vertical, low profile, chain, DC
• Windows, tempered glass, fritted, bonded, flush installation

COCKPIT / AFT DECK

TIVOLI's cockpit has glued solid teak planking that has recently been lightly sanded and looks like new. The teak swim platform has been lightly sanded as well.

• Icemaker, Vitrifrigo IM Hydro XT-S1 at stbd locker, Upgrade
• (2) Cleats (additional), pop-up, (1) each side port & stbd outboard aft side on top of swim platform, Upgrade
• Courtesy lights, LED
• Deck Hatch, enlarged single hatch at center, Upgrade
• Engine room access, pneumatic risers
• (2) Flood Lights, Sea Hawk LED flood lights at port & stbd of FB overhang for cockpit and aft deck, Upgrade
• Hatches, teak, pneumatic risers
• Ladder to lazarette
• Gas Locker, port locker under stairs converted to ABYC approved gas locker with seal doors, drainage overboard and vented; propane connections near both rod holders for portable gas grill, Upgrade
• Gas grill, portable with connections on both port and STBD
• Custom straight settee, aft, finished in soft Dura "Extra Off White" with self-piping; Sunbrella "Toast" canvas cover
• (2) Rod Holders, Lee's, stainless steel 15 degree at cockpit port & stbd coaming, Upgrade
• Speakers, Upgrade
• Swim ladder, undermount
• Custom hydraulic Swim platform, FRP with teak decking, Upgrade
• Table, Custom special design with foldable teak table top and custom removable mounted stainless steel pedestal; Sunbrella "Toast" canvas cover, Upgrade
• Transom door, hinged
• Transom shower with retractable hose, hot/cold
• Sunshade, removable, for aft deck, Upgrade 2022

HELM AREA - Lower

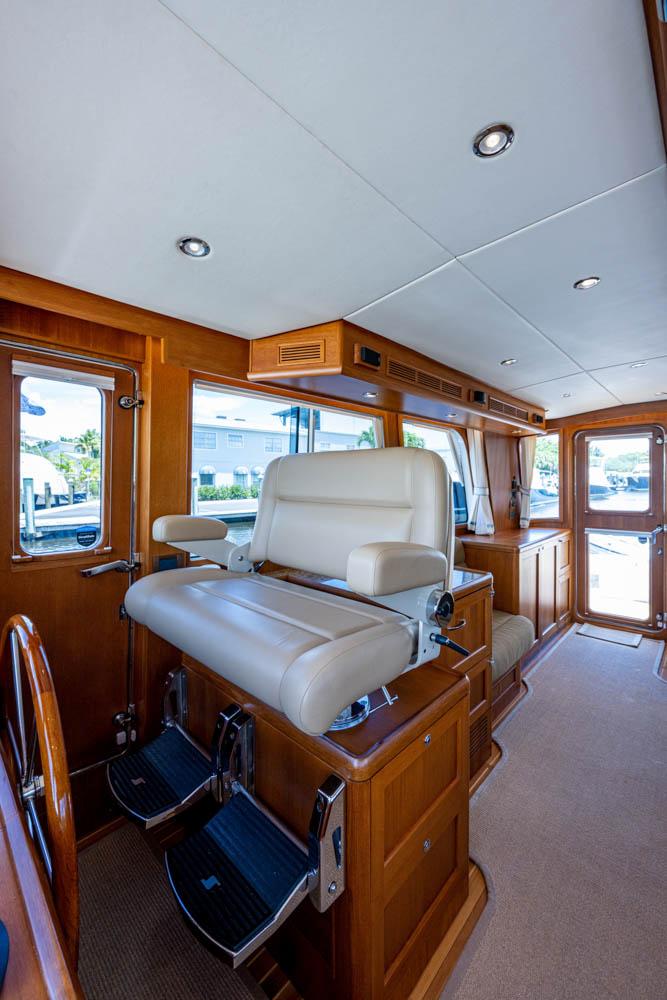

TIVOLI's lower helm features a double STIDD seat that makes longer cruises comfortable with good support. The teak faced electronics Himalaya is at the right angle for glare-free viewing of screens. A side door makes handing of lines easy.

• Compass
• Door, starboard (painted aluminum/teak)
• Electronics console, teak
• Electronics locker, overhead with removable panel
• Helmseat, STIDD 1200 Double Admiral Low Back, two seater with deluxe chrome package & cup holder; finished in Ultra Leather "Brisa Ginger", Upgrade
• Custom Locker, at helmseat with two deep drawers, Upgrade
• Steering wheel, stainless steel, teak rimmed
• Windshield, Opening, forward center, Manship opening hatch with actuator 24V DC, Upgrade

FLYBRIDGE

TIVOLI's flybridge is the right size for the hull footprint and is not top heavy like some of our competitors. Three STIDD chairs provide seating for captain and several mates. Guests have a large L-settee for lounging.

• Custom Hardtop, lightweight with GB white painted aluminum structure support & lighting, Upgrade
• Air Conditioning, (1) unit 24K BTU air handler with 24K BTU compressor, outlets at console, Upgrade
• Compass
• Courtesy lights, LED
• Custom Teak Decking at seating area, Upgrade
• Deck non-skid, painted Awl-Grip, aft
• Deck Hatch, hinged, Manship (from cockpit to flybridge), Upgrade
• Electronics console, molded fiberglass
• Freshwater Washdown, complete with fittings, hose & spray nozzle, Upgrade
• (3) Helmseats, STIDD Slimline Low Back with deluxe chrome package & cup holder; finished in Ultra Leather "Linen"; Sunbrella "Toast" canvas covers; (2) additional seats as Upgrade
• Locker(s) for under console storage
• Seat cushions, vinyl
• Settee, molded fiberglass
• Speakers, Upgrade
• Steering wheel, stainless steel, teak rimmed
• Table, varnished teak with stainless steel pedestal
• Wet Bar, to port with stainless steel round sink with fold-down faucet and cover, Isotherm CR49 refrigerator, and locker with shelf, Upgrade
• Windshield, tinted Perspex with stainless steel mounting brackets

ELECTRONICS

Best Raymarine electronics package available when TIVOLI was commissioned.

• (4) Raymarine Chart Plotters gS165 15.4" Glass Bridge MFD, 2 each at Flybridge & Lower Helm
• Raymarine gS RMK-9 Remote Keyboard,1 each at Flybridge & Lower Helm
• Raymarine HS5 Network Switch,1 each at Flybridge & Lower Helm
• Navionics MSD Platinum+, US Northeast
• (4) Victron 24VDC to 12VDC Converter, 5-amp
• Radar 12kW 72" Super HD Open Array with 15M RayNet Cable
• Sonar - Fish Finder CP370 ClearPulse Sonar Module
• Bronze Thru-Hull Depth Transducer B258
• Raymarine AIS650 Class-B Receiver
• Raymarine AIS100 Active Antenna Splitter
• Ray260 VHF Radio
• Ray260 Expansion Handset with 10M Cable
• Digital Antenna 4' VHF, White
• (2) i60 Wind Display (Analog),1 each at Flybridge and Lower Helm
• Raymarine i70 Instrument Display,1 each at Flybridge and Lower Helm
• ST60+ Masthead Transducer with Cable and mount
• Iris Miniature Dome Camera NTSC IM-DND-60
• Raymarine CAM100 Camera Reverse Image (NTSC)
• 1x2 Video Distribution Amplifier w/BNC Connectors
• Raymarine EV-200 Power Pilot Autopilot with 2nd control head on Flybridge
• FLIR Camera

ENTERTAINMENT EQUIPMENT

An extensive entertainment package all conveniently located in a cabinet on starboard.

• KVH TracVision TV5 w/IP enabled TV-Hub A
• DISH Network 211K HD Receiver w/IR Remote
• 2nd DISH Receiver in port mid-cabin
• Fusion AV750 Marine Stereo w/DVD Player
• Bose 151SE Environmental Speakers, white
• Bose Marine flush mounted speakers, White, on Flybridge
• Majestic UFO X Ultra High Gain 30dB Digital TV Ant
• RoguePro WiFi Amplifier System
• TV & Blu-Ray Player in port mid-cabin
• TV in Salon

SALON

The salon offers a large U-dinette that can accommodate 6 people. The teak table lowers and makes into a berth. The table cushion is stored under the settee.

• Bar cabinet, teak
• Charging Station, Custom design teak box for charging phone and tablet inside aft stbd cabinet, Upgrade
• Door, aft deckhouse, hinged (painted aluminum/teak)
• Engine removal soft patch
• Entertainment center, teak, with TV pop-up mechanism
• Icemaker
• Refrigerator, front opening, at bar cabinet
• Bench Seat, facing port next to cabinet, Upgrade
• Settee, U-shaped with storage
• Table, teak, hi-lo, with maple inlay, Upgrade to manual marine tech triple stage hi-lo pedestal and filler piece to convert salon settee to double berth
• Wine Cooler, Wine Enthusiast Silent (12) bottles wine cooler at aft stbd locker under entertainment center locker, Upgrade
• Glass Storage, custom to hold (12) glasses, Upgrade
• Windows, opening with screens

GALLEY

The galley is forward across from the double STIDD and helm. There is 3 SubZero refrigerator drawers and 1 freezer drawer. The gas cooktop has pot fiddles for cooking at sea.

• Countertop, Corian, with backsplash guard & varnished teak fiddles
• Princess propane cooktop, 3 burner
• Exhaust blower
• Faucet, single lever, pull-out head with hose
• Galleyware: GB monogramed china dishware and glasses
• Galleyware: Stanley Rogers GB monogramed flatware
• Galleyware: GB monogramed drinkware glasses
• Locker, drop-down overhead plate storage
• Sharp Carousel microwave/convection oven for 110/120V, 60Hz
• Refrigerators & Freezer, Sub-Zero (2 units) with (2) drawers each (total (3) refrigerator and (1) freezer drawers), Upgrade
• Sink, stainless steel single bowl

MASTER STATEROOM

The custom master stateroom mattress is incredibly comfortable, berth also raises for easy storage access.

• Island Berth
• Custom gas-assisted lift-up access under berth for storage, Upgrade
• Bureau with drawers
• Escape hatch ladder
• Hanging locker, cedar-lined
• Reading Lights, Yacht lights, chart light dimmable, port & stbd, Upgrade
• Separate air-con control

MASTER HEAD

• Countertop, Corian, with undermounted Porcelain sink
• Exhaust blower, DC
• Faucet, single lever
• Shower stall, with Corian Bone non-skid tile flooring, Upgrade
• Heavy glass shower door that locks in place
• Shower with drain pump, DC
• Air-con vent

GUEST STATEROOM - PORT

• Twin Single Berths
• Emergency hatch/vent
• Hanging locker, cedar-lined
• Overhead cabinet, (1) full-length overhead cabinet, Upgrade
• Reading Lights, Yacht lights, chart light dimmable, Upgrade
• TV, Visio flat screen

GUEST STATEROOM - STBD

• Twin Single Berths
• Emergency hatch/vent
• Hanging locker, cedar-lined
• Overhead cabinet, (1) full-length overhead cabinet, Upgrade
• Reading Lights, Yacht lights, chart light dimmable, Upgrade

GUEST HEAD

The guest head is on starboard with entry door from companionway as well as an en suite door from the starboard guest stateroom. There's a washer/dryer combo unit as well in cabinet.

• Countertop, Corian, with undermounted Corian sink
• Exhaust blower, DC
• Faucet, single lever
• Shower stall, with Corian Bone non-skid tile flooring, Upgrade
• Shower with drain pump, DC
• Splendide 2100 washer/dryer

INTERIOR THROUGHOUT

• Blinds, OceanAir; color "Moire", Upgrade
• Bulkheads, Formica, teak, wallpaper
• Cabinet furniture, teak-faced
• Countertops, Granite "Giallo Topazio", Upgrade
• Drapes, lined at each window
• Dimmer switches in salon, galley & staterooms
• Drawer slides
• Drawers, teak-faced
• Grab rails, teak & stainless steel fittings
• Hardware, stainless steel & chrome
• Headlining, fabric panels, removable
• Hull ceiling, teak
• Indirect lighting, salon only
• Lighting, LED, DC
• Reading Lights at berths
• Outlets, AC
• Portlights, lower deck, opening with screens
• Sole, teak & maple, Upgrade
• Steps with rubber traction strips
• Toilet, Sealand Vacuflush
• Varnish, satin marine finish

EXCLUSIONS

Owners' personal belongings. A complete list will be provided upon request.

DISCLAIMER

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
