2023 Azimut 2023 Grande 32 Metri

MAIN CHARACTERISTICSName: LA MAMAType: MotorBuilder: Azimut YachtsYear: 2023Yacht Model: 2023 Azimut Grande 32 MetriLOA (M/FT): 32.00M 105’00”Beam Overall (M/FT): 7.3M 23’11”Draft (Half Load) (M/FT): 1.83M 6’00”Draft (Full Load) (M/FT): 1.89M 6’20”Gross Tonnage: 215Displacement (Fully Loaded): 136 tDisplacement (Half Loaded): 127 tDisplacement (Light Ship): 124 tHull Material: GRPHull Type: Mono HullHull Configuration: Semi-DisplacementSuperstructure: GRP, Carbon FiberDecks: 2Flag: Cayman IslandsClassification: RINANaval Architect: Pier Luigi Ausonio Naval ArchitectureExterior Designer: Stefano Righini DesignInterior Designer: Achille SalvagniMain Engines: 2 x MTU 16V 2000 M86Speeds: 26.5 Max / 21.5 Cruising / 12 EconomicalRange: 1,000 nm @ 12 knGuest Accommodation: 12 guests in 5 stateroomsCrew Accommodation: 5 crew in 3 stateroomsCOMMENTS AND NOTEWORTHY FEATURES AT A GLANCE• Floor to ceiling windows in Master s/r and main salon• Pullman berth in twin s/r• MTU M86 engines with extended warranty• Tender garage separate from beach club• Expansive lounging areas on bow and FB• Owner added extrasCLASSIFICATIONFlag:         Cayman IslandsPort of Registry:      George TownEU Tax Status:      Not PaidUS Tax Status:      Not PaidMMSI Number:      319259100Official Registration:    752229ACCOMMODATIONSLOWER DECK:The lower deck accommodates guests in four additional cabins, all with en-suite bathrooms. These typically include:● Two VIP cabins, often of mirror design, with double beds.● One double cabin.● One twin cabin.MAIN DECK SALON AND DINING:The spacious main salon features floor-to-ceiling windows that flood the space with natural light and expand the sense of space. It includes a comfortable lounge area with soft, rounded sofas and leads to a formal dining area. Some models include a hidden TV behind a pleated panel. The exterior spaces, designed by Stefano Righini, focus on creating distinct areas for relaxation and entertainment.OWNER’S STATEROOM:Located forward on the main deck, the full-beam owner's suite is a standout feature. It boasts floor-to- ceiling windows on both sides, providing expansive views from the comfort of the king-sized bed. The suite also includes a walk-in wardrobe, a dedicated dressing area, and a large en-suite bathroom with twin sinks and a walk-in shower.FLYBRIDGE:At nearly 70 square meters (750 square feet), the large flybridge is divided into three sections.● Forward area: A dedicated dining space for al fresco meals.● Central area: A social lounge for gatherings.● Aft area: Features a customizable arrangement, which can include a hydromassage tub, cold plunge tub, and sunbathing area.BOW LOUNGE:The foredeck features an additional sunbathing area with a sofa lounge, a table, and optional carbon-fiber poles with a tent for shade.AFT COCKPIT:A spacious area shaded by an overhang, providing another comfortable relaxation spot.

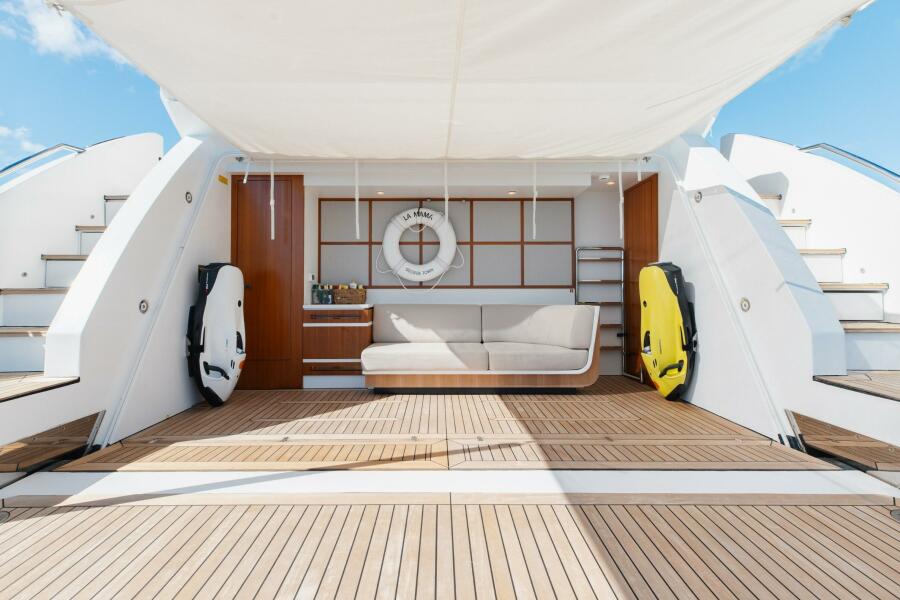

BEACH CLUB:The transom opens to reveal a sheltered 18-square-meter beach club right at the water's edge, creating a waterside lounge area with sunbeds.SIDE GARAGE:A side-loading garage accommodates a tender and a jet ski, freeing up the transom for the beach club.CREW ACCOMODATION:The crew area is located in the bow and has a separate entrance. It includes a captain's cabin, two twin cabins for five crew members, a mess, laundry facilities, and access to the engine room.CONSTRUCTIONHull Material:      GRPSuperstructure Material:   GRP, Carbon FibreDecks Material:      TeakMotor Hull Type:      Mono HullNumber of Decks:     2CAPACITIESGross Tonnage:     215Displacement Tons:    136Fuel Capacity:      17,000 Litres   4,493 Gallons Fresh Water Capacity:    2,900  Litres   766.09 Gallons Grey Water:       3,000 Litres   792.51 GallonsSpeed  Consumption p/h  Range   RPMMaximum:     26.5 knotsCruising:       21.5 knotsEconomical:  12 knots  156      1300    1250MAIN MACHINERYMain Engines:        2x MTU 16V2000 M86 1630 kW (2200 BHP) @2450 rpm/eachEngine Hours:        Port: 850 hours(October 2025)        Starboard: 850 hoursEngine Type:        DieselPropulsion Type:       Straight Line ShaftGear Boxes:        ZF 3360 - 3.5:1 ratioShafting:         Seawater lubricated. Marinox 17Propellers:         2 X five blade propellors in nickel-aluminium-bronzeEngine Ventilation:One axial flow fan variable speed for air intake on portside One axial flow fan variable speed on starboard sideGENERATORS & ELECTRICITYOutput/Electricity:2 groups of 24V DC for main engine starting2 groups of 12 V DC for diesel generators starting 2 groups of 24 V DC for main engine electronicsGenerators:         2 x diesel Kohler 44 kW 400V AC / 50 Hz (1500 RPM) 12 VDC 1500 RPMGenerator Hours:       Port: 2,769 hours Starboard: 2,650 hoursGenerator Exhaust System:    GRP muffler and a GRP gas/water separatorShore Power:        1 x 125A shore power system – 400 VAC / 50 hZ / 3 phaseBatteries:         24V DCBattery Chargers:       1 main engines starter battery set charger1 diesel generators starter battery set charger 1 service battery set charger1 emergency battery set charger1 MMEE electronic battery set charger UPS (uninterruptible power supplies):  YesAUXILIARY MACHINERYSteering System:       1 electrical actuator in the wheelhouse,1 electrical actuator in the external console, placed on flybridge,1 hydraulic power pack (fitted in the aft technical room on portside), with two 24V pumpsBow Thruster:        Yes / hydraulic / propeller thrust of 550 kgfStabilizers:         Yes / electrical motor having 5 kW / Fin area will be 1.5 m2 / Voltage will be 400 Vac, 3 phases, 50Hz, duty cycle S1 (CMC)FUEL & OIL SYSTEMFuel Filters:         Yes – Main engines + generatorsFuel Transfer Pump:      Yes – Electric + manualFIREFIGHTING & BILGE SYSTEMFirefighting & Bilge Pump:     1 self-priming seawater fire extinguishing system1 dedicated pump for main + bilge2 water pumps with hot water circulation pump

FRESH WATER SYSTEMFresh Water Makers: Idromar MC3J (2160 L/day) / Horizon SFC 1400-2 ModularFresh Water Tank Vent: YesSea Water Pumps: Yes – 2 seawaters for A/C + sea chest manifold 2 hot water heatersBLACK & GREY WATER SYSTEMGrey Water Tank Vent: Yes, ozone vent system for black + grey waterWC's (toilets/bidets): YesAC & VENTILATION SYSTEMAir Conditioning: 2 Chilled water reverse cycle with dual pumps (CLIMMA)Air Handling Units: Throughout accommodation spaces + common areasEngine Room Ventilation: One axial flow fan air intake on portside. One axial flow fan starboard side, working as exhaust fan at low yacht speeds and as intake fan at high yacht speeds.Galley Ventilation & Extraction: YesHYDRAULIC SYSTEMHydraulic Power Packs: 2 hydraulic power pack for steering, gangway, swim platform, side shell door, tender launching systemEmergency Power Pack: Manual emergency operationANTIFOULING SYSTEMType: Yes – Black/WhiteNAVIGATION & COMMUNICATION SYSTEMSNAVIGATION SYSTEMSMonitors: Simrad M016-T TouchscreenX-Band Radar: SimradS-Band Radar: SimradMultifunctional Workstation: Simrad NSS16Chart Plotter: SimradUPS: YesCompass: Riviera BP2 Riviera BZ1/3 12VAuto Pilot: Simrad AP44Rudder Angle Indicator System: Simrad IS42Echo Sounder: YesSpeed Log: YesDepth Sounder: Sonar Hub SimradGPS: 1 antenna Simrad IS42AIS: YesWind Instruments: Airmar 200wxHorn: Pneumatic horn with dedicated compressorSearch Lights: JabscoNight Vision Camera: Flir M300Transducer: Simrad B744VBridge Navigation Watch Alarm: YesWeather Fax: NoShips Computer: YesCOMMUNICATION SYSTEMSSAT com: StarlinkVHF Repeater: Simrad Handset / Speaker RS90VHF Antenna: 2Portable GMDSS VHF: NoIridium Satellite Phone: NoTelephone System: NoRadar Antenna: Simrad Halo 4’DECK MACHINERY & EQUIPMENTAnchors:n2 galvanized steel HHP (high holding power) anchors of 140 kgAnchor Chains: 2 w studless chains made in galvanised steel of 14 mm diameter link, length of each chain 135 m.Anchor Windlass System: 2 x electric windlasses on a recessed stainless-steel plate. Electric power will be 400 Vac, 3 phases, 50Hz, 4 kW. (ITALWINCH)Warping Capstans: 2 x ItalwinchSide Boarding Ladder: Yes, Aluminium with non-slip stepsStern Boarding Gangway: Polished stainless steel frame and teak gratingSwimming Ladder: AISI 316 stainless steel with teak stepsSpotlights: 1 x Jabsco 146 SLPaint Exterior: Superstructure will be finished in gelcoat (Ashland Maxguard SX11235 AA6) Hull topsides will be finished in gelcoat (Ashland Maxguard SX11235 AA6)Paint Underwater: Black anti-fouling paintSAFETY, SECURITY, & FIREFIGHTING EQUIPMENTCCTV: 2 x Panasonic S4551 1 x Panasonic S6130Monitors:1 x SimradFixed Firefighting System:FM 200 fixed fire extinguishing system will be installed for engine roomFirefighting Equipment: Extinguishers, fire nozzles, fire hoses, fireman axeGas Detection: Yes (Garage)Smoke Detection: YesFire Alarm: YesAlarms: YesLife Rafts: 2 x life rafts for 10 people each on flybridgeLifejackets: 16 life jacketsLife Rings: 2 on flybridgeEPIRB: YesFlares and Signals: Parachute flares (6 pieces) and smoke signals (6 pieces) will be suppliedMedical Equipment: 1 x offshore medkit (Medaire)ENTERTAINMENT, AUDIO/VISUAL AND IT SYSTEMSMain Salon:1 TV 50’ LG 4k LED1 Blue Ray player Sony1 amplifier Bose Lifestyle 6001 Apple TV 32 GbMaster Stateroom:1 TV 50’ full HD LG LED1 Blue Ray player Sony1 amplifier Bose Lifestyle1 Apple TV 32 Gb

VIP Stateroom:1 TV 43’ LG LED1 Blue Ray player Sony1 amplifier DENON AVR x1600h DAB1 pair of loudspeakers B&W CCM3621 Apple TV 32GBGuest Staterooms:1 TV 27’ LG LED1 Blue Ray player Sony1 amplifier Yamaha RX-V3831 pair of loudspeakers B&W CCM3621 Apple TV 32GBExterior, Aft Deck, Bar, Bridge Deck:1 TV 55’ LG LED. (Fly Bridge)1 TV 43’ Samsung (Cockpit)4 loudspeakers (Fly Bridge)4 loudspeakers (Cockpit)4 loudspeakers (Bow)1 amplifier SONOSCrew Mess:1 TV 24’ LG LED1 Fusion2 loudspeakersCrew Cabin:1 x Car stereo Sony2 loudspeakersGALLEY & LAUNDRY EQUIPMENTMAIN GALLEY EQUIPMENTCooking Equipment:1 x Oven Miele1 x exhaust hood Miele1 x cooking top MieleRefrigeration/Freezer:1 x fridge Commercial Brand1 x freezer Commercial BrandDishwasher:1 x MieleOther:1 x microwave Miele1 x mini wine cooler fridge MielePANTRIES AND OTHERSRefrigeration/Freezer:1 x IsothermOther:CREW GALLEY / MESS EQUIPMENT / COOKING EQUIPMENTRefrigeration/Freezer:1 x IsothermOther:Sun Deck / Beach Area / Flybridge:1 x minifridge Isotherm (beach)1 x Ice maker Isotherm1 x minifridge Isotherm (flybridge)1 x minifridge Isotherm (stern area)1 x mini freezer isotherm (stern area)Crew Laundry Equipment:1 x washing machine Miele1 x drying machine MieleTENDERS & TOYSTenders: 1 x AB inflatables 14 VST w/ Mercury 75Toys: 2 x seabobsDiving Compressor: Yes

The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated.
