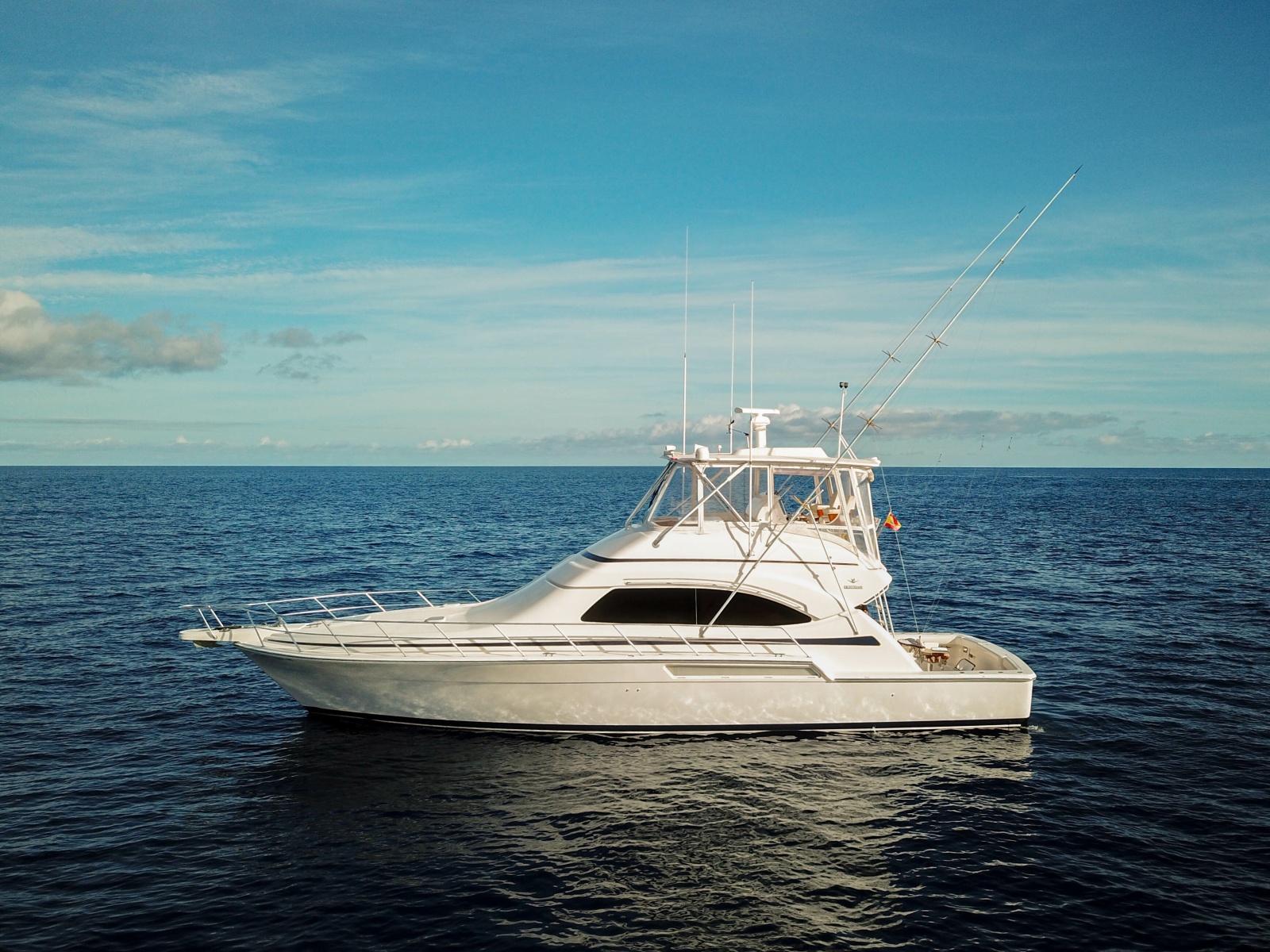

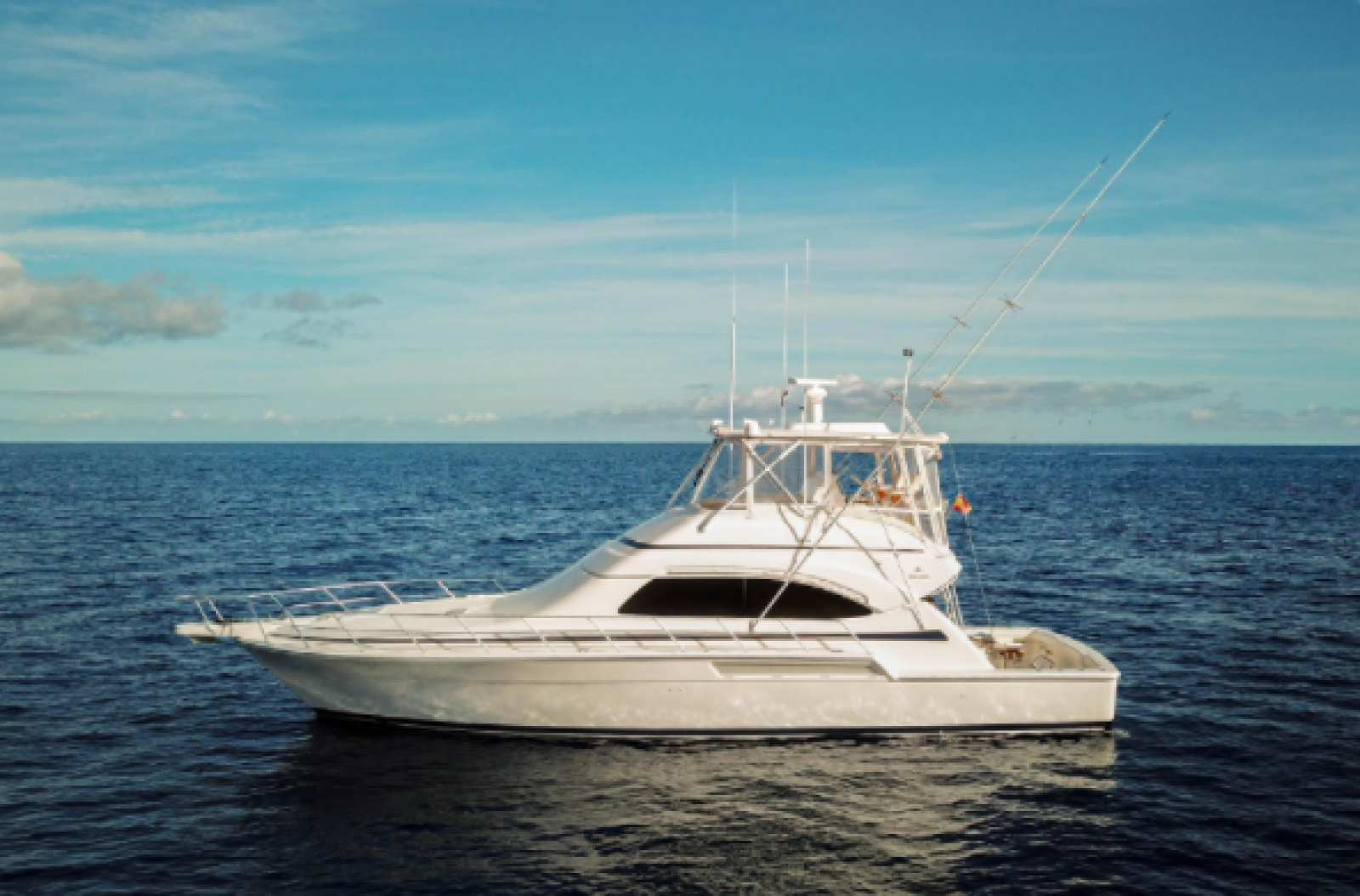

2006 Bertram 510 Convertible

Dimensions:Overall Length (w/bow pulpit): 54 Feet, 10 inchesHull Length: 51 Feet 05 InchesBeam: 16 Feet, 02 InchesDraft: 5 FeetHeight Above Waterline: 14 FeetCockpit Square Feet: 168 Sq.ft.Displacement: 65,489 lbs (29.7 tons)Hull Construction:Material: FRP - Molded FiberglassDeck: FRP - Molded fiberglass main deck and bridge deckBottom Type: Deep VKeel: Molded in HullFlybridge: FRP over molded fiberglassPulpit: 7' Fiberglass(5) Bulkheads, Fiberglass over marine plywood (Fore peak, Forward Quarter, Amidships, aft quarter, aft)

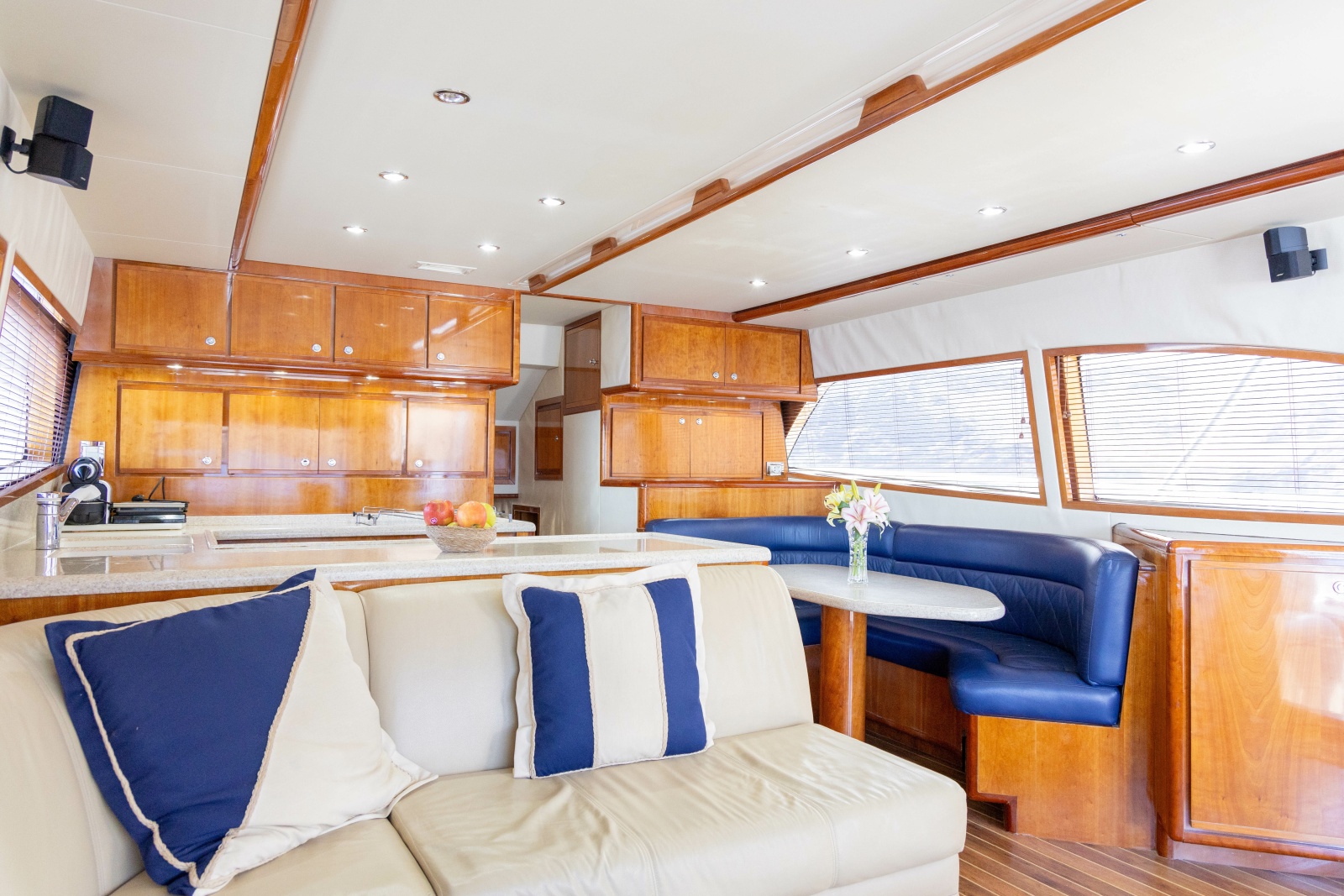

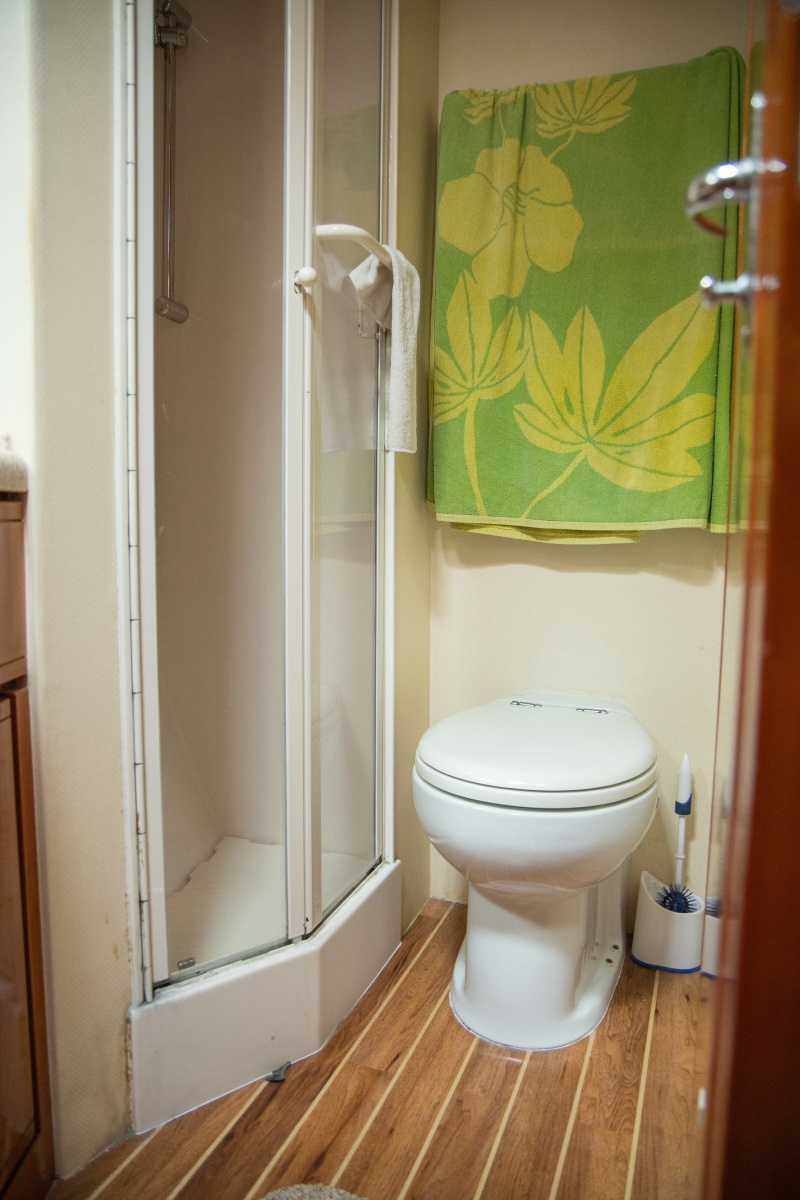

Accommodations & Main Salon Area:The main salon has built-in cabinets aft on the starboard side with the main electrical panels, TV, and ice maker.Forward on the starboard side is a built L-shaped dinette. There is an L-shaped sectional sofa along the port side with a custom cocktail table. The galley is forward on the port side.Going forward and down four steps to starboard is the double individual bed guest cabin. The guest head is forward of this cabin. The master stateroom is on the port side. There is a queen bed and an ensuite head.Going forward in the companionway to port is the laundry center. The VIP Stateroom is forward. There is a queen center bed. There is a privacy door to the head aft on the starboard side.There is one overhead watertight escape/ventilation hatch, and two overhead ventilation hatches.Master Stateroom:Port/Owner's Stateroom provides sleeping for two guests on a full berth (with storage drawers below)Dual hanging lockerUSCG Type III MSD head, Tecma, porcelainVIP Stateroom:Forward/VIP's Stateroom provides sleeping for two guests on a full berthDual hanging lockerAccess to the anchor chain locker (forward), and a fully enclosed head compartment (aft to starboard).USCG Type III MSD head, Tecma, porcelainGuest Stateroom:Starboard/Guest room provides sleeping for two guests on two single berths (storage drawers below)A hanging lockerGalley:Norcold Coolmatic Refrigerator(2) Sets of Sub-Zero drawer Freezer/Fridge, Model 700BFDouble Sinks(3) Burner Kenyon Cooktop Electric Range with sea clips/holdersSharp Carousel Microwave 1200WMiscellaneous Appliances: Malnor Washer & Dryer Additional Details:(2) heads located at the Master and VIP Staterooms.Showers: Head compartments featured acrylic countertops and sinks, faucets, electric heads, vinyl wall covers, wood panel soles, and enclosed showersFurniture: Main Salon features an L-shaped sofa and a wood coffee table.Dinette features an L-shaped bench, an acrylic dinette table, and overhead rod storage.Washer: Manufacturer: Candy - Smart front loadDryer: Manufacturer: Candy - Smart front load

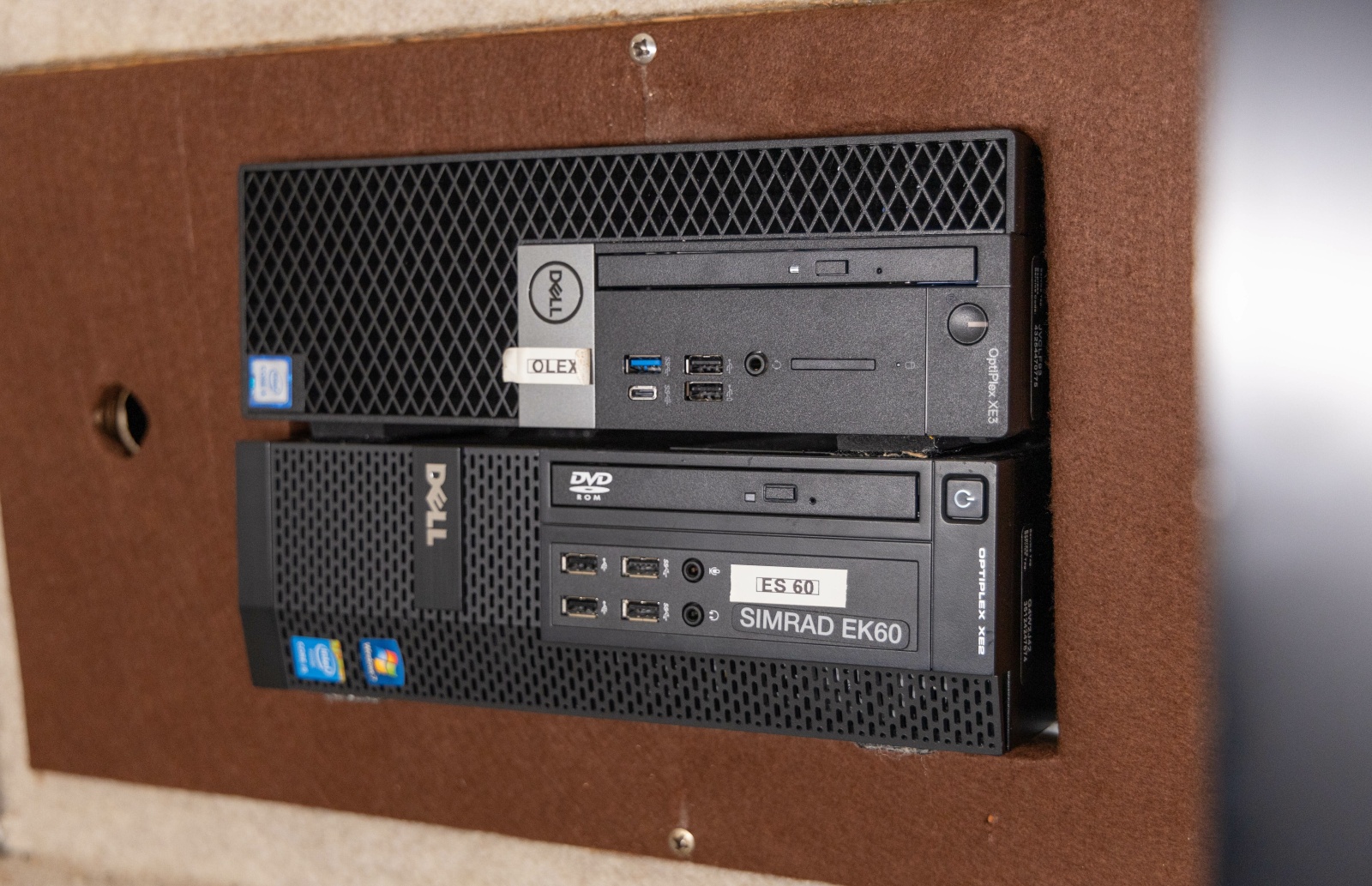

LCD TV. Make: I-Joy LEDBose Music Entertainment System DVD, FM, CD. Model: LifestyleAdditionally, five (5) dual Bose interior speakers at the Main Salon.(2) VHF: Manufacturer: Simrad Model: RS86Autopilot: Manufacturer: Simrad. Model: AP25Simrad ES60 fish finder echo-sounder with a 38/200 Hz 1kW transducer built and molded into the keelFuruno FS2570 SSB-HF radio, 250 wattsSAILOR 150 IRMASAT Fleet Broadband communication systemRigid E-Series Pro LED Light Bar 35,000 Lumens (frontal)Searchlight ACR-URP-102MAN Engine Digital Displays, (2 units). Model: MMDS-CLC 6.33D SIMRAD OLEX GPS/Chart/Navigation System, 19'' Abraxys Sunview screen x2Furuno GPS/Chart/Radar/Navigation System, Model: 6100i.Ritchie Compass 4"Clarion AM/FM Radio & CD Player, Model: CMD-4(4) Exterior Speakers(3) Antennas mounted on the Flybridge hardtop

Engines:2 X MAN, Model # V-10-1100 / 1,100 hp EachReduction Gear: 2 x ZF Marine/ Model ZF550A 1.97 to 1Propellers: Number of blades: Five (5). Material: Nibral/Bronze(2) Stainless Steel Propeller Shafts: Diameter: 3 Inches(2) 4" Bronze / Fiberglass Tidan with dripless shaft sealsTransmissions:Manufacturer: ZF (Zahnradfabrik Friedrichshafen)Model Number: Port: ZF 550 A / Starboard: ZF 550 AType: Reversing clutch type with reduction gearsDrive Type: StraightGear Ratio: Transmission tag states 1.97:1Controls: ZF electronic single lever controlsPropeller Shafts: Size: 3 inches Material: Stainless SteelStuffing Boxes: Dripless Type SystemGenerators:2 x Kohler, Model: 20EOZDVoltage: 120/240Kilowatt Rating: 15.5 KW/60 Hz @ 1.800 RPMMuffler: (2) Centek Flo-Thru(3) In-Line CylindersRemote Racor 500 MA fuel filter/water separatorFRP exhaust muffler, wet exhaustFuel System:Fuel Type: Diesel(1) Fiberglass Tank - centered1,090 gallons capacityShut-Off Valves: Forward main engines at the fuel manifold valve system(4) Fuel Filters remote mounted Racor 75/1000MAX .Engine-mounted spin on/offSteering System:Type: HydraulicManufacturer: Sea StarClutch & Throttle: ZF ElectronicDelta (28 Kgs) with a brand-new 10-mms calibrated chain (80 mtrs)(2) 10" Bow Cleats(2) 10" cleats at the forward quarter and (4) aft quartersRudder Stock: Stainless steel rudder stockRudder Shaft Packing: Bronze hex nut type packing glandAir Conditioning and Heat:Split System, Manufacturer: Cruisair(3) compressors(3) Cruisair air conditioning digital controls in the main salon, forward stateroom, and port stateroomRaw water cooling pump: 220-volt electric pump system equipped with seacocks and Perko sea strainers assembliesFreshwater System:(1) main ship storage tank, Aft, 185 gallons ship water capacityJet-type fresh water pump located in the engine roomHot Water System, Seaward Water Heater, Model: S1250Capacity: Approx. 10.5 gallonsSea Water Desalinator System, Sea Recovery, Make: FCI Watermakers (600 GPD)Type: Reverse Osmosis / 220 AC High-Pressure System

Voltage: Lead acid battery powered 12 and 24-volt systemBatteries: (4) VETUS - AGM and (4) OPTIMA - AGM servicing GEN setsMain Battery Switches: (2) Guest battery switches located mid-engine room to port. (1) Blue Seas System battery switch.Main Breakers: (2) main breakers for 24V DC at the main electrical panel (aft main salon to starboard). (2) main breakers for 24V DC at the secondary electrical panel. (2) main breakers for 12V DC and (2) main breakers for 24V DC at the secondary electrical panel.Panel: Overcurrent Protection: Circuit breakers.(22) breakers for 24V at the main electrical panel.(14) branch breakers for 24V at the secondary electrical panel.(10) 12V breakers and (14) 24V breakers at the secondary electrical panel.Charging Systems: Alternators on main diesel engines and diesel generators.Mastervolt Battery Chargers, (2 units). Model 1: MASS24150, Model 2: Mastervolt ChargeMaster Plus - 24v / 80 Amp(2) Model: Voltmaster. Type: 60 AmpsShore Power Inlet, in Cockpit (forward to starboard)Standard Hubble Stainless Steel w/Cap. Rating: 125/250 Volts, 50 AmpsShore Power Cord Approx. 50' longInverter 24v DC to 220VAC, 2500 WCable Master: Glendinning systemAC Source Selector Switch: (2) 70A generator selector switches are located at Main SalonMain Breakers: (2). Rating: 50 Amps(16) Branch Breakers for 120V and (12) breakers for 240V in the main electrical panel.(16) breakers for 120V and (4) breakers for 240V at the secondary electrical panel.Circuit Load Monitors: (2) AC voltmeters and (2) AC ammeters in the main electrical panel

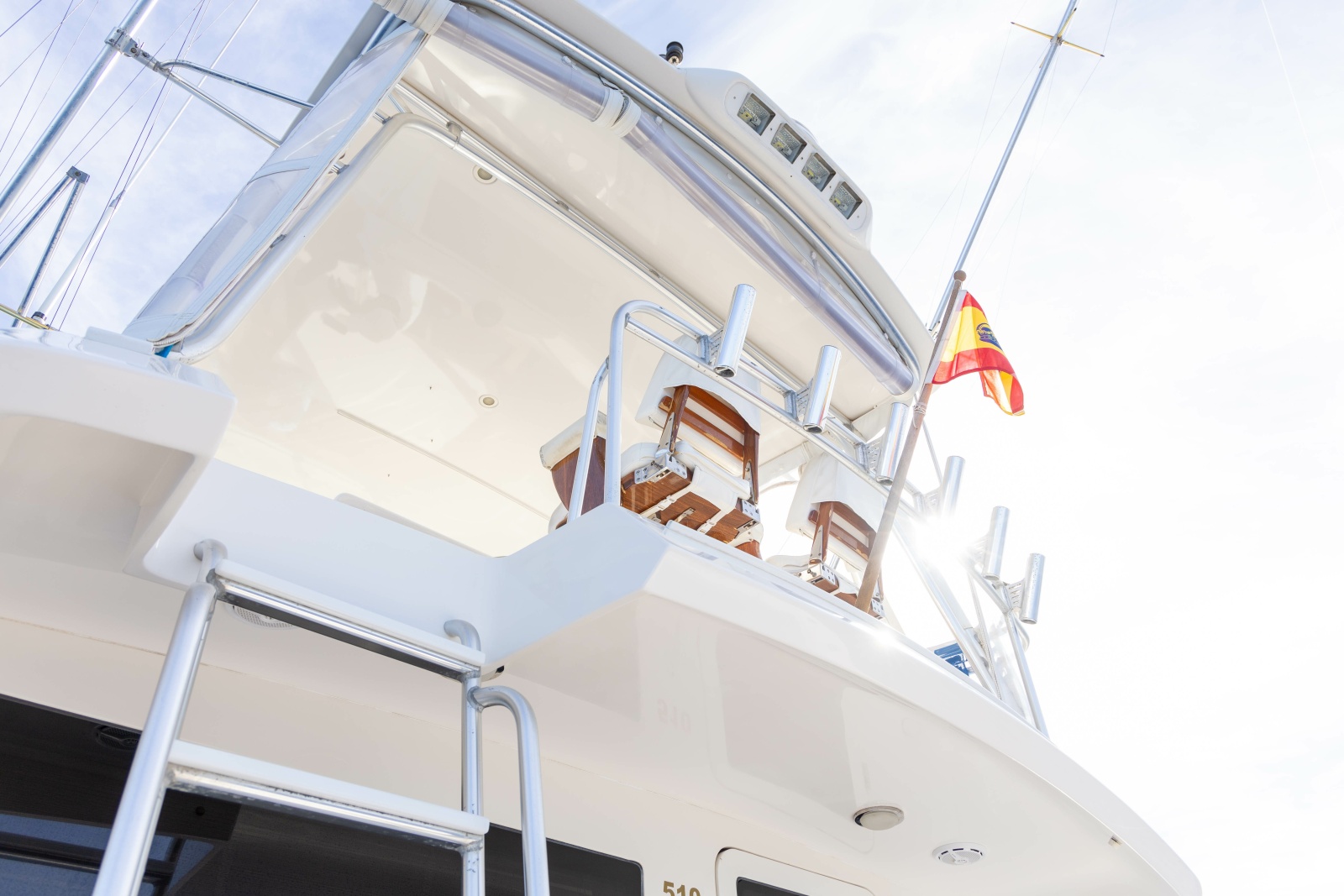

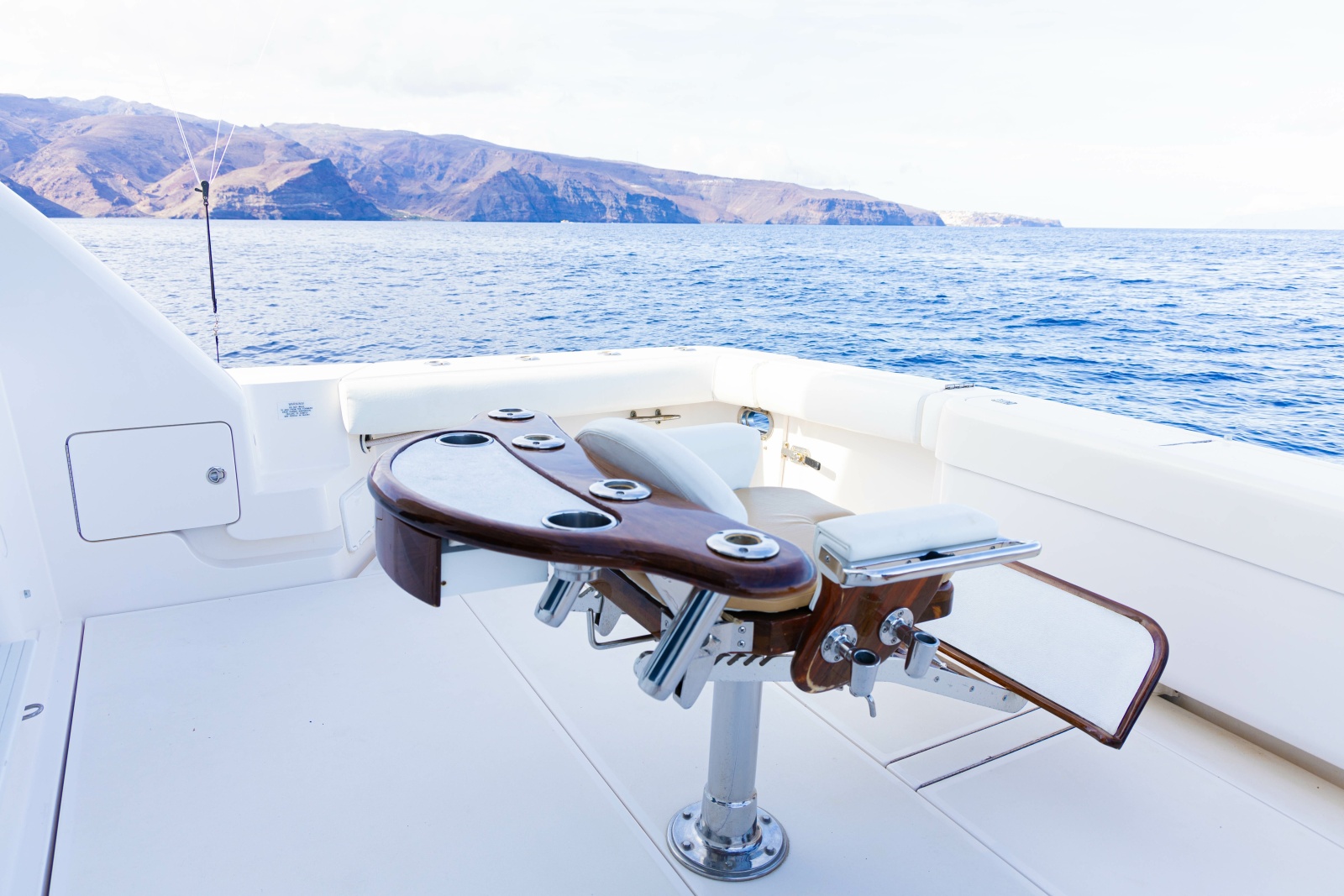

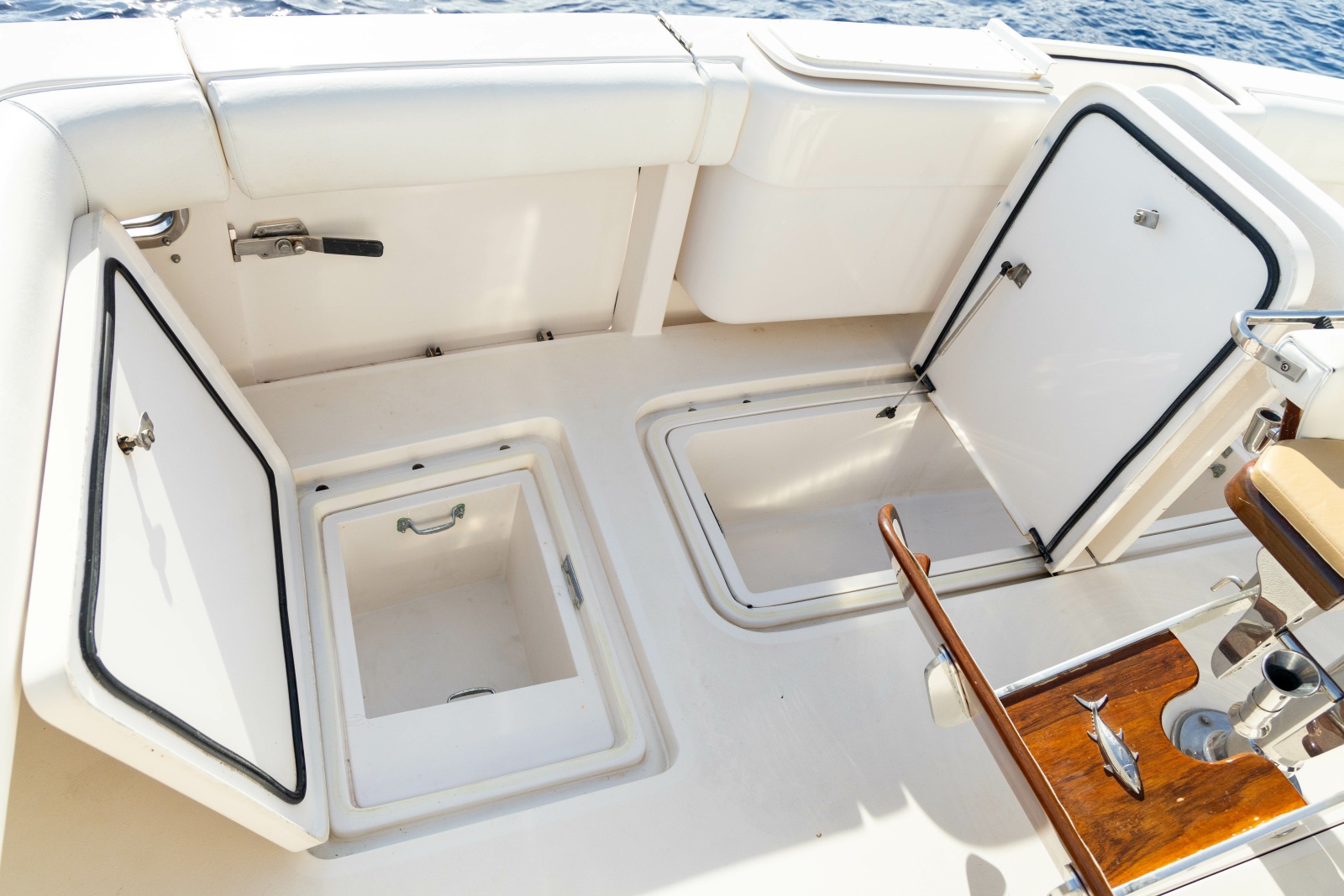

Cockpit:Hot / Cold Cockpit ShowerMurray teak fighting chairCommercial freezer with built-in fan80-gallon Livewell8 rod holders(4) waterproof 12v cockpit outlets for electric reels2 additional cleats on each sideSwimming LadderFishing Equipment:(10) rod holders: four (4) gunwale mounted and six (6) uppers at the flybridge railing.Triple spreader outriggers (by Rupp)An overhead rod storage compartment is located at the DinetteFighting Chair: Teak seat, largeBait Freezer: One custom bait freezer located forward cockpit to port.One raw water wash-down in the cockpit. One freshwater wash-down forward cockpit to starboardOne live bait well located forward cockpit to starboardOne tackle center is located forward in the cockpitOne large FRP fish box is located below the cockpit deckOne FRP fish box (w/output for Eskimo ice machine) located inboard transom(4) spreader/flood lights are mounted on the flybridge hardtop

Fire Fighting Equipment:Fire Boy Clean Agent FE 241 in Engine Room(4) Portable Extinguishers Dry Chem 1A-10BC ( Galley, Forward Cabin, Master Cabin)Fire Boy Alarm and (1) additional Portable Extinguisher at engine roomMiscellaneous Equipment:Electric oil change systemWind sensor Simrad IS12(2) LED Spotlights Rigid E series 35,000 lumens eachMcMurdo EPIRB with GPSEngine room infrared camera connected to flybridge screensSalon security camera connected to flybridge screensRadar, Plotter and GPS plugin to Salon TV connection Satellite phone SAILOR 150 IRMASAT Side Power thrusterGlendenning cable masterGenerators battery charger Dolphin 25w 24v fresh water pump with auto-change system with the 220v pump24v 5 atm washdown pump Electronic fold-down Flybridge helm console

Engine and generator hours are as of the date of the original listing and are a representation of what the listing broker is told by the owner and/or actual reading of the engine hour meters. The broker cannot guarantee the true hours. It is the responsibility of the purchaser and/or his agent to verify engine hours, warranties implied or otherwise and major overhauls as well as all other representations noted on the listing brochure.

The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated.
