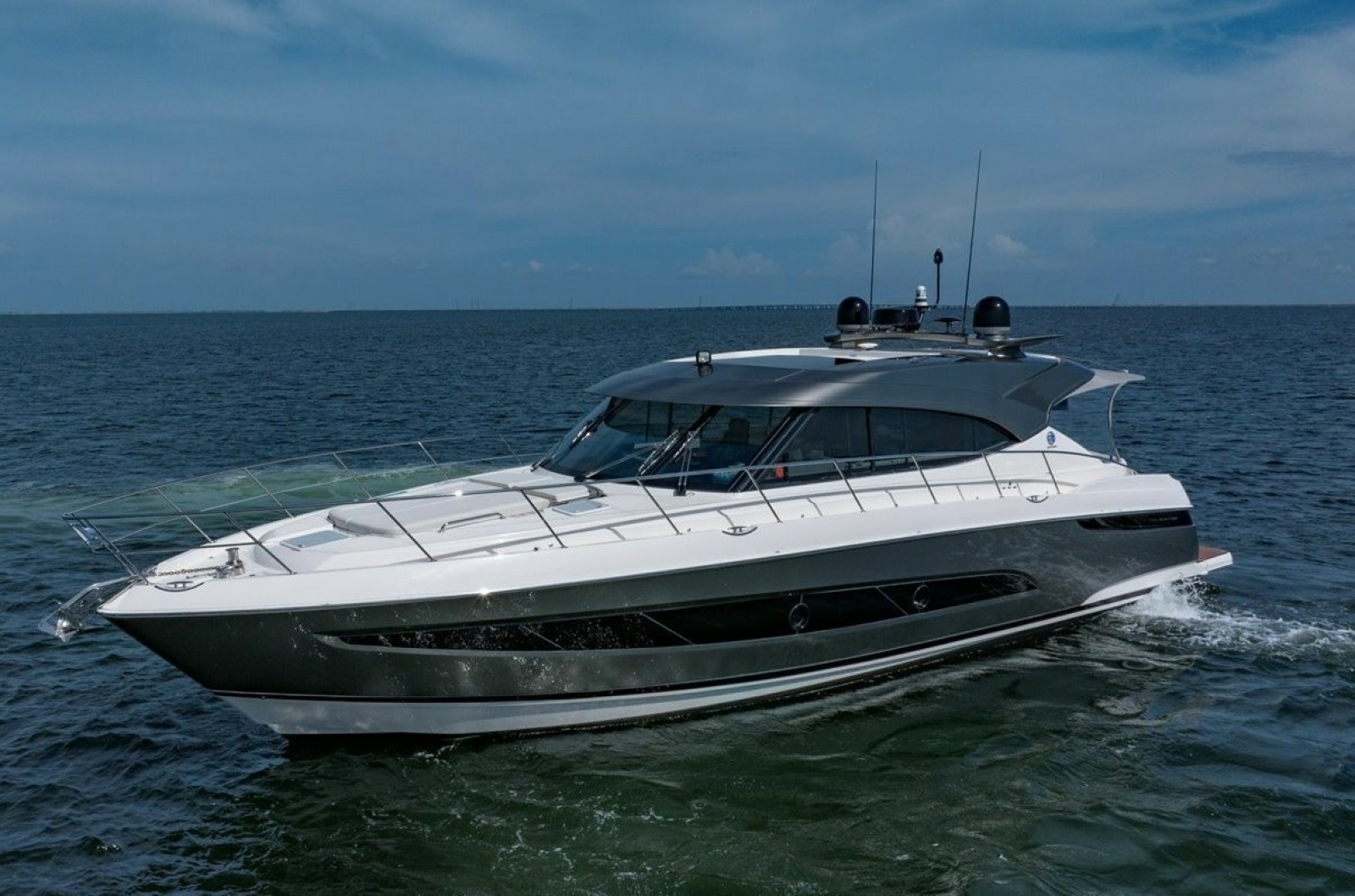

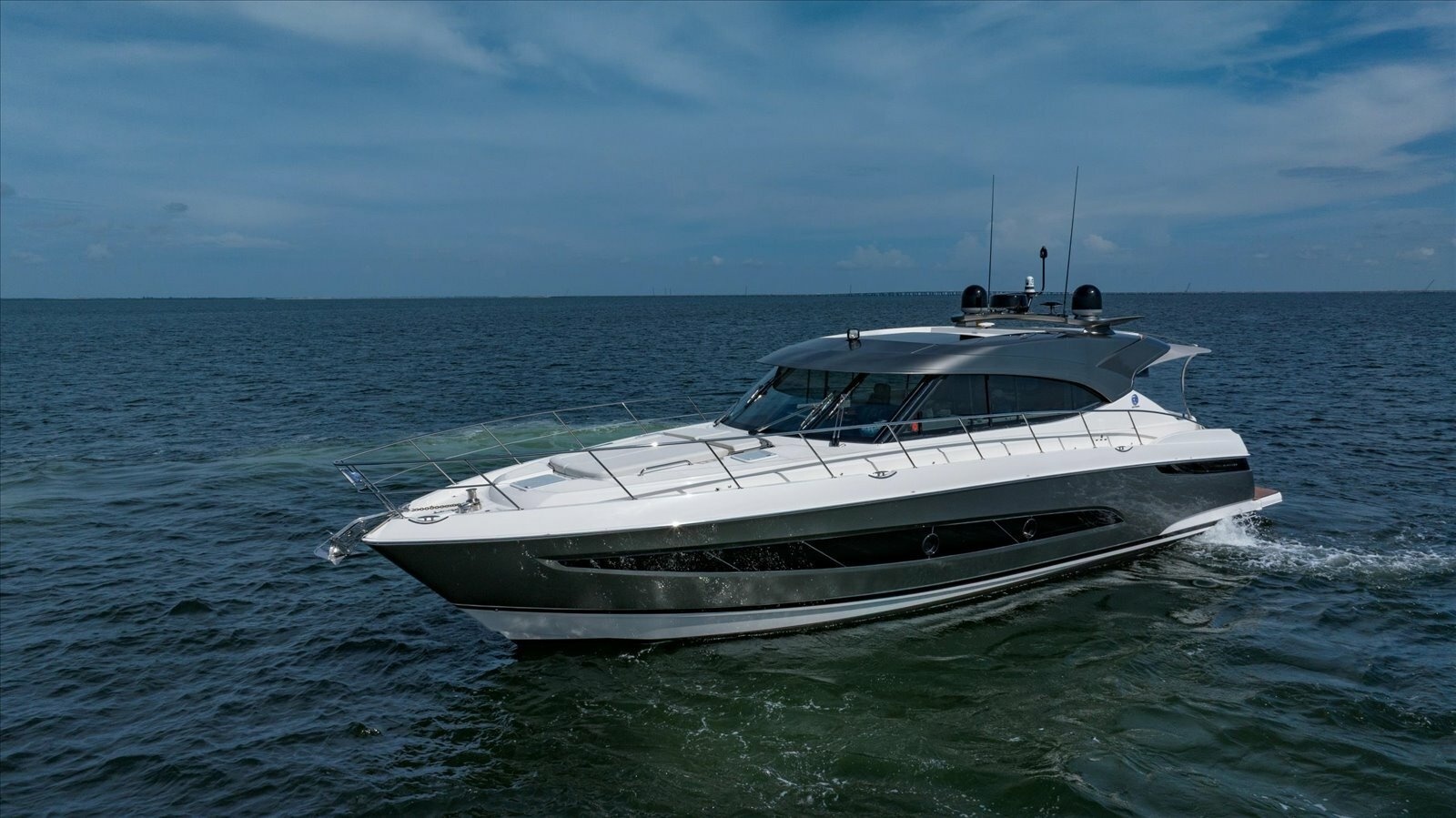

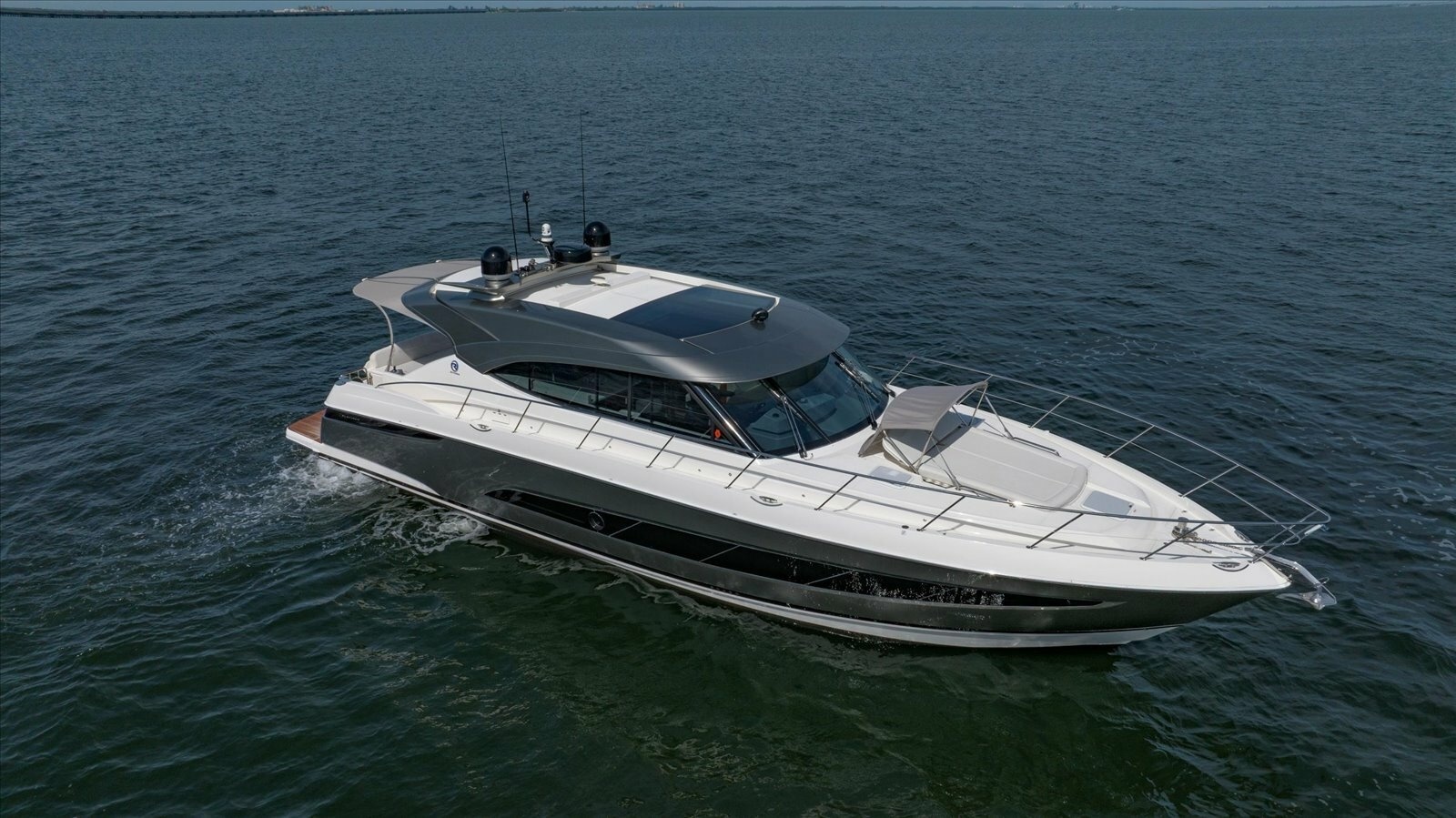

2023 Riviera 5400 Sport Yacht

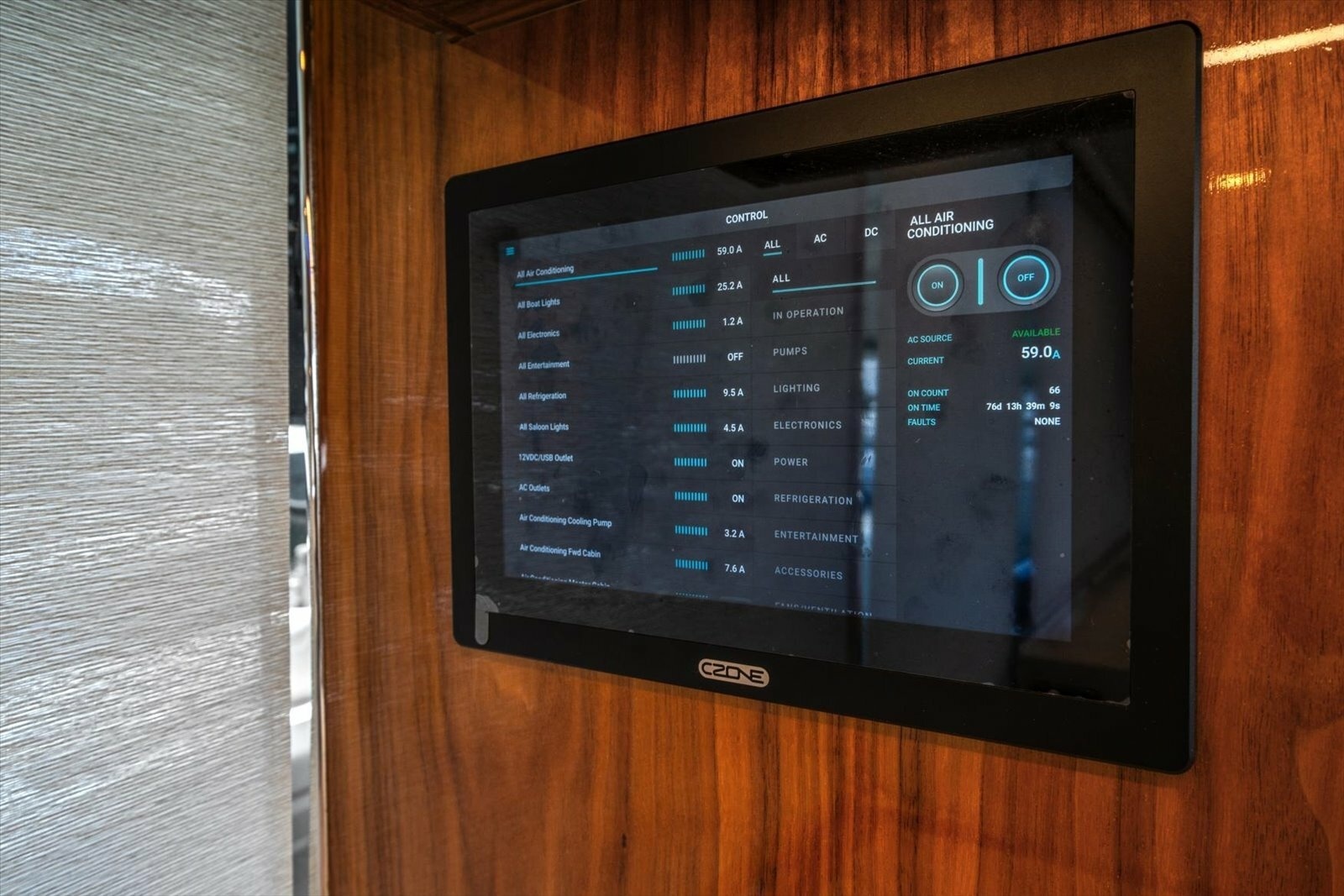

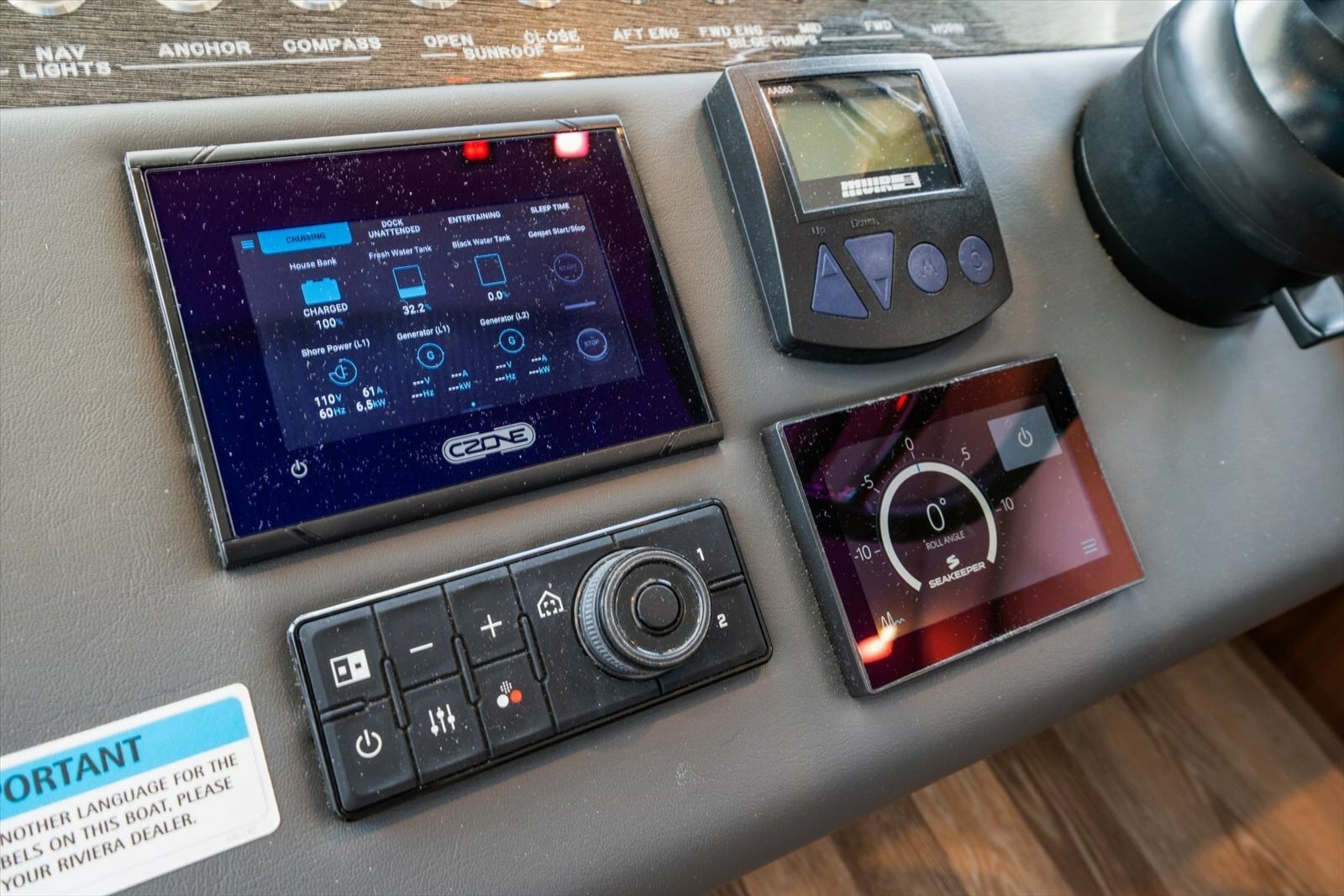

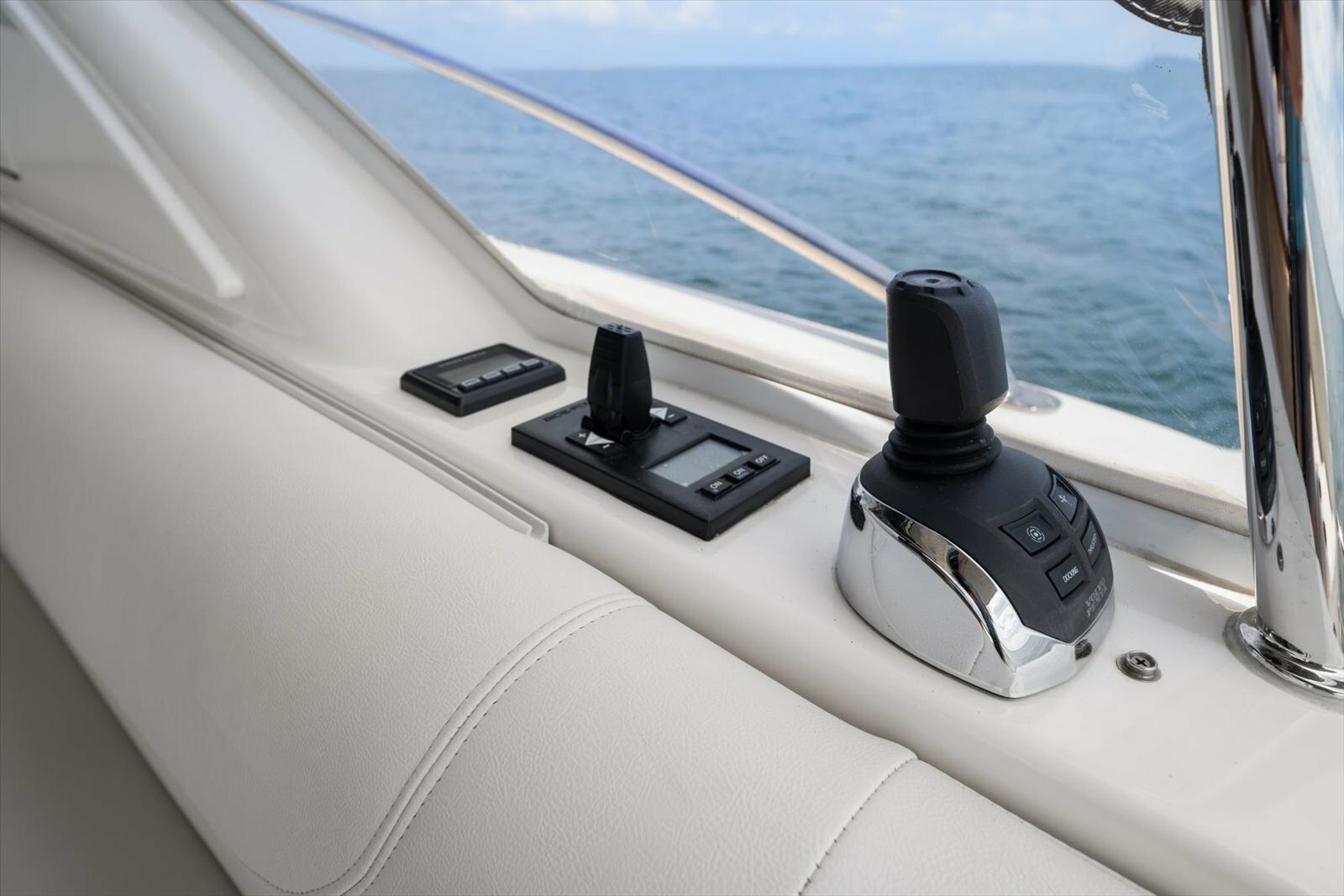

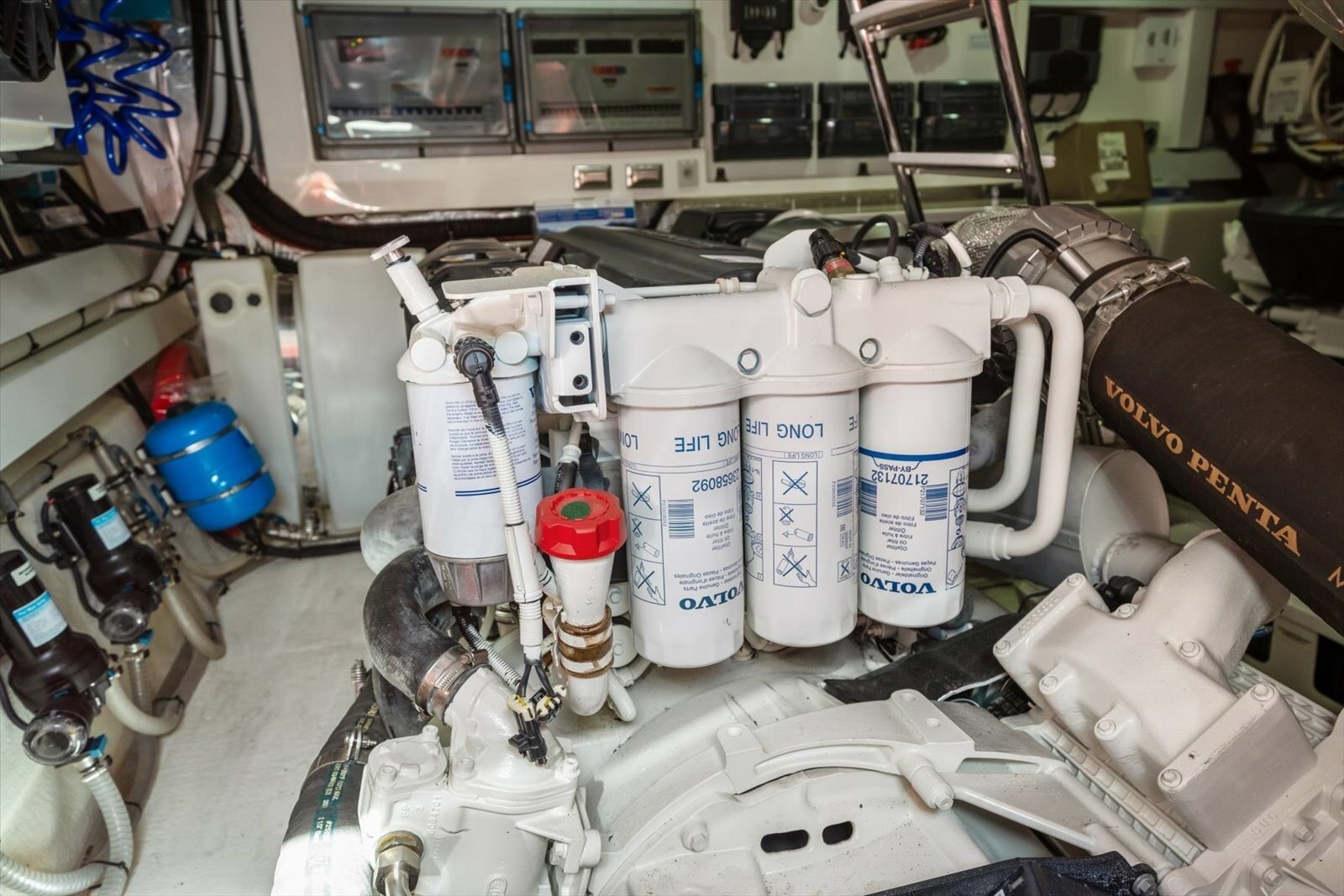

Volvo Penta Full Warranty Until 11/28/2027! Engines, Transmissions, Pods- ALL VOLVO COMPONENTSJoystick at main helm and two (2) in the cockpit (port and stbd) with station select/start/stop controlBow thruster- Integrated into DPS & Assisted Docking systemCzone- Configuration for ipad connectivity, includes programming and Wi-Fi interfaceStarlink Antenna (NEW- April 2026)Tropical Air Conditioning Package- salon upgrade to 48,000 BTU and includes heat reflective film to windows, front and sides as well as sunroof glassHigh Pressure Water Cleaner plumbed to outlets at bow and cockpit supplied with 1x 32'10" hose and spray wandFuel filters/ water separator for engines & generator, DUAL to main enginesUpgrade house battery bank to include additional Lithium-ion battery (total x4) (400AHr Total/280AHr Usable Capacity)Wireless remote for Glendinning CablemasterHand held corded remote for swim platform, mounted in tender garage to allow operation of up down mechanism from the swim platformPort stateroom (or lounge area) - 24” LED TV, Fusion Apollo 670 Stereo with FM, Bluetooth, Airplay and Partybus, 2 x Fusion Speakers) Cockpit Speaker Upgrade - includes 4 x 7.7" and 2 x 8.8" JL Audio M6 Blue backlit speakers powered by JL Audio 6 channel amp.Additional transom fixed cleats mounted to lower transom style lineDyson cordless rechargeable vacuum cleaner with detachable long reach wand with charging stationDrinking water purifier with outlet in galleyPortable SpotZero unitSalon table upgrade to electric hi/lo with infill cushion allows conversion of dinette into daybedPainted hull topsides in metallic colour (Gunwhale to pin stripe, following the chine line up at the bow, swim platform not included)Cockpit awning - Yacht acrylic - Fixed forward section only with integrated 1/4 panel strata-glass clears to port and stbdMaster cabin includes a small safe, mounted into hanging lockerSalon side window coversTriangular Quarter glass clears to cockpit port and stbd with additional grab railsUpholstery to cockpit lounge and foredeck sun pad - Dove VinylSolid Surface benchtop colour - As fitted to Galley, Cockpit and Heads (Including heads floor) Corian - PEARLUpholstery - Bedhead & Bed surrounds - Bedside Inlays to compliment- LOVELY MARBLESalon, Galley, Stairs & Companionway Flooring in commercial grade vinyl UPGRADE- LIMED LINEN OAKStaterooms Fitted with 100% Wool Carpet- TROIKA MOSCOWGALLEYWARE PACKAGE (32pce Cutlery set, 32pce Dinner set, 2 x Kitchen towels, Tumblers - 8 x Medium & 8 x Large, 8 x Wine Glasses, 8 x Champagne Flutes, Salad Bowl & Salad Servers)Mattress Protectors - for 3 cabin layout (1 x King, 1 x Queen, 2 x Singles) Additional Fitted Sheet Sets - for 3 cabin layout (1 x King, 1 x Queen, 2 x Singles)Timber - Walnut interior including high gloss Finish varnish throughoutSalon roller blinds to sides and rear bulkhead (manual)2 x 17" Volvo Glass Bridge 8617 with GPS and GRID ControllerSounder/Transducer CHIRP Garmin GSD 26 CHIRP Sounder with 1kw B275LHW depth/temp transducerSounder/Transducer Panoptix Livescope FrontVu forward looking transducerGarmin GFR Fantom CHIRP Closed Array Radar 48NMGarmin Autopilot integrated into Glass BridgeGarmin AIS 800 Transciever with VHF radio integrationAft Awning Flood Lighting (2 lights) Lumitec Caprera LTForedeck Lighting (6 each side) Hella Easy Fit BlueTarga Uplighting Lumitec Echo White x 6 to light Sat Domes and RadarEngine Room Camera Garmin GC 200 IP Dome Camera (infra red)Cockpit Camera Gamin GC 200 IP Dome Camera (infra red)Awning Camera, mounted to stainless railThermal FLIR M232 Camera with tilt/pan and JCU controllerSiren Marine Remote Monitoring SystemNavigation display connected to Salon TVHRO Seafari Watermaker 900GPD, with control panel in salonKVH TV5 Tri-Americas SAT TV DomeLumitec SeaBlaze X2 Full-Spectrum Underwater Lights, 4 across transom and 1 on each side, 6 in totalGarmin GXM54 weather module for chartplottersSeaKeeper 9 Gyro StabilizerMaster Cabin Chaise Lounge to be removed and a drawer unit same as port side to be installed to maximize storageAdditional power sockets with USB ports in cabinets by helmSAT TV to be connected to all TV's on board32" Samsung TV on Custom stainless steel bracket on port side of aft deck areaVolvo Penta Assisted Docking System with proportional bow thruster (new for 2023). Big game changer for joystick docking. The boat will maintain its fixed position but actively let you move it with the joystick all while counteracting wind and current.Tracfone LTE-1 data domeDesalinatorPortable SpotZero

2023 Riviera 5400 Sport Yacht Platinum Edition- General Standard Features:Hand laid, molded fiberglass hull, deck (with core), cabin top & enclosed hardtopIndependent compartments throughout hullIsophthalic gelcoat exterior (white)Solid reinforced GRP keel, chines and hull bottomVinylester resin in first outer layer of hullWatertight collision bulkhead forwardHull windows are glass full length port and starboard

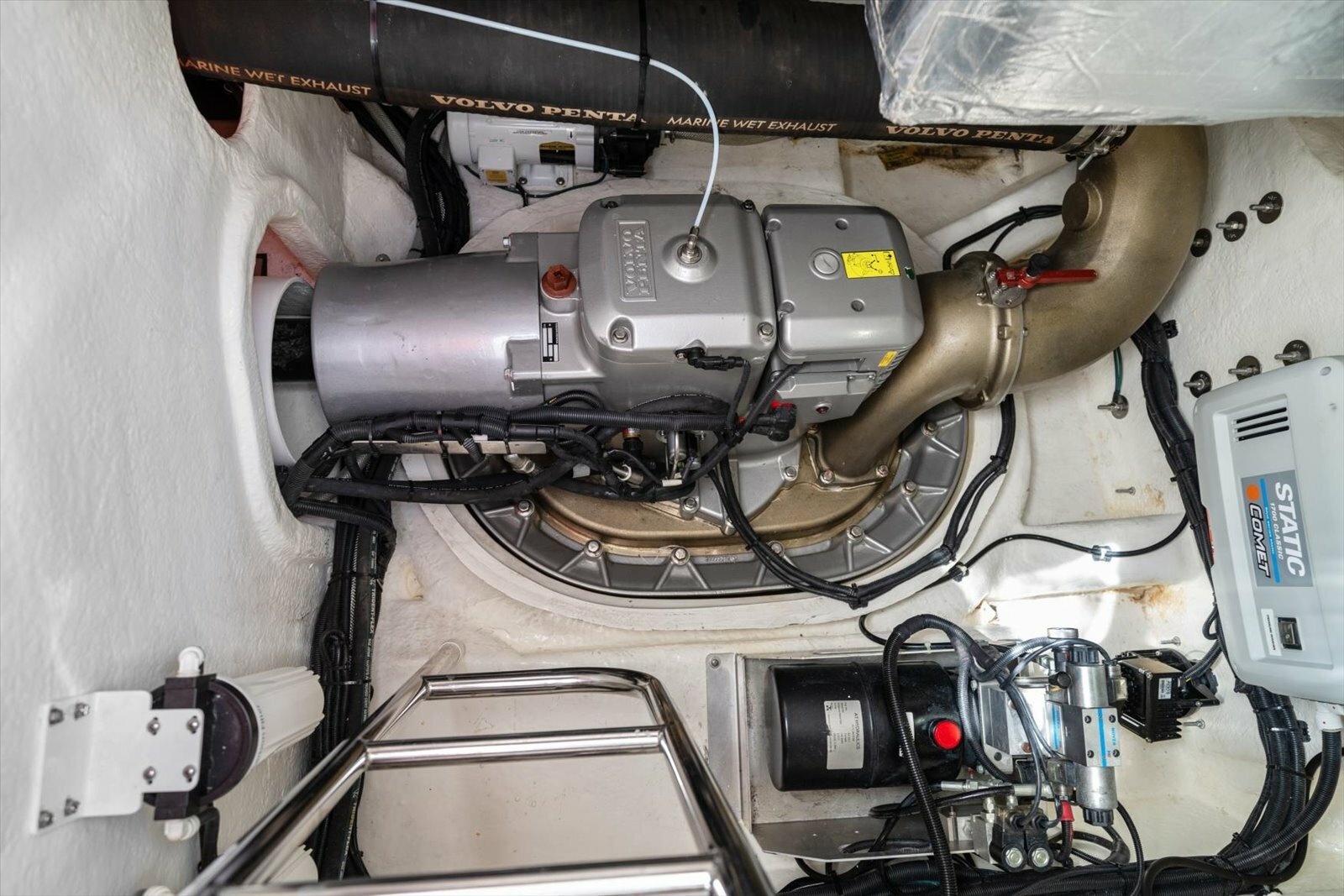

Twin Volvo IPS 950 D11 Diesel- 725hp eachLow speed modeDynamic Positioning SystemTwin lever electronic controls2x17" Garmin Glass Bridge ScreensVolvo Penta easy connect for remote app based monitoring

All exterior stainless mirror finish with ground polished welds, 316 marine gradeAntifouling: 2 coats epoxy undercoat, 2 coats antifoul with Propspeed coating to propellers & Pod Drive gearFenders x 4, dock lines x 4 and boat hookFire extinguishers, portable x 4Owners manual - high quality and comprehensiveSafety labels - English languageWasher/Dryer combination machine (Premium Brand) located in companionway

Acoustic & thermal insulation to Engine roomAir conditioning condenser units - (BTU's) 36,000, 16,000, 12,000 & 6,000All through hull fittings on or below the water line fitted with ball valves, all hoses double clampedBilge pumps, auto & manual override x 4Engine hatches insulated & removableEngine monitoring display (Volvo) - 7'' Glass Bridge MFDEngine mounts - anti vibrationEngine room lighting, LED (DC)External & internal seawater strainers for main water intakes - engines, generator & air conditioningFire suppression system for engine room with automatic/manual controlsFresh water heater (AC)Fresh water pump, Secondary backup pump (switched independently)Fresh water capacity 211 gallonsFuel lines all swagedFuel shut-off valvesFuel tank, GRP coated in fire retardant resin, 792 gallons. Visual site gauge on tankHolding tank capacity 105 gallonsSanitation system with overboard pump out switch & deck fitting for dock side pump outTender winch, electric for tender retrievalTrim Tabs - Volvo trim assist systemVenting dorade system for engine and air intakes & fans (DC)

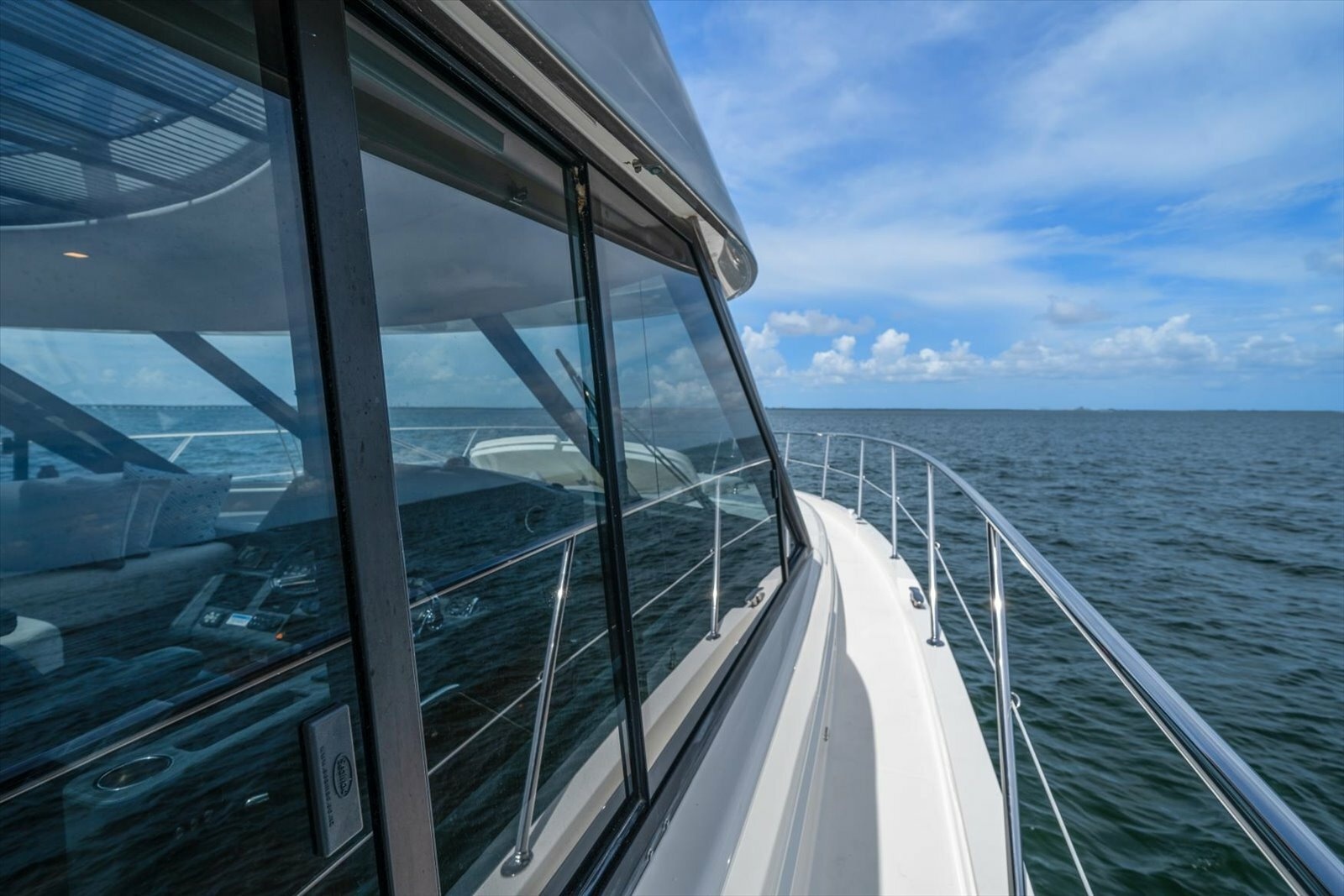

Enclosed hardtop - GRP double moulded, 4 sides toughened glass, with sliding sidewindows, opening rear bulkhead to connect indoor/outdoor areasSunroof, GRP electric open/close sliding over forward cockpitSunroof, Tinted glass electric open/close sliding over helm/dinette area. Includes manual sliding screen & blindTarga on hardtop painted Riviera Platinum with all electronics to be black where applicableHardtop painted Riviera Platinum

Alternators - Independent start bank and independent house bank (total x 4)Alternators - Port alternator charges start bank, secondary port alternator charges auxiliary bank. Starboard alternator charges starboard start bank & secondary starboard alternator charges house bank.Batteries (Maintenance free) - Independent port & stbd start (total x 4), Auxiliary (x2)& house 24V x 3 (300AHr Total/210AHr Usable Li-Ion bank)Battery banks individually isolatedBattery charger (24V/100A) for house bankBattery paralleling system for emergency engine startingBonding system, to all metallic hull fittings under the water line with zinc anode including galvanic isolatorDigital monitoring system including AC& DC power metering, fluid tank level monitoring & DC circuit status via 10'' colour LCD touch screen mounted at aft saloon and 5'' Touch control screen at helmInverter 2.5kW to operate entertainment, 1 x Galley GPO and ice machine in the absence of generator or shore powerNavigation lights (international standard)Wiring coded, numbered & assembled in looms where possibleGenerator - Onan EQD 21.5kW/60Hz with muffler, fresh water-cooled including sound shield, remove stop/start electronic & hour meterBacklit R Logos x2 fitted to deck sides

2023 Riviera 5400 Sport Yacht Platinum Edition- Standard Features Per Area:Forward stateroom - 24” LED TV, Fusion Apollo 670 Stereo with FM, Bluetooth, Airplayand Partybus, 2 x Fusion SpeakersMaster stateroom - 32” LED TV, Fusion Apollo 670 Stereo with FM, Bluetooth, Airplayand Partybus, 2 x Fusion SpeakersSalon – 43” LED TV on electric lift, Fusion Apollo 770 Stereo with FM, Bluetooth,Airplay and Partybus, 4 x Fusion speakers with 4 channel Fusion Amplifier plus subwoofer to saloon, (TV powered off inverter)Cockpit - Fusion Apollo 670 Stereo with FM, Bluetooth, Airplay and Partybus. 2 x JL Audio Speakers with 4 channel JL Audio amplifierForedeck – 2 x Fusion speakers connected to Zone 2 of cockpit Fusion Apollo 670 Stereo

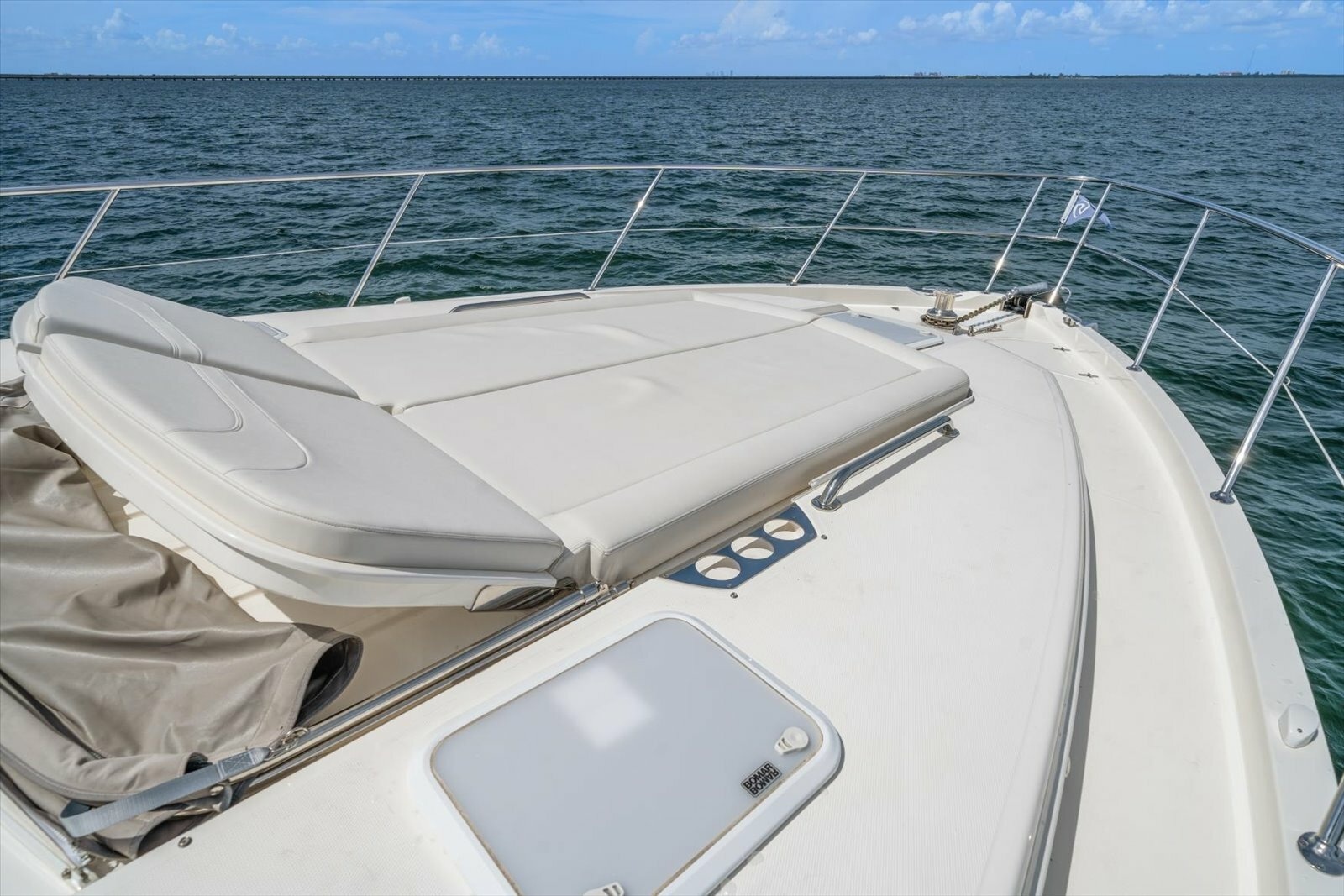

Anchor - stainless steel 35kg (77lbs) ultra anchor, 70m (230ft) of 10mm (3/8'') galvanized chainAnchor lockers- access to anchor chain, storage, fresh & salt water outletsAnchor safety strapAnchor winch vertical with overload protection, suits rope and chain, up & down via plug in remote control & mounted counter at helm.Bow rail welded stainless steel (316 marine grade, highly polished) with mid safety wire including flag staff and burgee (bow flag)Bow roller stainless steel self-loading - through bowsprit, heavy dutyCleats - Stainless steel, 11'' (x 8)Rub rail - impact and UV resistant PVC (white) with stainless steel insert stripSpotlight on hardtop, remote control at helmSunpad area to have a small fold up bimini (colour to match cockpit awning) also with cover (white stamoid)Swim Platform, hydraulic operation (up/down 350kg max), teak laid, including recessed stainless steel swim ladder hatchWindscreen cover, front (Black breezeway)Grabrails fitted to transom steps

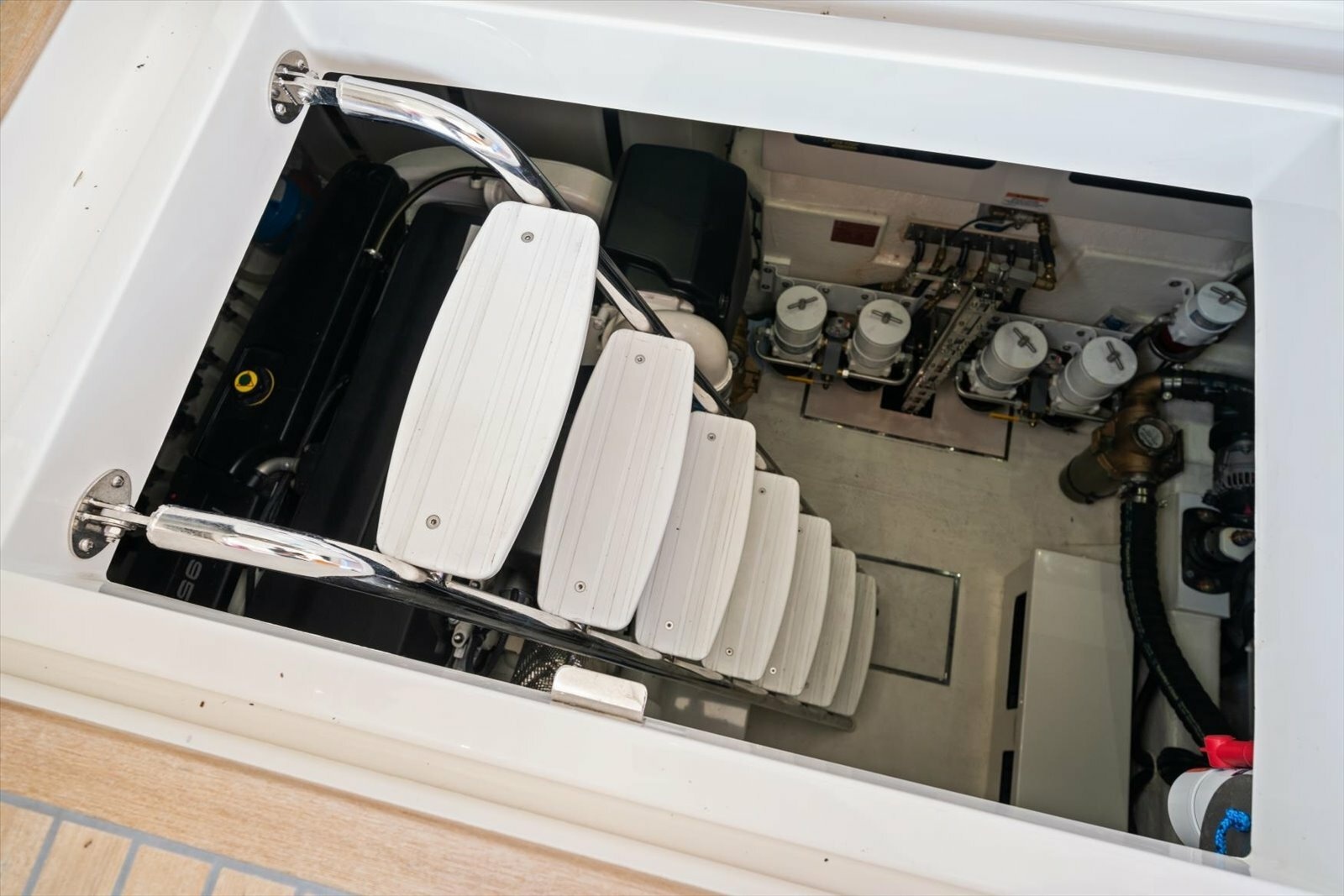

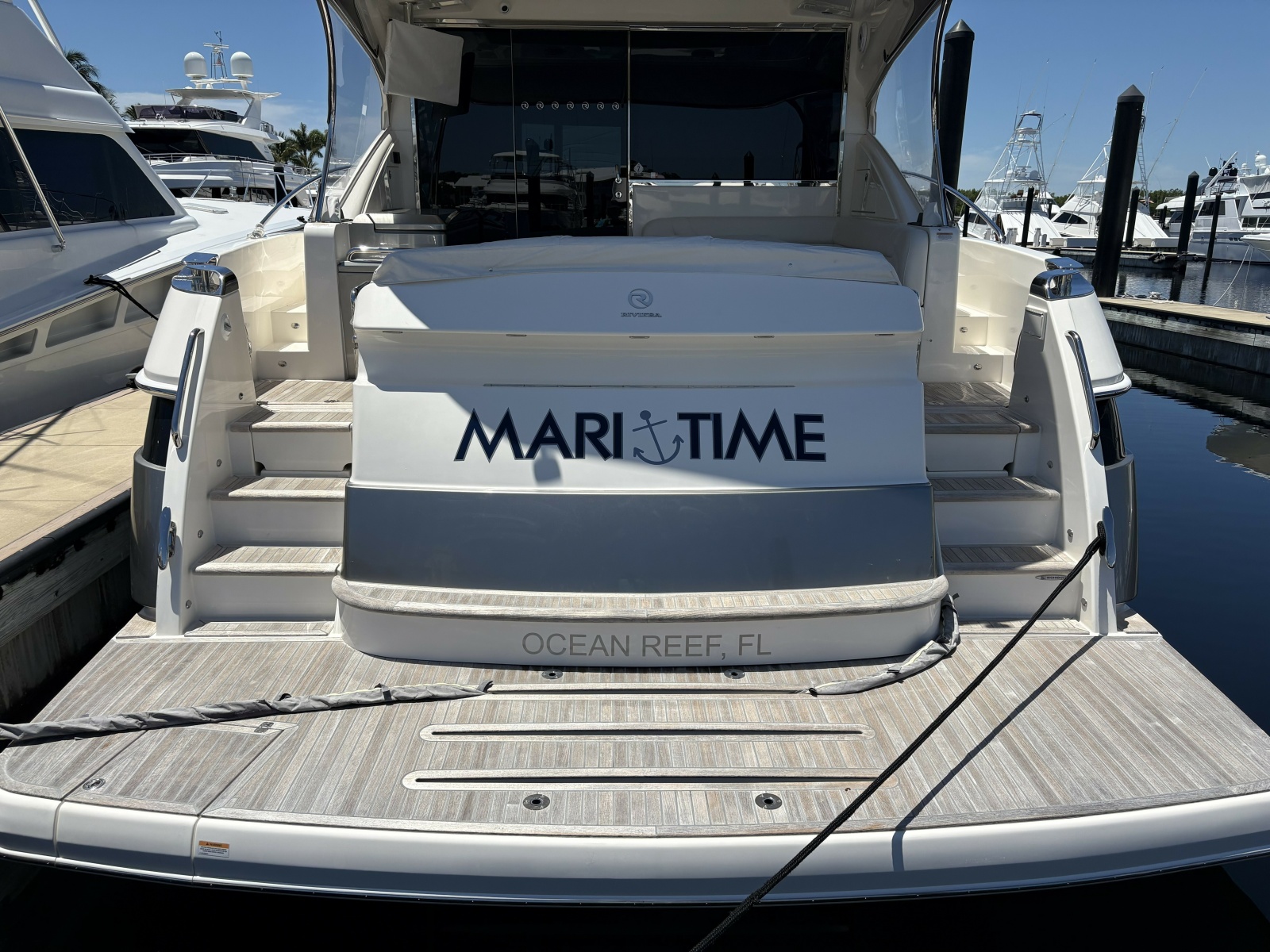

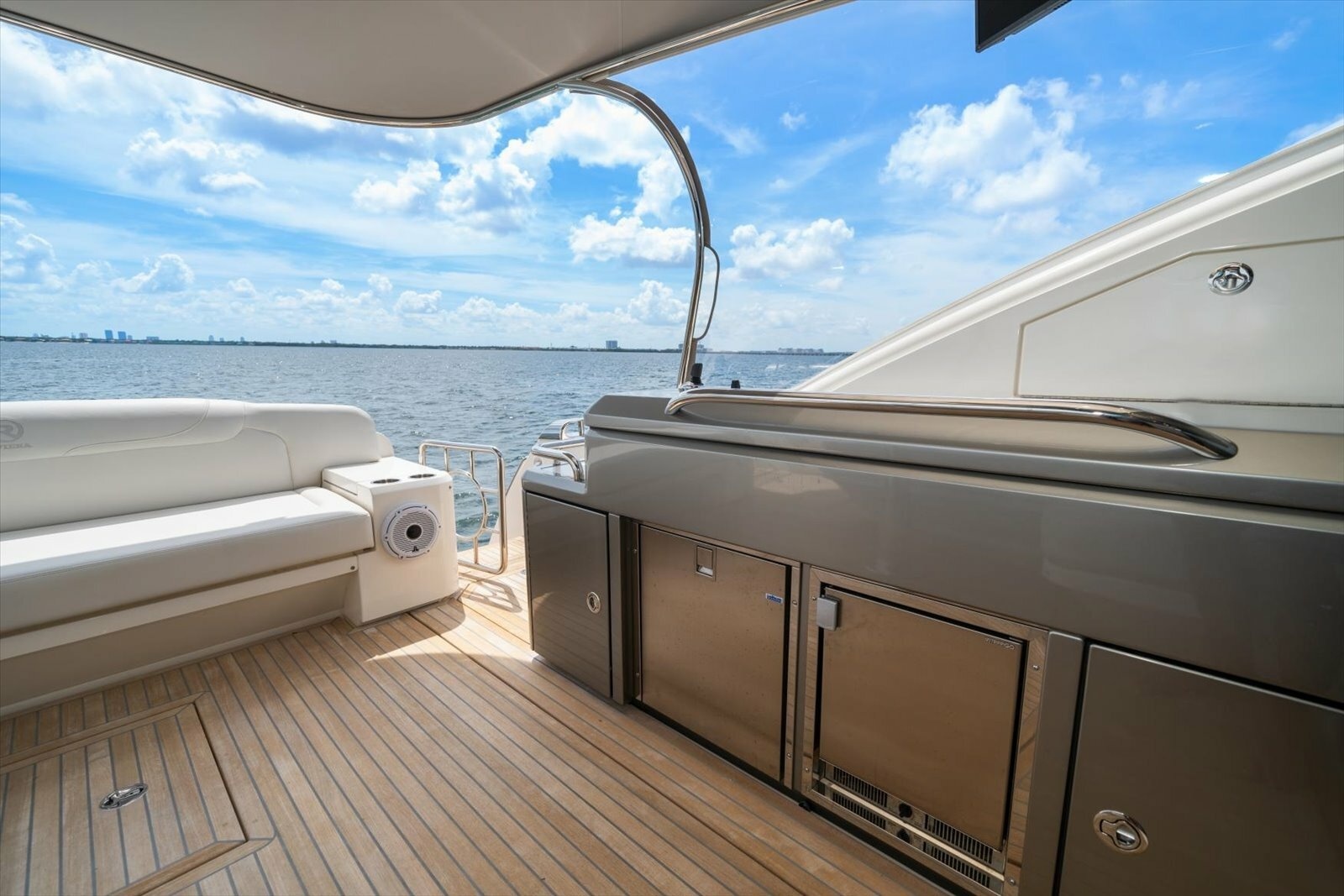

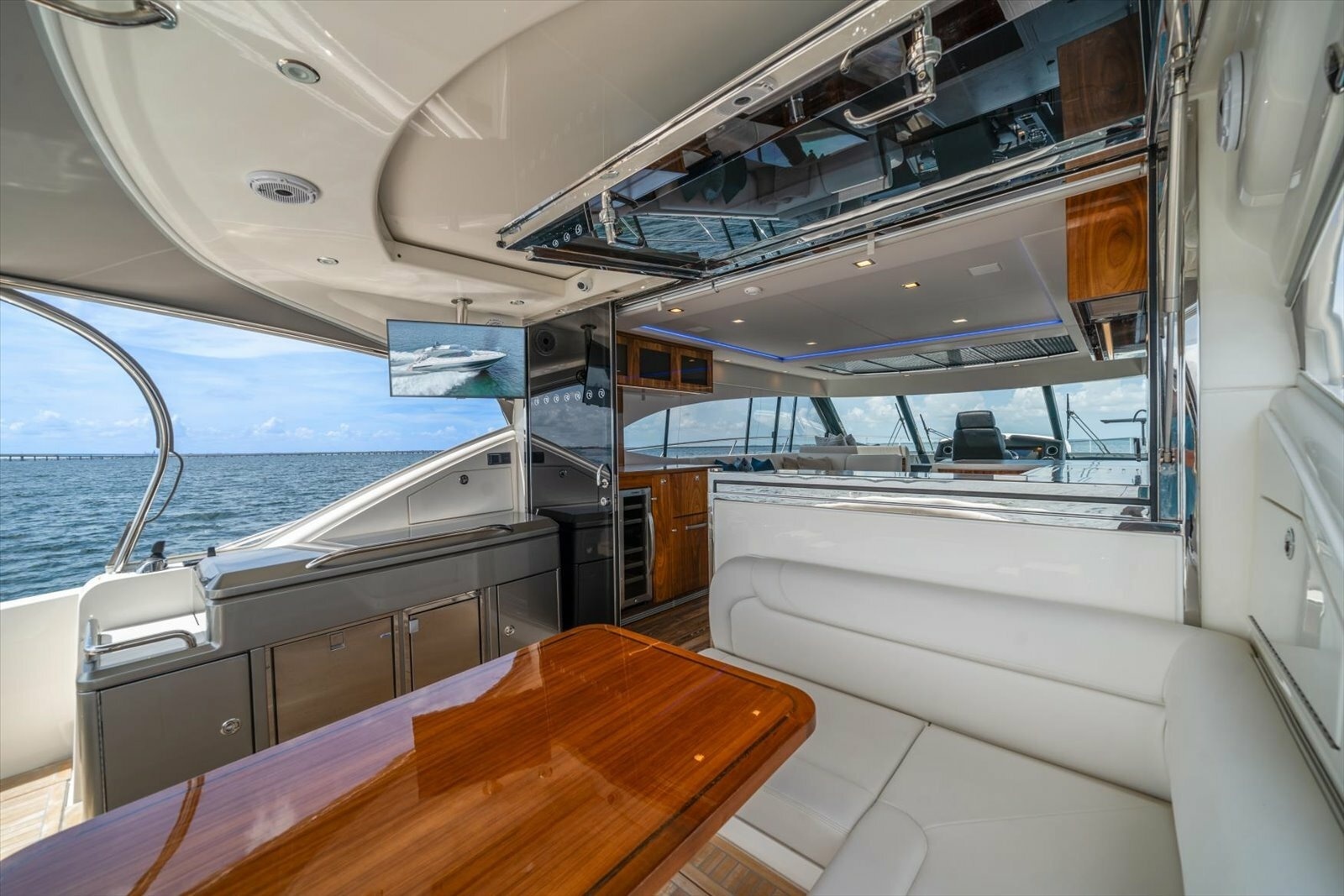

Access hatch into tender garageAccess to Engine room through 3 x hatches with stainless steel lockdownsBulkhead, sliding stainless steel door with awning style opening up window, tinted tempered glass, with gas strut, safety latch & lockCockpit floor, teak laidDouble action manual bilge pump for engine roomGarage for tender storage, opens with electric actuator, includes electric winch (may not suit all tenders)Garbage bin within wet barHand held shower hot & cold (Fresh water)Lighting, overhead & courtesy (DC)Lounge to transom, Drink holders either side within arm rest, upholstered in vinyl(white) also includes fender storage location and cover (White Stamoid)Lounge, L shaped in vinyl (white) with storage beneath including cover (white stamoid)Master battery isolator panel, portsideSelf draining cockpit to the sternSteps to side decks port & starboardTable, Teak to L shaped lounge mounted on single electric hi/lo pedestal with infill cushion for conversion into daybed includes cover (white stamoid)Transom stainless steel gates (x2)Wash down salt and fresh water quick connectsRiviera Platinum Wet bar including benchtop, refrigerator, icemaker, sink with folding hot/cold faucet & 2 x electric BBQ, extraction fans, & fold down lid with auto safety shutoff.Courtesy lights fitted beneath transom lounge back

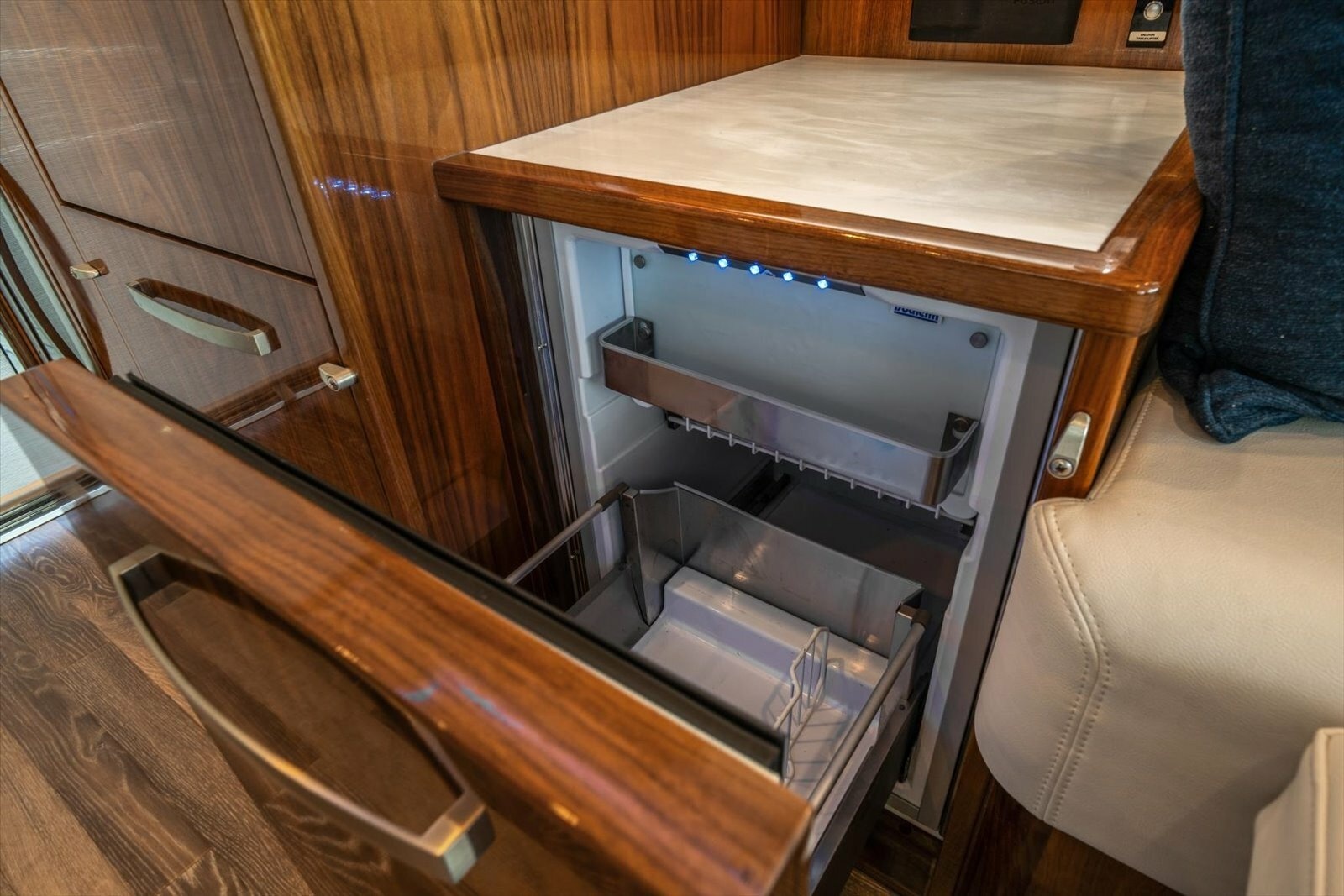

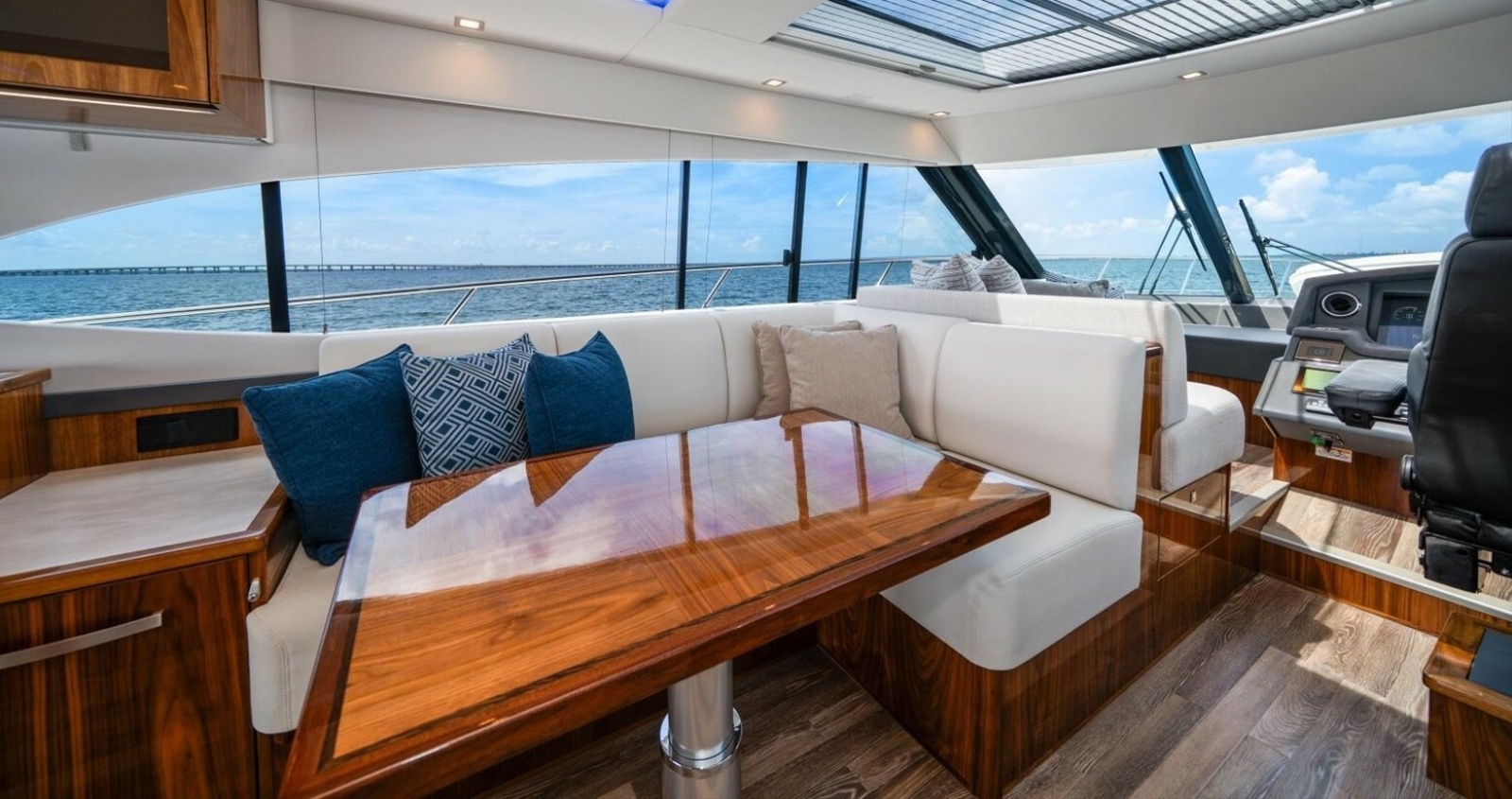

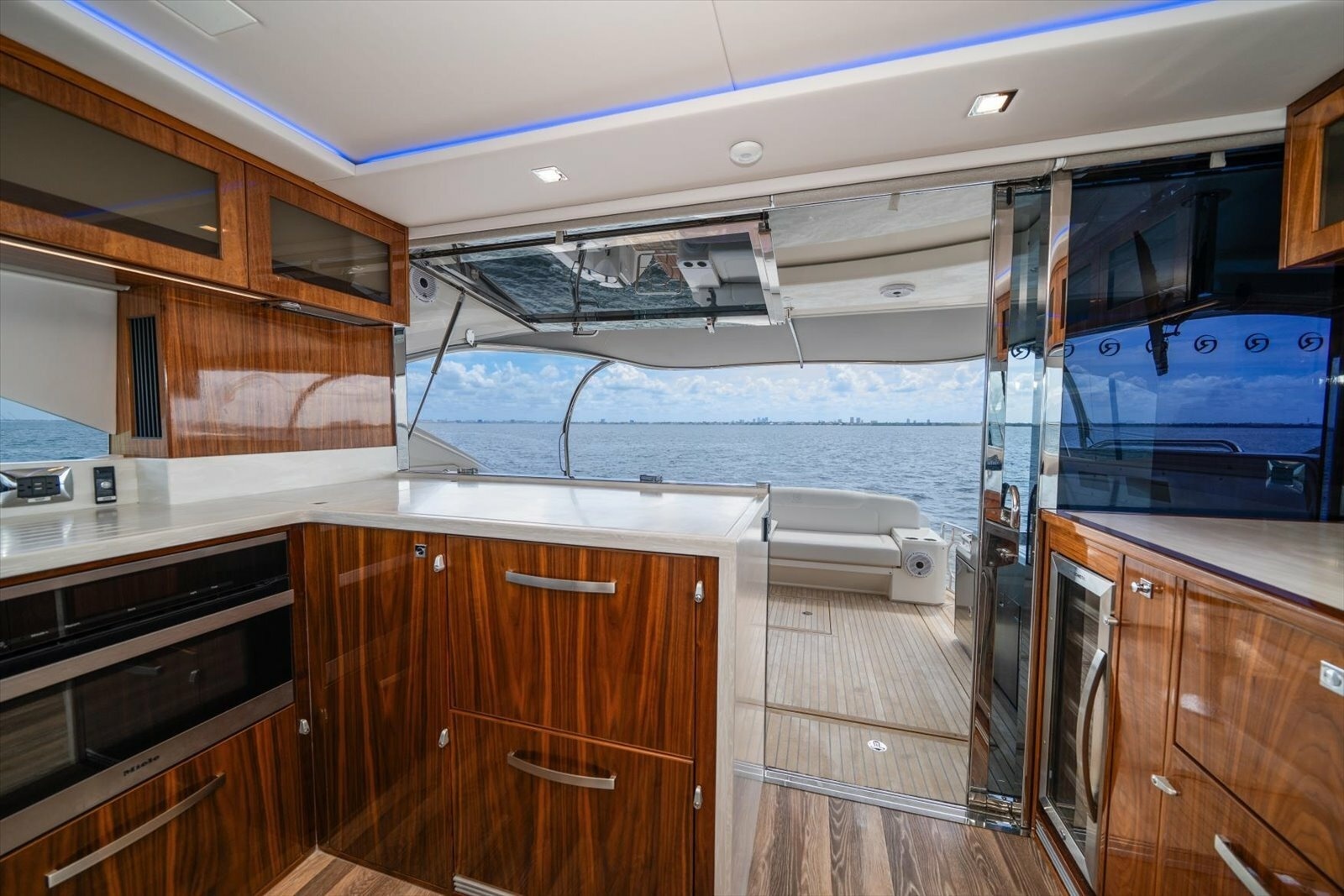

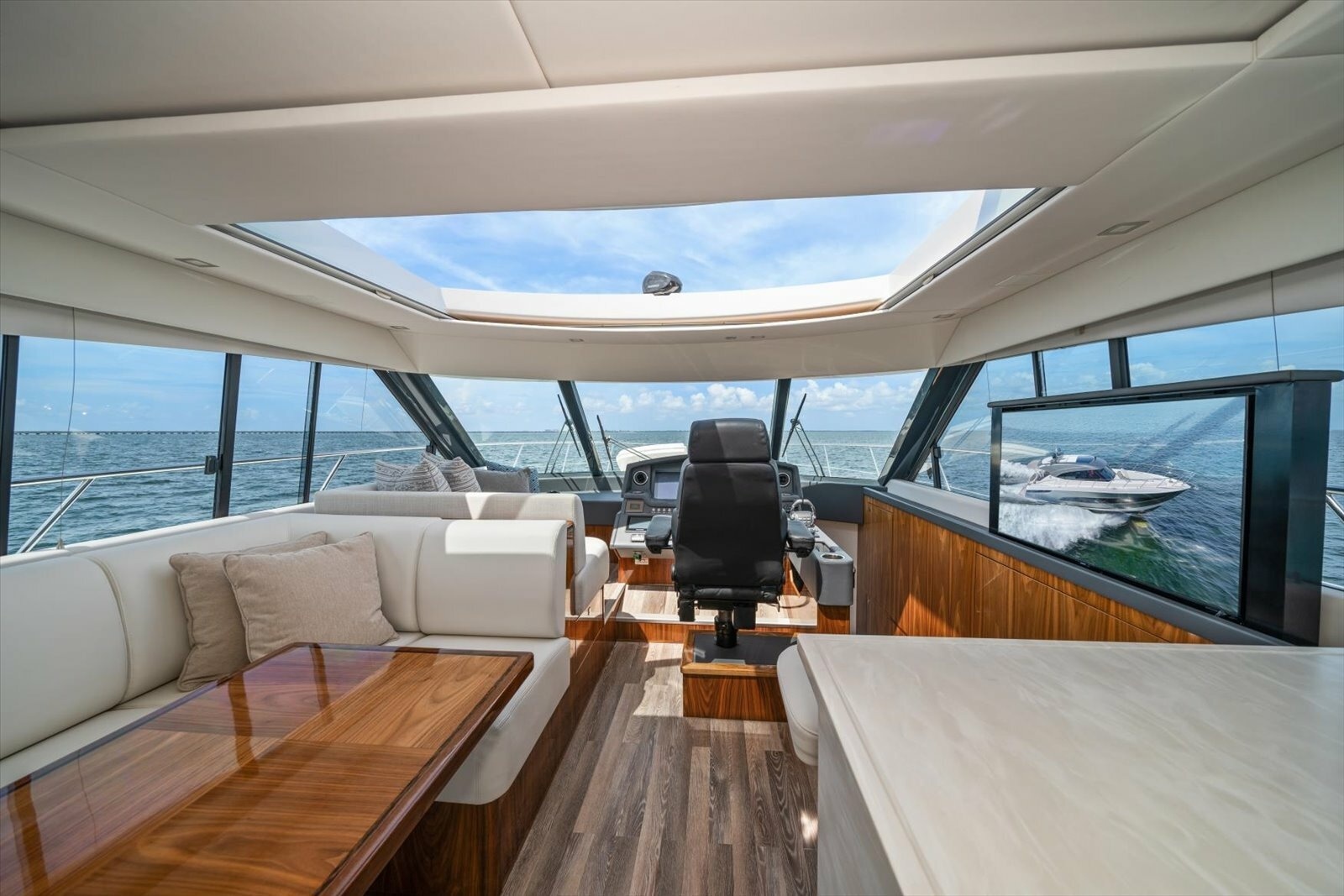

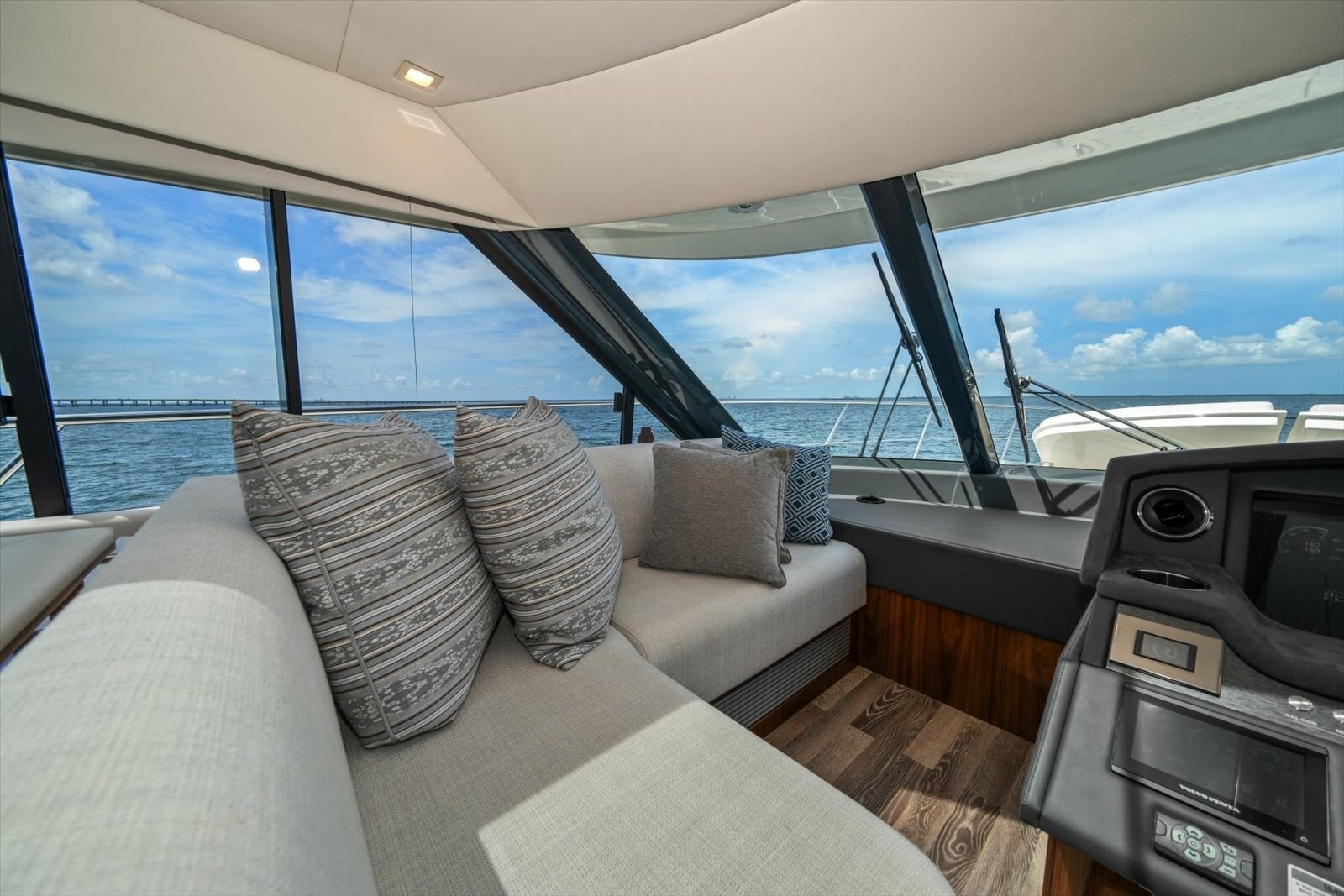

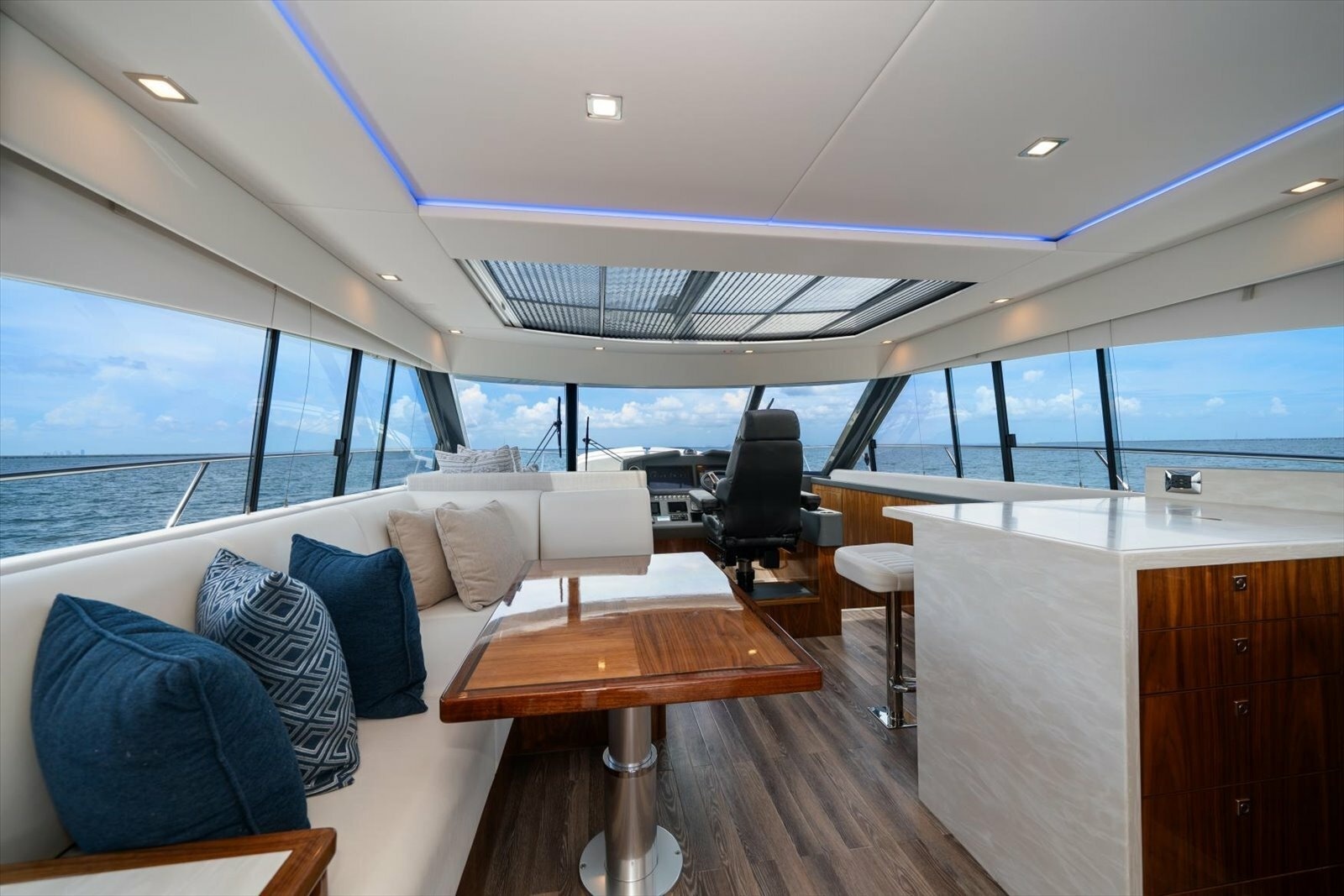

Air conditioning - reverse cycle heat, 3 x 12,000BTU to salon/galley with helm outlets and windscreen outletsCocktail cabinet with bottle storage, drawers for glass storage, 1 x refrigerator drawer,1 x freezer drawer & wine coolerCourtesy lights in stairs to cabinsDishwasher drawerFlooring, Vinyl (Premium Grade)Galley - built in overhead storage lockers with positive locking hardwareGalley - Exhaust fanGalley - Microwave convection oven (Miele)Galley - Refrigerator drawer unit (2 drawers)Waterfall galley benchtop in solid surface with stainless steel sink and faucet, also incorporating recessed cooktop including lid with cut off switch & drop in bin with coverGalley storage cabinets & drawersLighting overhead & courtesy DC (LED)Lounge, salon L shaped companion lounge to port sideSalon dinette L shapedTable to dinette, varnished timber on fixed height pedestal

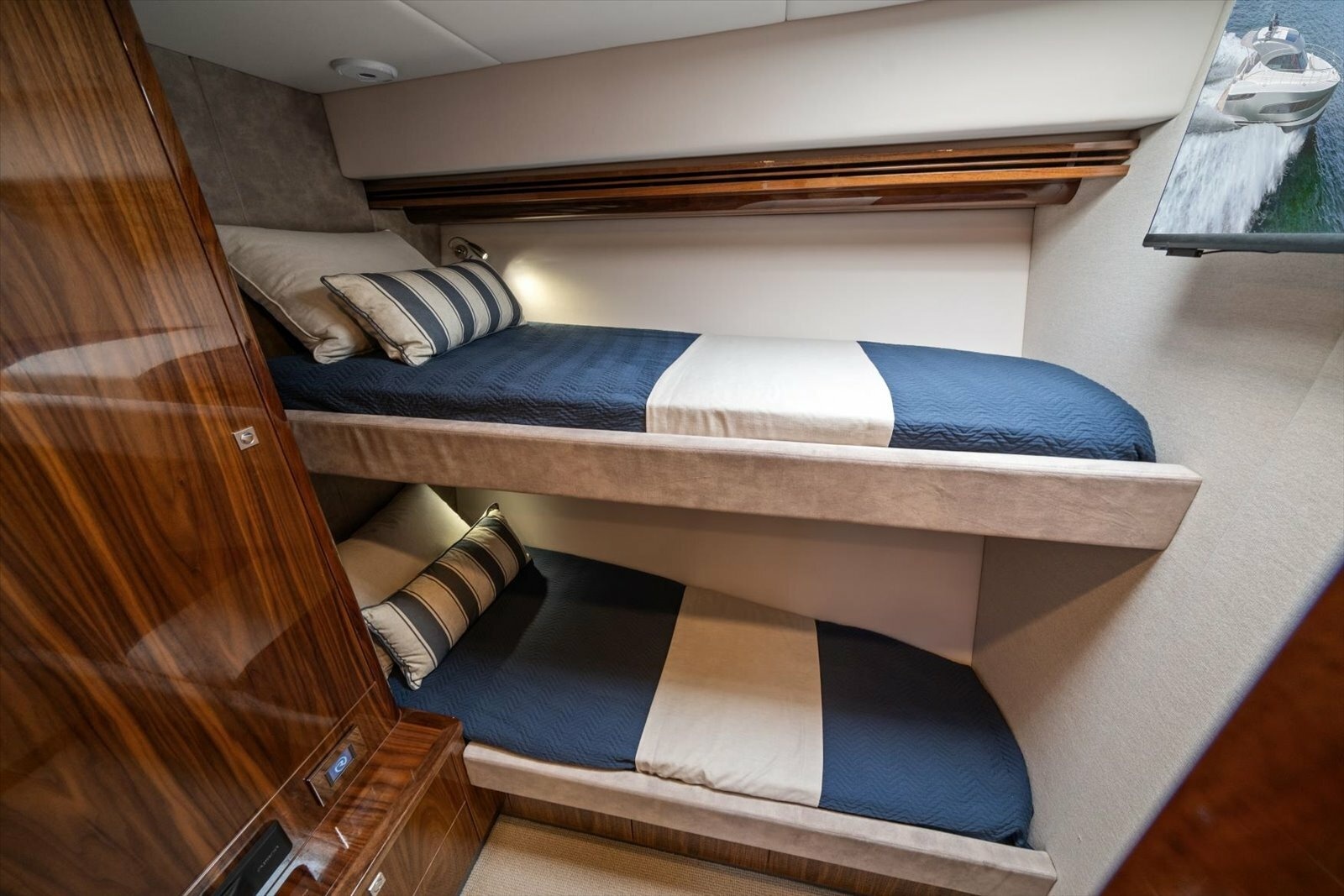

Air conditioning 6,000BTU with reverse cycle heat, split to headBerths, upper and lower (innerspring mattresses) with storage underCarpet with underlayHanging locker with cedar liningHatch - white with screen and blindHull and head linings, vinyl covered with paddingPrivate entrance doorReading and overhead lighting (DC), LED

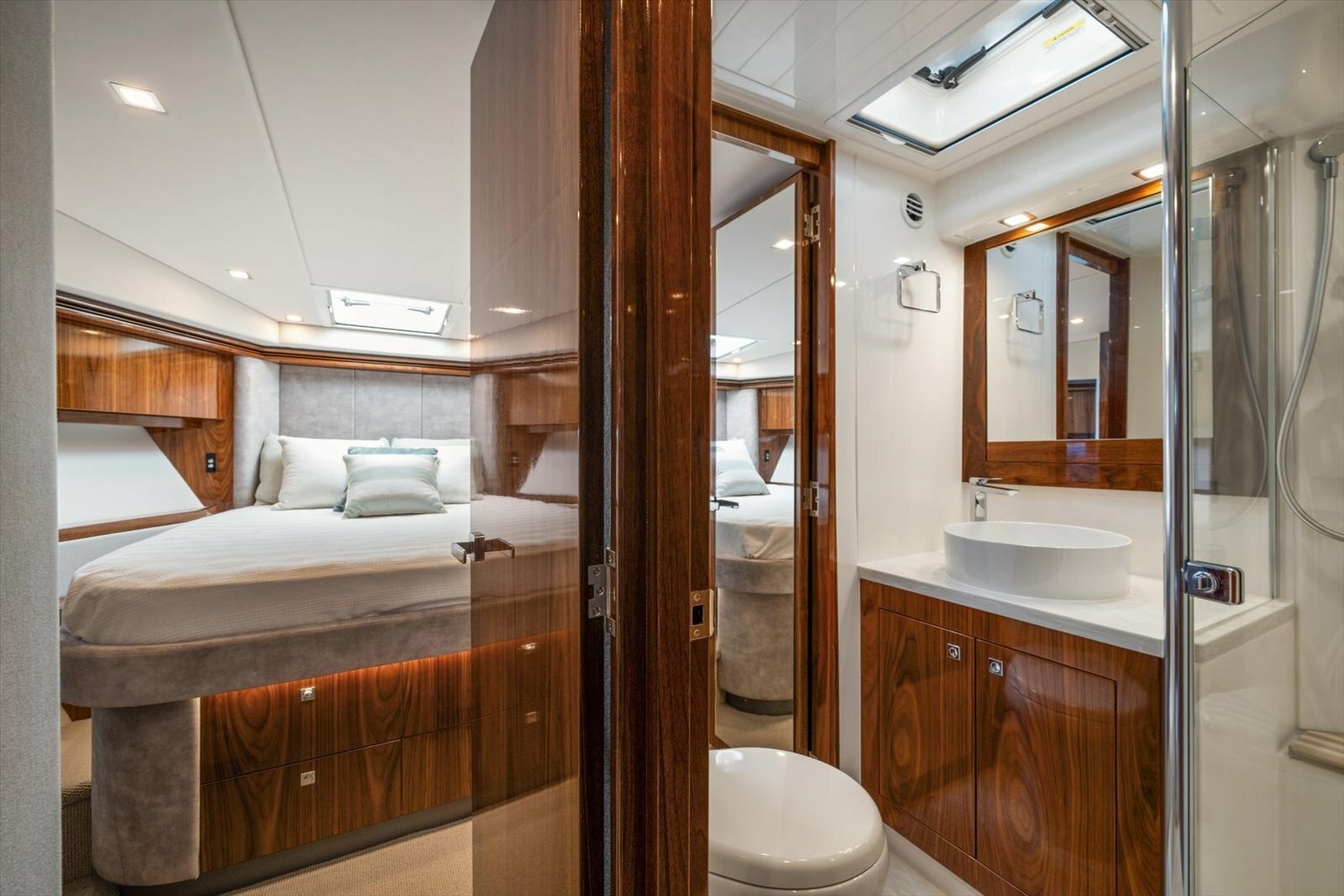

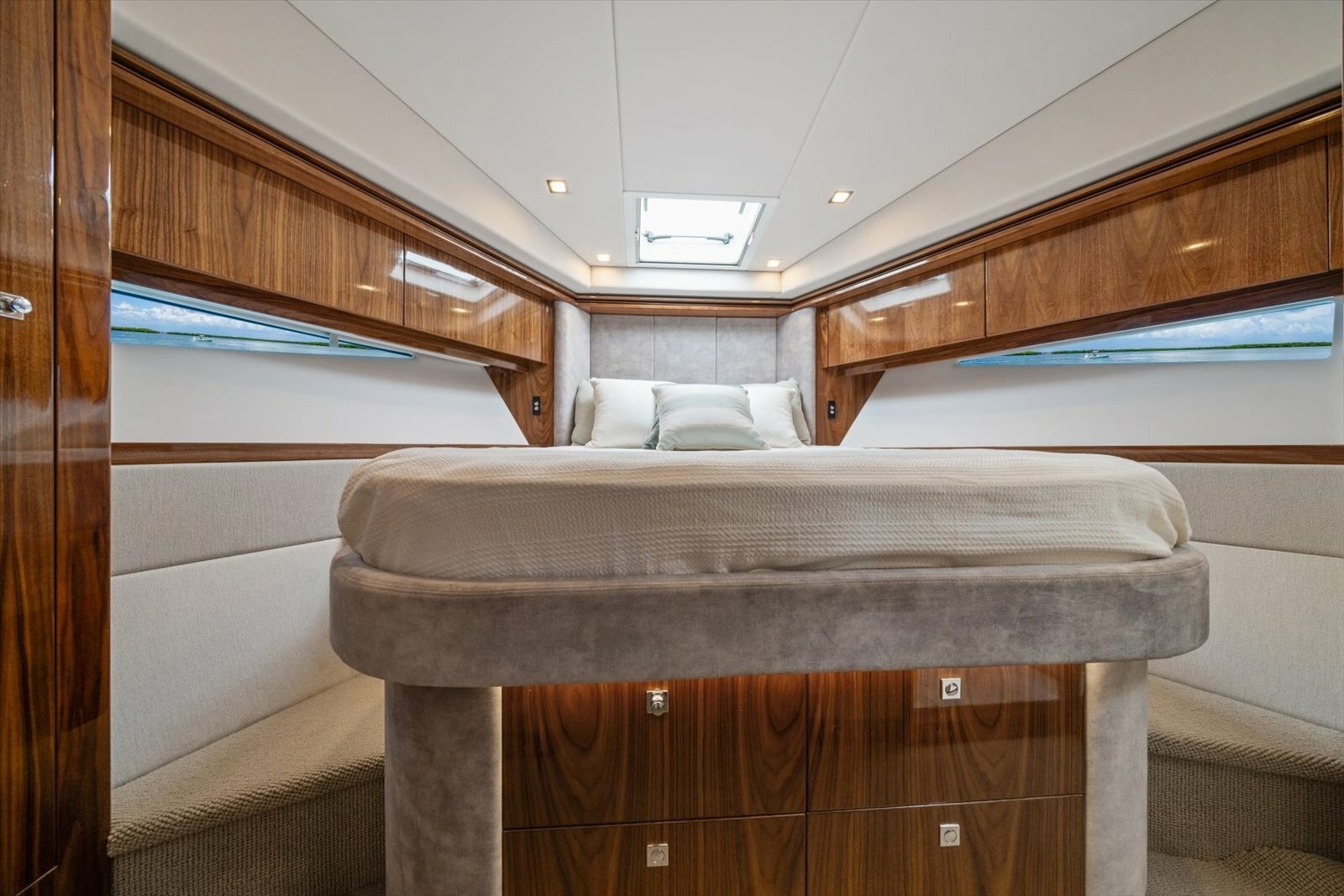

Access to private ensuite with privacy lockAir conditioning: 12,000 BTU with reverse cycle, heat (split into head)Carpet with underlayFixed hull windows fitted port and starboard in tinted tempered glass including roller blinds matching saloon selectionHanging locker port with cedar lining & auto lighting (DC), stbd storage locker cedar lined with shelfHatch - white with screen and blindHeadboard - upholsteredHull and head linings, vinyl covered with paddingPrivate entrance doorQueen walk-around berth with latex mattress & storage under berth including drawersReading and overhead lighting (DC)Storage cabinets outboard with positive locking hardware

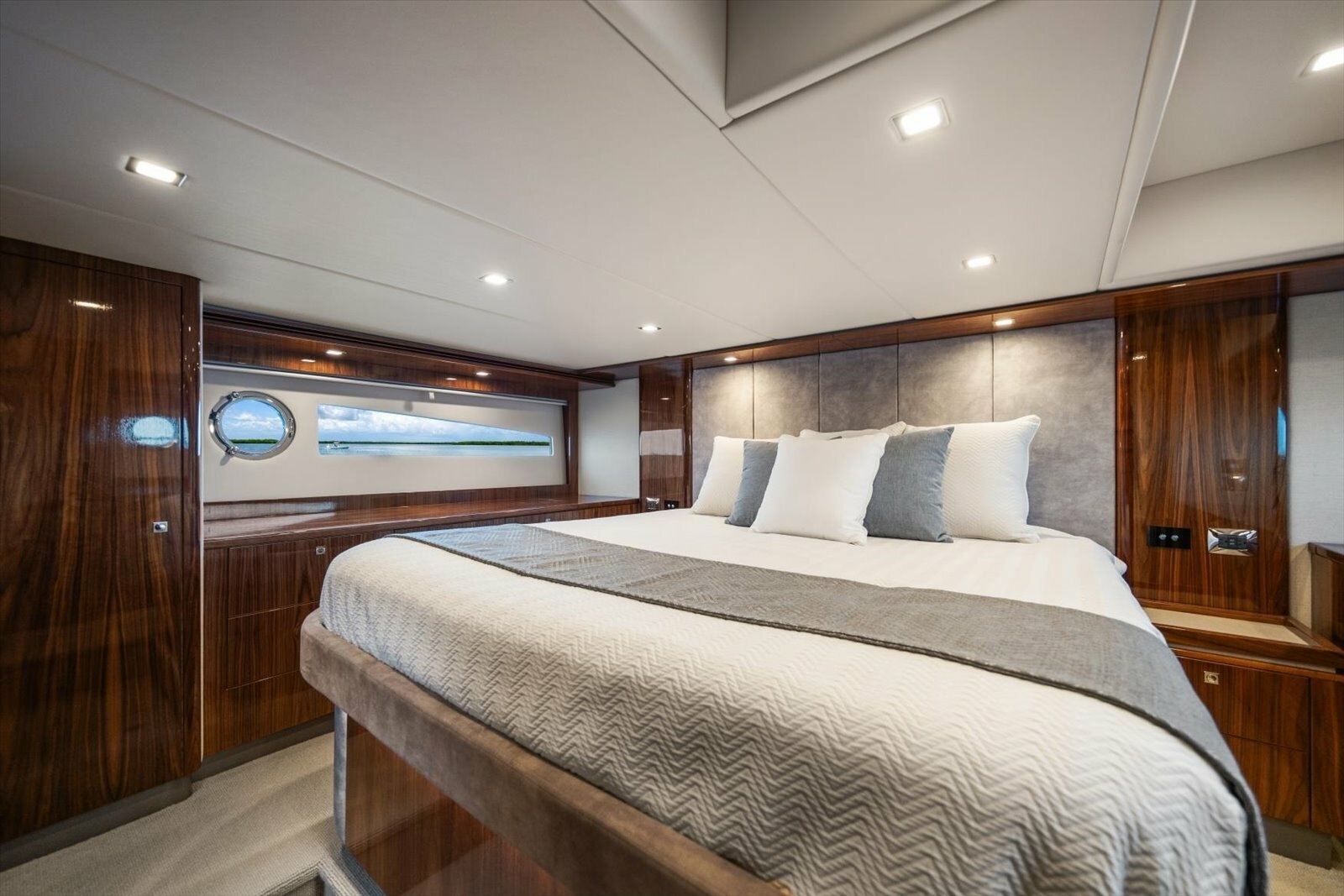

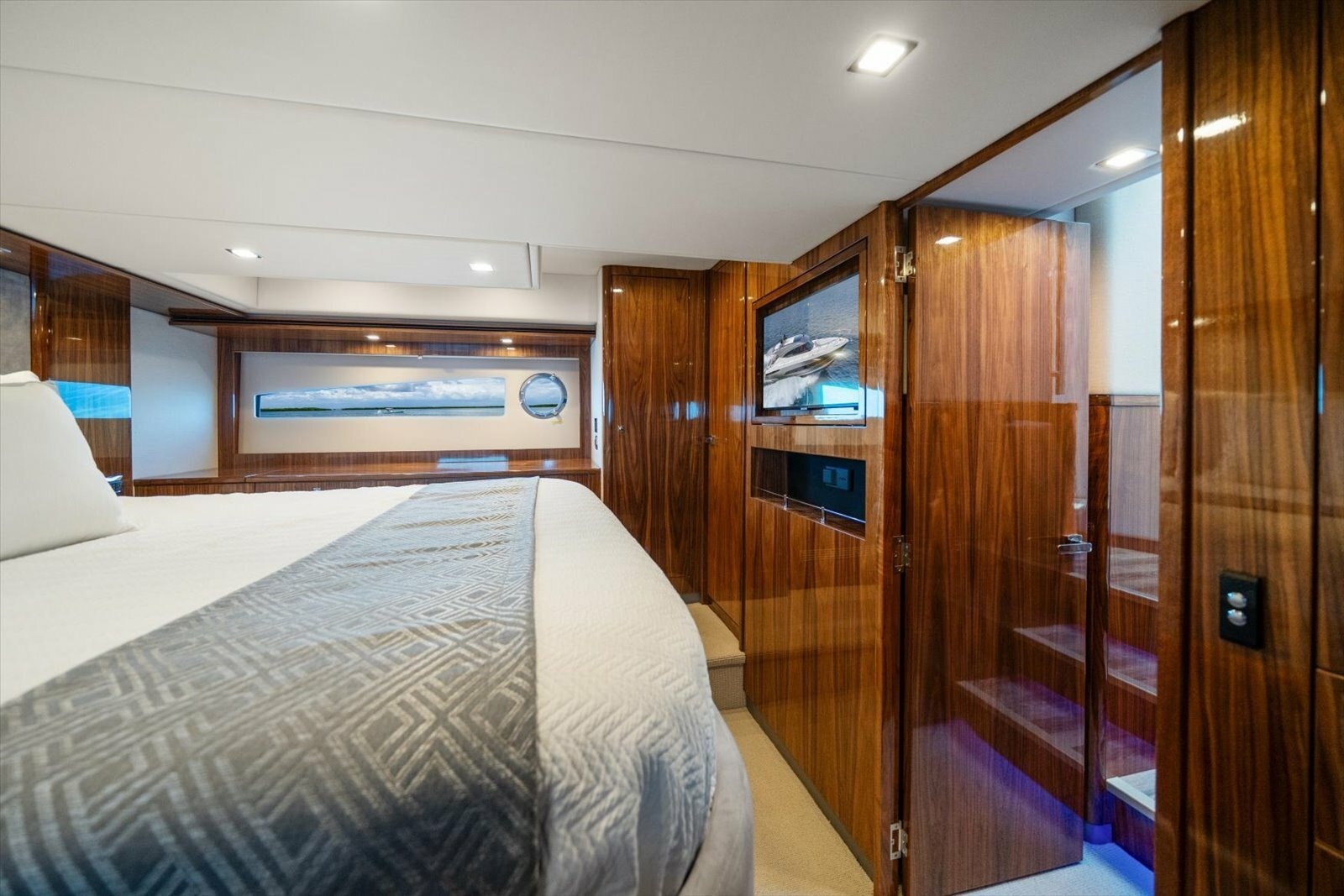

Air conditioning 12,000 BTU with reverse cycle heat, split to ensuite.Berth, King size latex mattressCarpet with underlayDrawers and storage to portsideFixed hull windows fitted port and starboard in tinted tempered glass including roller blinds matching saloon selectionHanging lockers (x2) cedar lined with auto lightingHeadboard - featuredHull and head linings, vinyl covered with paddingPortholes, 2 x round opening portholes and screens, includes alarm to helm.Private entrance doorReading and overhead lighting (DC, LED)

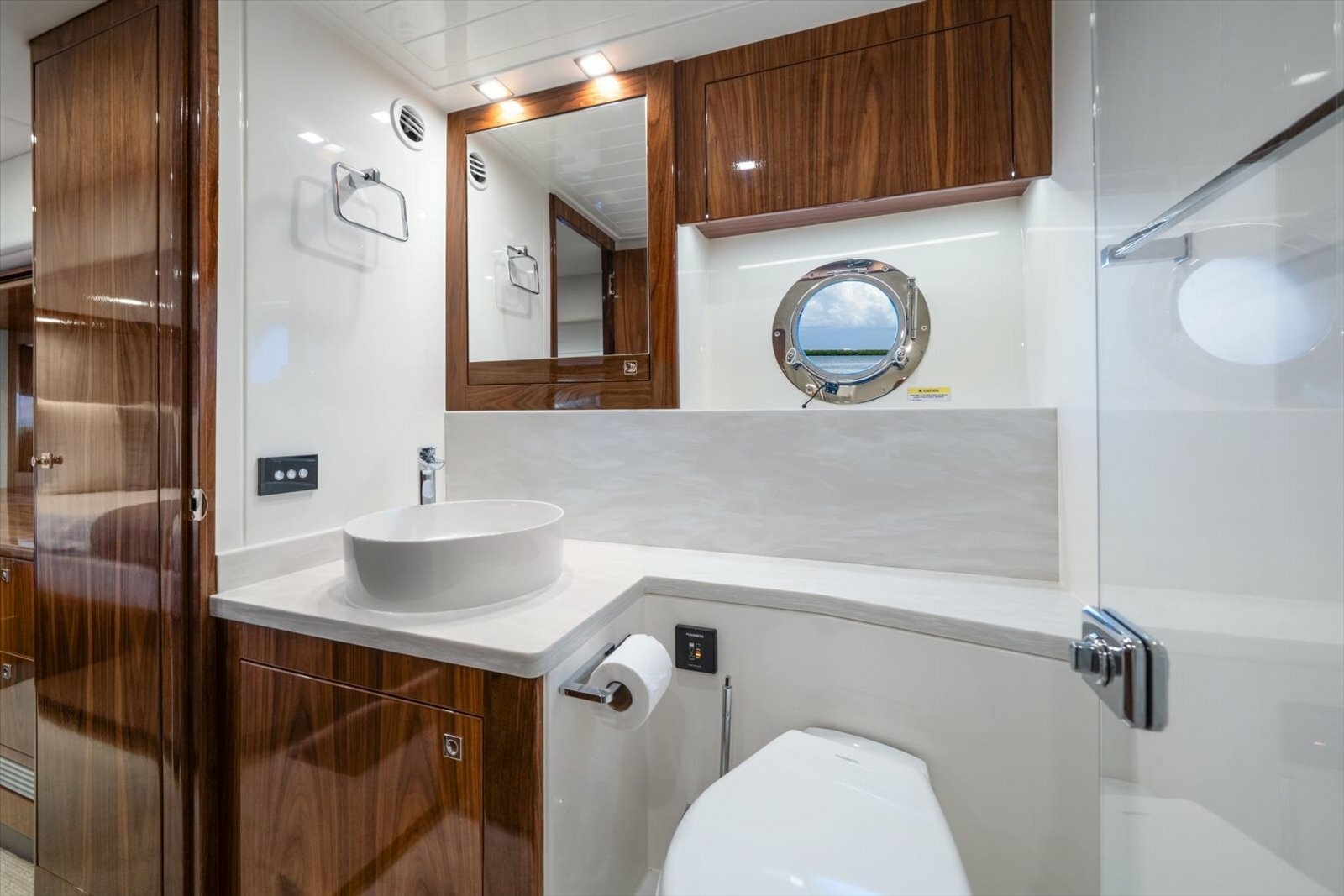

Contemporary design, solid surface benchtop with above bench bowl sink and high quality mixer tapExtraction FanFlooring - Corian to match benchtop selection with brick style patternHolding tank level indicatorMirrorOverhead and vanity mirror lighting (DC)Porthole, 1 x round opening porthole with screen, includes alarm to helmPrivate entrance doorShower stall with glass partition, frameless glass door, automatic sump pump and shower head (on slide bar)Storage locker with shelves under bathroom sinkToilet roll holder, towel holder and accessoriesToilet, fresh water flushVanity cabinet

Contemporary design, solid surface benchtop with above bench bowl sink and high quality mixer tapEntrance to starboard head from companionway & private ensuite from stateroom fwdExhaust FanFlooring - Corian to match benchtop selection with brick style patternHatch - white with screen and blindMirrorOverhead and vanity mirror lighting (DC)Shower stall with glass partition, frameless glass door, automatic sump pump and shower head (on slide bar)Storage locker with drawers under bathroom sinkToilet roll holder, towel holder and accessoriesToilet, fresh water flushVanity cabinet

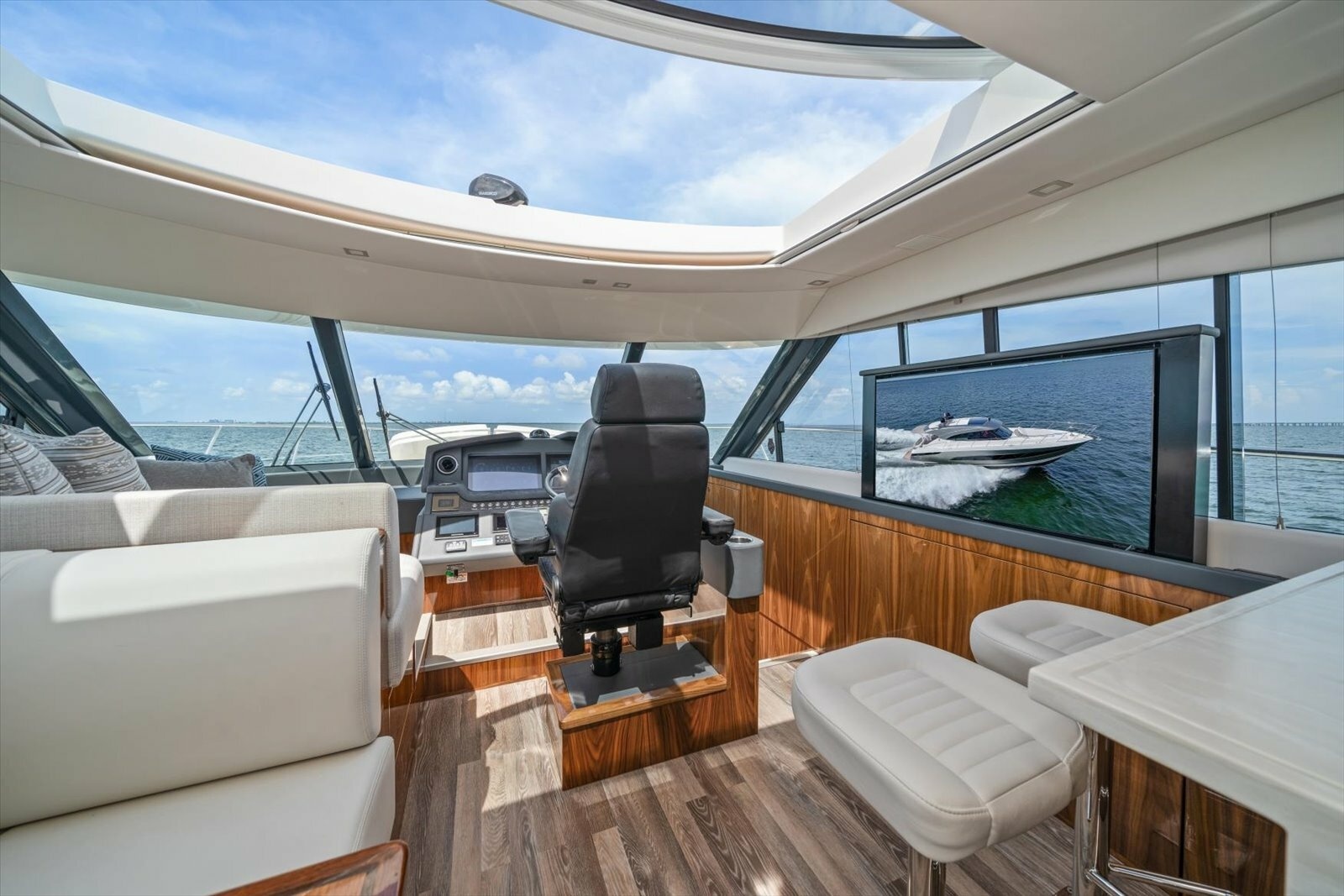

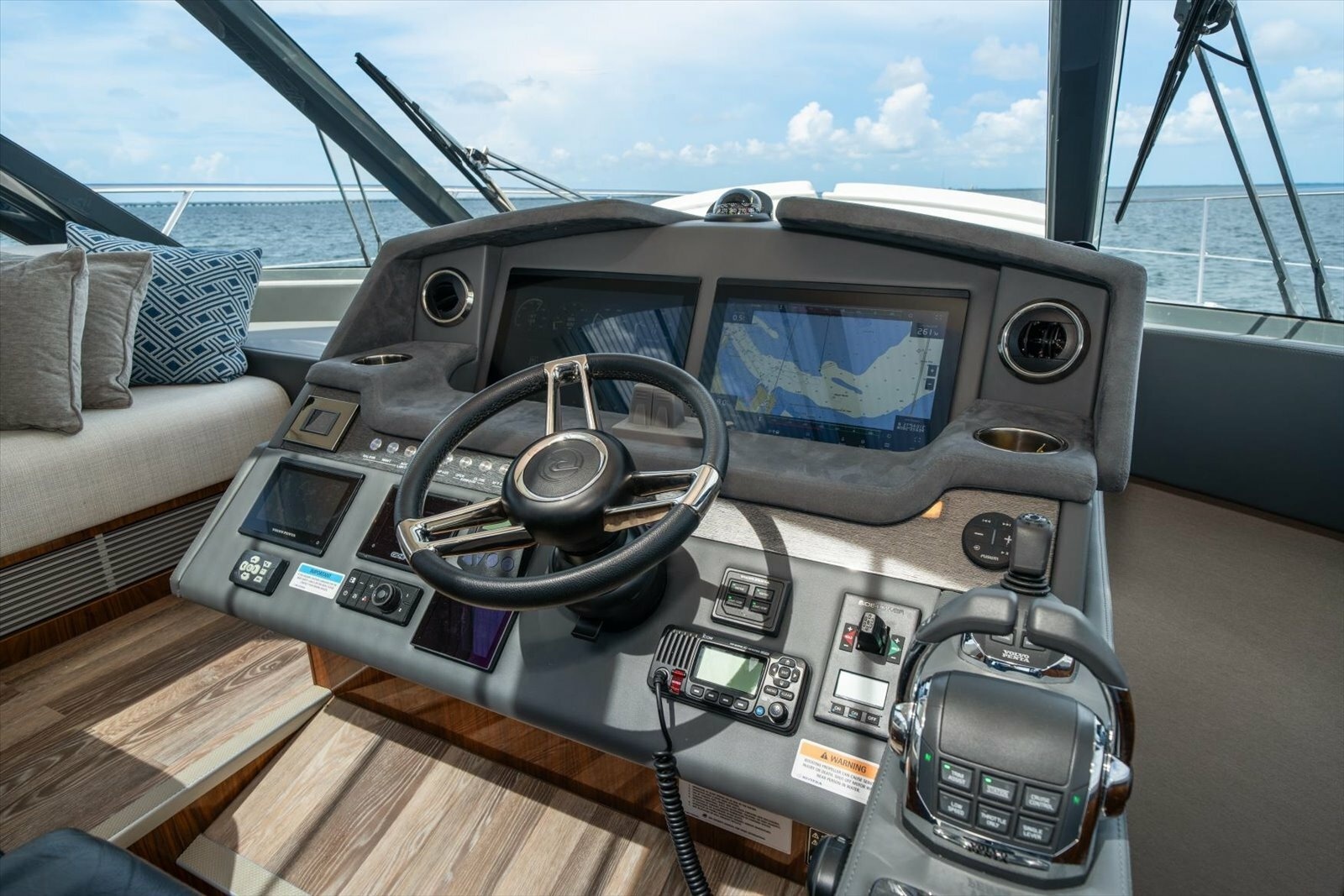

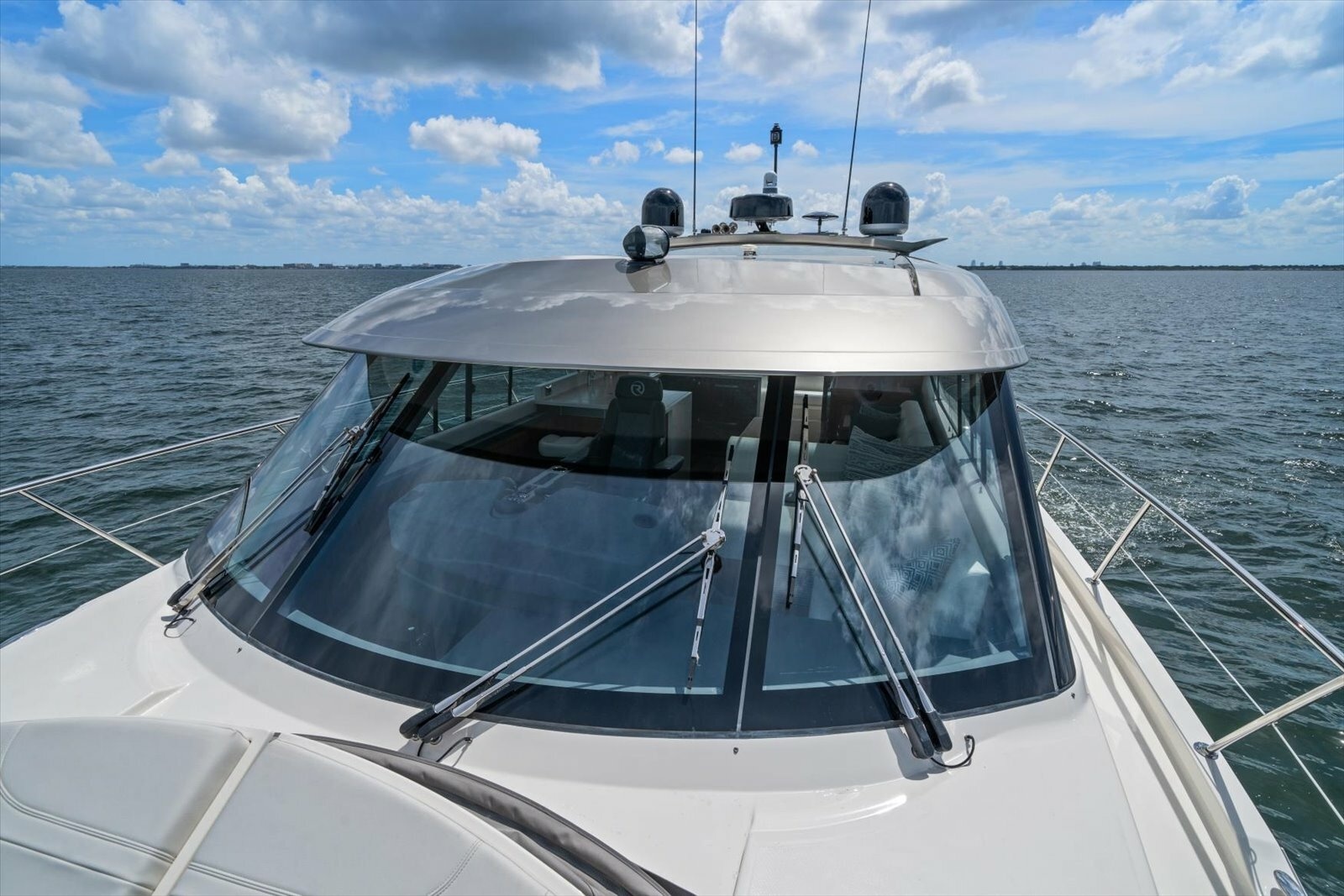

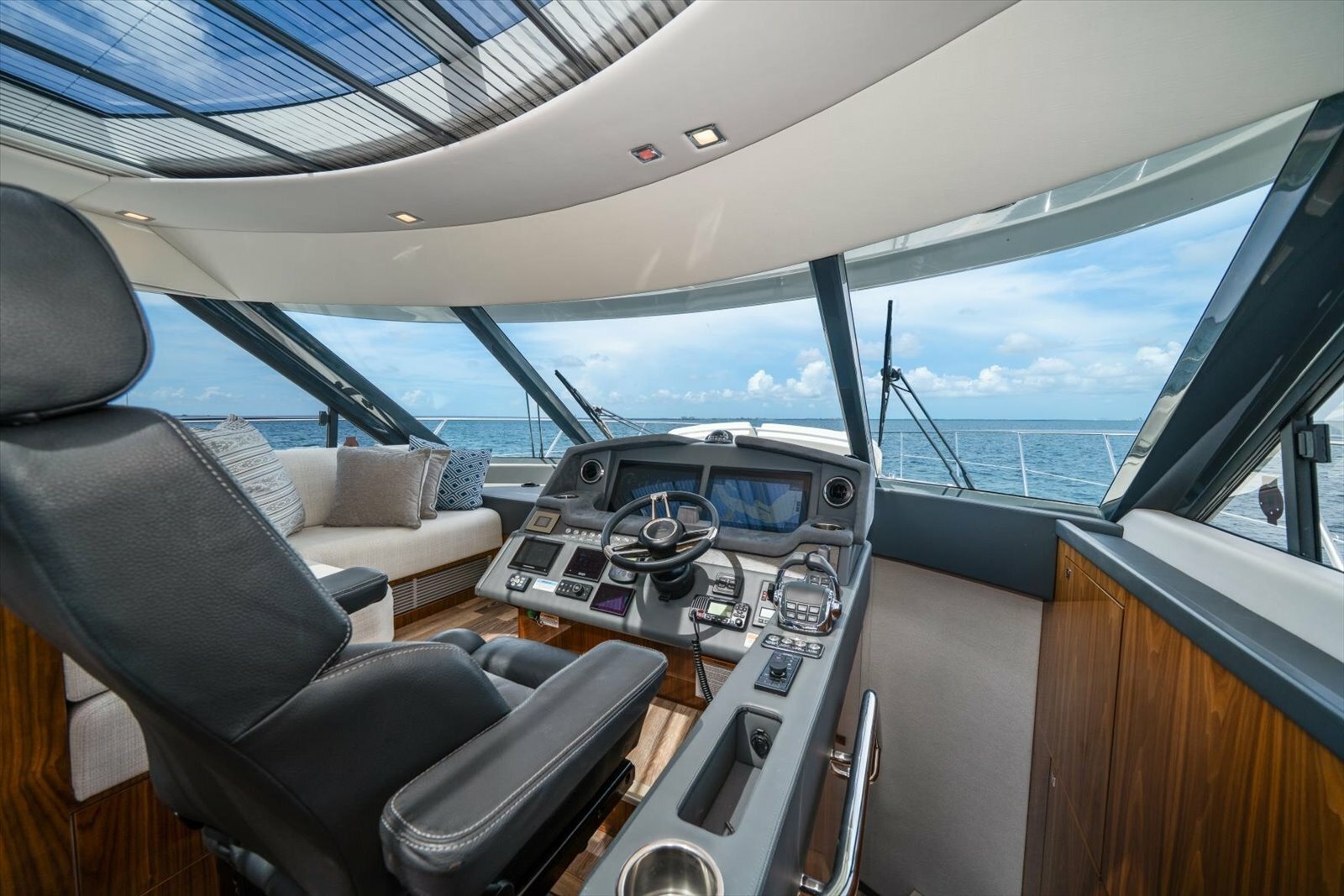

Anchor chain counterCompanion seat shaped to port sideCompass, 4.75'' with lightDirectional air conditioning outlets to helm and vent outlets to windscreenErgonomically designed console with drink holders, storage tray, electronic engine controls and joystick docking controlHelm Chair (x1) electric Recaro (color to compliment dash)Navigation - 2 x 16'' 7616 Volvo Glass Bridge multi Function displays, GPS & GRID controllerNavigation - Garmin GSD 26 CHIRP Sounder with 1kW B275 depth/temp transducerNavigation - Volvo/Garmin auto pilot integrated into glass bridgeSteering wheel leather sportsVHF radio with aerialWindscreen, clear tempered glass with 3 pantograph wipers with washers plumbed off fresh water system

The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated.
