Available
$4.44M
$4.44M
USD · Asking Price
63 ft
Length
2027
Year
Catamaran
Type
—
Location
About This Vessel

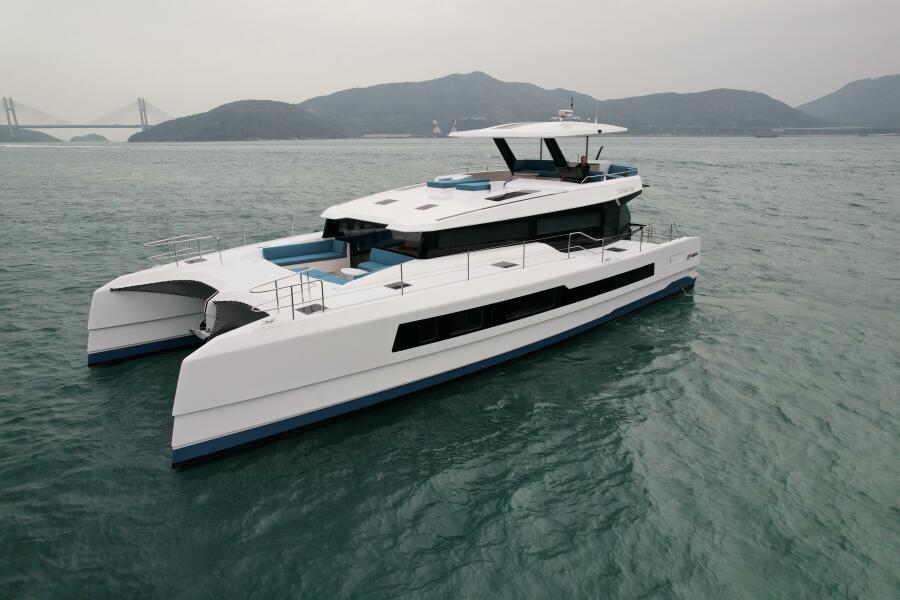

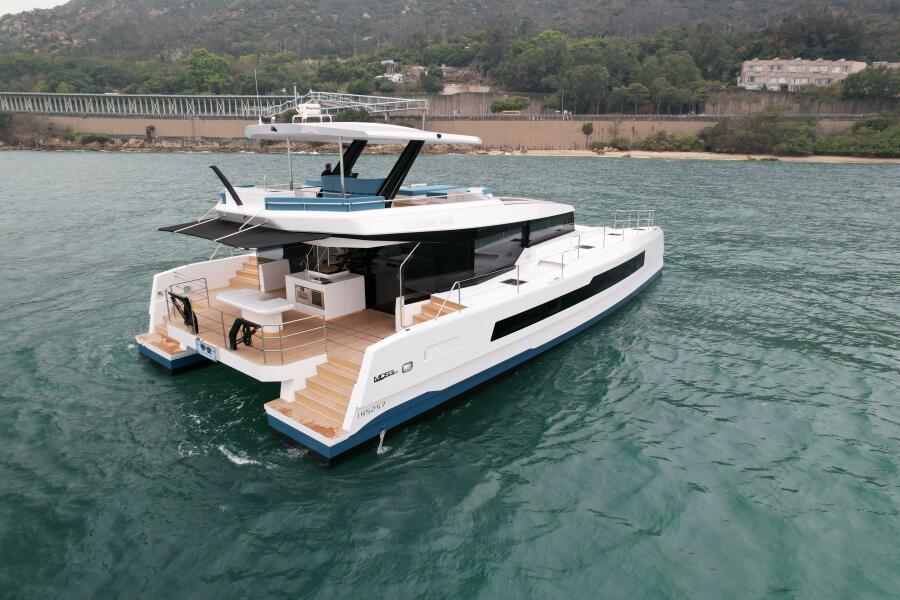

This 2027 McConaghy Boats MC63p Tourer, measures 63 ft, powered by 2x Yanmar 370.00HP.
Introducing McConaghy Boats' MC63p TourerLightweight, strong, and with contemporary, progressive lines, the MC63p Tourer is the power cat of the modern era.McConaghy’s carefully considered use of carbon and precise hull forms makes for a particularly fuel-efficient vessel at the lower speeds, yet the MC63p Tourer can achieve top speeds well in excess of 20kts.There are three versatile interior arrangements available, allowing for a three or four-cabin layout or an arrangement that positions the master suite on the main deck.Interior styling comes from m2atelier. Their attention to detail and innovative storage solutions allow for living space to be maximized, making the MC63p Tourer a mini-superyacht with luxury and performance ability perfectly partnered. It is offered as a convenience by this broker/dealer to its clients and is
Construction
Constructed using a controlled epoxy vacuum infusion process and pressed panels of E-glass, and core cell for lightweight strength and rigidity.
Exterior Finish
Hull and deck painted in high quality two pack polyurethane coating in solid light color, non-metallicNon-skid areas on the side decks All hatches drain to waterlineSix folding cleats Boat’s name and country/port of registration painted on sternBelow waterline surfaces finished with epoxy primer
Interior Finish
All joinery is built and finished to McConaghy Boats' uncompromising high-quality standardsThe modern interior is constructed using spray-painted surfaces, timber veneer lightweight ply, and soft fabric linersBlinds and screens pack (all side windows and overhead hatches, excluding forward-facing windows in saloon and bi-fold doors). Includes mosquito netting for all opening hatches.
MAIN DECK
Aft Main DeckSliding tempered safety glass doors between saloon and aft deckClear carbon stairs and handrails to flybridge with illuminated stepsTramsom steps, port and starboard, with discreet lightingAft deck bench seat with storage and cushions (Sunbrella and Weathermax foam)Aft deck table with electric legs and controls to raise and lower tablePort side overhead rain shower recessed into flybridge structure, hot/cold mixer tapTelescopic swim ladder discretely housed in the transom
Forward Deck
Fwd cockpit door Fwd settee, table, and sunbedCushions for fwd settee & sunbedSunbrella & Weathermax foam

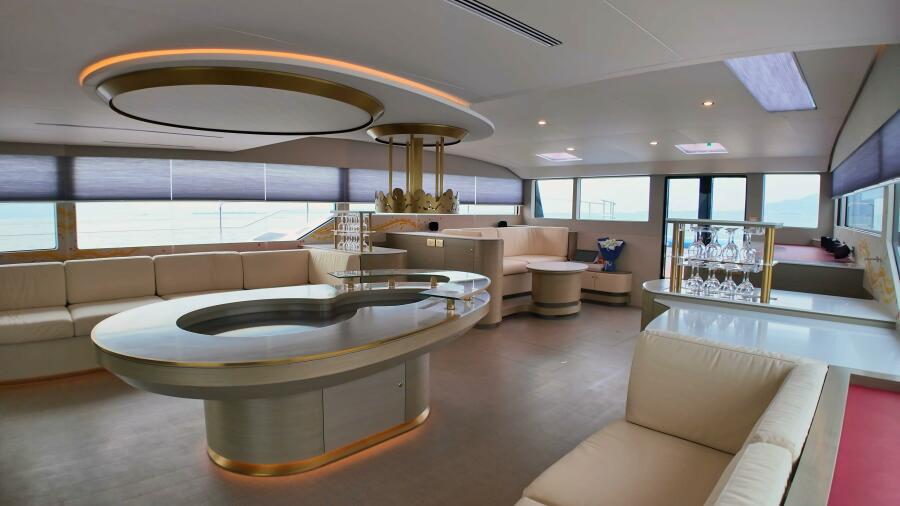

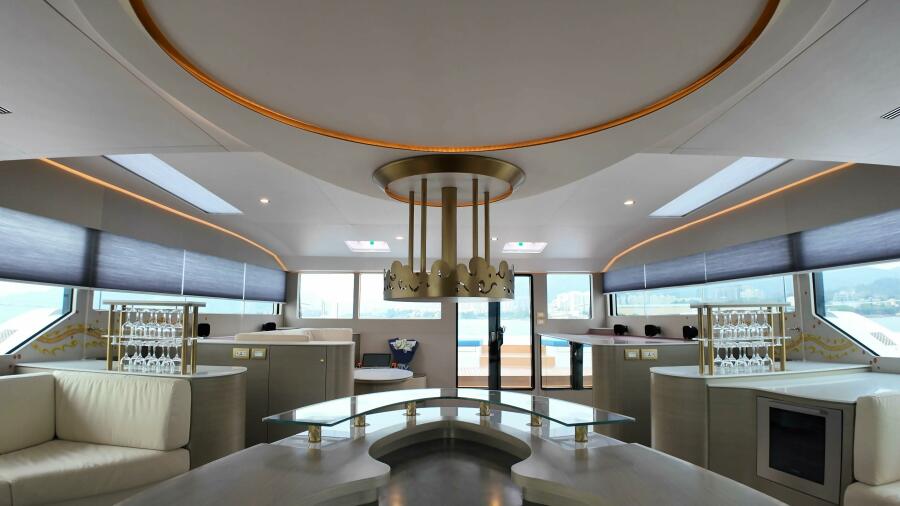

Saloon to Starboard
Electric sliding main saloon windowsL-shaped settee with bench seats, cushionsDining table with fold out extensions on electric struts, lowers to become coffee table Long overhead skylightCorner settee and coffee table forward, adjacent to Nav Station Under seating storageStairs to Starboard hullChoice of headliners Wood sole Overheaddown lightsRecessed lighting at floor level 110/230V AC and USB Socket
Navigation Station Forward
Recaro helm seats at the nav station Navigation and electronics panel Clear carbon finish, customized layout12V and USB sockets110/230V AC Sockets

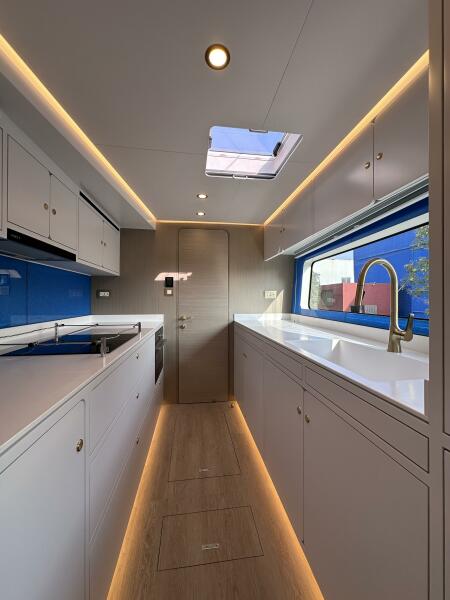

Port Side Galley and the "Island"
Electric sliding saloon windows with safety locksSkylights extending the length of the saloon over the Island and GalleyExpansive custom Corian countertops Twin stainless steel sinksMixer tap hot/cold Stainless steel Isotherm 160L draw fridgeStainless steel Isotherm 160L draw freezerElectric oven and cooktopStorage under bench tops, cupboards & drawsRecessed lighting at floor level around the IslandIn-built garbage bin

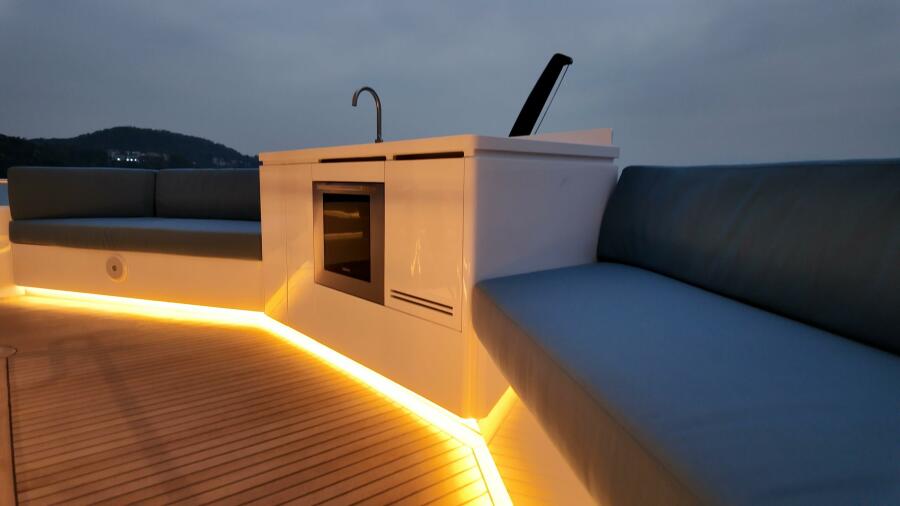

FLYBRIDGE

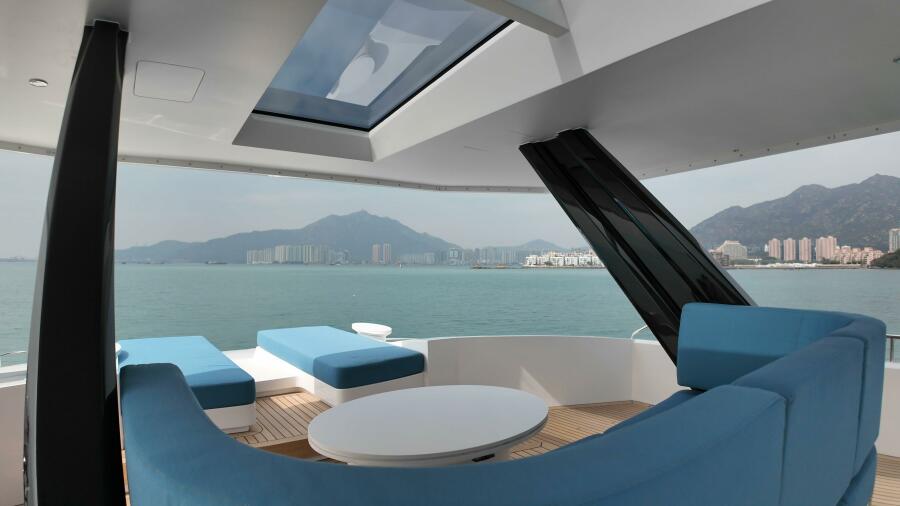

Enlarged flybridge, with offset spiral stairs to port, sunbeds and a central dining area with bench seat in front, Central helm stationLounge area with wrap-around seating Flybridge Sunbrella cushionsMcConaghy carbon fiber steering wheel Two (2) Seasmart folding footsteps to coachroofFive (5) red courtesy lights*Flybridge Layout Customizable

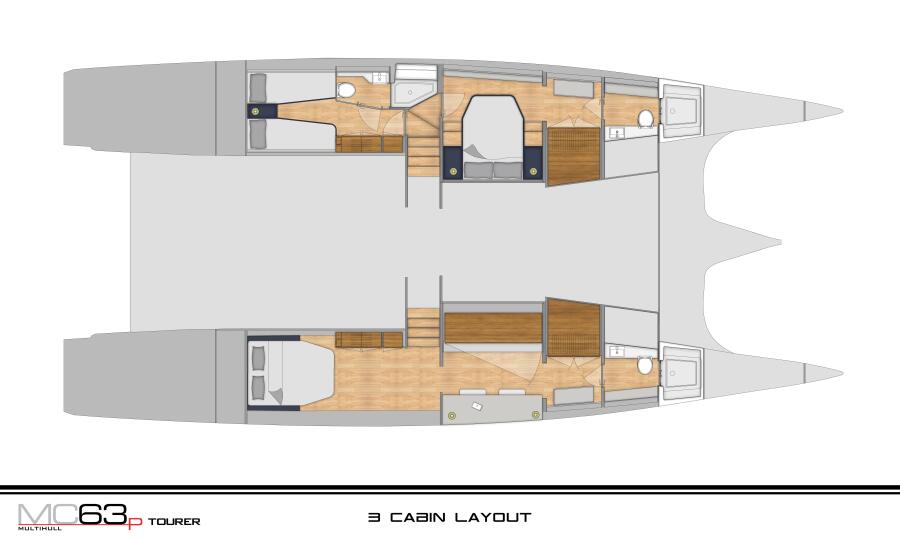

STARBOARD HULL - MASTER CABIN (3 CABIN LAYOUT)

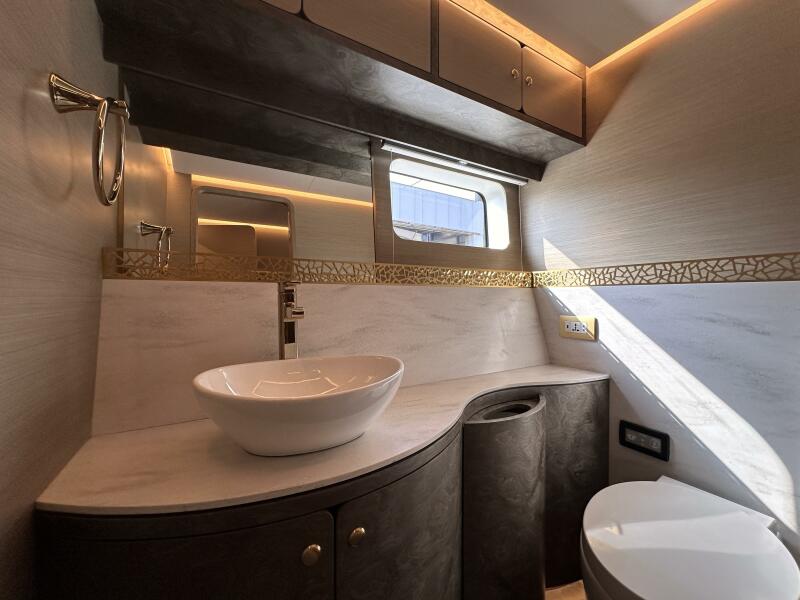

Forward Shower, Bathroom, Dressing RoomQuality shower fittings Seaward-facing side windowsVanity sink with cabinet Mixer tap hot/cold Full-length mirrorElectric toilet as standardHanging lockerVentilation fanOverhead downlights, recessed lighting at floor level110/230V AC Socket

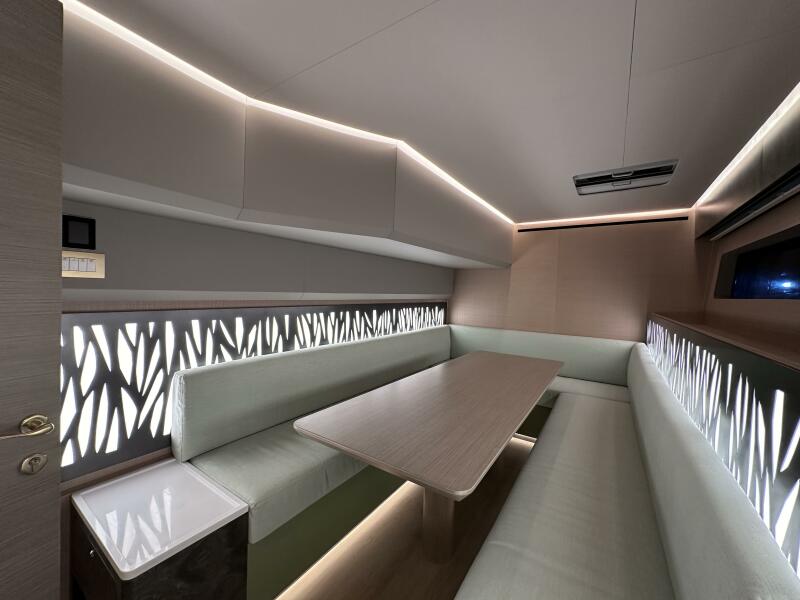

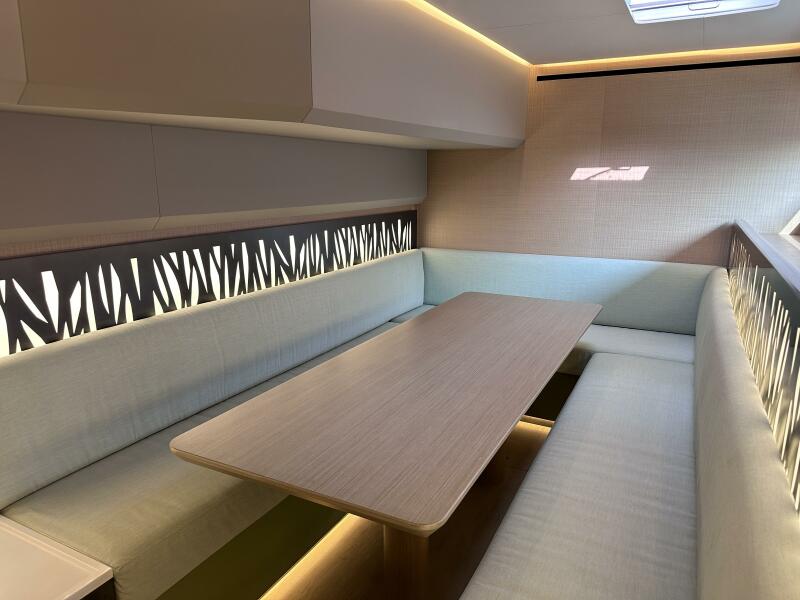

Mid Ship Lounge / Den
Sofa Seaward facing side windowsCustom cabinetry with soft close drawersOverhead downlights, recessed lighting at floor level110/230 V Sockets and USB sockets Large articulating TV Cabinet (TV not included) or bookshelf / storage
Aft Owner Cabin
Double Berth with storage underneath and overhead lockersSeaward-facing side windowsOverhead hatch Wood soleHull and Head liners Overhead downlights, recessed lighting at floor level, bedside reading lights110/230V AC Socket
PORT HULL - 2 GUEST CABINS

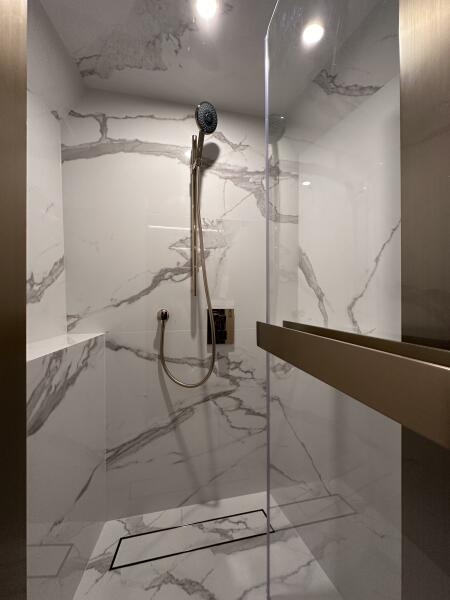

Forward Shower, Bathroom, Dressing Room Large shower with quality fittings, corian sole and inboard hatchSeaward facing side windowsSink with cabinet and hot/cold mixer tapElectric toiletHanging lockerFull length mirrorBench seatVentilation fanOverhead down lights, recessed lighting at floor level110/230V AC and USB Socket
Midship Guest Cabin
Underdeck seaward facing double berth Seaward-facing side windowsAmple storage under berthOverhead hatch Wood SoleHull and headliners Overhead down lights, recessed lighting at floor level, bedside reading lights110/230V AC Sockets and USB sockets
Aft Guest Cabin, Head and Shower
Twin single berths, with insert to convert to large doubleSeaward-facing side windowsAmple storage underneath and lockers above berthsOverhead hatch Wood soleHull and headliners Large shower with quality fittings, Corian sole and overhead hatchSink with cabinet and hot/cold mixer tapElectric toiletFull-length mirrorVentilation fanOverhead downlights, recessed lighting at floor level, bedside reading lights110/230V AC and USB Sockets
Systems and Machinery
Engines and propellers 2 x 370hp Yanmar with shaft drivesElectronic throttle controls mounted in lower and upper helm stations Insulation in Engine rooms Freshwater engine cooling system Engine instrument panel at helm positionFuel tanks, total approx. 2 x 2000L Racor500 fuel filters Exhaust water locks Two (2) Fuel Level Sensors Two (2) Deck Fillers
Plumbing
Two (2)Rule automatic bilge pumps in each bilge compartment (2,000 GPM eachHot & cold pressure water Two (2) Isotherm water heaters – 40 Liter tanks slim One (1) Gianneschi 50lpm/2,2-3.5bar Pressure pump Black water tanks, total approx 160L Fresh water tanks, approx 2 x 400LFresh Water Level Sensor Holding tank sensor
Power Supply
One (1) Galvanic Isolator Two (2) 110Amp 24V alternatorsSix (6) MLI Ultra Lithium Ion 24/6000 BatteriesTwo (2) Main Engine Start Batterie
Interior and Navigation Lighting and DC Power
CZone Digital Switching System including touch screen, iPad compatible, voltage, tank, bilge and fuse alarms, lighting (switches and dimmers), custom controls hydraulic transom (optional)Interior downlights Cockpit Lights on the Flybridge Recessed lighting at floor levelOne (1) Red/White nav stn light One (1) all-round white nav lightOne (1) stern light One (1) port light One (1) stbd light One (1) Tank Sensor Monitor
Electrical AC
AC switch panelShore power / combination inverter
Entertainment
Fusion entertainment system - Four (4) speakers
Rudder and Steering
Twin rudders Hydraulic Steering
Hatches
Lewmar flush deck hatches drained to the waterline
Anchor and Mooring
One (1) Lewmar V5 electric windlass One (1) 50kg galvanized anchor, 100m chainSix (6) x Nomen 300mm folding cleat
Lifting Platform
PLC controlled Hydraulic swim platform / tenderlift (width 4 meters) load capacity 1200kg, with remote control, Seasmart cleats, safety locks, and folding pad eyes (x4)
Miscellaneous Deck Hardware
McConaghy composite stanchions Solid stainless steel bow rails Two (2) deck water fillers Two (2) deck fuel fillers Two (2) deck waste pump-outOne (1) deck wash pumpForedeck trampoline - black, grey or white
Disclaimer
The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated.
Mechanical Disclaimer
Engine and generator hours are as of the date of the original listing and are a representation of what the listing broker is told by the owner and/or actual reading of the engine hour meters. The broker cannot guarantee the true hours. It is the responsibility of the purchaser and/or his agent to verify engine hours, warranties implied or otherwise and major overhauls as well as all other representations noted on the listing brochure.
Vessel Overview
Year2027
MakeMcConaghy Boats
ModelMC63p Tourer
CategoryCatamaran
ConditionNew
BuilderMcConaghy Boats
DesignerKer Yacht Desing
Hull MaterialOther
Fuel TypeDiesel
Dimensions
Length Overall63 ft
Beam31 ft
Displacement23.25
Performance & Capacity
Fuel Capacity1,056.69 gal
Fresh Water211.34 gal
Engines & Mechanical
Engine Count2
Engine 1 MakeYanmar
Engine 1 Power370.00 HP
Engine 2 MakeYanmar
Engine 2 Power370.00 HP
