2021 CNB 66

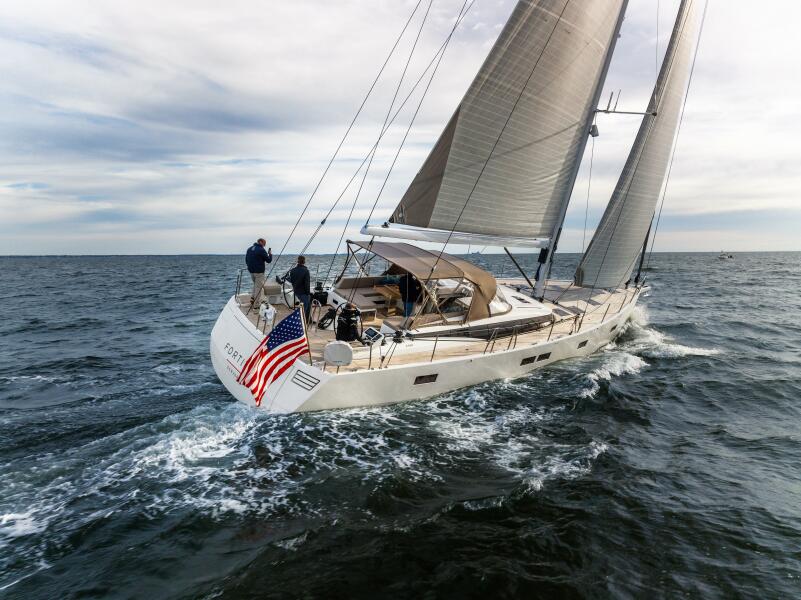

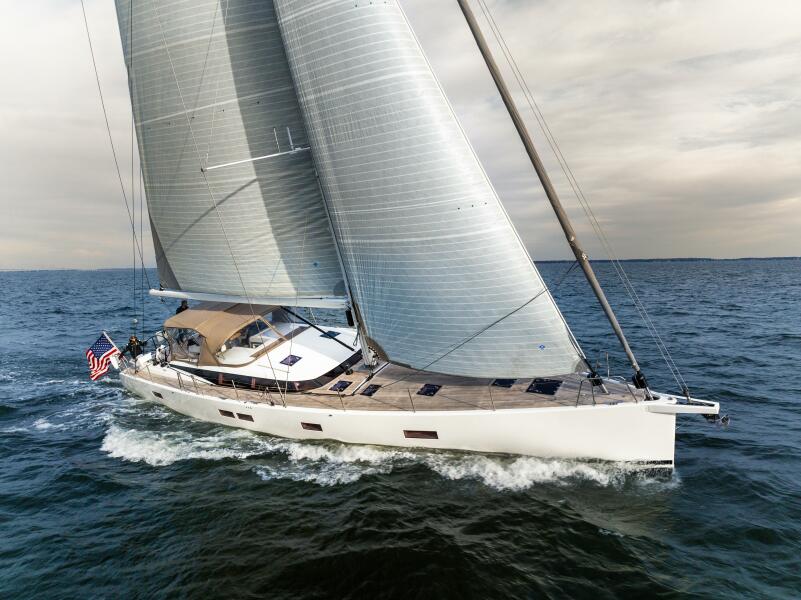

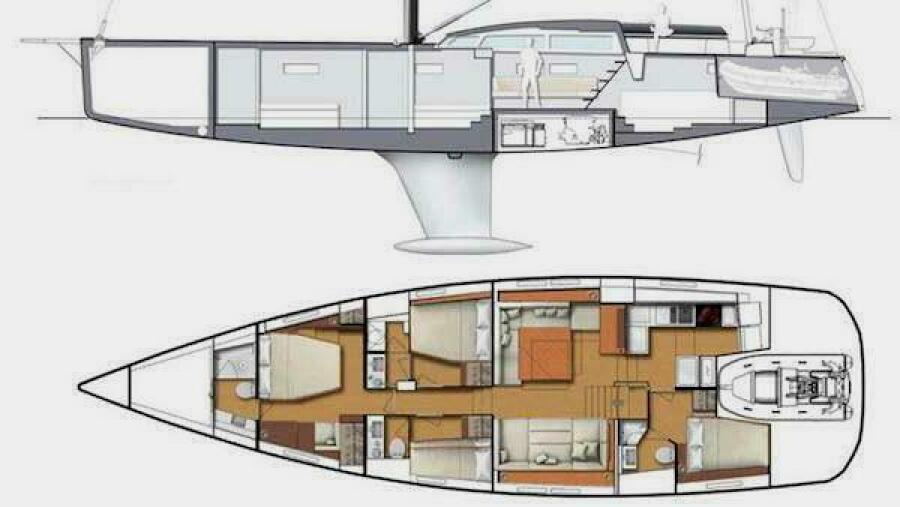

Taking on the family resemblance, the CNB 66 was designed as the largest sailing yacht that could be handled by a family crew. It can be equipped with the hydraulic roller-furling boom developed in an exclusive partnership with Hall Spars. Endowed with a carbon bowsprit, her elegant lines conceal an abundance of volume, exploited with all our know-how. This is the case, for example, in the owner's cabin, where the queen size island bed is offset to the side to remain invisible when the door is open. In the light-filled saloon that occupies the entire beam (5.50 m), the large, nearly 3-metre long sofa to starboard can be divided into three parts to increase the seating around the adaptable saloon’s massive table. As for the galley, we wished it to be practical, well ventilated, but in direct contact with the living space. Decoration and interior environments are designed by Jean-Marc Piaton and Rafael Bonet. Outside, there is clear separation between the lounging and handling areas. As on the One-offs, we have sought throughout to eliminate differences in level in order to facilitate movement without impairing safety. Finally, what sailing yacht of this size can boast a tender garage enabling the launching in less than a minute of a 3.25-metre tender with its engine? Beyond question, the CNB 66 redefines what is possible with a 20-metre yacht. No wonder that even before she was launched, seven owners from Europe, Australia and Mexico put their faith in us. 21 HULLS BUILT IN ALL - THIS IS HULL # 18 IN THE SERIES.

Naval Architect: Philippe BriandInterior Designer: Jean-Marc Piaton / Rafaël Bonet Length overall (with anchor davit) - 20,61 m 67.61'Hull length - 19.86 m 62.20'Length with bowsprit - 21.36 m 70.07’Length @ waterline - 18.45 m 60.53’Maximum beam - 5.51 m 18.07’Draught - Lead bulb with iron cast fin, draft 2,40m - 7.87’Light displacement MSC (approx.) - 31,100 kg 68,563 lbI - 25.00 m 82’J - 7.67 m 25.16’P - 24.13 m 79’E - 7.80 m 25.59'Air draught (excluding aerials) - 28.76 m 94.35'Full batten mainsail area (approx.) - 112 m2 1,205 ft2Furling Genoa area (approx.) - 103 m2 1,108 ft2Staysail area (approx.) - 55 m2 592 ft2Asymmetric spinnaker area (approx.) - 330 m2 3,552 ft2Gennaker or Code 5 area (approx.) - 250 m2 2,690 ft2Code 0 area (approx.) - 155 m2 1,668 ft2Main Engine - VOLVO D4 180 Hp @ 2,800 rpmFresh water capacity - 2 x 500 l 264 galFuel capacity - 2 x 650l I 343 gal

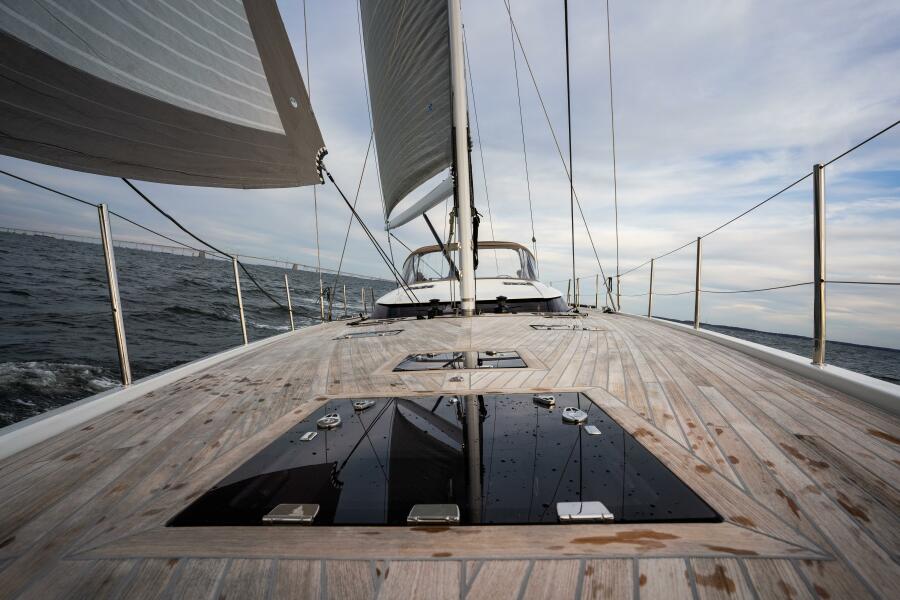

The hull and bulkheads are made of vacuum-infused balsa, fiberglass, and resin sandwichDeck made of composite/Balsa sandwich is vacuum infused as wellWhite gel-coat finish on the hull and on the deck. Non-skid white gel coat on roofWaterline stripe - single black thick stripeMain deck is laid with teak (8mm thickness) with grey caulkingCockpit sole and cockpit seats are laid with teak (8mm thickness)Keel fitted to the hull with s/s boltsLead bulb with iron cast fin, draft 2,40m - 7.87’Twin hanging rudders with vacuum-infused rudder blades, s/s rudder stocksOpening transom/swim platform giving access to tender garage

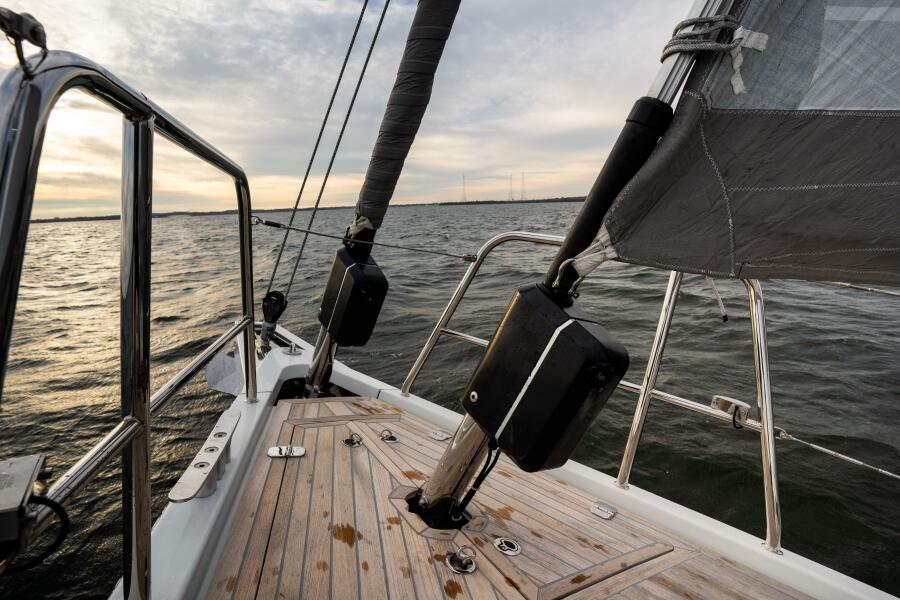

Fixed davit integrated in bowsprit, electrical windlass, Delta stainless steel anchor 40Kg/88 lbs, and chain (100 m/328 ft., 12 mm dia.)Quick Wired remote w/ chain counter - anchor locker, MZ Wireless remote w/ counter - Holster at helm and power socket at chart tableDeck wash pump close to windlass (fresh & salt water)Deck wash pump in cockpit (fresh water)S/s pushpits and pulpitLED navigation lightsDouble s/s lifelines, opening gate in lifeline each side 8 mooring cleats and 2 fairleadsS/s recessed chainplatesSelf-tacking track for staysailGenoa sheet tracks and carsRecessed companionway sprayhood2 x Harken primary electric winches ST70 instead of manual (2 speeds)2 x Harken multi-function cockpit electric winches ST60 (2 speeds) Harken electric mainsail sheet winch (3 speeds)1 x Harken manual halyards and reef winch on deck at mast step (Starboard) Port winch at mast step electric ST60 (3 speeds)2 x steering wheels in fiberglass composite, black varnishHandrails on steering consoles and guard rail in aft deckElectric telescopic teak cockpit tableDrawer fridge in the cockpitSideboard ladder - foldable, can also be used as a swimming ladder

Sprayhood (Dodger) - SUNBRELLA Taupe PlusBimini top (with connection to sprayhood) - SUNBRELLA Taupe PlusCockpit covers - Covers for the wheels, the navigation panels, the cockpitwinches, and the cockpit table and garage white canvas screen - SUNBRELLA Taupe PlusCockpit cushions - Sunbrella Lopi Sand

Large deck hatch with exterior lock in PMMAStainless steel ladderLights, handrailsAccess to: bow thruster (tunnel), chain locker and windlass electrical boxWindlass remote controlForepeak equipped as a skipper cabin2 bunk beds (lower bed with mattress, upper bunkbed), WC, shower, sink

The tender garage is accessible from the transom when opened and from a deck hatch located in the cockpitHot and cold showerRemote control of the transomWireless remote control of the transomElectric winch, sliding board and rollersTENDER - Williams Jet 345

There is one lazarette on port, one on starboard. Access from the cockpit.Electric bilge pumpAccess to the steering mechanism

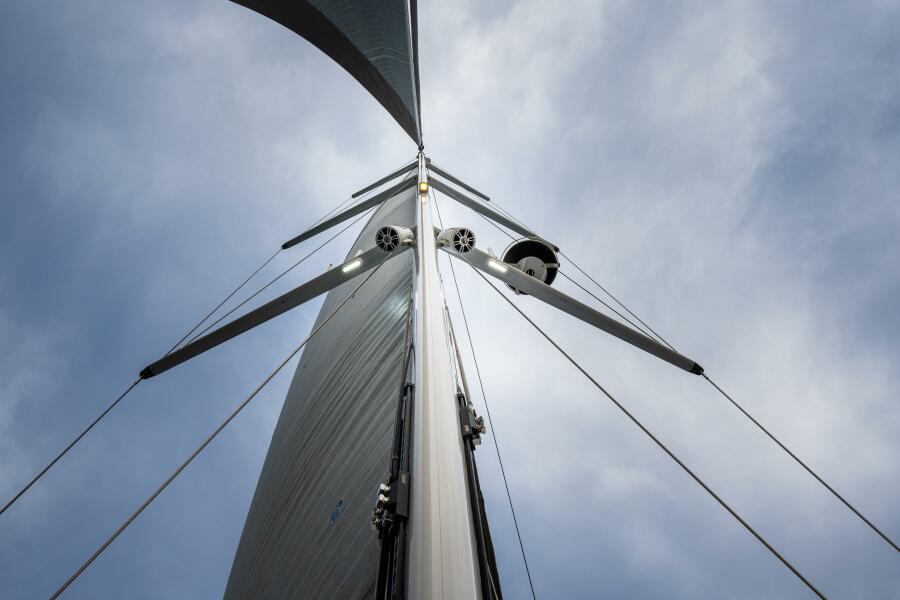

In mast main-sail hydraulic furler with outhaul feedback control - re-painted in white 20233 sets of spreadersWhite-painted aluminum boom Dyform standing riggingRunning rigging for genoa and main sailHydraulic pump with electric control panel for boom vang, main outhaul and backstayDeck lights and mooring lightSpreader lights facing up (x6)Electric furler for genoa (Profurl)Staysail rig on fixed stay, with electric furlerRunning backstaysGennaker/Code 0 rigging with sheets, 2:1 halyard and blocksWindex

North SailsMast Furling Mainsail 3Di OCEAN 700Furling Jib with Battens 3Di OCEAN 700Furling Inner Jib 3Di OCEAN 700G Zero Gennaker SuperLite/Kote SK 350Facnor Manual furler FX 12000 for Furling code

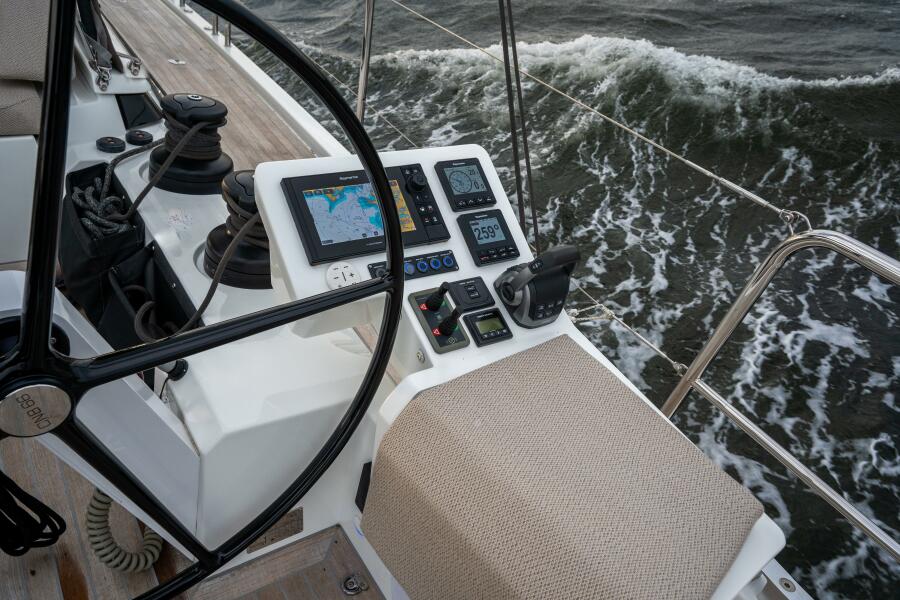

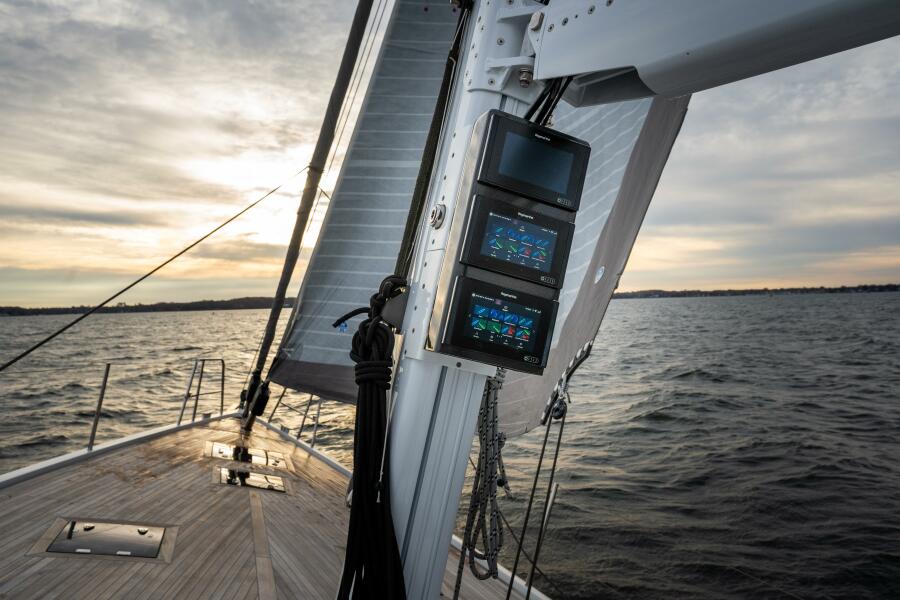

Raymarine BrandHelmseat Chartplotter: AxiomHelmseat Multifunction display: Axiom "i70s" + autopilot "P70"Saloon: Autopilot wireless smart controller, touch screen gS195, VHF Ray260Radar Quantum 2AIS B class 650 (Transceiver) 3 x jumbo displays at mast step with carbon fiber bracket

Engine: Volvo Penta D4 - 175hp, @ 2800rpm - 910 HoursS/s shaft4-blade folding propeller with rope cutter on shaftEngine control panel on the starboard helm console Additional engine and 2nd thruster control on portsideFuel tankage: 1300 liters in two aluminum tanksFuel filterTunnel Style Bow ThrusterRetractable electric stern thruster

1000 liters (264 gallons) of fresh water in two PEMD (polyethylene medium density) tanks100 L/26 gal (water heater on 220V, and heat exchanger from main engine)Freshwater shore inletFresh electric water pump. Hot and cold water under pressureWatermaker 220V Sea Recovery - Aquamatic 280 l/H 74 gal/hr

2 Electric automatic bilge pumps, located: 1 in the lazarets, 1 beneath the guest cabin walkway1 Manual bilge pump located in the cockpit

Electrical panel 24V / 230V. Control panel in the aft area (galley)1 Shoreline 63 Ah13,5 Kw/h, 230 V generator with sound shield 24V / 100 Ah battery charger for service batteriesAdditional 100A/h battery charger​​12V alternator on main engine24V alternator on the engine, 80 Amp24V service gel batteries bank, 840 Amp/h capacity24V / 230 V / 5000 W inverterEngine and generator start batteries24V lighting throughout230V electric outletsUnderwater lights - 4 white spotlights under the waterline, on the aft of the hull

Wood finishes: colored walnut (open grain finishes) and lacquered areasLight oak on floorboardsBlinds on portholesBlinds and mosquito screens on deck hatchesHandrailsSaloon cushions and bed heads in Trojan water-repellent fabric

Access to the saloon is through a sliding hatch and a retractable doorCompanionway wooden steps with recessed lightingHandrails

Access by hatches on the saloon soleSound-insulated engine compartmentRemote-controlled fire extinguisherLights230 V outletsThis compartment houses the main Volvo diesel engine, the Onan generator, pumps, filters, and the watermaker.

Termodinamica marine inverter air conditioning in saloon and cabinsLow consumption AC. Temperature can be adjusted independently in each cabinReverse cycle air conditioning in the forepeak

Just under the deckhouse, the saloon hosts the navigation area, a sofa with two benches, and a dining/saloon areaDirect and indirect lighting via overhead and wall lightsNight courtesy lights & 230 V outletsNumerous lockers alongside the hull and behind the seat backsSofa to starboardLarge U-shaped settee to portExtending dining/cocktail table for 8 - Telescopic "origami "style table in the saloonSaloon Upholstery in fabric from SPRADLING "Marlin Weiss"Telescopic "origami "style table in the saloon

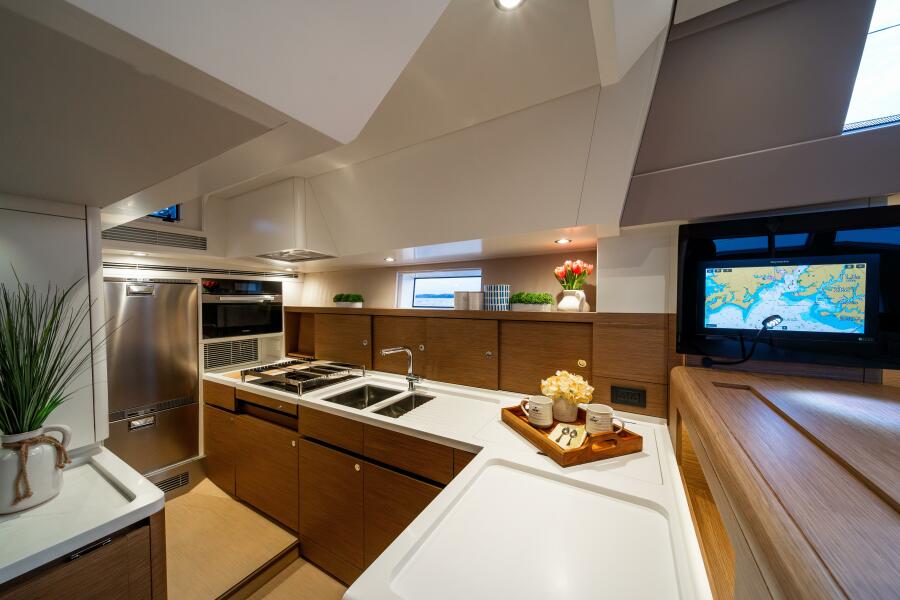

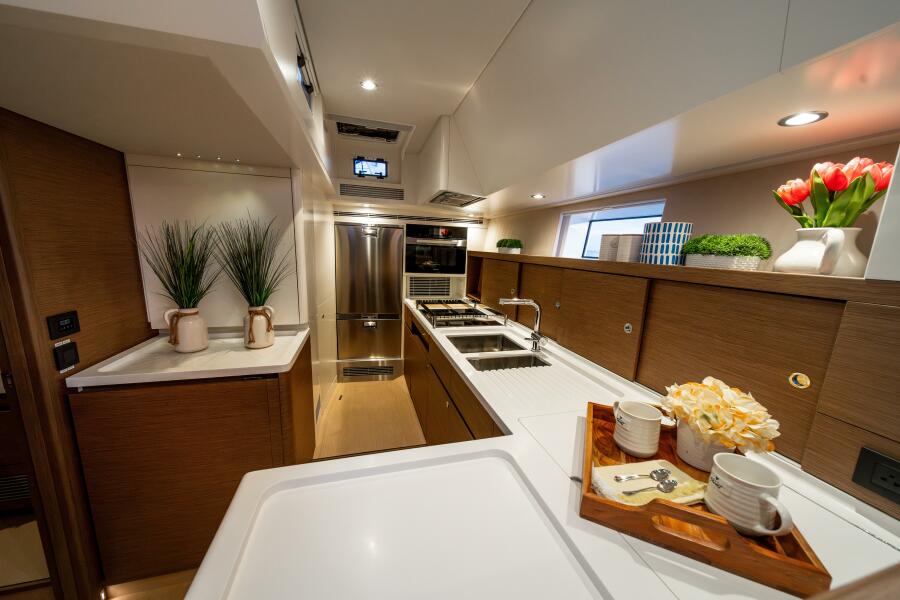

Range hoodCorianTM worktopS/s double sink with single lever mixer tap3 burner electric induction stoveCombined microwave/oven157 l capacity front opening fridge with 75 l capacity freezer compartment (aft of galley)230V outletsIce-maker function on combined Fridge/FreezerAdditional fridge in the galley (160 L)Wine cellar 15 bottlesDishwasher MIELE Marine 220VLaundry washer/dryer MIELE Marine 220V

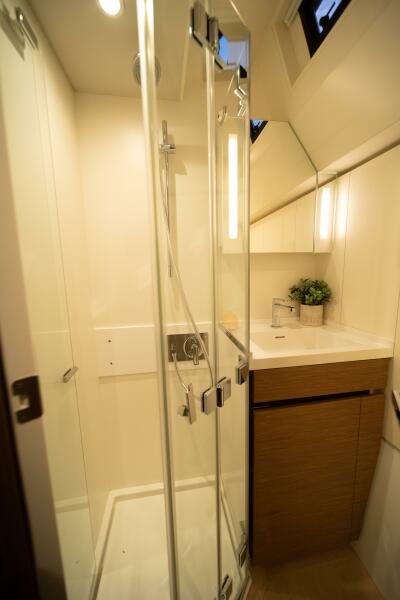

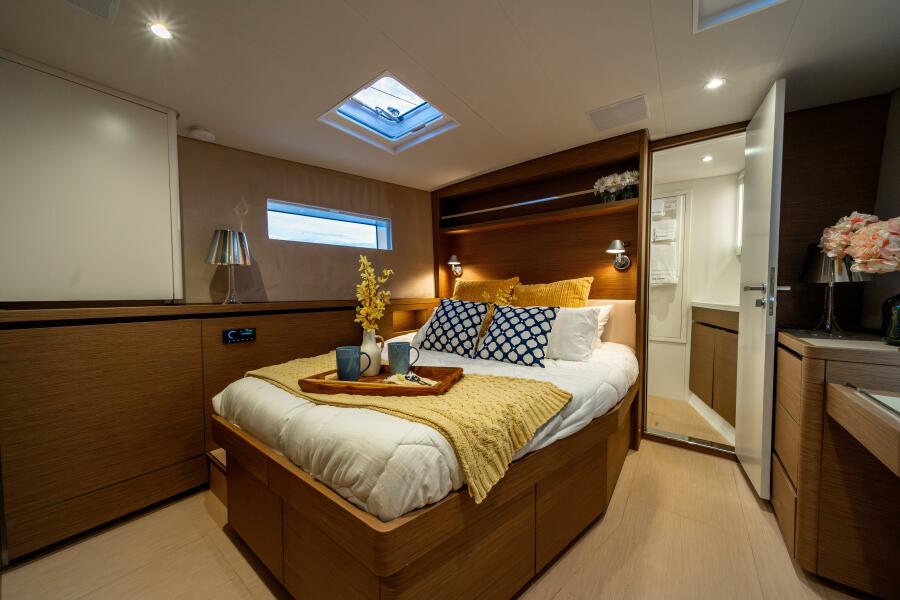

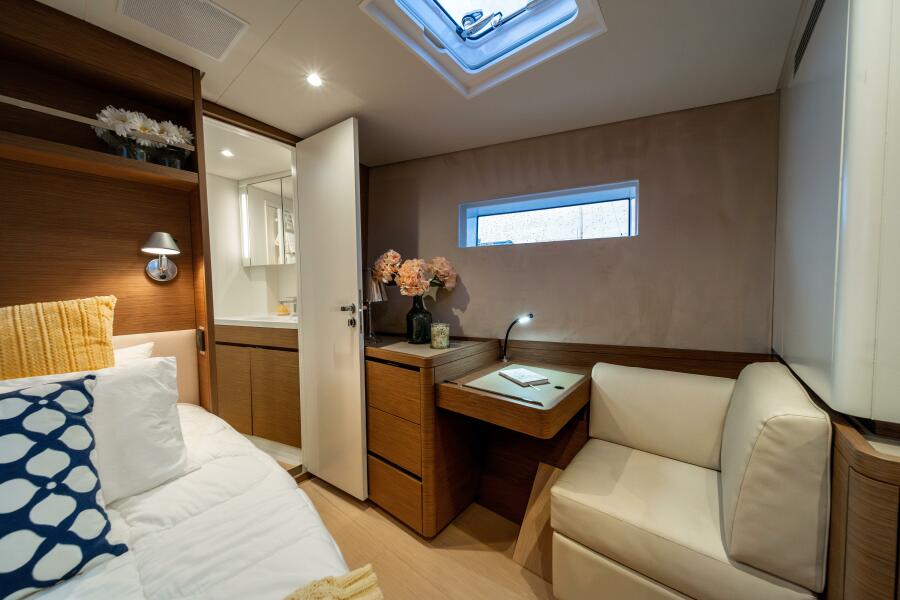

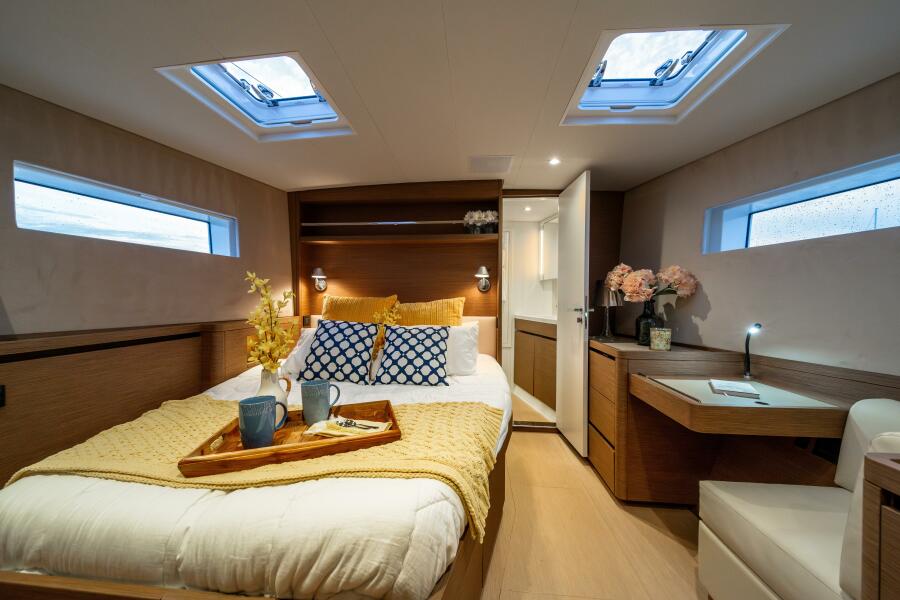

Double bed and reading lightsDrawers and lockers underneathBookshelves on forward bulkheadHanging locker to starboardCabinet to portDesk and armchair to starboard230V outletsPrivate en suite toilet & shower, including:- Washbasin with hot and cold water,- Separate shower stall with grating,- TecmaTM (or similar) freshwater electric marine toilet,- Bathroom cabinet with electric shaver plug,- Heating towel holderAccess door to the forepeakSafe

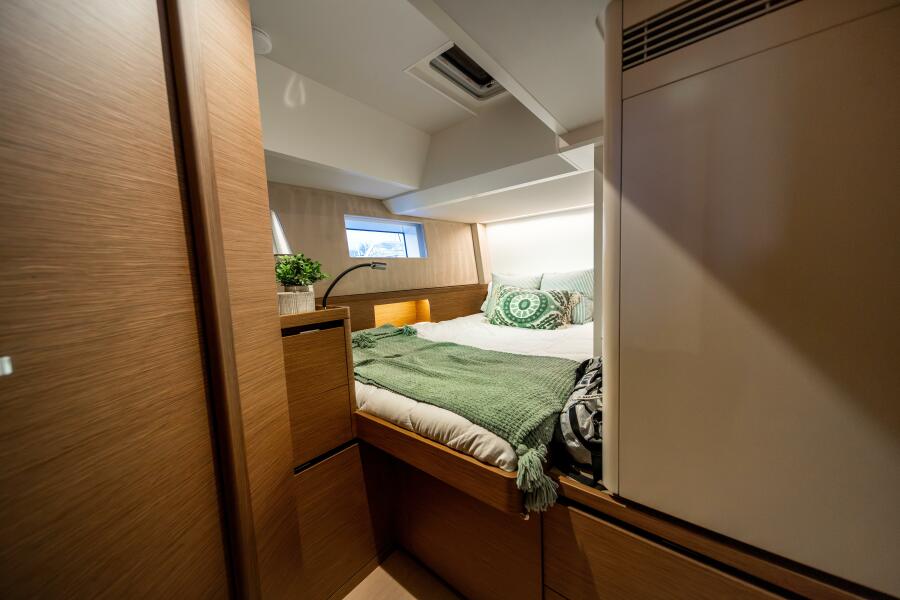

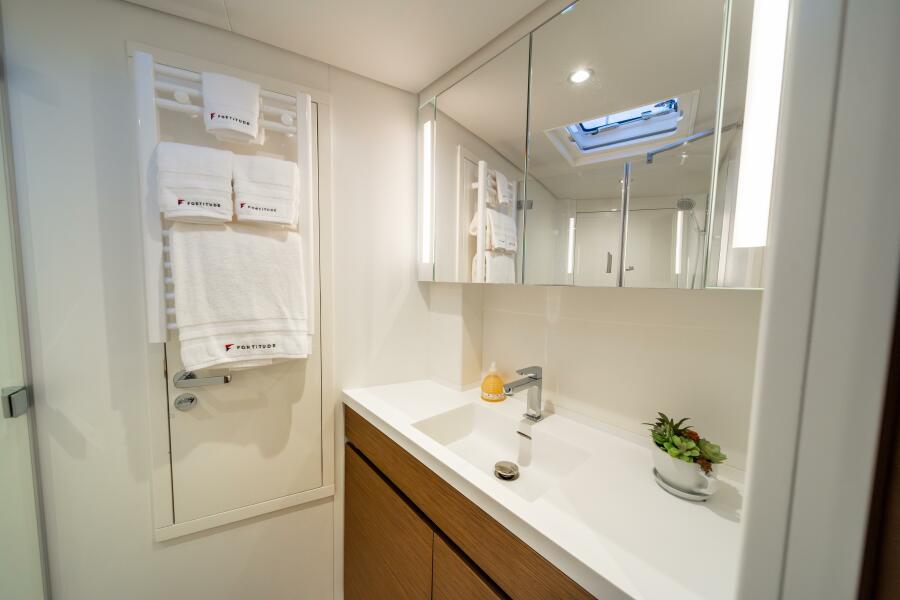

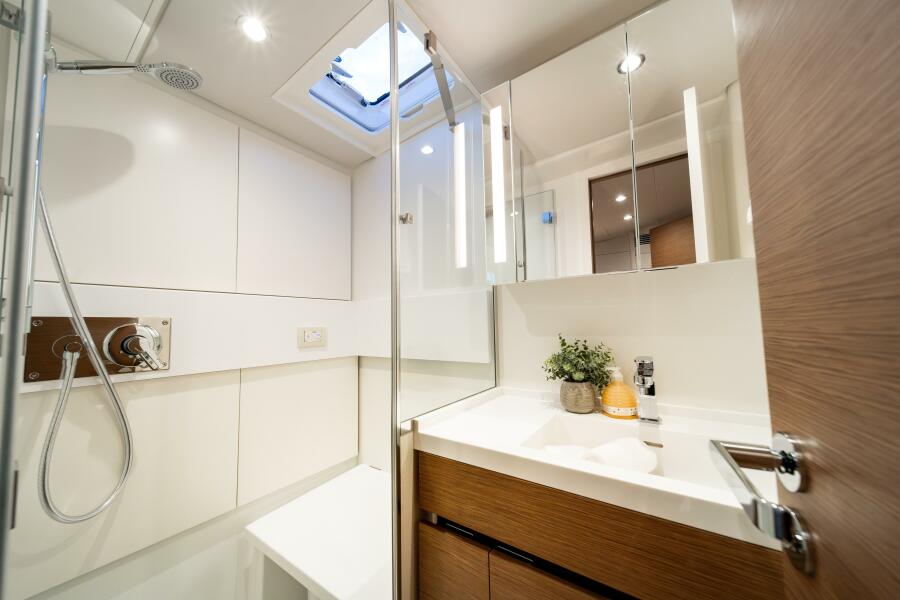

Transformation system to double bed or two singlesReading lightsHanging lockerStorage lockers230V outletsPrivate en suite toilet & shower, including washbasin with hot and cold water, separate shower stall with grating, and freshwater electric marine toilet with protective benchBathroom cabinet with electric plug

Two bunk beds to starboard with reading lightsStorage lockers and drawers beneath the bed A hanging locker230 V socketPrivate en suite toilet & shower, including:- Washbasin with hot and cold water- Separate shower stall with grating- TecmaTM (or similar) freshwater electric marine toilet- Bathroom cabinet with electric plug

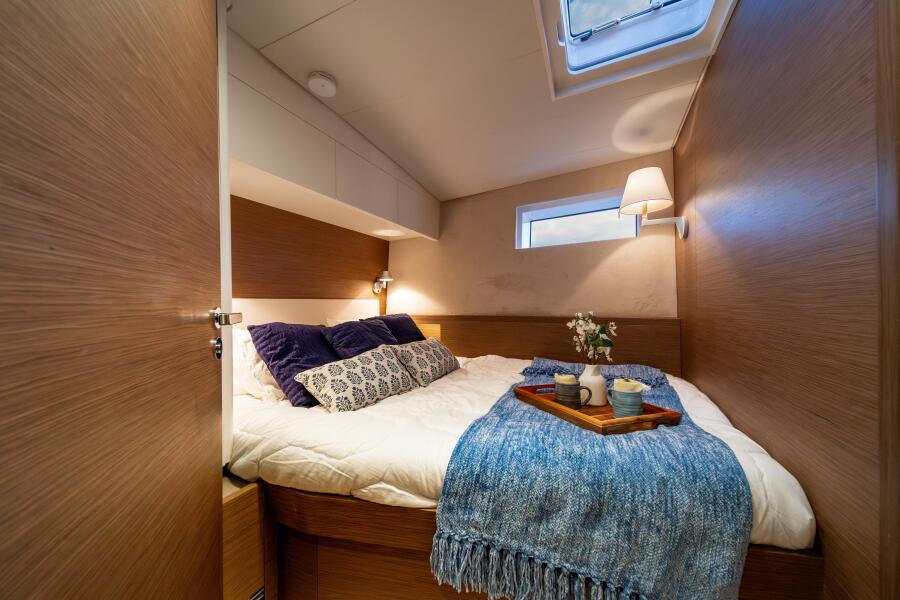

Double bed, with reading lightsStorage lockers and drawers beneath the bedA hanging locker to portCupboard230 V socketsPrivate en suite toilet & shower, including:- Washbasin with hot and cold water- Separate shower stall with grating- TecmaTM (or similar) freshwater electric marine toilet- Bathroom cabinet with electric shaver plug

Salon Flat Screen TV Omnimax TV FM antennaFusion MS-RA770 with an inverter, connected to Amplifier and to TV via optical cable2 Pairs of Speakers (FM-F77SW) in the saloon1 400 watt Subwoofer (FM-S10SW) CockpitFusion Signature Series 8 Channel Marine Amp SG-DA82000 amplifier with inverter, connected to saloon stereo unit1 Pair 8.8 330 Watt Coaxial Classic Speakers (SG-F882W) at the helm station in the cockpit.1 600 Watt Subwoofer (SG-S102W) in the cockpit sofa area2 SM series 6.5’’ 100W Shallow Mount Speakers (SM-F65CW) at cockpit sofa area  Owner's StateroomFusion MS-RA670 unit with inverter, Stereo Unit connected to Wifi system with RJ451 Pair Speakers (FM-F77SW)1 400 W Subwoofer (FM-S10 SW) 1st Spreaders area1 Pair 8.8 Coaxial speakers (SG-FT88SPWC)1 pair of Deck Mount Brackets (010-12831-20)Fitted below the first spreaders on each side of the mast

Potential purchasers should assume that any items on the vessel at the time of viewing, but not specifically listed on this specification sheet, are not included with the sale of the yacht. These specifications are believed to be correct but cannot be guaranteed. Specifications are provided for information purposes. Data was obtained from sources believed reliable but is not guaranteed by owner or brokers. Engine hours are approximate, may be reported verbally by the seller, and are recorded at the time and date of the original listing of this vessel. Owner's use during the time of this listing may affect the total engine hours upon a prospective buyer's inspection. Buyer assumes responsibility to verify all speeds, consumptions, capacities and other measurements contained herein and otherwise provided, and agrees to instruct his/her agents or his/her surveyor to confirm such details prior to purchase. This vessel is subject to sale, price and inventory changes or withdrawal from market without notice.
