2008 Marquis 690

MAIN SPECIFICATIONSLength Overall: 69’ 0” (21.03m)                                                                            Beam: 18’0” (5.49m)                                                    Draft: 5’ 4” (1.63m)                                                                                      Year Completed: 2008                                 Model Year: 2009                                                           Refit: 2014                                                                        Type: Semi-displacement V-Hull                                                 HIN: CDRV2088D809     Official # 839349                                                            Tonnage: Gross 82 GRT, Net 66 NRT                                                                                                                                                      Hull Config: Modified V-Hull                                                       Guests: 6                                                            Crew: 1                                                 CONSTRUCTIONBuilder: Marquis Yachts LLC, Wisconsin, USA                                                                                                                                      Hull Material: Fiberglass                                                                                                                                           Deck Material: Teak & Fiberglass                                                                                                                                             SPEEDMaximum: 19 knots                                                      Cruising: 14 knots                                                           Economical: 10.25 Kts @ 30 GPH                             Economical range: 375 NM                                                                                                      CAPACITIESFuel: 2 x 600 g Tanks =1,200 g (4,542 I)                                                                  Water: 2 Tanks 370 g (1,401 I)                                                                 Grey Water: 3 Tanks direct discharge                                     Black Water: 3 Tanks, MSD III Waste System                                                                                                                                                                                                                                                                                    CLASSIFICATION & CERTIFICATIONSFlag: Canadian  Official #: 839349Certification of Registry: CanadaCertification of Documentation: USA

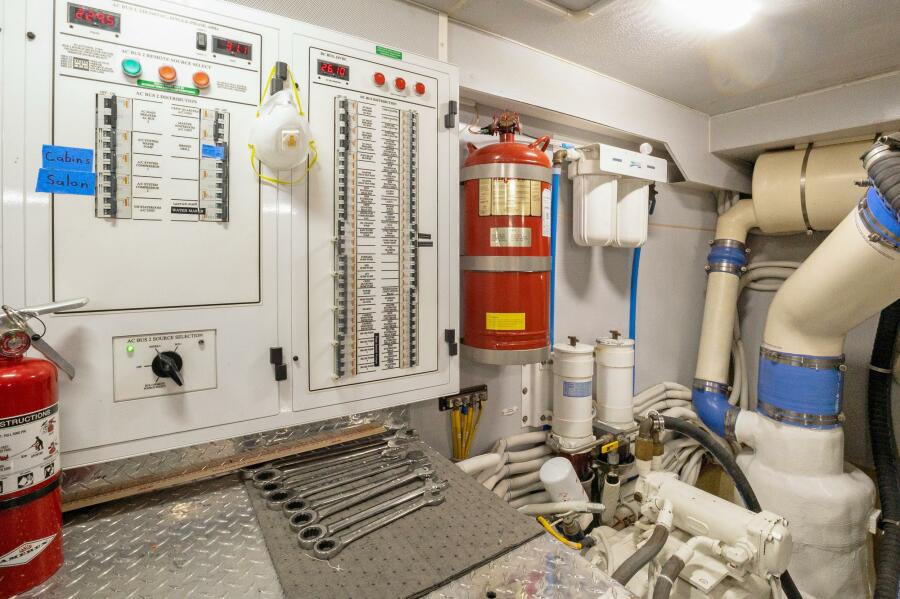

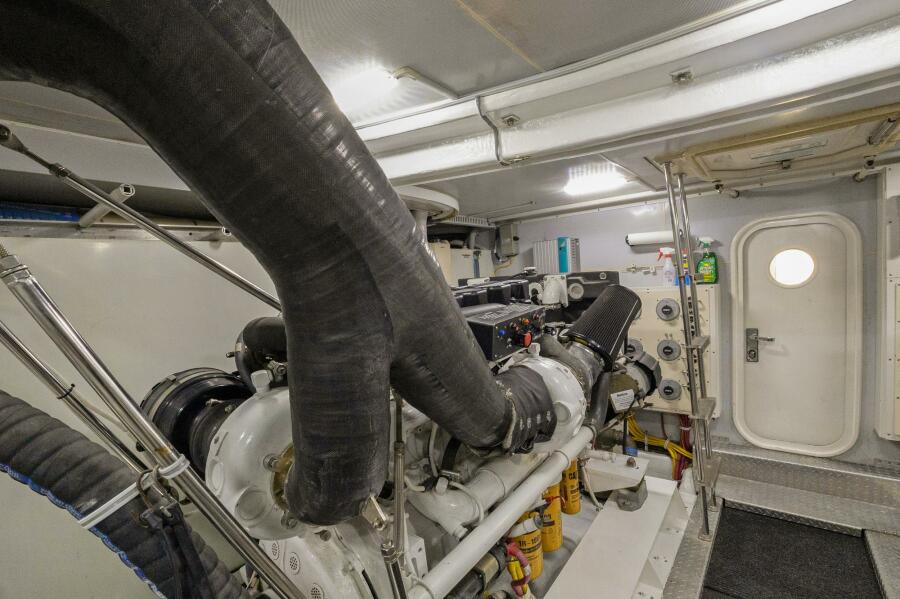

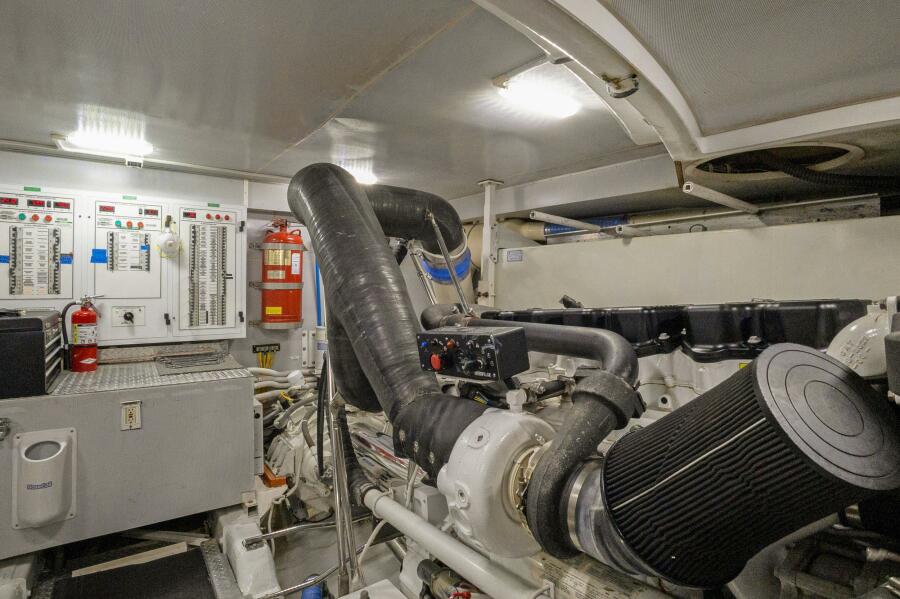

MAIN ENGINES Engine Type: Twin Caterpillar C - 18                                                        Horsepower: (1000hp @ 2300 rpm)                                                                                      Main Engine Hours (Port): 2236Main Engine Hours (Stbd): 2309                                GENERATORS & ELECTRICITY                                                     Generators: 28 KW Kohler Model 28EOZD, Serial 2168235                                             Generator Fuel Consumption: 3. gph     Generator Hours: 4581                                                Shore power: 2 x 50 amp, single phase 120/240 volt                                       Generator Starting: Remote & local        Fuel: Diesel                                                                                       BATTERIESBatteries: Main Engines 4 x 8D (24 Volt)Generator 1 x 12 VoltHouse Bank 6 x 8D (24 Volt)                                                                                                                                        PROPULSION Drive System: V-Drive   Main Engine Transmission: Gears ZF Friedrichshafen ZF-550-1V                                Steering System: Hydraulic Power SteeringHelm Station: Bridge deckDocking Station: STBD aft deck                                 Trim Tabs: Stainless steel                                             OTHER MACHINERY Water Makers: 1 x Matrix Emerald Series                                             Water Softeners: In line with membrane                                            Bow & Stern Thruster: Side Power                                                          Fuel Filtration: 4 x Racors (mains), generator 1 x racor                  Sewage System: MSD III                                              Fresh Water System: 2 x 120 / 240 volt Mach 5                                                                                                                              Air Conditioning: Cruisair split system                                                                                                                                NAVIGATION SYSTEMSRadar: Garmin                                                                                                                  Magnetic Compass: Richie 4”                                     Auto Pilot: Raymarine Wireless Auto-Pilot with remote                                                 Depth Sounder: Garmin 8020 Depth Sounder-interfaced                             GPS Display Garmin 8020- 2 x Multi -Function interfaced with AIS                            Electronic Charts: interfaced with Garmin 8020

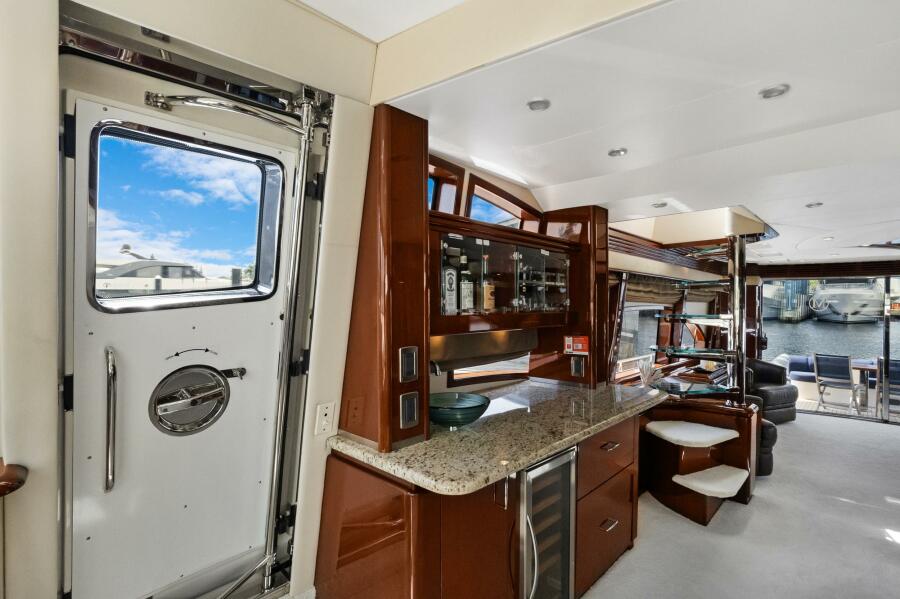

MAIN GALLEY EQUIPMENTCooktop: Electric 3 burner, flush top, brushed stainless                                                 Oven: Full size, Electric,                                                                Microwave: Sharp, built in, brushed stainless                                                      Refrigerator/ Freezer: Jenn-Air, Full size French door, bottom freezer, brushed stainless                Additional Refrigerator: Sub-Zero two drawer   Dishwasher: Miele 6833                                                                                                                             LAUNDRYWashing Machines: 1 x Miele W-3033   Dryers: Touchtronic T-8003

DECK EQUIPMENT Anchor Windlass: Maxwell 4000, 24 volt                                              Aft Capstans: 2 X 24vdc warping                               Anchor: Stainless Steel Plow Anchor                                       Anchor Chain: 3/8 Galvanized connected to Anchor via stainless swivel                                                                                                                                 TENDER & TOYS Note: Subject to change and/or negotiation during the buying process.

FIRE FIGHTING EQUIPMENTFire Control System: Emergency fire suppression manual system control                                Fire Extinguishers: 5 x extinguishers–USCG approved                                      Alarms: Bilge high water                                                               SAFETY EQUIPMENTPFDs (33 CFR) -7 Type 2 USCG approvedLife Rafts: 1 x 8 person, USCG approved                                                Life Rings: 1-USCG approved                                                      Life Raft: 8 person USCG approved                                                          Designated Ditch Bag- Flares, First Aid, Sound Signaling device

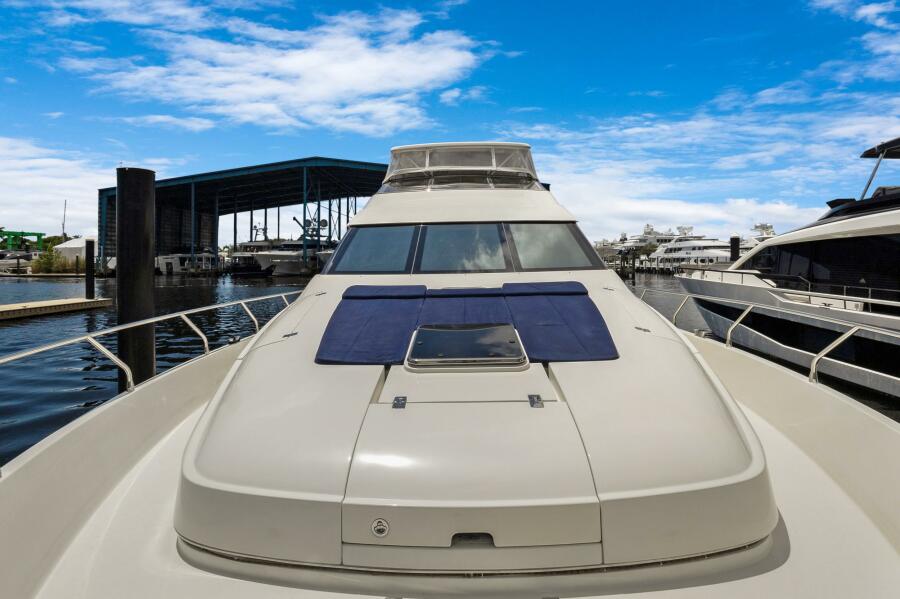

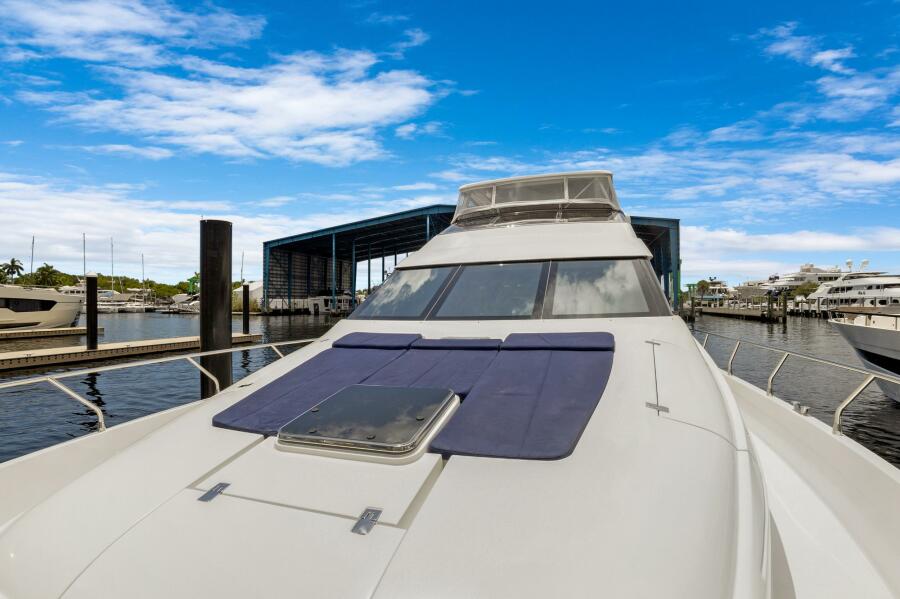

HULL & DECK FEATURES·        Low Profile Bridge Hardtop·        Windlass: Capstan VC500 24V (2)·        Hard panel side enclosure·        Exterior Upgrade Pkg high gloss finish·        Anchor plate - Polished stainless steel, with stainless steel clad recessed anchor channel & nylon rollers·        Marquipt 5 Step Gangway·        Beverage holder recess·        Bow rail - Stainless steel·        Bulwark - Fiberglass·        Drain grates (2) - Polished stainless steel, with insignia·        Engine Room Air Vents - Concealed in superstructure·        Gutters (2) - Port & starboard, direct water from canted walk surface to grated trap, then overboard·        Anchor Hawse Pipes (2) - Polished stainless steel, port & starboard·        Lights (6) - 18W Xenon, mini spotlights, illuminated cabin & bridge sides·        Lights - Accent, courtesy, recessed·        Lights (6) - Overhead, recessed·        Locker - Contains windlass & bollard-style anchor cleat, polished stainless steel·        Lockers (2) - Fender & line, polished stainless steel·        Mooring Cleats (2) - Bollard-style, stainless steel·        Pilothouse doors x 2, exterior & interior·        Rub Rail Molding - High-impact, heavy-duty, stainless-steel·        Spring cleats (4) - Bollard-style, stainless steel·        Sun pad forward deck- Double·        Windshield weather cover - Black meshSPORT DECK / SWIM DECK·        Hydraulic swim platform with control·        Flush mounted chocks for tender on swim platform·        4 x Underwater blue lights·        Teak decking·        Fresh water washdown ·        Cockpit Stairways (2) - Integral to deck·        Mooring Cleats (2) - Bollard-style, stainless steel·        Grab Stair Rails (2) - Stainless steelAFT MAIN DECK·        Custom High Gloss Teak Table·        JL Audio Speakers·        Teak Decking·        Lounge – accommodates 6 adults, across transom, with cover·        Mooring Cleats (2) - Bollard-style, stainless steel·        Windlass: Capstan VC500 24V Maxwell 4000VWC ·        Side deck access door·        Bridge Stairway w/stainless steel handrails, 3 recessed courtesy lights·        Emergency fire suppression system controls - starboard quarter locker·        Engine room hatch - Guttered, watertight, polished stainless steel hardware·        Fairleads (2) - Polished stainless steel, port & starboard·        Lights (9) - Overhead, recessed, with exterior-mounted switch·        Aft Lockers (2) – Port & stbd, fresh raw water washdown in each·        Overhead sun/weather protection – with mirrored inset·        Transom Gates (2) - Stainless steel, Marquis monogrammed, with magnetic catches, at the top of the cockpit stairwaysSALON·        46” Samsung LED TV·        Sony Network Blue Ray Player·        Sofa - Ultra-leather upholstery turns into sleeper sofa·        Sony Receiver·        Apple docking station·        Cherry wood high gloss interior·        Coffee Table·        Entertainment Group – 46” LED TV w/electric lift, enclosed in cabinet, Sony Blu Ray, Stereo w/Surround Sound·        Entrance Door - Stainless steel frame, fully vertical, convex, sliding, handle latch, keyed deadbolt, secures open, neutral density glass with mirrored exterior, interior sliding screen·        Carpet - Patterned cut & loop saxony·        Chairs (4) - 2 recliners and 2 ultra-leather swivel·        Cabinets (5) - Sapele wood inlay top, high gloss finish, with cherry wood sea rail·        Window Treatment - Roman shades with recessed headrails·        Sliding Door Curtain Décor matched, slides horizontally in top & bottom tracks,·        Designer Décor Consisting of premium wall coverings & fabrics·        Hardware Highlights – Stainless steel, polished & brushed light sconce, brushed nickel cover·        Soffits (2) - Cherry wood, port & starboard outboard·        Overhead architectural feature - Stylized cherry wood inlay·        AC & DC Distribution panels·        Lights (6) - In soffit, recessed, with electronic dimmer control·        Lights (10) - Overhead, recessed, with electronic dimmer control·        Electrical outletsGALLEY & GALLEY BAR AREA·        Serving Bar w/wine cooler & two Sub-Zero refrigerators·        Serving bar has a glass bowl sink on the forward end of the countertop·        Serving bar custom storage above with glass doors·        Bridge stairway - Circular, polished stainless steel post & step supports, etched glass steps·        Carpet - Patterned cut & loop saxony, new 2025·        China Cabinets (2) - Sapele wood inlay top, high gloss jewel finish, double doors on each, 2 shelves inside with sea rail·        Flatware Storage - 3 drawers inside cabinet, built-in flatware holders·        Window treatment - Roman shade·        Bullnose granite countertop in the galley·        Custom cabinetry·        Galley Flooring - Black Granite·        Microwave/convection oven/broiler - Sharp, built-in, brushed stainless steel finish·        Oven/Range - Electric, 3-burner, Ceran top, with brushed stainless steel backsplash·        Range hood - Brushed stainless steel, with 2 lights, exhaust fan, outside vent·        Refrigerator/Freezer - Jenn-Air, full-size french door, bottom freezer, brushed stainless steel finish·        Dishwasher·        Designer Décor Consisting of premium wall coverings & fabrics·        Polished stainless steel hardware·        Lights (4) - Overhead, recessed·        Lights (5) - Recessed in bottom of overhead cabinets·        Rocker light switches·        Galley Sink - Two basin, stainless steel, under mounted·        Storage cabinets (9)·        Storage drawers (8)MASTER STATEROOM & HEAD·        Full Beam Layout w/King bed, Beam to Beam·        King Bed & Upgraded Mattress·        Upgraded wood doors·        Master berth 32’ flat screen TV installed·        Stereo with surround sound·        Cabinets to Port·        Ultra-leather settee on starboard side·        Added cabinets in the Master on top of the outboard cabinets·        Dresser for Master with a curved front (face) Port & Starboard·        Swing out reading lights on the Master headboard w/small shelves for remotes·        Shelf behind the Master headboard·        Medallion light in Master over the center of the bed·        Dresser - High gloss jewel finish, sapele wood inlay top with cherry wood sea rail, 4 drawers, cherry wood herringbone pattern drawer faces·        Bulkhead architectural feature - curved upholstered horizontal panels, high gloss jewel finish recessed curved cherry wood backdrop, accent lighting behind each panel·        Carpet - Patterned cut & loop saxony·        Designer Décor Consisting of premium wall coverings & fabrics·        Electrical outlets·        Entrance Door - Solid cherry wood, herringbone pattern, secures open & closed, stainless steel hardware·        Lights (3) - Over entry dais, recessed·        Lights (10) - In overhead architectural feature·        Lights (3) - In soffit over berth head, recessed·        Lights (3) - In starboard soffit, recessed·        Lights (3) - Over bulkhead architectural feature, recessed·        Lights (4) - Sconce, brushed nickel cover·        Mirror - Beveled edges, above entry dais cabinet·        Sheet set embroidered with Marqui logo - fitted sheet, flat sheet, two pillow cases·        Soffit - Cherry wood grille, around stateroom perimeter·        Windows (2) w/ screens·        Window Treatments - Roman shades·        Walk-In Closet with Washer & DryerMASTER HEAD·        His & Hers Heads with shower/tub in between·        Head Flooring - Marble·        Head Exhaust fan for both sides·        Hardware Highlights – Stainless steel, polished & brushed·        Hull Portlight - Frosted privacy glass with screen·        Lights (2) - Overhead, recessed·        Lights (7) - Over & next to vanity mirror, recessed·        Medicine Cabinet - 4 shelves with sea rails·        Mirror - On bulkhead & ceiling over vanity·        Rocker light switches·        Soffit - High gloss jewel finish, cherry wood grille·        Toilet - Tecma Silence, full-size, electric pump flush·        Toilet Paper Holder - Wall-mounted·        Towel bars (2)·        Vanity - Marble countertop & backsplash, stainless steel grab rail across front, his & hers under mounted solid surface molded sinks, 2 cabinets beneath with sea rails·        Wall Covering - Silk/cotton blend·        Tub/Shower Compartment between His & Her Heads·        Light - Overhead, recessed·        Shelves (3) - Fiberglass, with stainless steel sea rails·        Shower Door - Clear glass in gasketed polished aluminum frame, electrically-activated fogging feature for privacy·        Soap dish·        Towel bar·        Tub - Full-size, fiberglassVIP Forward STATEROOM & HEAD·        Upgraded wood doors & Carpeted·        Cherry wood high gloss finish interior·        Berth - Queen-size, pillow-top inner-spring mattress, island, with Ultra leather upholstered bolsters around berth·        Window Treatments - Roman shades·        Mirrored headboard - beveled edges·        Berth nightstands (2) - high gloss jewel finish, sapele wood inlay top with cherry wood sea rail,·        (3) cabinets beneath·        (2) – Carpeted·        20" TV/DVD·        Rocker light switches·        Hull Portlights (2) - Fixed, non-opening·        Lights (6) - Overhead, recessed·        Lights (2) – Sconces·        Storage cabinets (6)·        Storage Drawer - Extra-large·        Surround Shelves - High gloss jewel finish, sapele wood inlay top with ultra-leather upholstered bolster sea rail·        Wardrobe Lockers (2) - Full-height, cedar-lined, carpeted, automatic light, mirrored doors·        Upgraded wood doors·        Head Exhaust fan·        Head Flooring - Marble·        Head Hardware Highlights –stainless steel, polished & brushed·        Toilet - Tecma Silence·        Towel bars (2)·        Towel ring·        Vanity - Marble countertop & backsplash, stainless steel grab rail across front, undermounted solid surface molded sink, cabinet beneath with sea rail(VIP Shower Stall)·        Corner Bench seat·        Hull Portlight - Frosted privacy glass·        Light - Overhead, recessed·        Nonskid sole·        Shower Head - Detachable for use as hand shower·        Towel barGUEST STATEROOM -Port Side·        Upgraded wood doors·        Desk in place of the outboard bunk·        Pullman bunk over the inboard bunk·        Additional Cabinets for Storage·        Window Treatment - Roman shade·        Designer décor·        15" TV·        Hanging Locker - Full-height, cedar-lined, automatic light·        Hull Portlight·        Lights 4 recessed over head·        Light – Sconce x 2·        Private door for guest head access·        Storage – Beneath bottom berth mattressGUEST DAY HEAD·        Upgraded 2 x wood doors·        Shared with Guest Stateroom·        Cabinet - High gloss jewel finish, 3 shelves·        Exhaust fan·        Flooring – Marble·        Lights (2) - Overhead, recessed·        Lights (2) - Over vanity, recessed·        Medicine Cabinet·        Mirrored Bulkhead - Over vanity·        Rocker light switch·        Toilet - Tecma Silence·        Towel bar & ring·        Towel Set - Bath towel, hand towel, washcloth·        Vanity - Marble countertop & backsplash, stainless steel grab rail across front, undermounted solid surface molded sink, cabinet beneath with sea rail(Shower Stall)·        Bench seat·        Hull Portlight - Frosted privacy glass w/screen·        Light - Overhead, recessed·        Nonskid sole·        Shower Head - Detachable for use as hand showerFLYBRIDGE & BRIDGE Aft DECK·         Bridge Hardtop over enclosed air conditioned flybridge ·        Bridge A/C own control unit·        Full side enclosure – with 15 zipped plexiglass removable sections·        Pedestal Seating - (3) NEW helm Stidd chairs·        Custom High Gloss table bases on Bridge table·        Exterior overhead lights, landscape lights, courtesy lights & rope lighting·        Teak decks on the Bridge - Forward and aft area·        JL Audio speakers·        Helm control station·        Entrance Doors are stainless steel frame with tinted tempered glass, interior & exterior grab handles & latch handles·        Bar - Curved, translucent solid surface countertop with under lighting, stainless steel foot rail, cabinet beneath with bottle holders·        Wood inlay bridge table·        Built-In Grill /Ice maker/wet bar·        Bridge Stereo Blue Tooth Fusion·        Bridge Monitor System·        Aft Bridge sun pad w/Rail·        Beverage Holders (8) – stainless steel, self-draining·        Lights (2) - Courtesy, recessed·        Lights (5) - Courtesy, recessed, with exterior-mounted switch·        Lights - In electronics arch, recessed, with exterior-mounted switch·        Lights - Accent, courtesy, recessed under bar·        Safety Rail - Stainless steel·        Teak deck self-draining walk surfaceHELM & ELECTRONICS·         Garmin Electronics added in 2014·        Garmin Radar XHD 6k·         Garmin x 2 , model 8020 touchscreen chart plotter·        Garmin AIS integrated with chart plotter·        Garmin Depth Sounder integrated with chart plotter·        Raymarine Wireless Auto-·        Bow & Stern Thrusters ·        Raymarine Ray240 VHF Handset Only·        A/C Vents·        Sony Bluetooth Module for Fusion Stereo·        Emergency Controls - Shift & throttle·        Gauges - Analog; rudder angle, fuel level (1 for each tank)ENGINE & MECHANICAL EQUIPMENT·        Engines: CAT C-18 – 1000hp / Hours: 750 at 2300 RPM·        Last Engine Service Performed - 12/2014·        Generator: 28 Kohler – Hours: 4560·        Last Generator Service Performed - 12/2014·        Marquis Docking System includes 13 hp, 9.8” (25 cm) diameter Side Power bow & stern thrusters·        Matrix Emerald Series Water Maker 500-gal day·        Main AC & DC distribution panels·        Catwalk - Polished diamond plate, over lay with outdoor carpet·        Cockpit Hatch Access Ladder - Stainless steel, nonskid steps·        Entrances – hatch and aft water tight sea door/hatch·        Insulation – Sound-Down·        Lights x 5 - Overhead, fluorescent·        Air Conditioning Chillers -Cruise air dual system -total 80,000 BTU·        In line shore power breakers before Main A/C D/C panel·        Exhaust Mufflers – Engines & generator·        Fresh Water Cooling –main engines, generator, air conditioning·        Fuel Tanks (2) - 600 gallons·        Propellers – alloy NiBral 38’, 5 blade·        Propeller Shafts - Aquamet·        Rudders & struts·        Seawater strainers-mains, generator, air con., water maker·        Ship’s systems control panel ( main panel and inverter d/c panel)·        Shaft Seals – Tides Sure Seal self-aligning Nitrile lip seal, maintenance free·        Trim Tabs - Stainless steel

The Company offers the details of this vessel in good faith but cannot guarantee or warrantee the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated.
