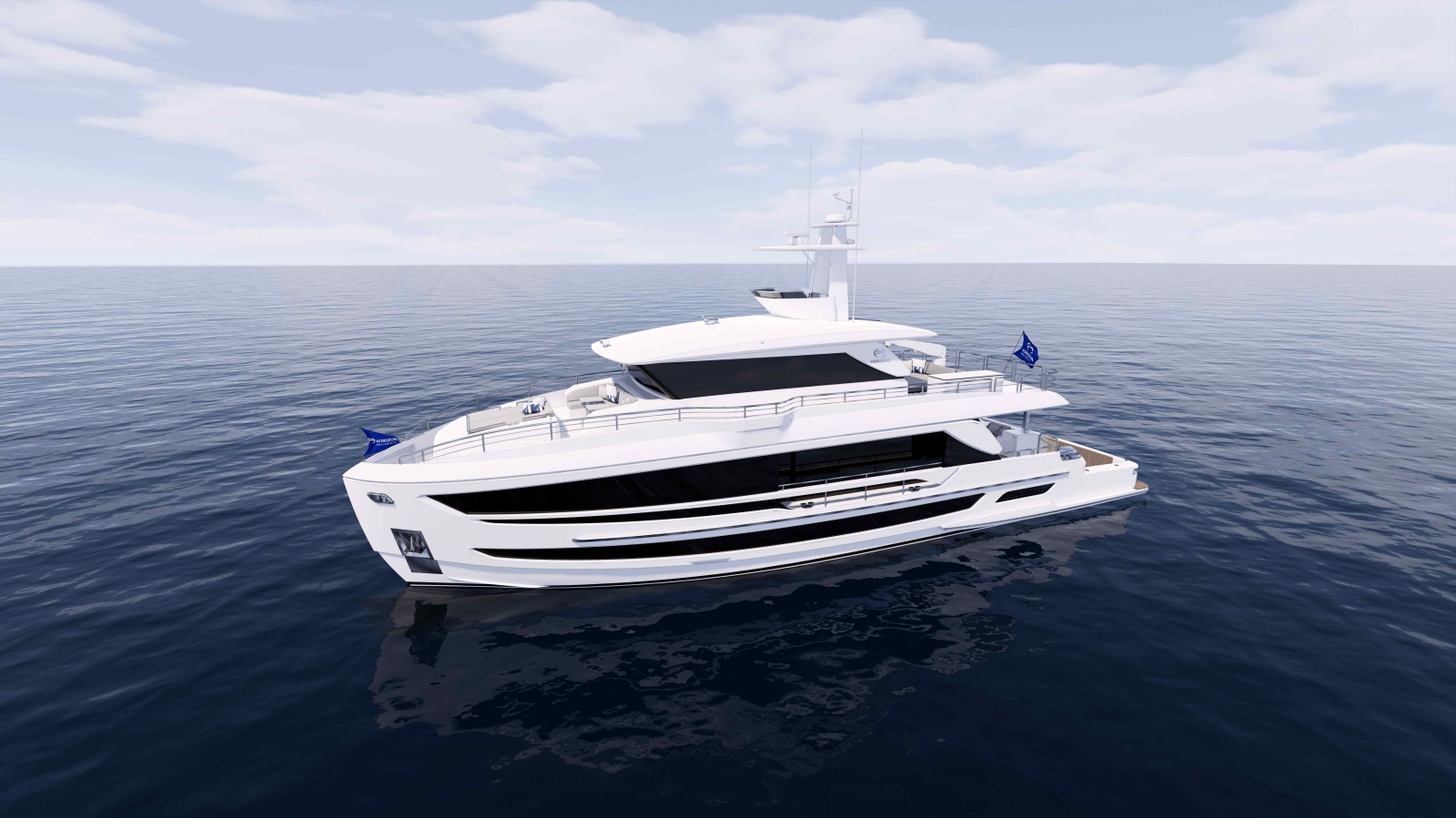

2027 Horizon FD85s

Cockpit + fold-down swim platformCrow's nest w/ compact helm stationFour staterooms, incl. a full-beam on-deck master suiteEnclosed Skylounge w/ main pilot consoleBoat deck loose L-shape sofa set & coffee table w/ Hi-Lo propane BBQHigh-performance S-class 5-blade propellersSide Power SPS93/VF1650 stabilizersSide Power SH550 bow & stern thrustersSteelhead davit ES2500 (1130 kg/2,500 lb)Spot Zero fully automatic watermakersMaretron monitoring system

White gel coat finishOne-piece hull and superstructure utilizing SCRIMP™ technology with Horizons patented 6D infusion, incl. longitudinal and transverse stringersHull, deck & superstructure built with licensed process SCRIMP™ for improved strength and less weightHybrid design hull bottom with sandwich construction and solid fiberglassHigh-density Divinycell or equivalent foam-cored hull sides, decks & superstructureStringers with high-density foam coringInterior structural components all properly bonded to hullStrong collision bulkhead for extra safetyInternational brand anti-fouling bottom paint w/anti-osmosis treatmentPropSpeed/PropGold metal paint for underwater appendagesTunnels for reduced draftHigh-Performance Piercing Bow (HPPB) with S/S protection platesUpper deck with bump-out design at PORT and STBD. side

Teak aft Deck(2) ACCO 300 ft high-tensile 1/2” anchor chains (2) 90kg S/S anchors(2) Maxwell VWC 3500 windlassMaxwell VC2500 electrical rope capstan on bow deck(2) Maxwell VC2500 electrical rope capstans on aft deckFrameless windows, slightly tinted tempered laminated Low-E glass for windshieldFrameless windows, tinted tempered laminated glass for side windowsForedeck accessed from stbd. staircase/ walk around on main deckForedeck built-in U-shaped seating w/ sliding tablesForedeck sunpad cushion with cup holders and pop-up lights (x2)Sunshades for bow seating, per layoutManual freshwater & seawater anchor chain washdown system(2) Chain counters in pilothouse(2) Aft deck bulwark side doors for boardingWind door on each side of aft deck to its side walkway.MarQuipt 7-step side boarding sea stair43" electrical flip down TV to aft deck

Non-skid deckHelm benchRadar arch w/ antenna bracketAutomatic carbon ladder with sliding hatch Compact helm station (S/S steering wheel, carbon fiber dashboard panel, engine controls, engine  start/stop, engine displays, a MFD 9213 13" display, autopilot, a repeater (Marin Instrument), VHF handsets, control of bow and stern thrusters, magnetic compass, an air horn button, cup holder)

Teak Cockpit and swim platformStorages under floorTwo transom doors on the aft coamingConvertible transom fold-down swim platform(8) Rotating fishing rod holders & (2) Hubbell outletsEskimo fishbox ice system & light-up bait tank

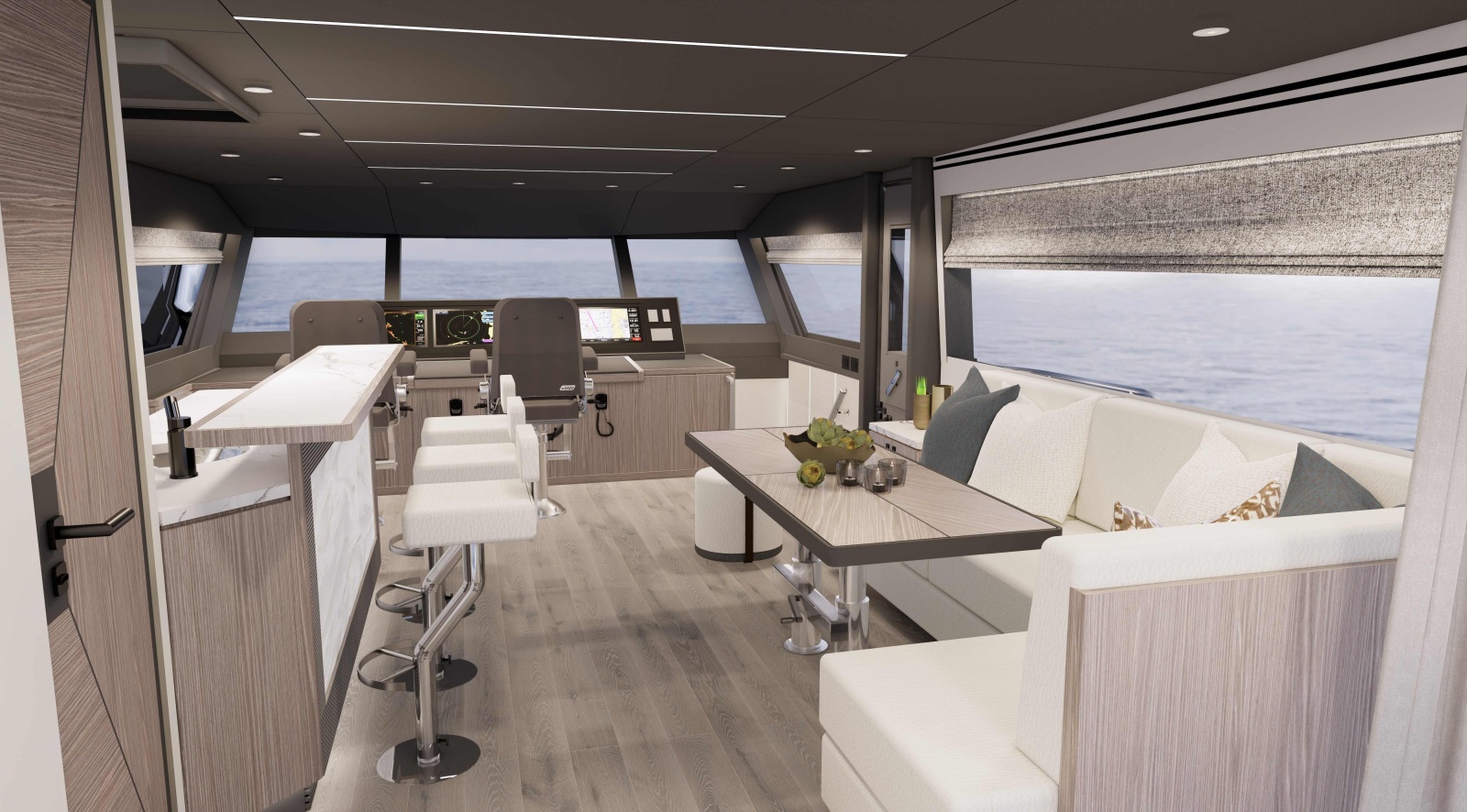

Enclosed skylounge with forward helm station, incl. (2) helm chairs, aft L-shaped settee, and day head, 43” electrical fold-up TV, and custom two-level bar with 3 bar stools, sink, refrigerator, and ice makerCustom-designed helm w/ full set of engine gauges, monitoring system for important equipment, fuel & water gauges, Riviera ASTRA magnetic compass, surveillance camera system, bilge pump panel & navigational lightsHydraulic Steelhead davit ES2500 (1130 kg/2,500 lb)Upper deck w/ L-shaped seating, wet bar w/ sink, chest freezer, 24” Hi-Lo propane BBQ, and storage

Twin CAT C32A 1,600hp enginesSide Power SPS93/VF1650 stabilizersSide Power SH550 bow thruster + SH550 stern thrusterZipwake interceptor systemEngine load distributed through flexible mountings on S/S engine bed bonded to FRP hull girderEngine alarm system as per engine standardHigh-performance S-class 5 blade propellersBronze struts w/ backing platesShaft and Rudder packing glands w/ Tides Marine dripless seals or equivalentTethered remote handheld controller (w/ throttles, gears & thrusters) with plug on cockpit & pilothouseHydrive marine power steering systemUnderwater exhaust system for engines w/ bypass mufflersEngine room with lightweight floorHeavy-duty Insulated engine room doorS/S overhead grab rail on each side of engineAnti-noise treatment to exhaust systemDelta-T engine room demistersAir compressor

GFI protection for all AC outlets in exterior, heads, galleyand engine roomElectrolysis bonding systemCathodic protection with zinc anodes for shafts, struts, etc.LED lighting system throughout interior & exterior(6) Underwater lights(2) Kohler Generators 40kW (60Hz) with sound shieldMaretron monitoring and control systemShore power connection with (2) 100A boost polarization transformers & (2) 100A Cable masters & (2) 100A shore power plugs and bow inlets(2) LED search lightsPre-wired for LED boat name on stern & PORT & STBD skylounge sidesPre-wired for wireless yacht controller

2700 US gal fuel tanks w/ sight & electrical gauges(2) Racor 500 MA fuel filters, one on each generator(2) Electric fuel transfer pumpsFuel polishing system (210GPH)400 US gal FRP water tank(2) 20 US gal water heatersHigh-volume AC freshwater pressure pump & backup DC pumpSpot Zero SeaXchange XTC II 1200 water maker & ZTC II 2000 water purifierCharcoal filters are plumbed into the freshwater line: shore water inlet and galleyHot water circulation pumpMarine Air VARCX chilled water conditioning systemELECTRO SEA ElectroStrainer ProTecma toilet system100 US gal holding tank & deck fitting for dockside pump-outSump pump system for grey waterElectric level indicators for holding tankHeadhunter sanitary treatment systemElectric bilge pumpHigh water level bilge alarmBilge exhaust ventilation fansFire insulation in engine roomFire-resistant treatment for pipe penetrationsAutomatic fire damper system(4) Portable fire extinguishersIntegrated fire alarm system in pilothouse, with CO and smoke detector in each cabin

INTERIOR DECOR & EQUIPMENTGuest accommodation includes on-deck master stateroom, fwd. VIP stateroom, port &  Stbd. VIP staterooms, all ensuiteCrew area incl. a captain's cabin and a crew cabin, head & shower, access from stbd. salonLaundry room w/ washer/dryer, ironing board, sink and storageCustomized interior package for interior décor & lightingFull set of Wedgwood (GIO) galley tableware for 10, including dish holder, pot/pans, dishes, plates, knives, forks, glasses, etc.Stacked washer/dryer in crew quartersExtra set of bed sheets for all guest cabins, including crews

S/S manual sliding entrance door w/self-lockingDayhead with two access doorsL-shaped sofa & armchair w/ a coffee tableCustom area rugPort side buffet cabinet behind sofaConvertible folding dining table & chairs, per layoutBreakfast bar designElectric sheer shadings55" TV, fold-down from ceiling

Enclosed galley w/ Hi-Lo blindProfessional galley + extensive storage per layoutFull-height Sub-Zero freezer + full-height Sub-Zero refrigeratorMiele cooktop, oven, dishwasher & Bosch over-the -range microwaveSub-Zero wine cooler(1) Opening porthole

King bed w/ storage drawers, nightstands, and safeElectric Roman shadesEnsuite head w/double sinks, rain shower & toiletChest drawers on both sides(1) Opening porthole55" TVEscape hatch in Master with ladder

FWD. VIP STATEROOMA double sliding bed w/ drawers underneath, hanging lockers, storageEnsuite head w/ sink, rain shower & toilet32" TV MIRROR STATEROOMSQueen bed w/ nightstandsEnsuite head w/ sink, rain shower & toilet43" TV

(1) Stbd. bunk crew cabin with upper and lower bedsPort Captain Cabin with a double bedShared head w/ sink, shower & toiletMiele washer/dryer

Pre-wired SAT TV & SAT phoneStarlink maritime flat high performance satellite internet kit4G/5G Cellular router system with WiFi on boardSonos stereo system w/Control 4 to integrate the AV remotes for fore deck, skylounge, aft deck, main deck incl. salon and master stateroom

Full Garmin navigational system includes:(1) Garmin GMR™ 1236 xHD3 Open Array Radar(1) Garmin Fantom 24x Dome Radar(1) Garmin GSD™ 25 Premium Sonar Fish Finder Module(4) Garmin GPSMAP 9222 22" multifunction displaysGarmin GPSGarmin Autopilot systemGarmin Wind / Speed / Temp transducerGarmin VHF with built-in loudhailerGarmin AIS
