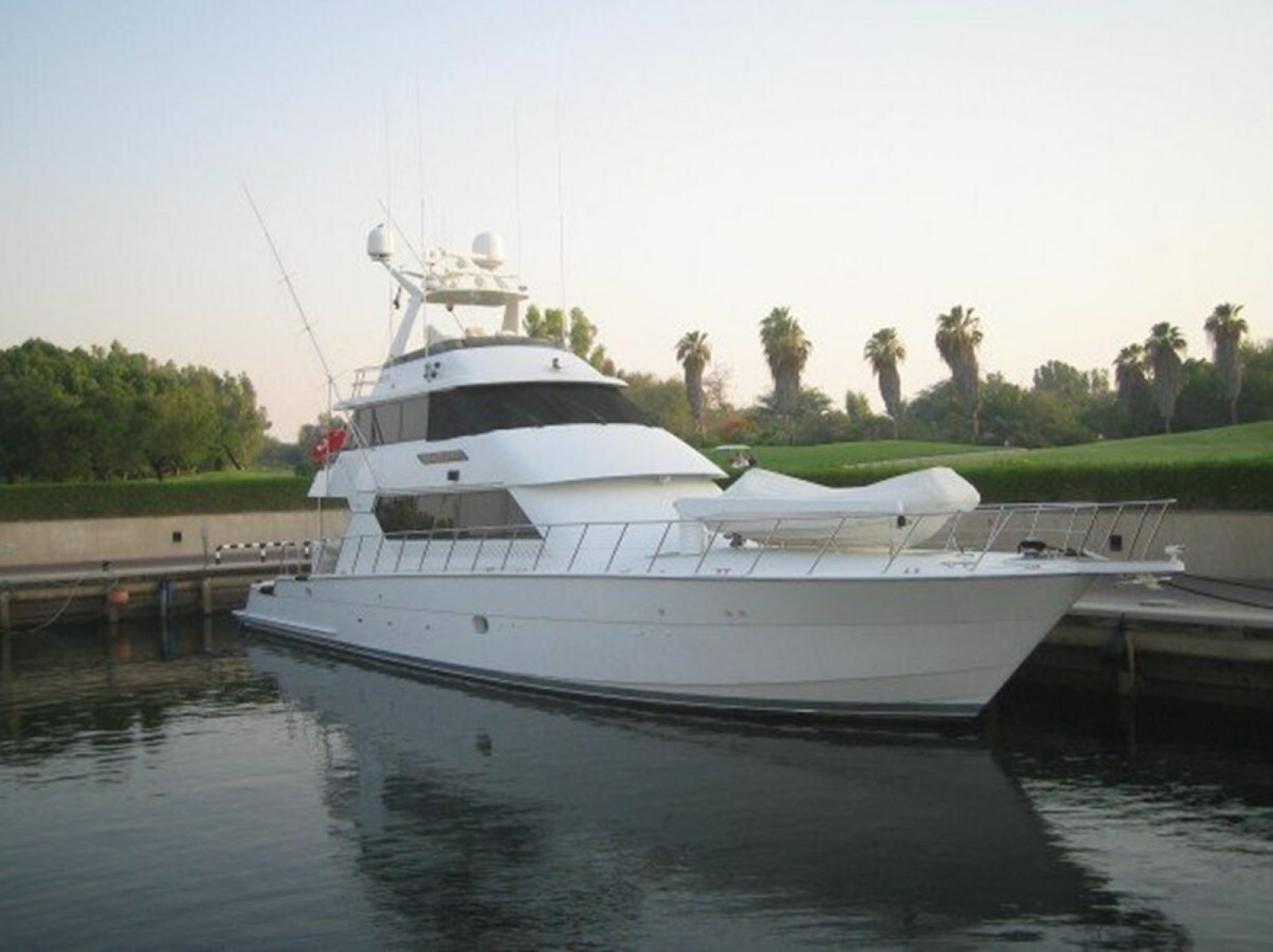

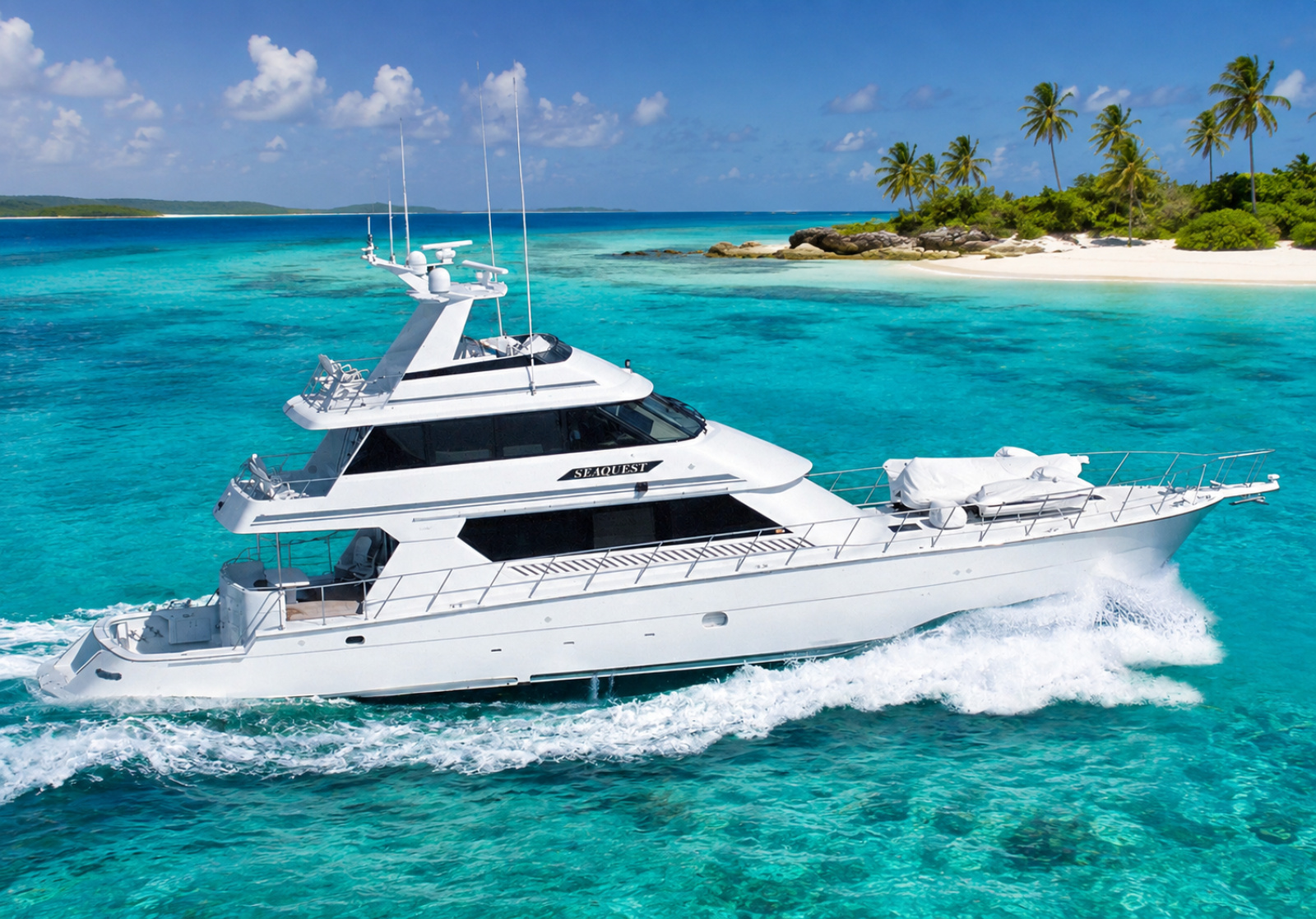

1996 Hatteras

Fiberglass hull and superstructure, teak decks on Bridge deck Aft Deck and Flybridge

GeneralLength Overall (L.O.A.): 92.00 feet (28.04 meters)Beam (molded): 22.00 feet ( 6.71 meters)Draft (loaded): 6.05 feet ( 1.98 meters)Tonnage: 130.00 Gross tonnage                                                                        CapacitiesFuel Capacity: 4,963 US Gallons (18,786.99 liters)Water Capacity: 840 US Gallons (3,179.75 liters)Watermakers: 1,500 US Gallons per day (5,678,12 liters)Lube Oil: 120 US Gallons (454.25 liters)Waste Oil: 120 US Gallons (454.25 liters)Holding Tank: 220 US Gallons (832.79 liters)RPM / Speed /Consumption per hour / Range              RPM              SPEED                       FUEL GPH per Engine           Range NM  700             10.0 knots                       23 US Gallons /hr.            1,800  800             12.0 knots                       38 US Gallons /hr.            1,300  900              13.0 knots                       51 US Gallons /hr.             1,1031,000             14.0 knots                       70 US Gallons /hr.                8751,100             15.0 knots                       92 US Gallons /hr.                7811,200             16.5 knots                     120 US Gallons /hr.               6081,300             19.0 knots                     146 US Gallons /hr.               5771,400             21.0 knots                      190 US Gallons /hr.               4821,860              28.0 knots                                  ----                                ----

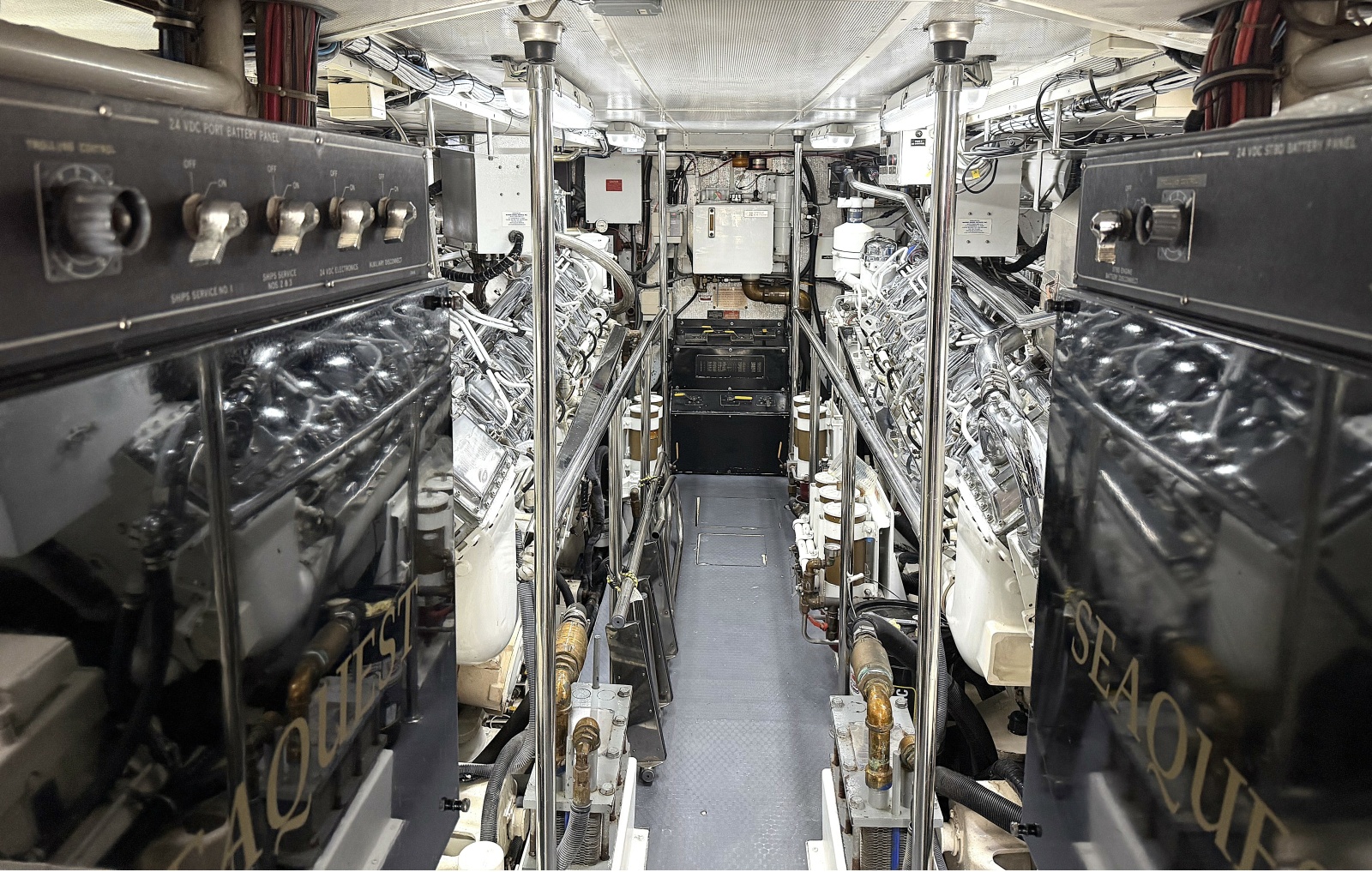

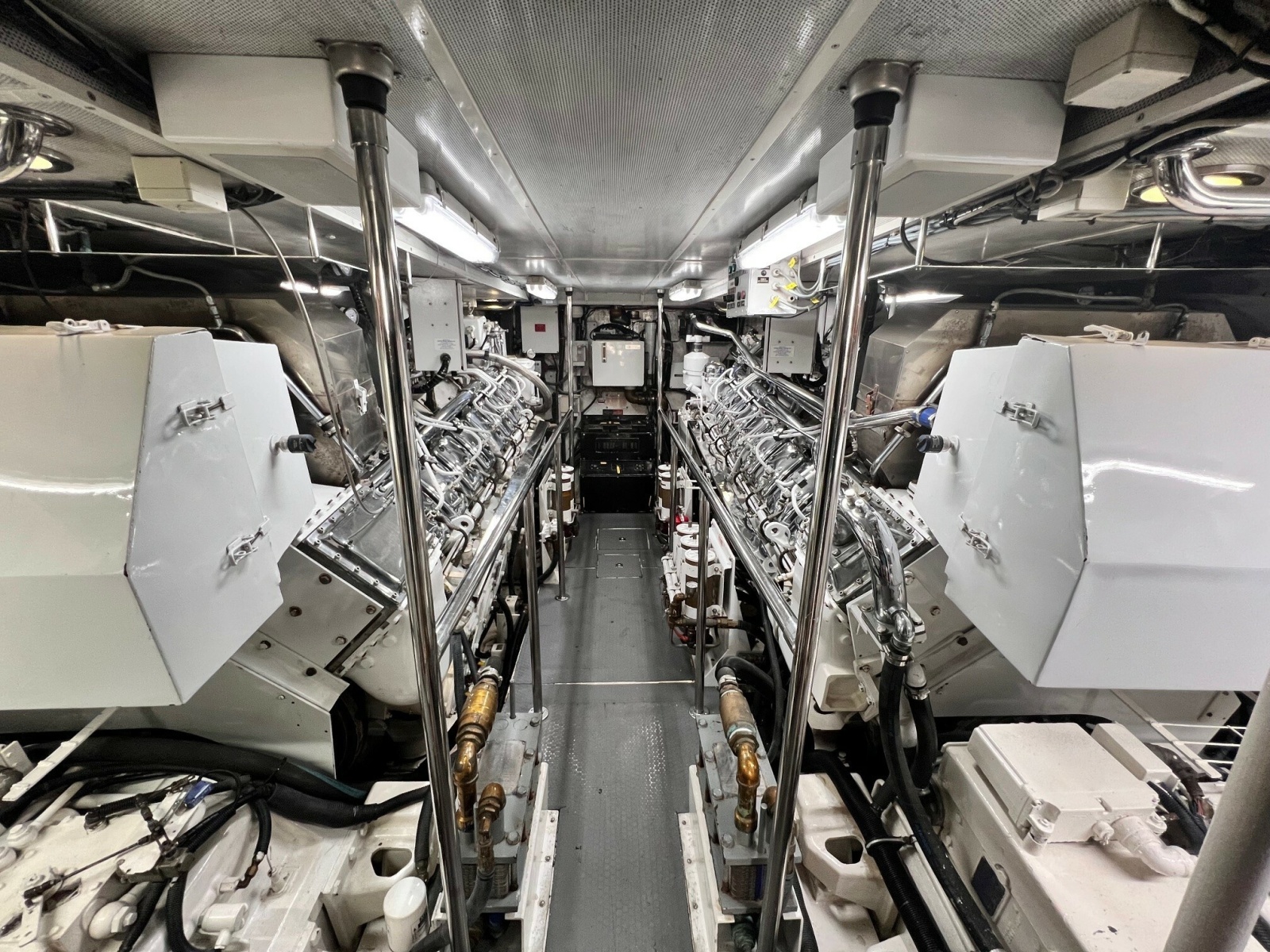

Main Engines:Engine Type: (2) Deutz TBD 620 V16 Diesel’s @ 2,700 Hp eachEngine Hours:                                         Port: 407 hrs. as of August 04, 2026, since rebuilt at 3,810 hrs.4,217 total hrs. as of August 04, 2026Engine rebuilt in 2012Starboard: 392 hrs. as of August 04, 2026, since rebuilt at 3,860 hrs.4,252 total hrs. as of August 04, 2026Engine rebuilt in 2012Gearboxes for Main Engines: ZF transmissions 3.2:1 reductionDrive: Straight Generators & ElectricityOutput:  240/110 A/C - 24 D/C - 60 Hz                                         Generators: (2) Kohler 32EOZD 32kW GeneratorsPort Generator Hours: 499 hrs. as of August 04, 2026New in 2012Starboard Generator Hours: 224 hrs. as of August 04, 2026New in 2012 – Bow Thruster PTOGenerator Fuel Consumption: Fuel burn range calculated at 4,500 gallons useable fuel and 2 GPH generator fuel consumptionShore Power: (2) Single phase 100-amp cords with cable masterBatteries: (4) 8D Batteries – 24 Volts - Each battery bank is located outboard of the main engines in fiberglass enclosuresAC Converters: ASEA Voltage/Frequency Converter – New 2023 Air ConditioningType:  “CTM” CW-60Hz Chilled Water A/C System(3) 60,000 BTU Compressors - New 2026New air handlers and controls Other MachineryWatermakers: 1,500 GPD watermaker (Need service)Stabilizers: Naiad 12 square feetBow Thruster: American HydraulicSteering System: HynauticFuel Separator & Filtration: Dual Racor 900 MA filtersHead System: HeadhunterFresh Water System: Charcoal canister on tanksBilge Water Filtration: YesMarine Exhaust: (1) Completely new exhaust by Design Engineered Solutions (D.E.S.) - $130,000 - 2023

Bridge Deck Helm – Navigation and Communication SystemsAll New 2026                                 VHF/AIS: (2) Icom IC M605 with built-in AISAIS: (1) Furuno FA-170 safety beacon transmitter(1) Scanstrut ROKK Wireless Edge (SC-CW-05E)Radar, Plotter, Depth Sounder, Autopilot Interface, Fish Finder:(3) 16” Garmin GPSMAP 8600 multifunction series with 72nm autopilot(4) 9” Garmin GPSMAP 8616xsv multi-screen, video & sonar capable – backup systemGPS: (1) Furuno commercial-grade GPS position sensor        Systems Monitor: (1) 18” Technics BVMagnetic Compass: (1) 8” Ritchie compassAuto Pilot: (1) Garmin GHC 50 – helm(1) Garmin GHC 50 – overheadSpotlight: (2) ACR RCL-100 LED Searchlight with controllers Flybridge – Navigation and Communication Systems All New 2026GPS, Plotter, Depth Sounder: (3) 16” Garmin GPSMAP 8600 multifunction series(2) Garmin GPSMAP 743 – back up systemStabilizer Controls: NaiadBow Thruster Control: YesOther:(1) Furuno MCU-004 remote control joystick for chart plotter radarGarmin GRID 20 interface w/ entire bridge navigation system – helm chair        VHF: (1) IconSpotlight Controls: ACRDisplays: Digital ACR displays Entertainment System:Video EquipmentTV’s:(1) 55” TV - Main Salon - New 2026(1) 50” TV - Galley - New 2026(1) 50” TV - Master Stateroom - New 2026(1) 32” TV - VIP Port Stateroom - New 2026Audio EquipmentStereo’s:  Aft deck speakers with controls

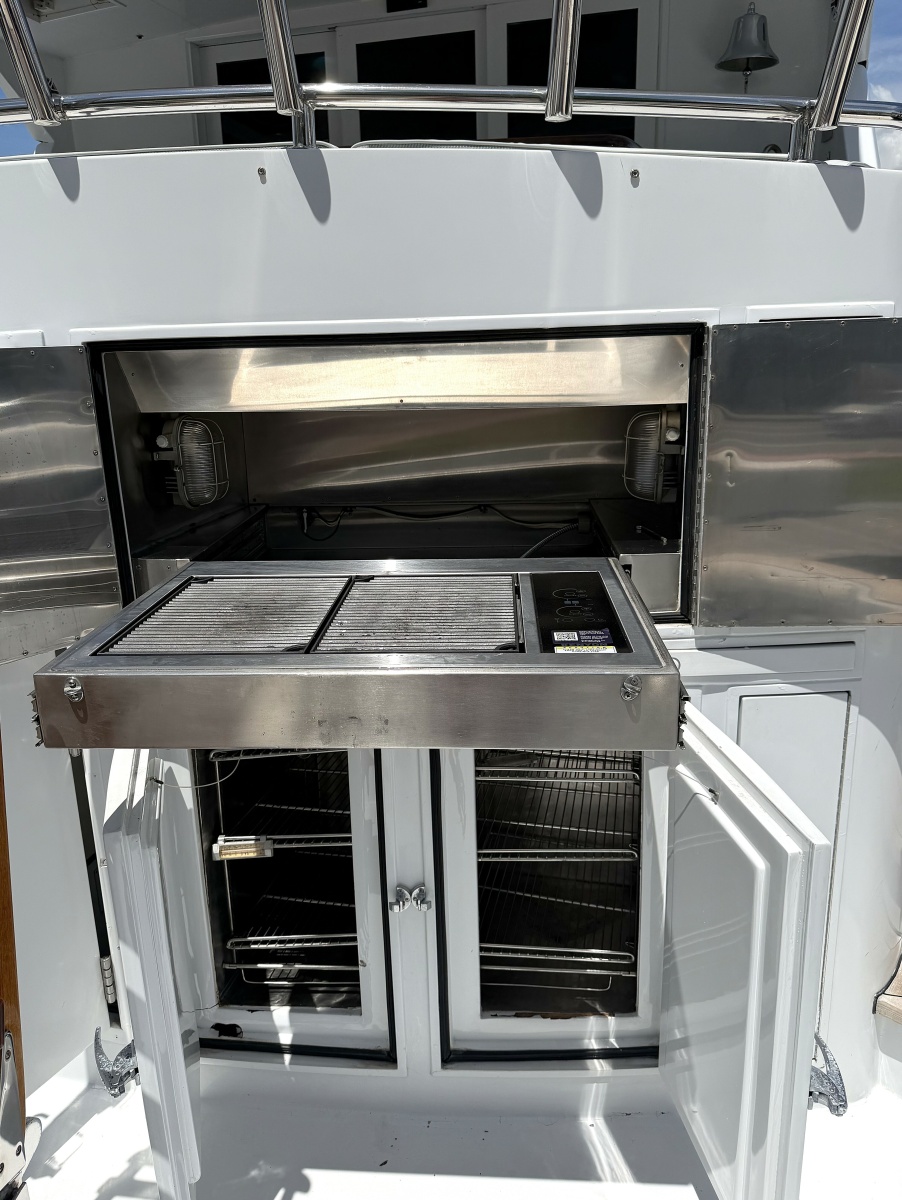

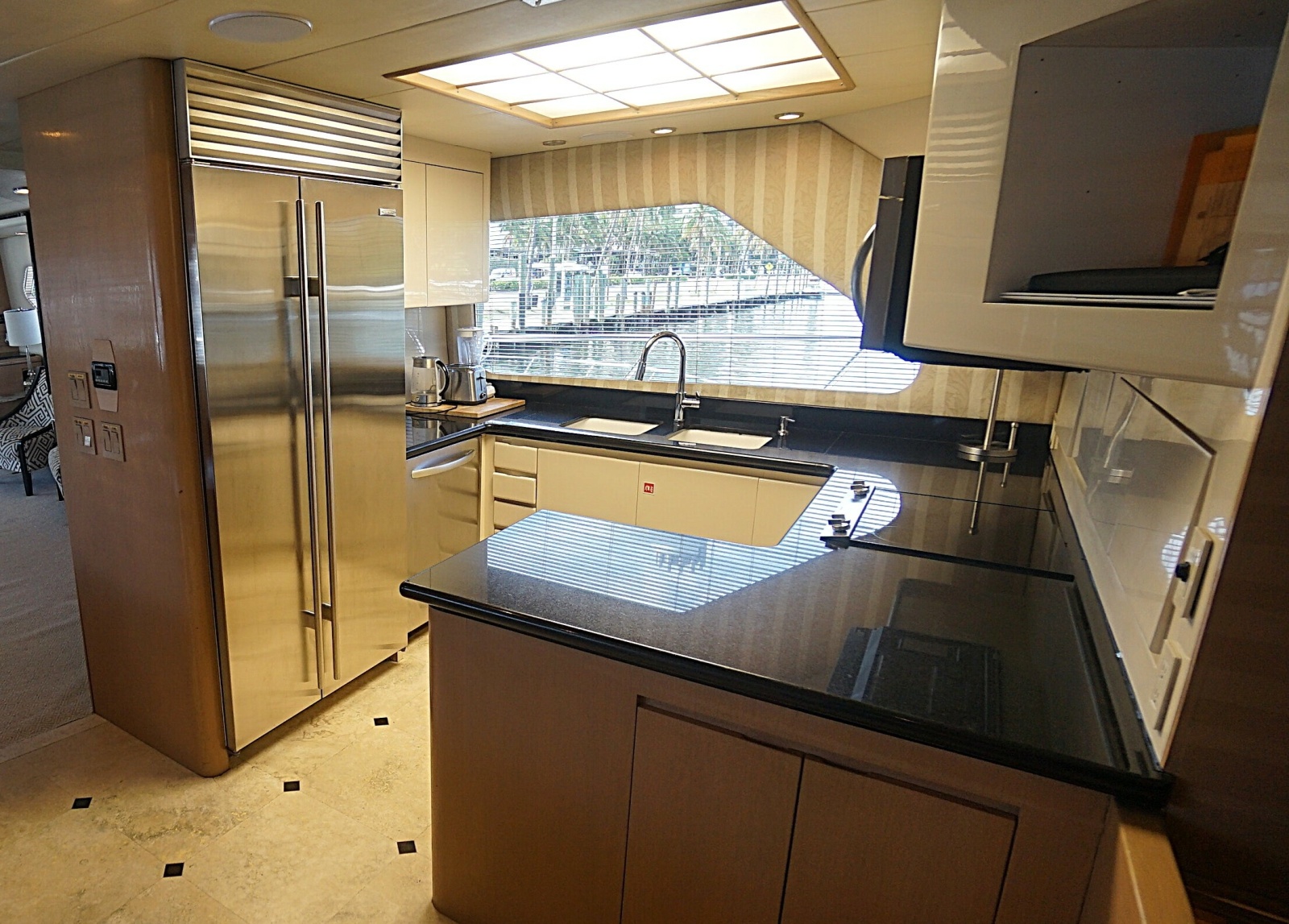

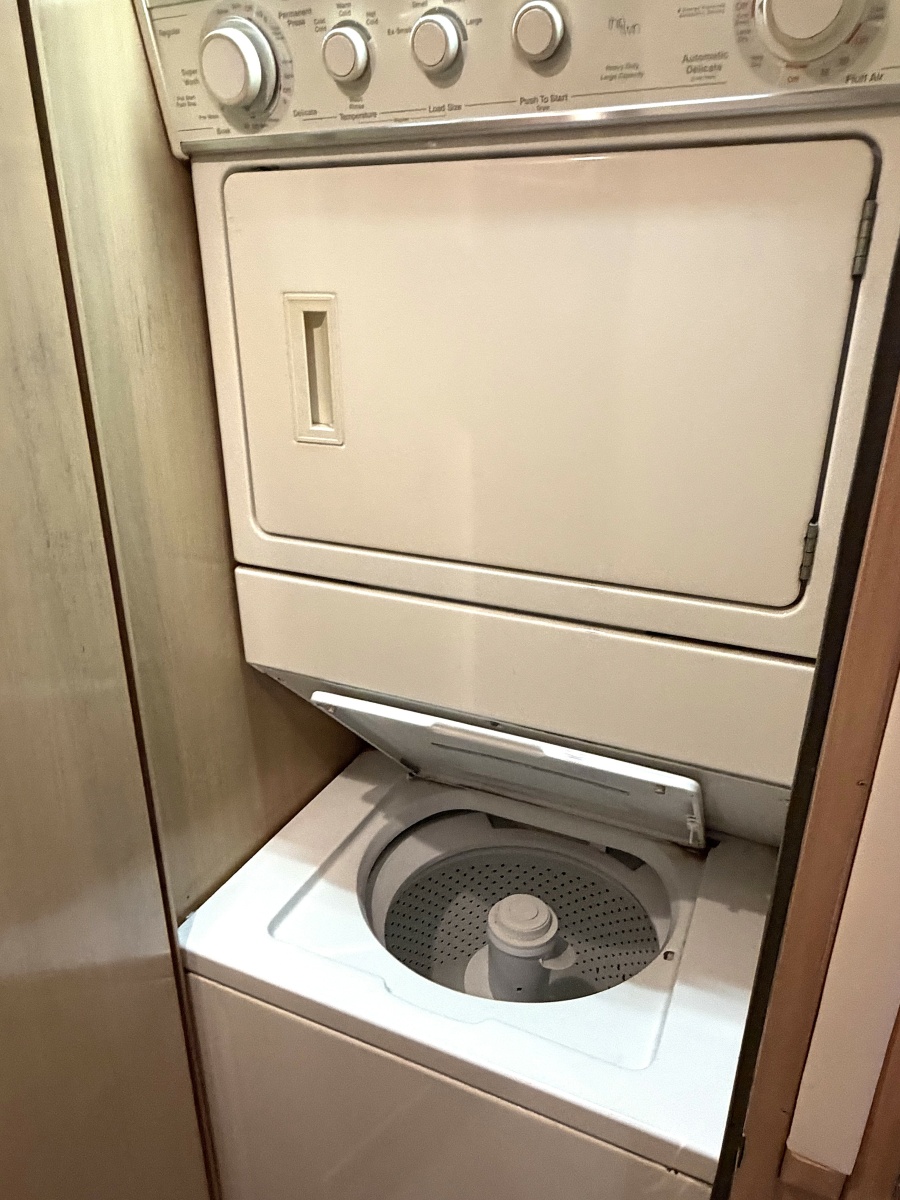

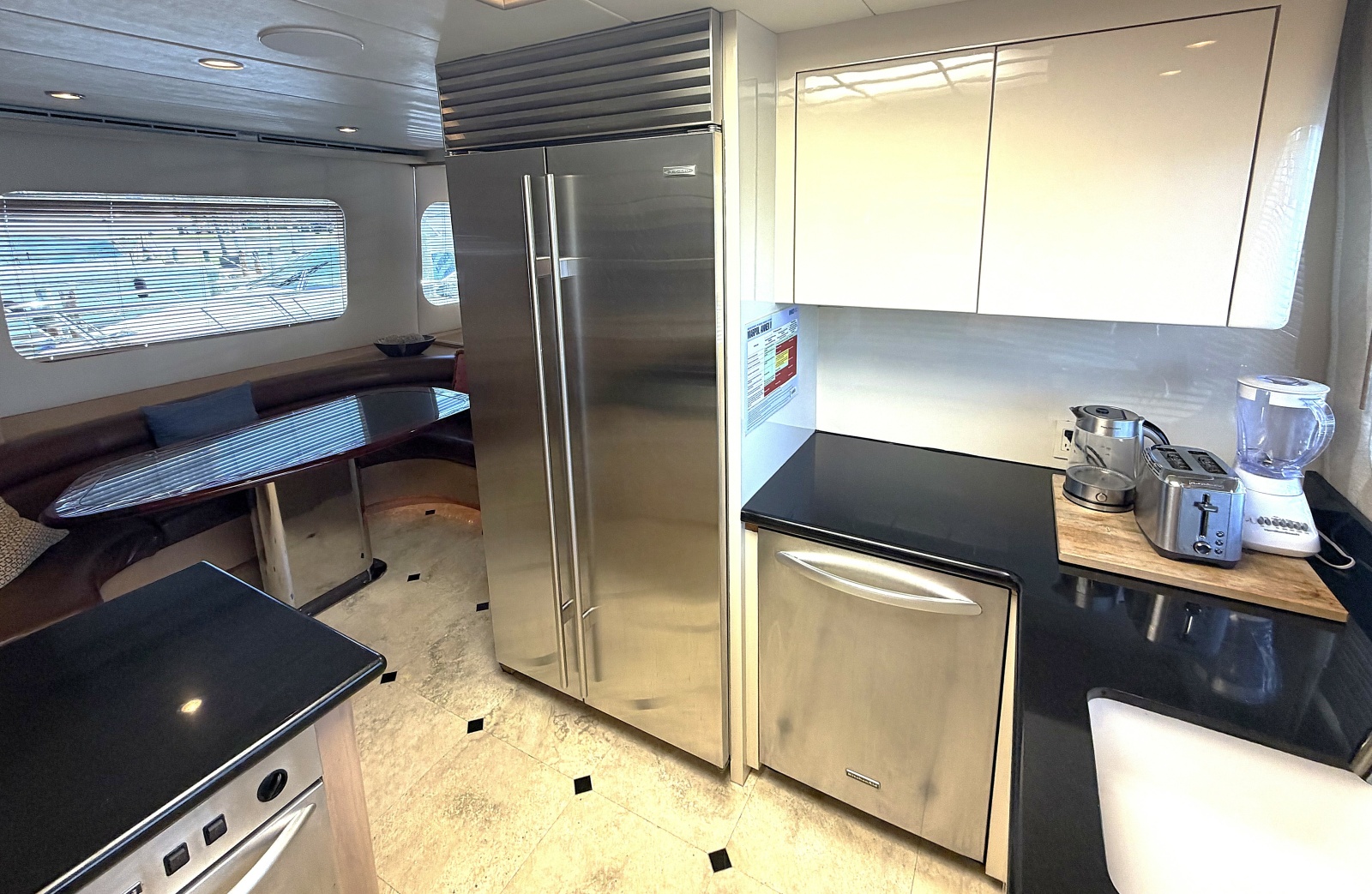

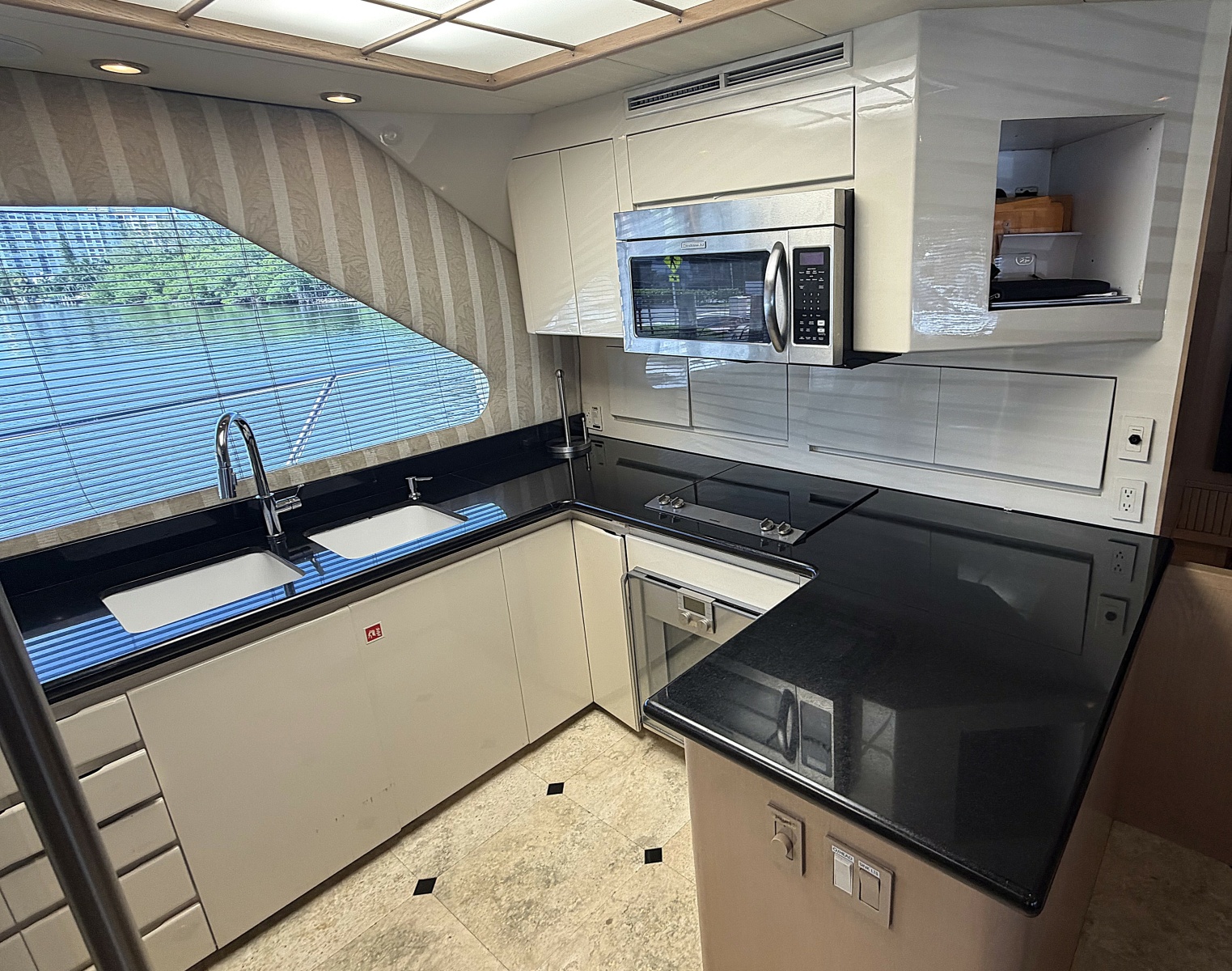

Main Galley Cooking Equipment                              (1) 24" Gaggenau BI SGL oven(1) 24" Gaggenau electric cooktop with 4 burners(1) Kitchen Aid microwave oven(1) Kitchen Aid 2.0CF microhood comboRefrigeration/Freezer:               (1) Sub-Zero refrigerator/freezer(1) 18" Kitchen Aid icemakerDishwasher: (1) 24" Kitchen Aid dishwasherOther:  (1) Double recessed sink(1) In-Sink-Aerator garbage disposal(1) Kitchen Aid trash compactor(1) Large pantry(1) Kitchen Aid icemaker – Salon5.2 Crew Galley/Mess EquipmentCooking Equipment: (1) Panasonic microwaveRefrigeration/Freezer: (1) Scotsman icemaker Additional Galley EquipmentCooking Equipment: (1) Pull-out Kenyon electric grill – New 2026Refrigeration/Freezer:  (1) Front-loading refrigerator/freezer – CockpitNew compressorOther:  (1) Wet bar with sink & storage – Aft Deck Laundry EquipmentMain Laundry Equipment:Whirlpool Stacked Washer and Dryer (Replaced) – Guest hallway

Tenders: (1) 17” DL Caribe with Yamaha 90 Hp, 2023 - (Excluded)

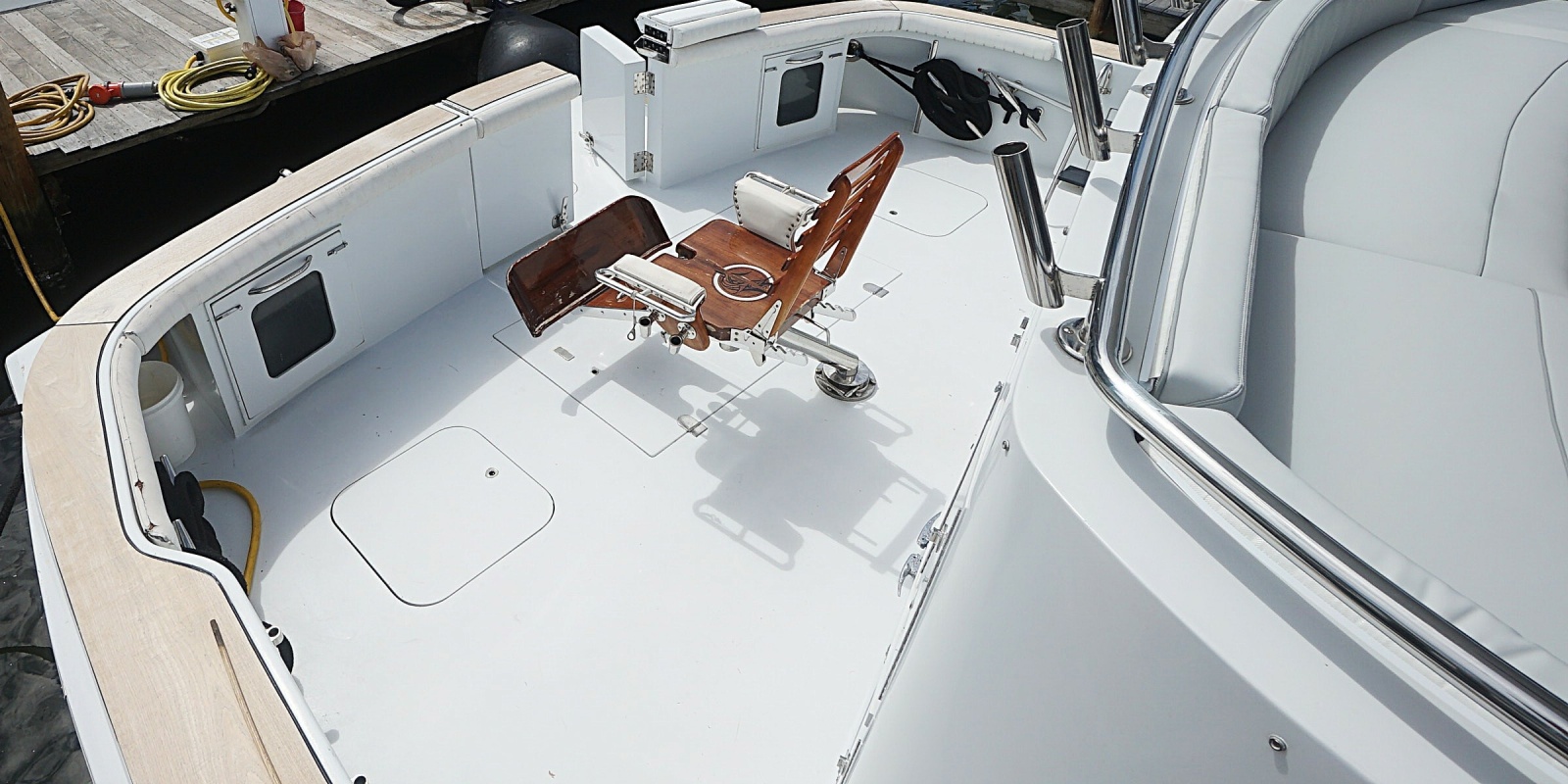

Anchor Windlass System: Maxwell 4,500 windlassAnchors: (1) AnchorAnchor Chain: 200’Boat Crane and Davits: MarQuipt 2,500 lb. low profile davitSwimming Platform: Yes, with ladderFighting Chair: Side mountedOutriggers: RuppLive Bait Wells:Pull-outs in each corner of CockpitFish box in Cockpit Deck

Security EquipmentCCTV System: Garmin with Tera RatedCameras: (9) CamerasMonitors: (1) Monitor Fire Fighting EquipmentFire Control System: AutomaticFire Extinguishers: (2) 300 LD FE 36(2) ABC Dry Chemical handheldAir Ventilation: Engine Room(4) Delta T Systems supplies marine-grade 230V AC axial supply fans with fire dampersSafety EquipmentLife Rings: (2) Life ringsFlares: (1) Flare in boxOther:(2) ACR RCL-100 LED Searchlights with controllerDual air horn

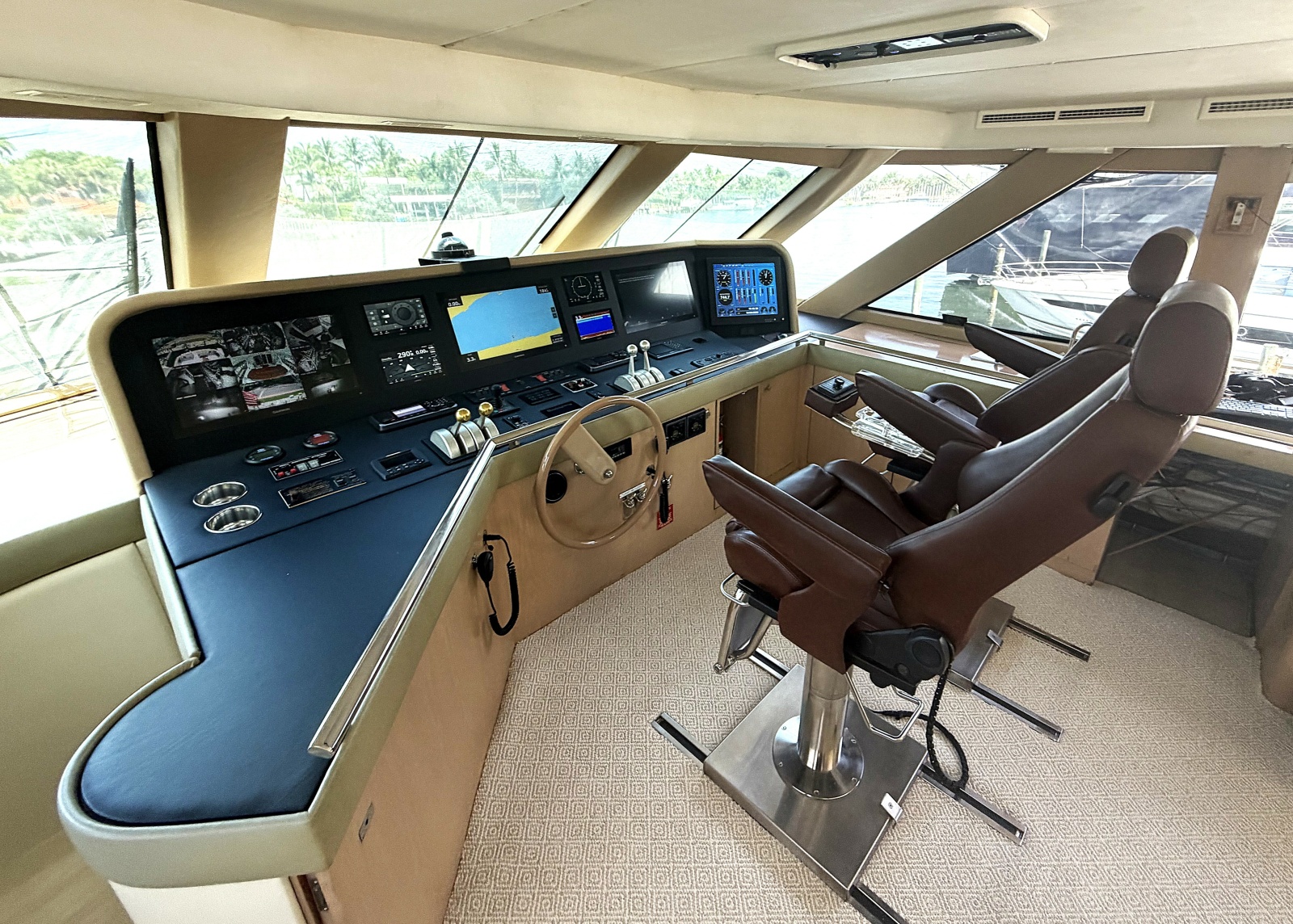

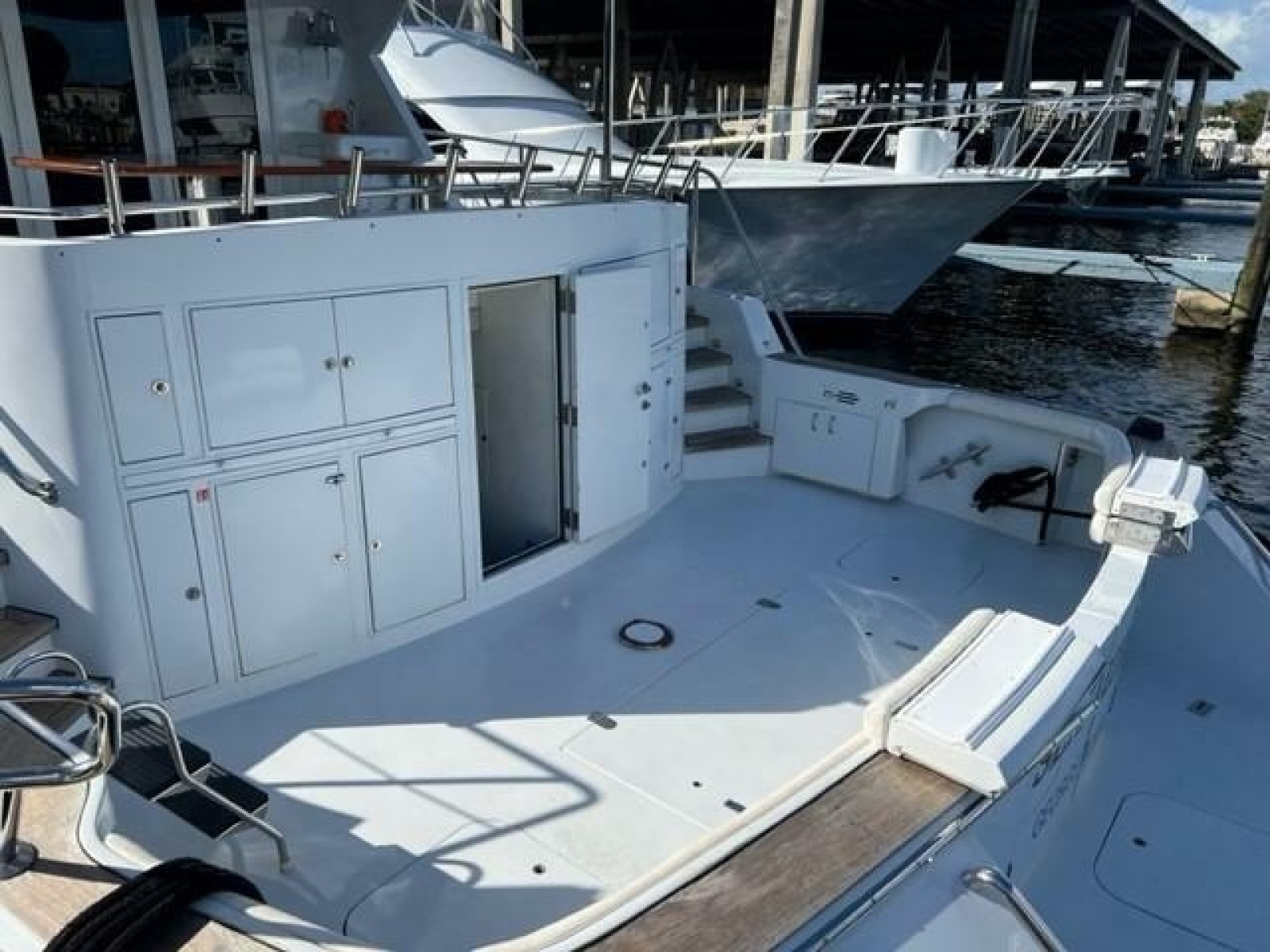

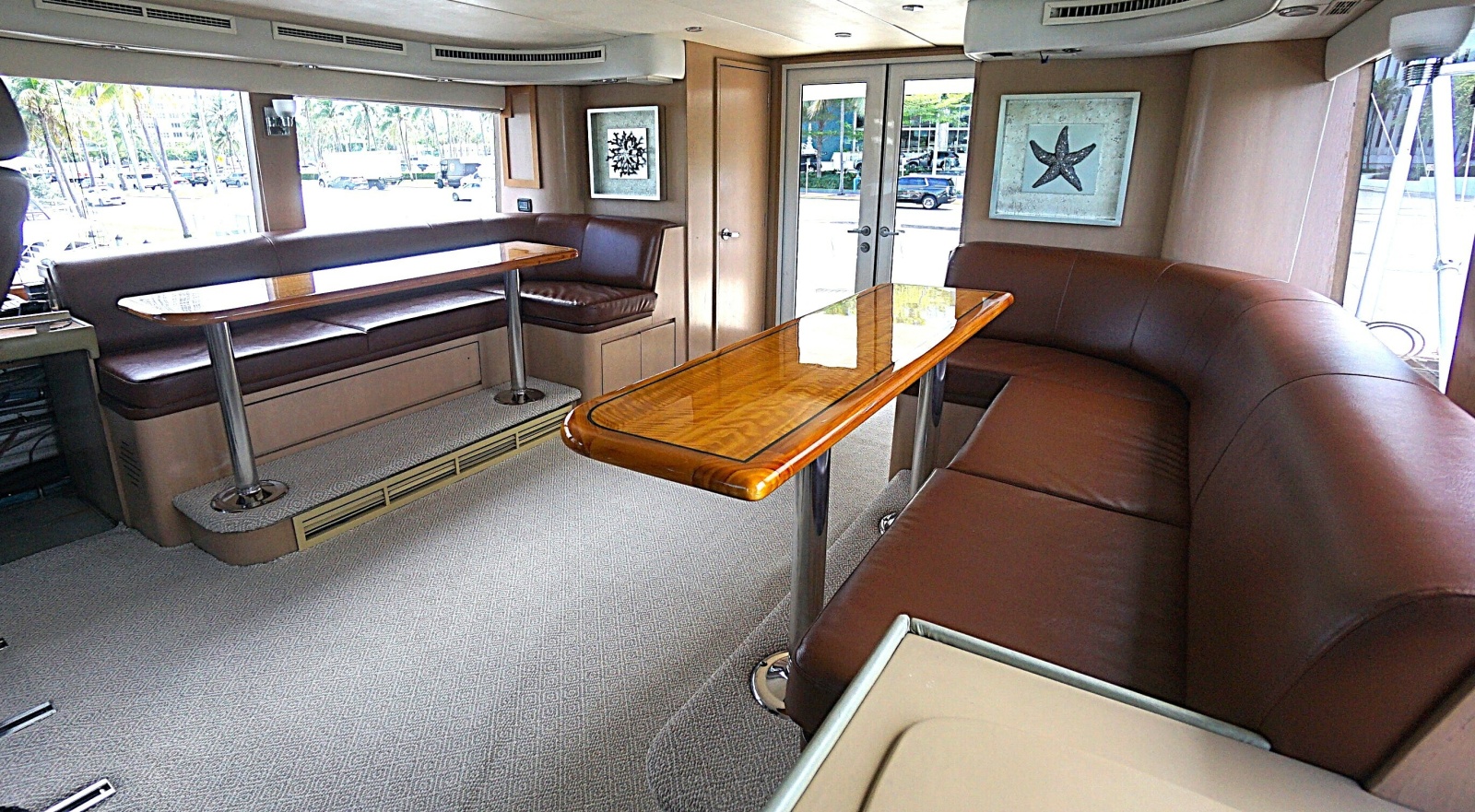

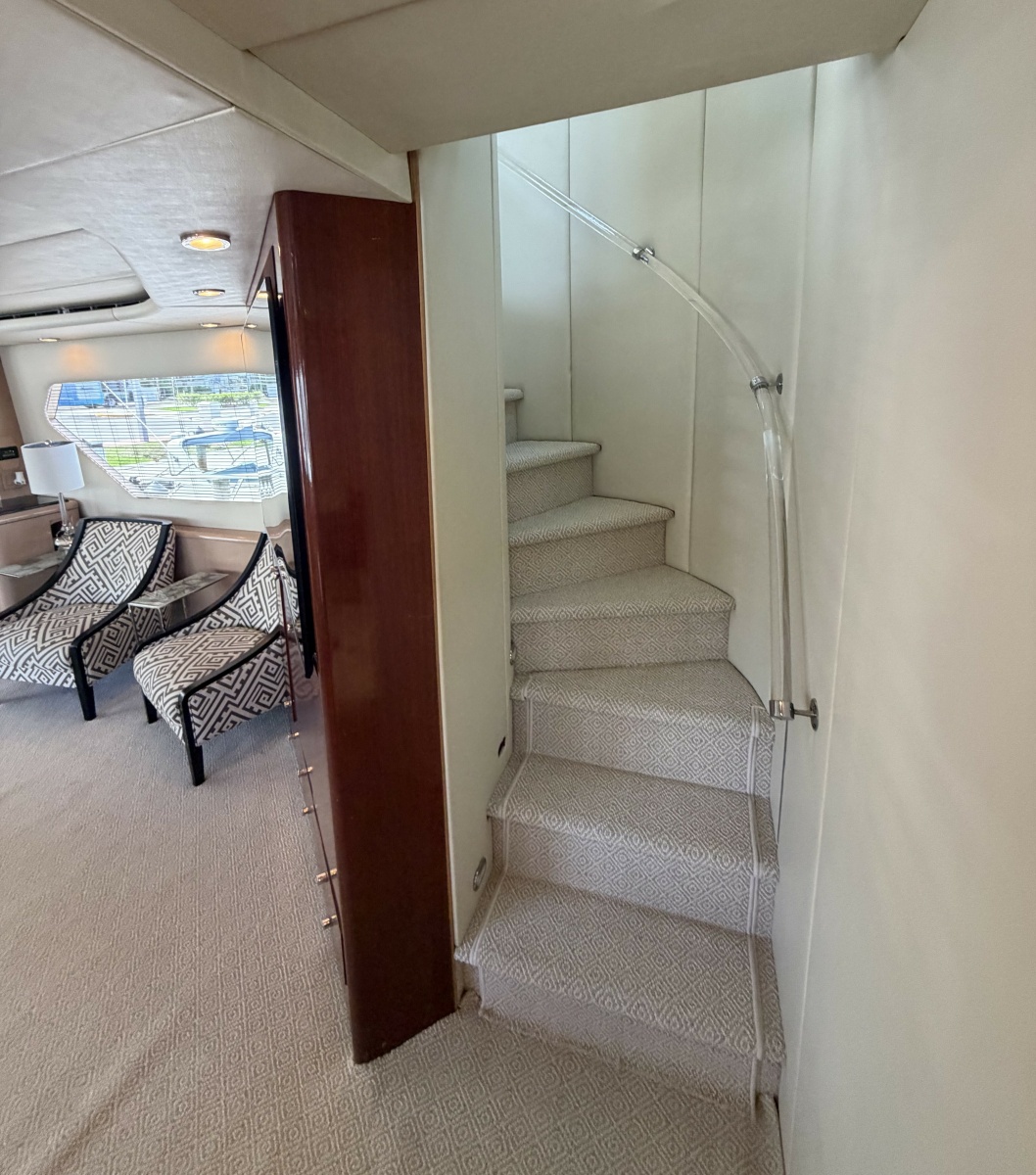

  COCKPIT•   Molded Live Bait Wells in Transom•   Transom doors•   Storage cabinets with (2) sets tackle drawers•   Fish box in deck•   Cockpit coaming lights•   Swim platform with ladder•   Seawater and freshwater wash-down•   Front-loading refrigerator/freezer with new compressor•   Access door to engine room and crew quarters•   Pull-out electric grill•   Teak coaming•   Fiberglass non-skid deck - New 2023 LOWER AFT DECK•   U-Shaped bench seating with new cushions - 2026•   Overhead speakers - 2026•   (4) Folding chairs•   Murray Brothers hi-gloss bow-shaped teak table•   New non-skid decks – January 2023•   Fold-down ladder to bridge•   Wet bar with sink and storage to starboard•   CCTV security camera•   Rocket launcher with (9) rod holders     BRIDGE DECK / SKYLOUNGE•   Curved interior staircase from Salon up to the enclosed Skylounge•   Full helm and navigation station, forward•   Captain and companion leather helm seats•   (2) Upholstered leatherette settees with raised tables, port and starboard•   Captain's desk aft to port with chair, lamp, Icom VHF•   Beige carpeting - 2016•   Overhead soffit with lighting•   Double glass doors to the exterior Skylounge aft deck•   Wet bar with sink and storage•   On deck head with Corian vanity, mirror, wall covering, and Amtico flooring     FLYBRIDGE •    Aft of the Skylounge through double glass doors to the Skylounge Aft Deck you will find the ladder up the Flybridge•    Aft control station•    Stainless steel ladder up to flybridge•    Control station on flybridge with windscreen•  Additional 2 sofas•  Stainless steel rails and stanchions•  Flybridge radar arch OWNERMAIN DECK SALON AND GALLEY                        •   Large Salon•    Oversized sofa•    Large entertainment center•    Dinette•    Day Head LOWER DECK MASTER STATEROOM•   King-size berth with upholstered headboard and storage drawers below•   (2) Built-in nightstands with (2) new shell lamps•   Built-in dresser with ample drawer space•   Zeno mattress•   Mirrored bulkhead•   (2) Cedar-lined walk-in hanging lockers•   Built-in safe in closet•   Custom pleated Roman shades•   CTM A/C controls•   Private bath with marble flooring, Corian vanity top, Jacuzzi tub/shower enclosure, mirror, wallcovering and head enclosure•   New Carpet - 2026 GUESTS LOWER DECK VIP STATEROOM•   Queen berth centerline with drawer storage below•   Zeno mattress, comforter, shams and pillows•   Mirrored bulkhead•   (2) Starfish lamps•   Built-in cabinets with drawer storage•   Overhead lighting•   Escape hatch•   CTM A/C controls•   New carpet - 2026•   Private head with vanity, shower, wall     covering, Amtico flooring LOWER DECK (2) TWIN GUEST STATEROOMS•   Port and Starboard•   Twin berths in each stateroom slide together to convert into a double berth•   Zeno mattress, comforter, shams, and pillows•   Built-in dresser and nightstand•   Mirrored bulkhead•   New carpet - 2026•   Private bath with vanity, shower, wall covering, and Amtico flooring     LOWER COMPANIONWAY•       Thin twin stacked washer/dryer•       Cedar-lined linen locker•       New carpet - 2026 CREW  • Cabin: Port side enclosed bunk beds with enclosed head  • Crew Mess : L-shaped seating that can act as a bunk bed for a third crew member

2025/2026:                                              All new electronics - 2026New carpet throughout - 2026(3) New CTM CW-60 Hz A/C Compressors - 60,000 BTUs eachNew air handlesAll new CTM A/C controlsNew upholstered wall panels in Hallway and Guest StateroomsAll new TVs 2020/2024:                                              Bottom painted and Propspeed applied– October 2024All new smoke detectors – January 2024New house batteries – January 2024(3) new bow thruster joy sticks– January 2024New exhaust system by Design Engineered Solutions (D.E.S) – $130,000 upgrade - February 2023New exhaust spray rings by D'Angelo Exhaust – February 2023New non-skid on the Aft Deck – January 2023All new fans and damper controls in Engine Room – January 2023(2) new isolation transformers – January 2023   Fire equipment updated by FirelineNew steering linesNew galley air handlersNew and rebuilt engine monitors and shutdown systemsCockpit and Swim Platform teak decks removed and replaced with non-skid decksAll new thru-hull sea valvesStabilizers servicedNew steering hoses and steering pump sealsEngines and generators fully serviced 2019:Port side Delta-T fan replacedNew sea power converterPort engine injectors cleaned and servicedFuruno F170 AIS System installed     2018:New electric fuel pump for the main generatorNew heat exchanger for the port generatorNew tachometer installed on the starboard main enginePort main engine plate cooler cleanedPort stabilizer potentiometer replacedStarboard batteries replacedStarboard battery charger replaced by Tess ElectricStainless-steel braided hose to the mixer gauges replacedNew turbo ring installed on the starboard main engine by Metcalf MarineNew compensator installed on the starboard exhaust in the crew areaNew temperature switches installed in the fiberglass exhaust pipes in the crew areaStarboard crossover pipe and stainless-steel crush ring installed by Metcalf MarineBoth generator heat exchangers cleanedPort auxiliary gear control plug replaced by Tess Marine ElectricCrew toilet macerator pump relay replacedCrew macerator pump rebuilt VIP toilet discharge line repairedStarboard crossover pipe and mixer repairedTurbo rings removed and refurbishedNew thermostat installed in the crew areaPort crew bilge control box rebuiltBolts and gaskets replaced on both gearbox oil coolersStarboard shore cord storage system control switch replaced3” check valve replaced on the port main engineDamaged cushion clamps replaced outboard of the port gearboxNew flush timer installed on the starboard guest toiletGenerator wood base replacedStabilizer hydraulic hoses replaced by Mendel MarineMost steering system hoses replaced by Mendel MarineBoth main engine fuel coolers cleanedPort main engine crossover removed by Metcalf MarineNew interior wall panelsNew salon chairs and accent pillowsNew davit motorDavit repainted Various fresh and raw water pumps replacedCockpit bilge tanks cleaned Various paint touch-ups completedEngine alignment performedPropellers removed, balanced, and reinstalledShafts pulled, rebedded, and fitted with new shaft sealsCockpit step halogen lighting converted to LEDCockpit floodlight repairedCockpit grill lighting replaced with 230V bulbsShaft bearings replaced Rudder bearings replacedFuel booster pump replaced on the starboard generator Crew cabin bilge pump replacedNo. 1 Racor filter in the transfer system rebuiltEngine room DC halogen lighting converted to LED 2017   Air-conditioning system servicedNew Shakespeare 390 SSB 23-foot antennaNew Shakespeare 5208-R VHF 23-foot antennaNew watermaker membranesNew water heaterNew fire extinguishers and engine room fire suppression systemPartial interior refit in the main salonDavit serviced and repairedNew stabilizer sealsNew caulking around bridge windowsNew bow hatchesNew deck lighting throughout the main deck and cockpitEngine room bilge tanks cleanedFour (4) new 8D batteries installed on the port sidePort shore power converter rebuiltBallast replaced in the port inboard aft engine room fluorescent lightEngine room bilges professionally cleaned by MWMTender davit rebuilt by Signature MarineSpray rail repairs completedCrew quarters steps rebuiltBattery condition meter replaced on Distribution Panel No. 2 2012         USD 1.6 million in upgrades, including:New generatorsRebuilt enginesVessel painted from waterline upNew interiorNew appliances

Tenders: DL 17 Caribe with Yamaha 90 Hp, 2023Exclusions include all of Owner's personal effects

"All speeds, capacities, consumption, etc. are approximate or estimated; measurements can also be approximate. Specifications are provided for information only and particulars herein obtained from sources believed to be correct, but are not guaranteed. Buyer should instruct his agent and/or surveyor to check all details for accuracy. "
