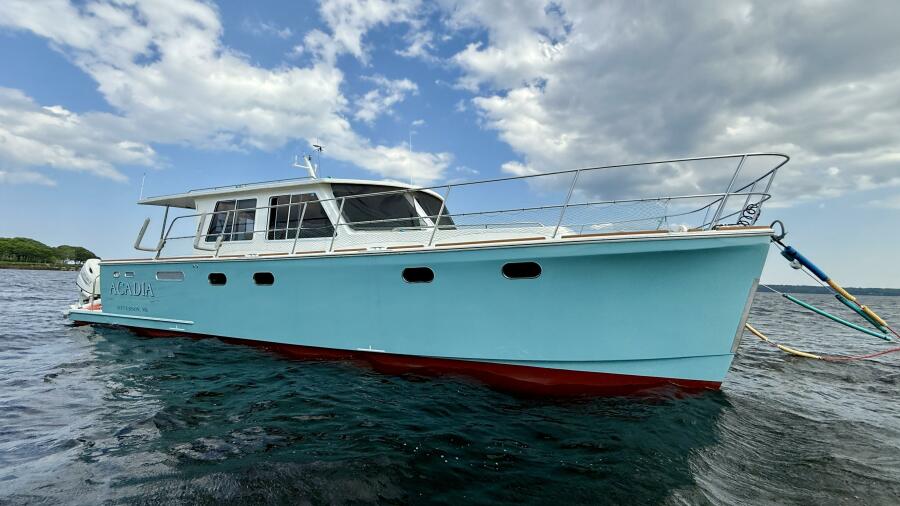

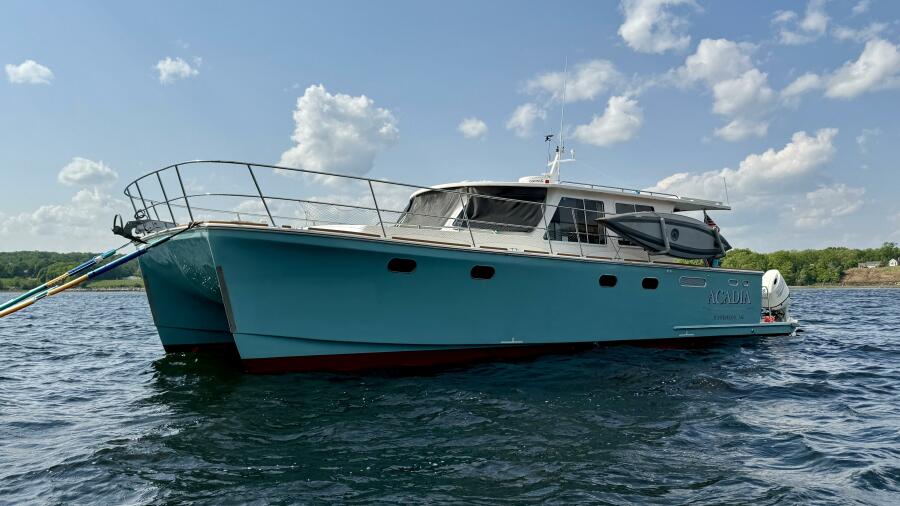

2014 Maine Cat P44

Composite FRP utilizing vinylester and polyester resin with triaxial or biaxial fiberglass fabrics100% Core-Cell Structural CoreHull and Deck chemically joined with biaxial fiberglass tapes entire interiorAll Bulkheads are composite Core-Cell coredBulkheads fiberglass taped to hull/deckMolded-In Non-Skid two tone deck surfaces including cockpit soleAll Thru-Hull and Thru-Deck penetrations to have core removed within 1" of opening and back-filled with resin and glass mixture

Sea Hawk epoxy barrier-coating system (Three Coats)Two (2) Coats of Sea Hawk ablative premium bottom paintTopsides and Wet Deck Awlgrip primed and painted with two topcoats - Color is Teal GrayAll Storage, Bilge, and Machinery Spaces to be painted white gelcoat

White Bulkheads with Cherry TrimHeadliners in the house are Bolta-Soft Vinyl over merantti plywoodInterior Topsides mid and forward and headliner in house covered with Bolta-Soft materialsBlind valence pocket on all salon windows in the houseSunbrella Cushion Covers for the berths and cockpit cushions including5" Laminated memory foam standard at BerthsAmtico commercial teak and holly on all interior floors and steps going below

All Draws and Doors have a Push Button locking mechanismDoors to each cabin have bumpers, hooks, and eyes or some other suitable means to hold doors in open position

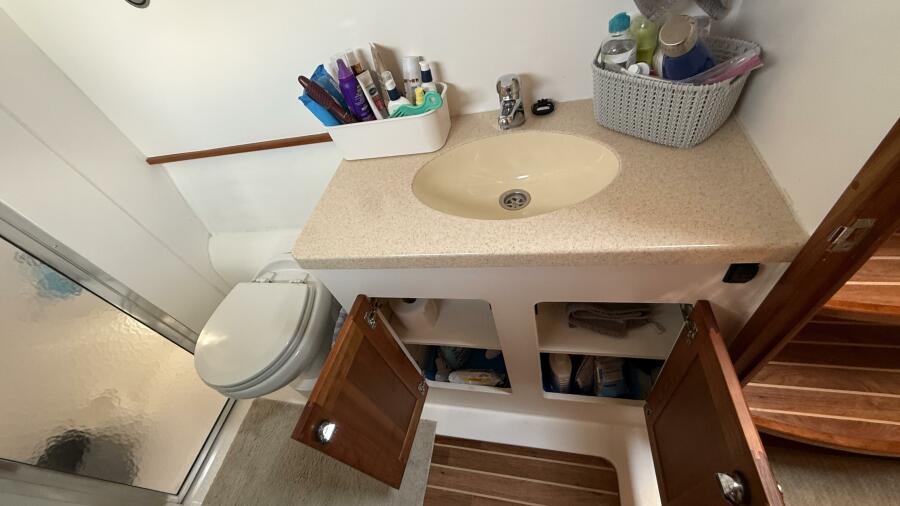

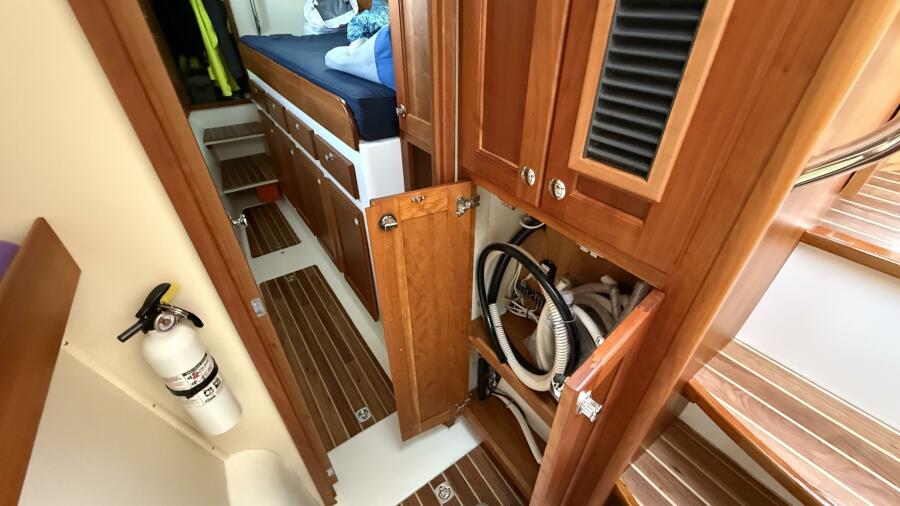

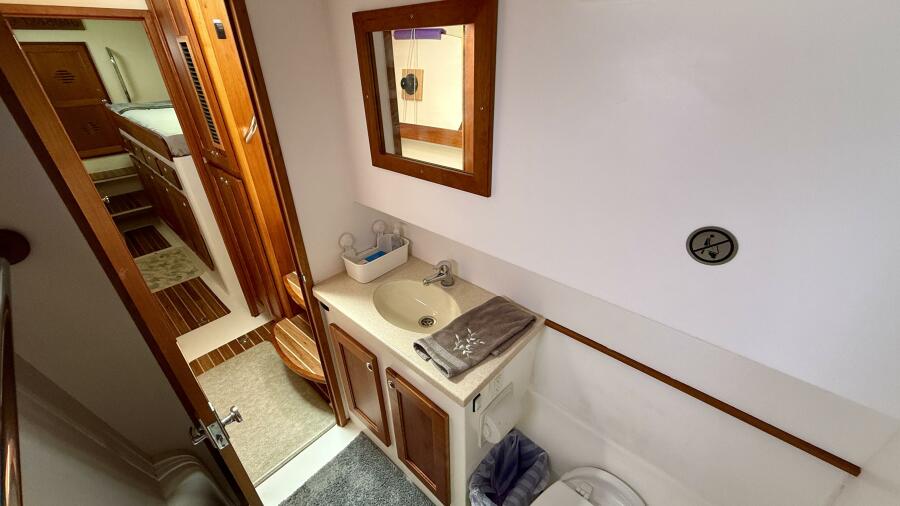

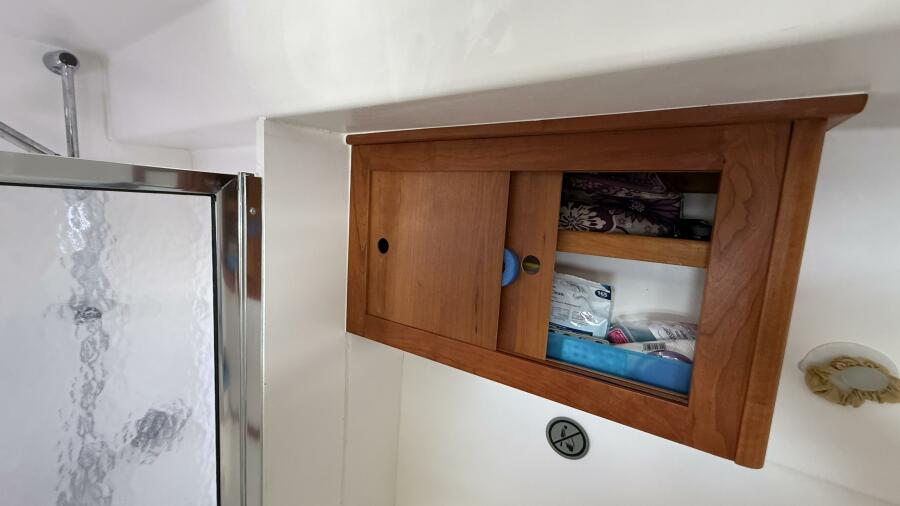

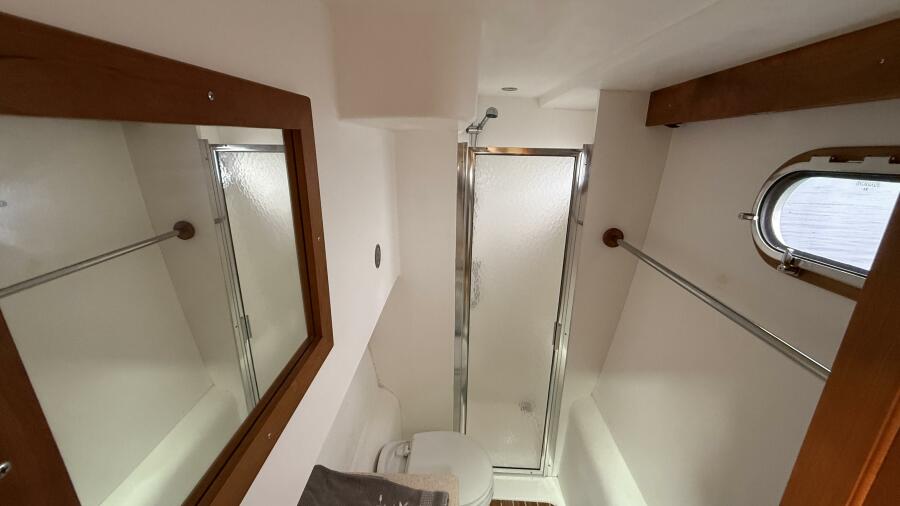

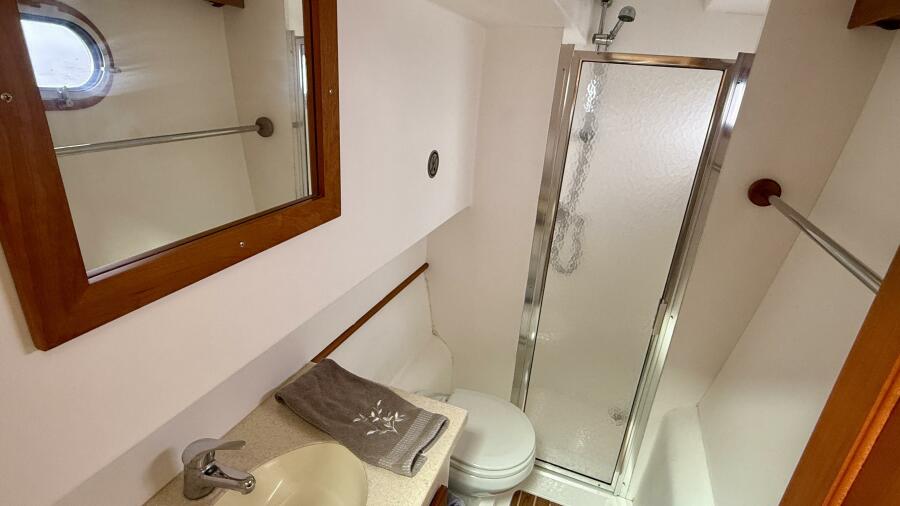

Headroom - 6'6" MinimumBerth - 64" x 80" with walk aroundMattress is Laminated Memory Foam, 3" base plus 2" memory topCherry Bull Nose at foot of Berth to retain mattress in position'Walk-In' Hanging Locker in forepeak with Louvered Vent and Key LockHanging Locker/ Storage Closet in Hallway with return air grill for AirConFull Length Cherry Valence and Cherry Grab Rail, with lighted valenceThree (3) Drawers Under BerthMaster Head with Large Separate Shower StallAquatex Shower Door and Gulper Discharge PumpTechma Electric Toilet with Freshwater FlushGranicoat Countertop Vanity with Oval Sink and Single Handle FaucetS/S Double Towel Bar, Robe Hook, and Toilet Paper Dispenser

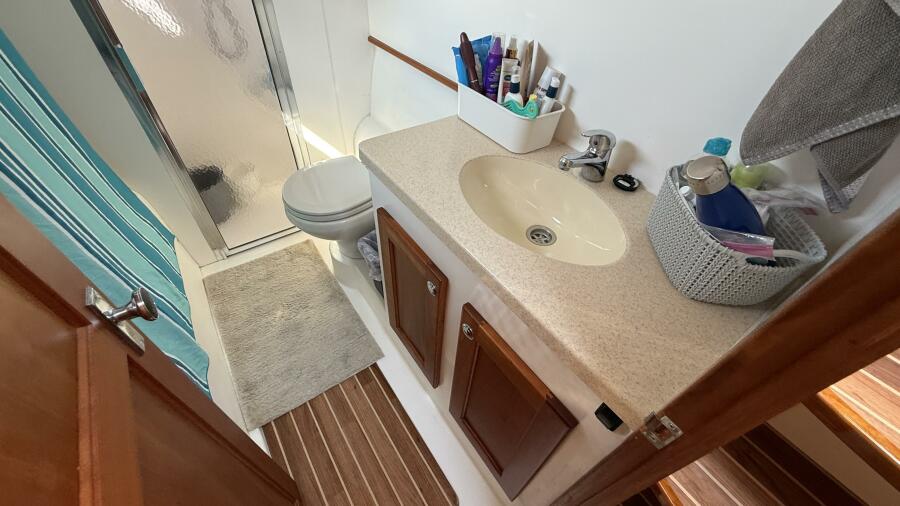

Headroom - 6'6" MinimumBerth - 64" x 80" with Walk AroundMattress is Laminated Memory Foam, 3" base plus 2" memory topCherry Bull Nose at foot of Outboard Edge of Berth to retain mattress in position'Walk-In' Hanging Locker in forepeak with Louvered Vent and Key LockHanging Locker/ Storage Closet in Hallway with return air grill for AirConFull Length Cherry Valence and Cherry Grab Rail, with Lighted ValenceFour (4) Deep Drawers Under BerthBookcase at Foot of BerthHead with Large Separate Shower StallAquatex Shower Door and Gulper Discharge PumpTechma Electric Toilet with Freshwater FlushGranicoat Countertop Vanity with Oval Sink and Single Handle FaucetS/S Double Towel Bar, Robe Hook, and Toilet Paper Dispenser

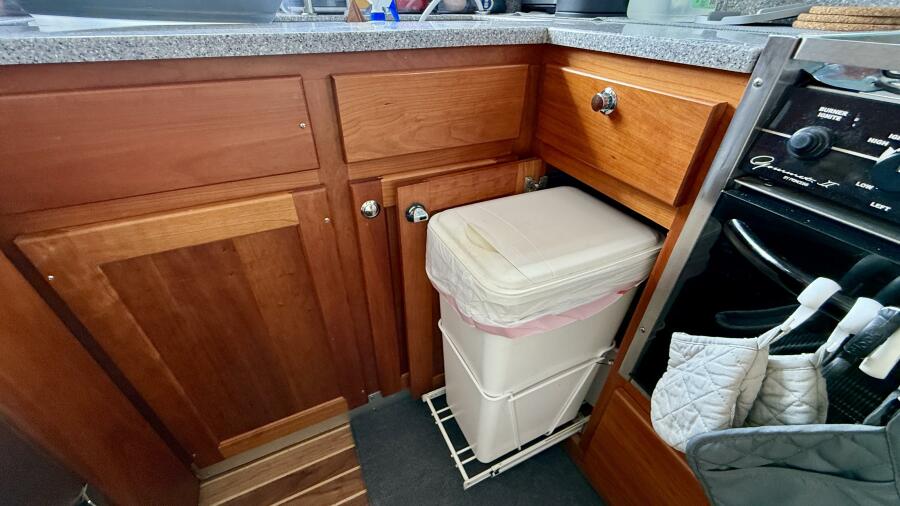

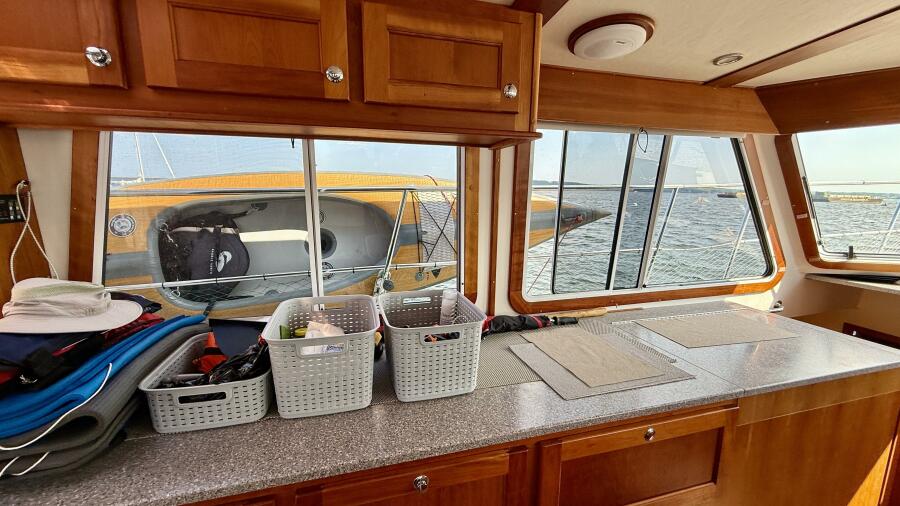

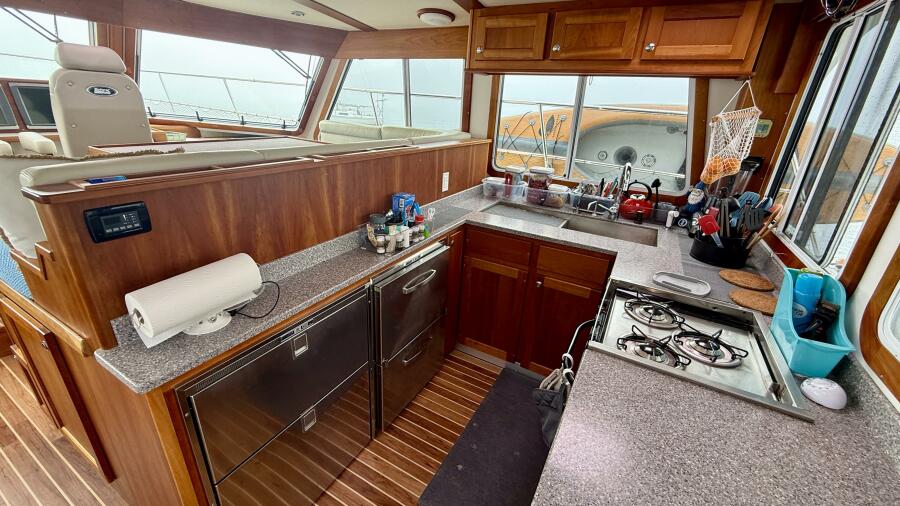

Galley-Up Arrangement on Bridge Deck Level with Upper CabinetsGranicoat Composite CountertopsDouble Bowl High Polish S/S Sink with Single Lever Faucet and SprayerPaneled Cherry Cabinet Doors, Varnished with Solid FrameScandvick SCA 10818 Soap DispenserSeagull IV Water Filter at Galley Sink12v Stove/Oven/Broiler 'Seaward Princess Black Glass Front 3375-1002''Pantry' with Pull Out Draw below the Settee

All Windows are by DSG and are operable and have screens (Except for 3 forward windshields)Sole Elevated at Twin Helm Location for Better VisibilityThe "U" Shaped Settee Starboard has an adjustable table, which converts to extra double berthCherry Bases w/ Storage Under

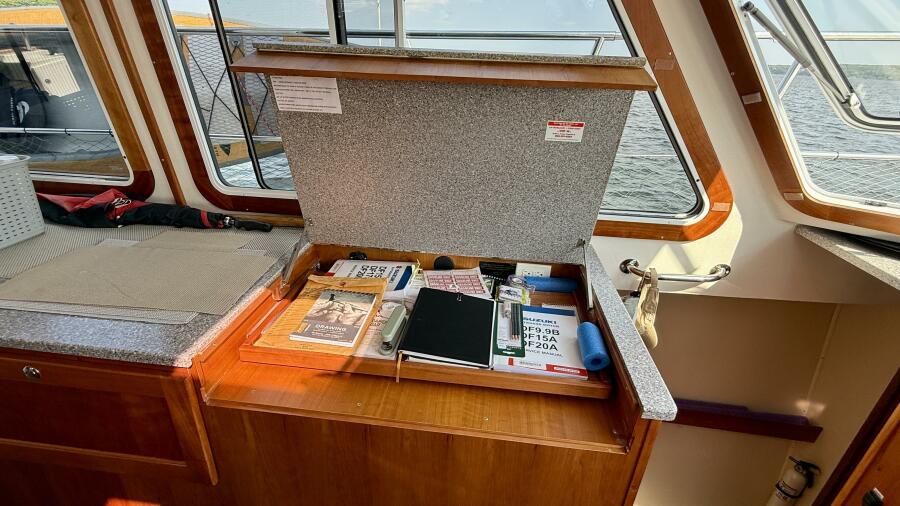

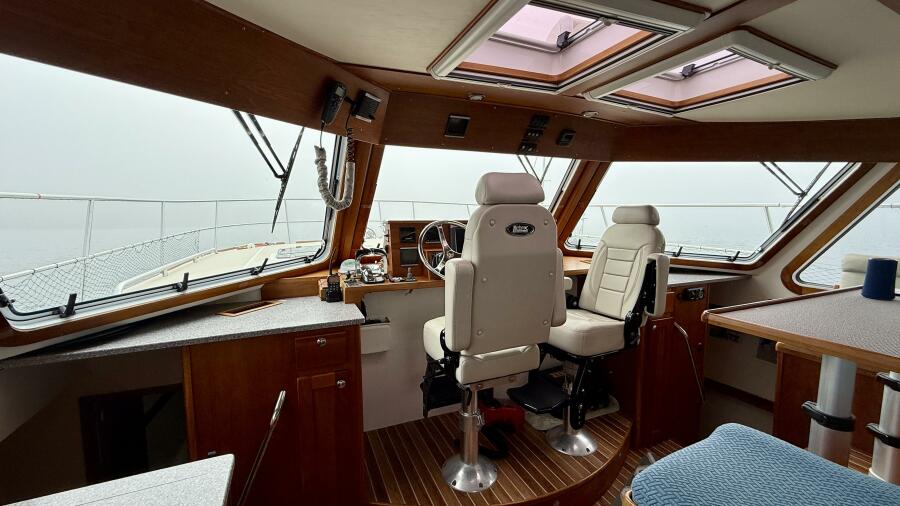

Helm Station with Tilting Wheel and Navigators Chart Table to PortThree (3) Chart Drawers below the raised floor under the Helm SeatTwo (2) Adjustable Premium Helm Seats with Adjustable Height, Flip Up Arm, Seat Back and Head Rest Covered in UltraleatherChart Table on Dash with Large Storage Space under Port/Starboard Wing Cabinets'Docking Helm Station' with Throttle/Shift Controls and Bow Thruster in Aft Cockpit Starboard Side with GMI 10 Depth Display

Large Profile Exterior Rigid Vinyl Rub Rail with Stainless Steel Insert at Shear and 12' of Lower Aft QuartersCustom 30" High Solid Deck Railings 1-1/4" Diameter, Intermediate 1" diameter S/S, Full Perimeter, Aft of House and Across BowMid-Ships Sliding Rail Gates Port & StarboardS/S 316L Grab Rails on Hardtop, Cabin Top, and Aft HouseSwim/Boarding Platforms each side with 32" High SST Grab RailOverhead and Side Grab Rails at Both Stairs to Berths, and Grab Rails in BerthsMolded Fiberglass vertical grab rails in house at steps leading out of cockpit towards the bow and on the back of the house

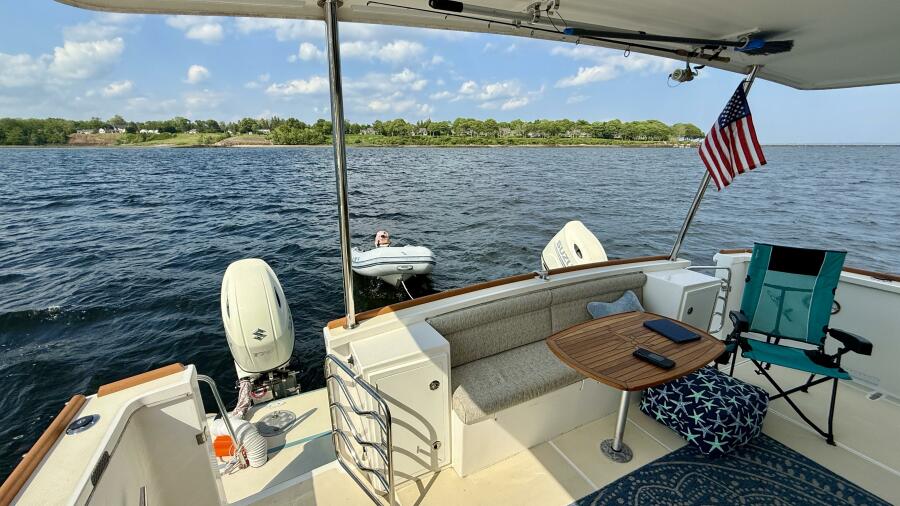

Stern Opening Port and Stbd S/S Gates in TransomCustom, Double Walled 4-Step Stern Swim Ladder Port in Covered CompartmentElevated 'Back Porch' to extend across center Transom area for Dinghy StorageCustom DSG Aluminum Framed Door (Includes Key Lock)Bench with Cabinets on each end to store propane, and access Electric Jack Plate ControlsFlag Staff

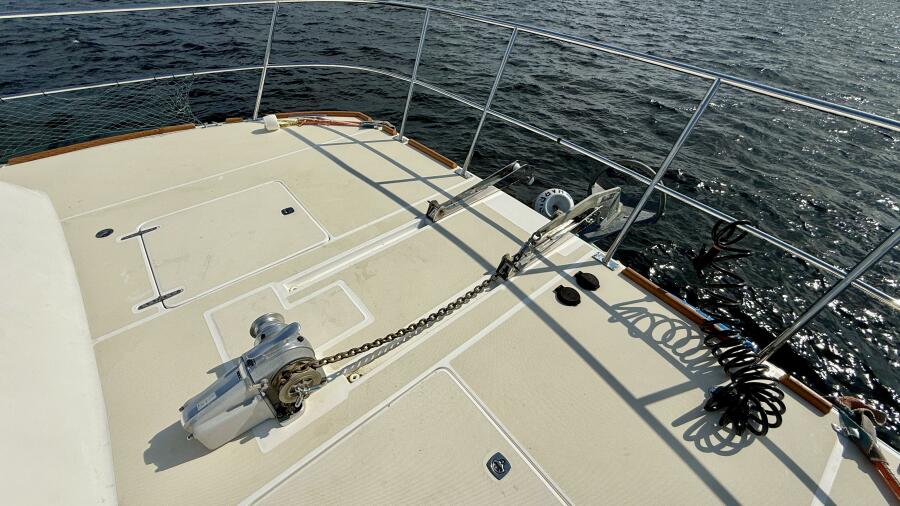

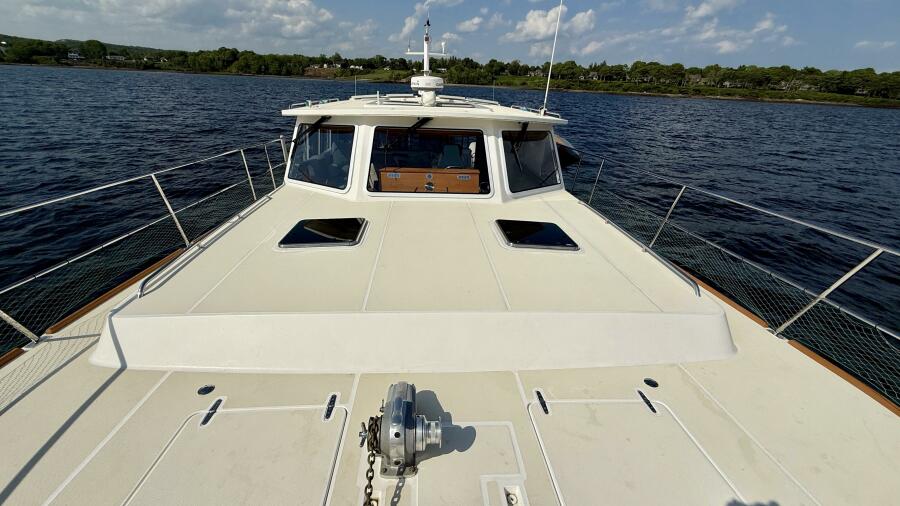

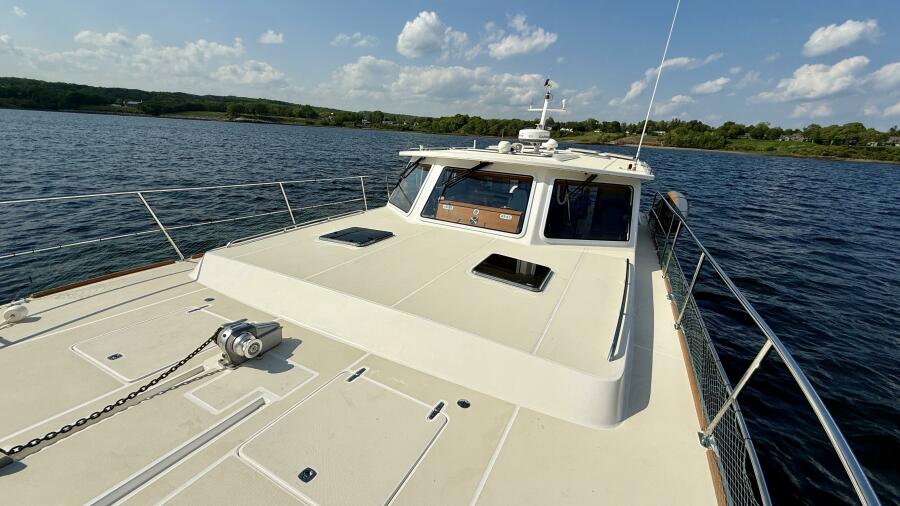

Eight (8) Primary 12" Cast S/S Heavy-Duty Hollow Base Cleats (With FRP Backing Plates)Four (4) each 11" Stainless Custom Chocks forward inboard and outboardDouble Ground Tackle includes 2 Bow RollersRocna 55lb Anchor w/ 250' of 5/16" high strength Chain Rode with 150' of 5/8" Three-StrandCustom Nylon Bridle which attaches to ChainFortress FX-37 Back-Up Anchor with 100' of Chain w/ 150' of 5/8" 8-Plait Nylon RodeLofrans Tigress Windlass with Local Controls and Remote Control from the HelmPad Eyes for bitter end of both Anchor Rodes

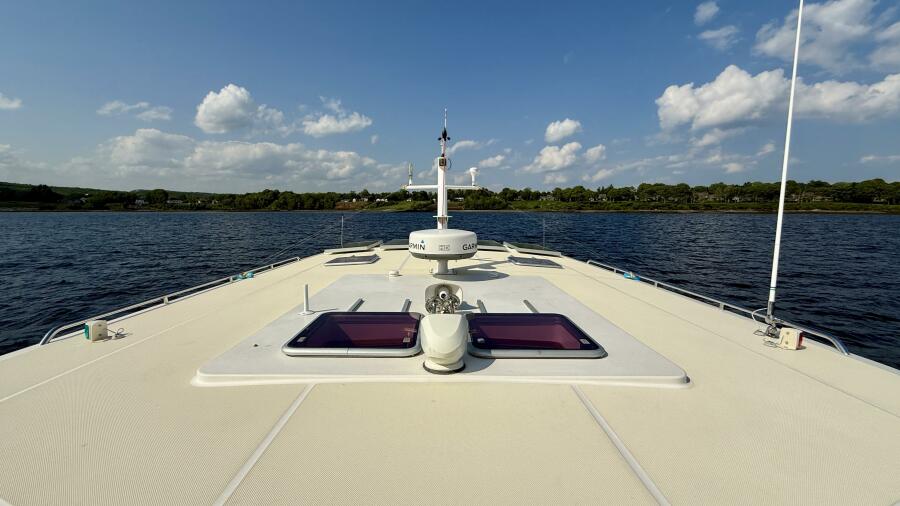

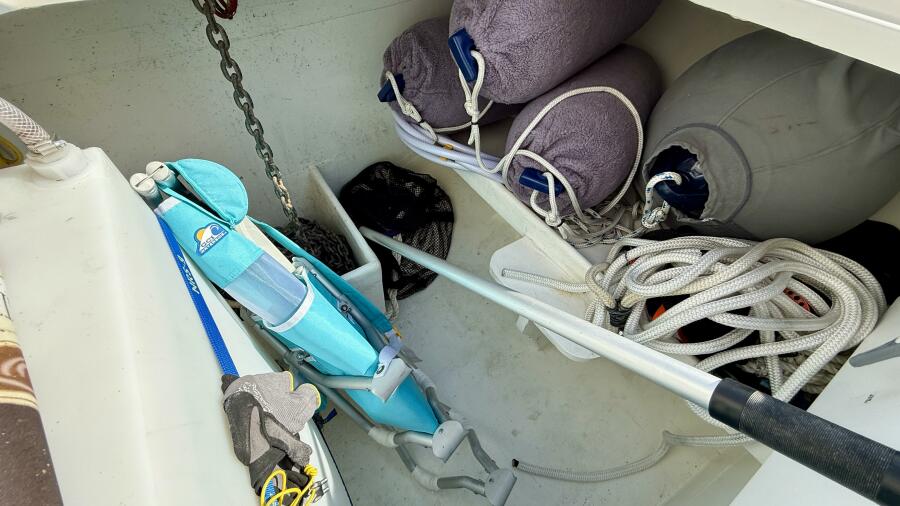

Two (2) Flush, water tight, fiberglass deck hatches over lockers with gaskets and dogsTwo (2) Flush, water tight, fiberglass engine room hatches with gaskets and dogsTwo (2) ladders for access to 'engine room' spaces

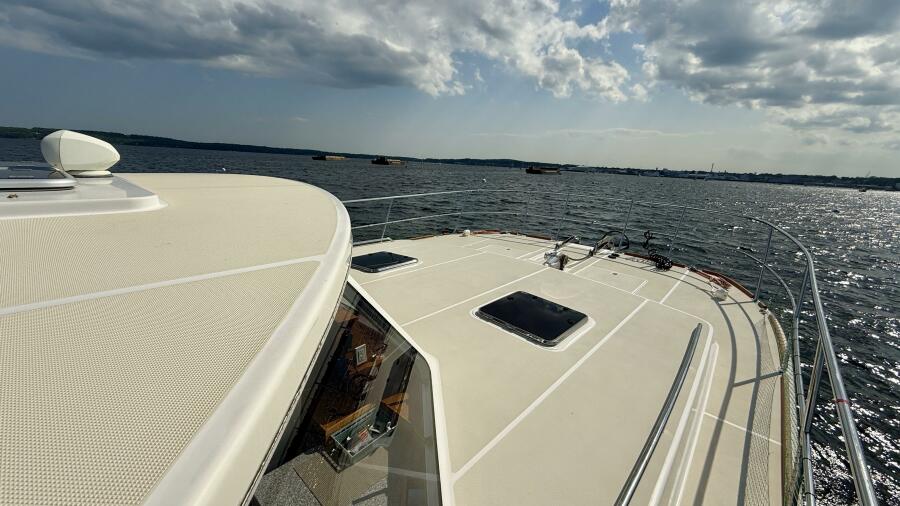

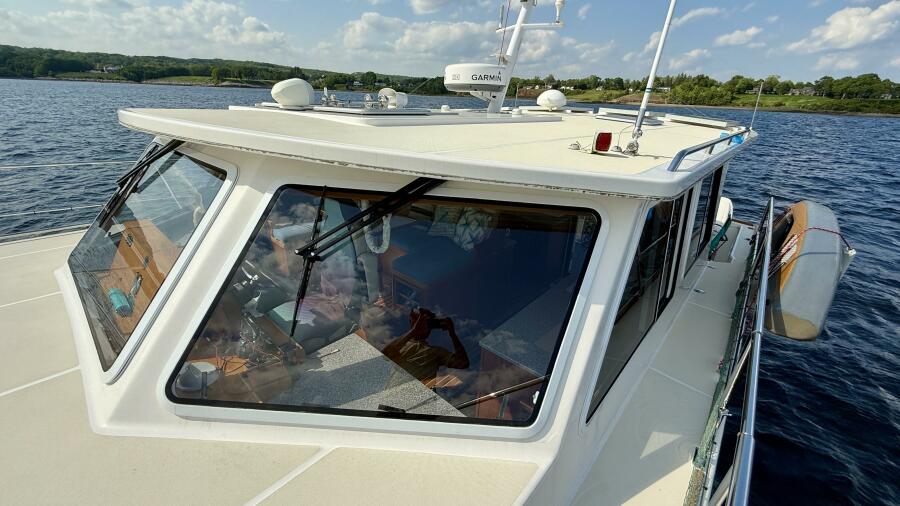

Six (6) Operable Windows in House by DSGEight (8) roughly 10" x 20" oval offshore rated Opening Port Lights w/ ScreensFour (4) Aluminum Framed Lewmar Pilot Sliding Hatches in House, with roller screen/shade, plus two (2) opening aft S/S Hatches, one over each berth, with roller screen/shadeThree (3) Operable Windscreens of Tempered Glass at Helm, all with Wipers and Washers, no screensDiamond Sea Glaze Cockpit Door

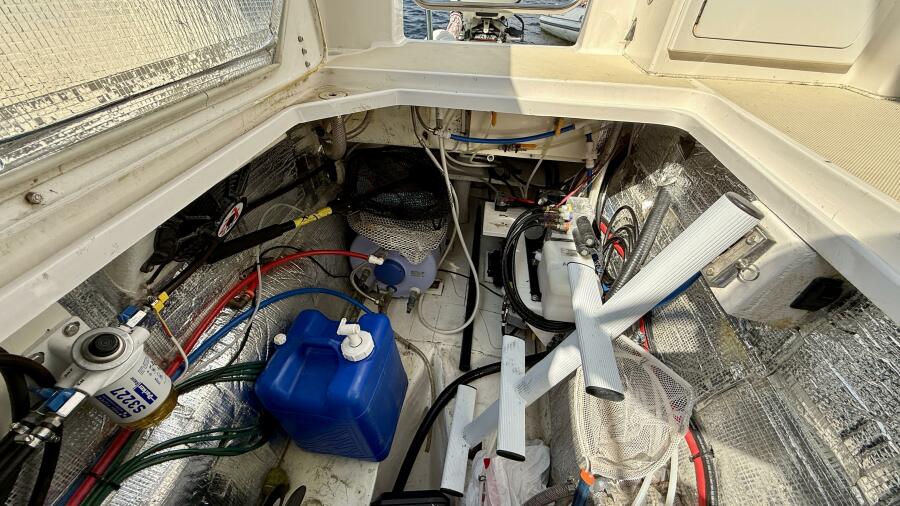

Northern Light 120v 60Hz M673L3 6KW Generator in Port Aft Sound Insulated Engine Room, with Factory Sound Enclosure w/ transfer switch, remote display, single Racor fuel/water separator, and separate Generator Set Starting BatteryBlue Sea Custom '360' Main Distribution Panel DC/AC with extra spare breakers with backlighting and DC.AC Volt and Amp MetersVictron 3000/120 inverter, charger, and remote controllerFour (4) each 8D AGM, total 1020aHImtra LED Lights added to 4 closets below decks w/ switchesLED Navigational LightsRemote Spot Light with controls at HelmCompass with Switched LightSix (6) LED Lights on dimmer in House with 2 LED Red/White Lights over HelmTwo (2) LED over mirrors in each headFour (4) LED Aft Cockpit and Swim Platform courtesy lightsOne (1) LED light in each ShowerOne (1) LED 'work' light in each 'Engine Room'Eight (8) Flush Recessed LED lights in Soffits below deck outboardFour (4) each 110w Hardtop Mounted Solar PanelsTwo (2) Solar Controllers with current and voltage displaySix (6) total 12 VDC Outlets in Engine Rooms, Galley, Nav Station, and BerthsWire Sizing and Over Current Protection per ABYC StandardsAll circuits numbered and labelledEmpty conduit paths from each ER to Forward CabinGlendinning CRM-50 Electrical Cable ReelTwelve (12) total AC Power in each Head, Nav Station, Berth, ER's, Salon, Cockpit, and Two (2) at Galley and MicrowaveDEI Fail Safe Max Galvanic Isolator, Rated at 50a

Sidepower SE60 Electric Bow Thruster with Two Control Stations

Two (2) Garmin 7215 Chart Plotter w/ 4KW HD 48-Mile Radar, with charts from Maine to Bahamas, XM Weather Overlay, PC Interface, with XM AntennaSmart 'Triducer' for Depth, Temp, and BoatspeedWindspeed TransducerOne (1) Each Garmin GMI10 Display Head at Helm and Docking StationGarmin GHP10 Hydraulic Autopilot, rate gyro compass. Protected below deck location integrated to GPS and Chart Plotter, GHS20 DisplayGarmin Marine 300DSC Distress Integrated VHF to GPS Hailer and Foghorn to External Speaker plus GHS20 Wireless Remote HandsetSony AM/FM/CD Stereo System, Wireless Remote Control complete with 4 Bose tuned waterproof speakers, MPS and XM Satellite ReadyGarmin AIS 600 TransceiverProvide for SSB including Grounding PlateProvisions for Two (2) Future Satellite Antennas on Rear of House with Wire Path to Helm

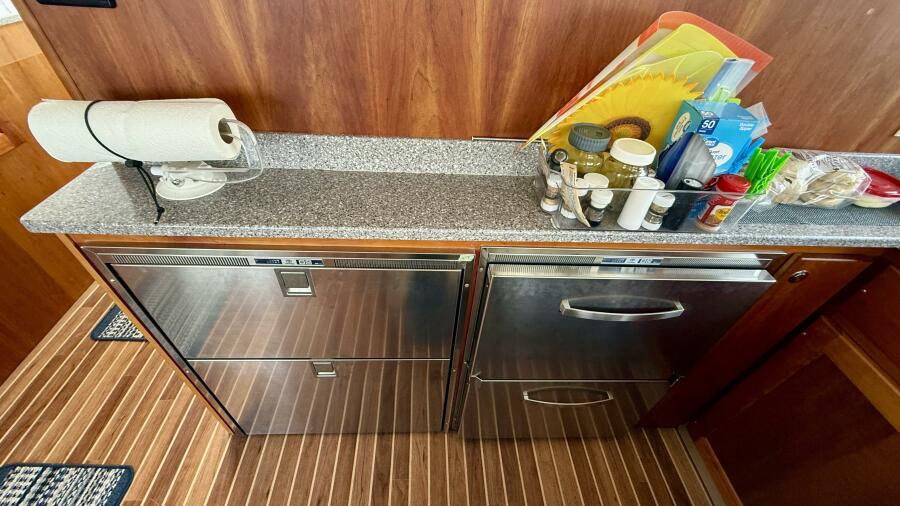

One (1) Vitrifrigo DW210RFX 24v Two-Drawer RefrigeratorOne (1) Vitrifrigo DW180DTX Two-Drawer Freezer

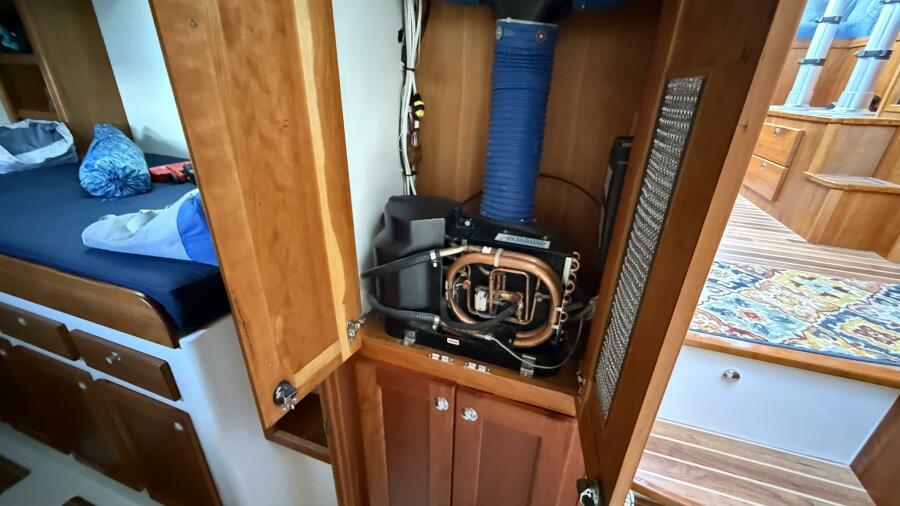

Three (3) MarineAir Airco seawater source heat pumps totalling 30,000BTUH. Smart Starts on all Three Aircon unitsOne for Main SalonOne for Master StateroomOne for Guest StateroomEight (8) 12v Caframo Sirocco, Three-Speed Gimbal Fans

Quick B3 30 12SL 8-Gallon Hot Water Heaters with Engine Coils and 120v AC element and thermostatic mixing valve kit

All Seacocks are non-corrosive reinforced Marelon by ForesparTwo (2) each 30-gallon holding tanks with full union ball valve gravity drainDeck mounted pump-out connection fittingsTecma Electric Toilet shall have a 3-Way full union ball valve to divert waste to tank or directly overboardLavatory and Sink Drains pass through the hulls as high as possible above the standing water line

80 Gallon Water TankAll Plumbing to hot/cold faucets run in Sea-Tech Quick Connect 35 series Pex TubingScandvik Faucets, Shower, Etc.Hot/Cold Stern Shower on Port Swim PlatformJohnson Pump for Fresh Water TankSplendide Combo Washer/Dryer with Vented Dryer

Salt Water Wash Down Pump, located on Foredeck with Quick Disconnect FittingSalt Water Spray at Galley using Scandvik pull-out spray from deck wash systemOne (1) Salt Water Intake for all seawater uses (except for generator/engines)Johnson 2200 Series HD Automatic Bilge Pumps (4 Total)Each Hull and 'Engine Rooms'

Two Propane TanksTrident 1230-1411 Propane Manifold, Solenoid Valve, and Fire BoyXientex LPG Propane Gas Fume Detector 551501 Two Channel Propane Fume Detector with MS-2 Sensor and SV-1 Solenoid Valve, test buttons for each channel

Kidde Fire Extinguishers, Flares, Four 50' Docklines, Lifesling, and 4 FendersSteelhead WD600 Hydraulic Dinghy Crane on Aft Flatform, Rigid Chocks, Dinghy Tie Down Straps316L S/S Flush Rod HoldersEngraved Documentation Number Plaque
