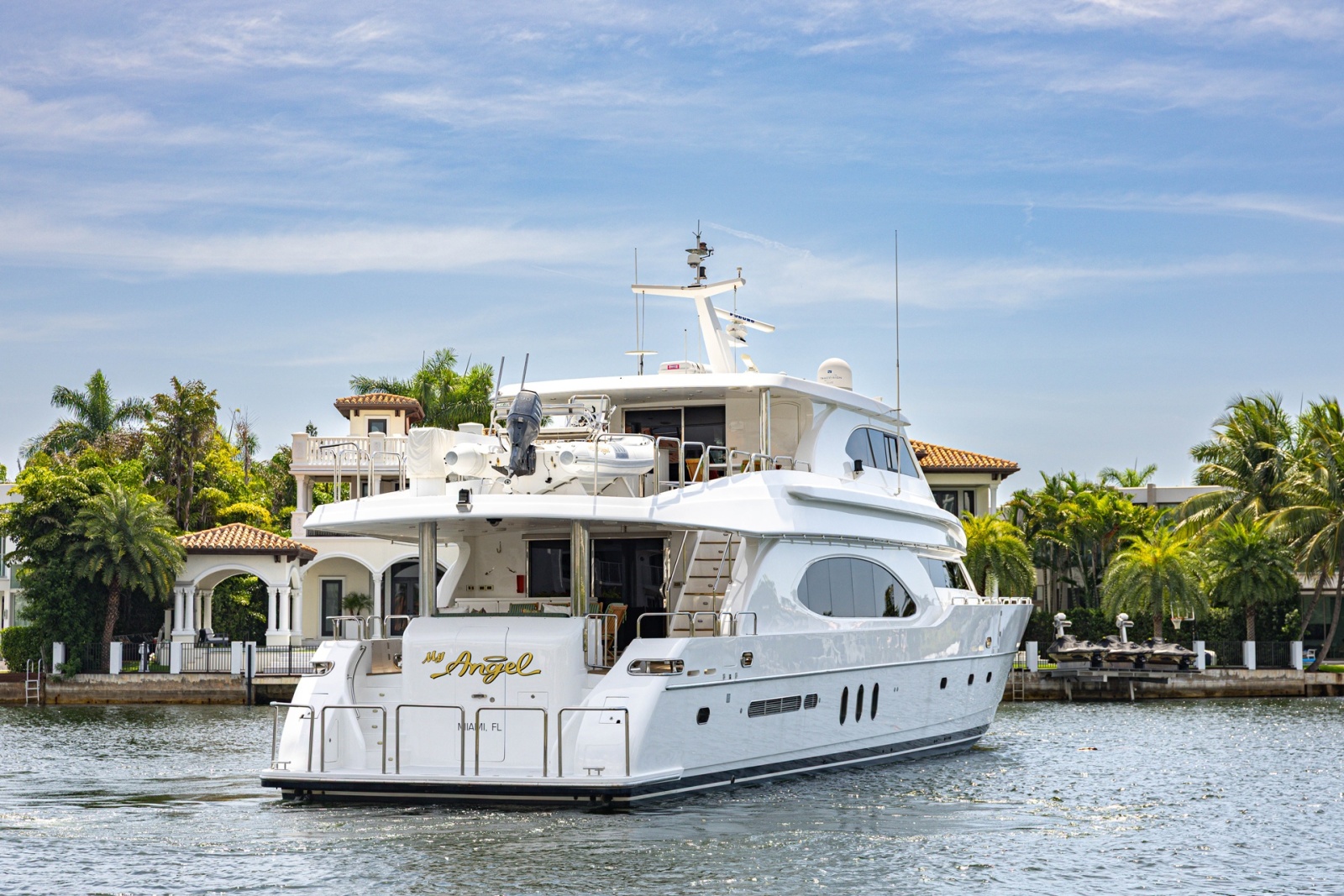

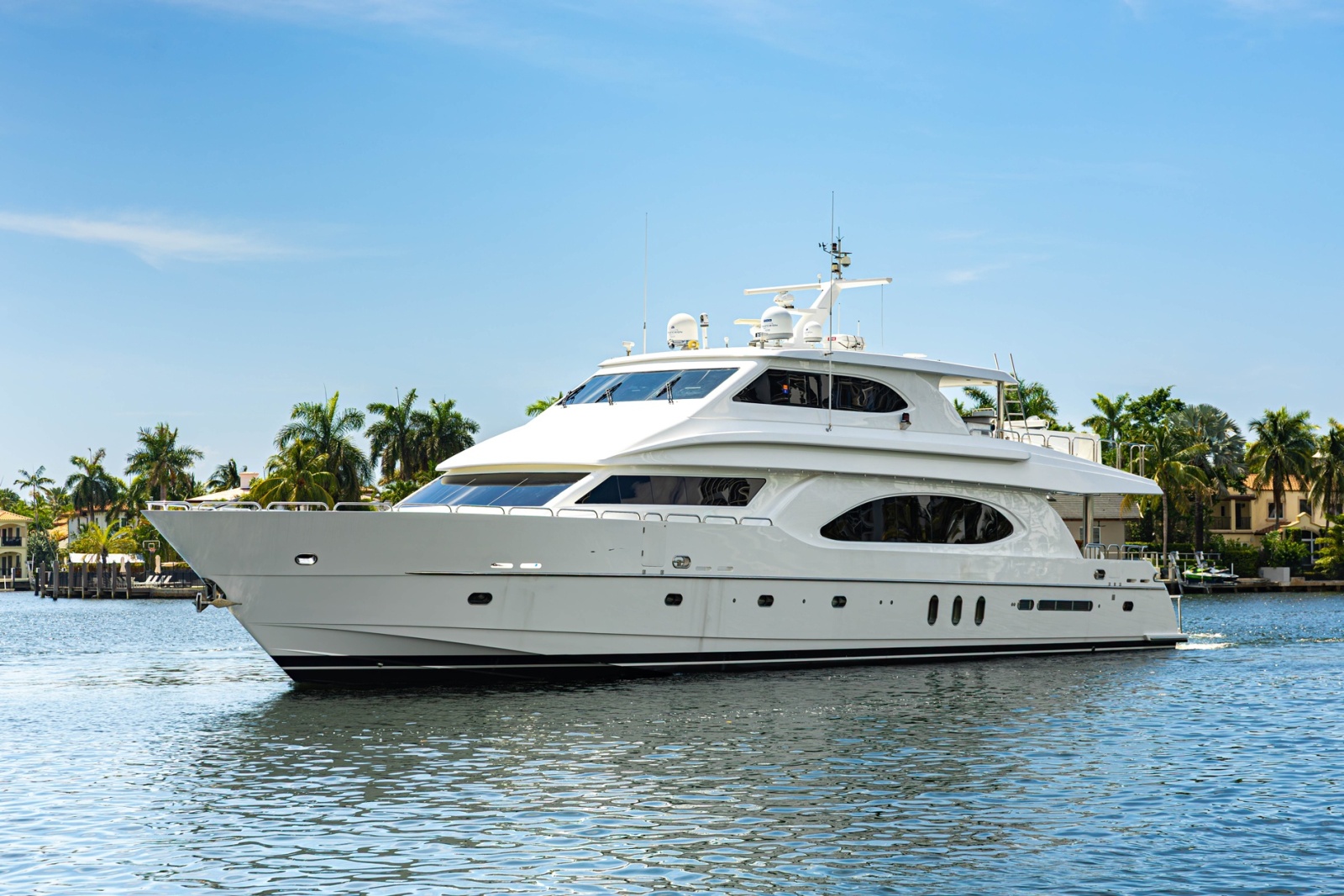

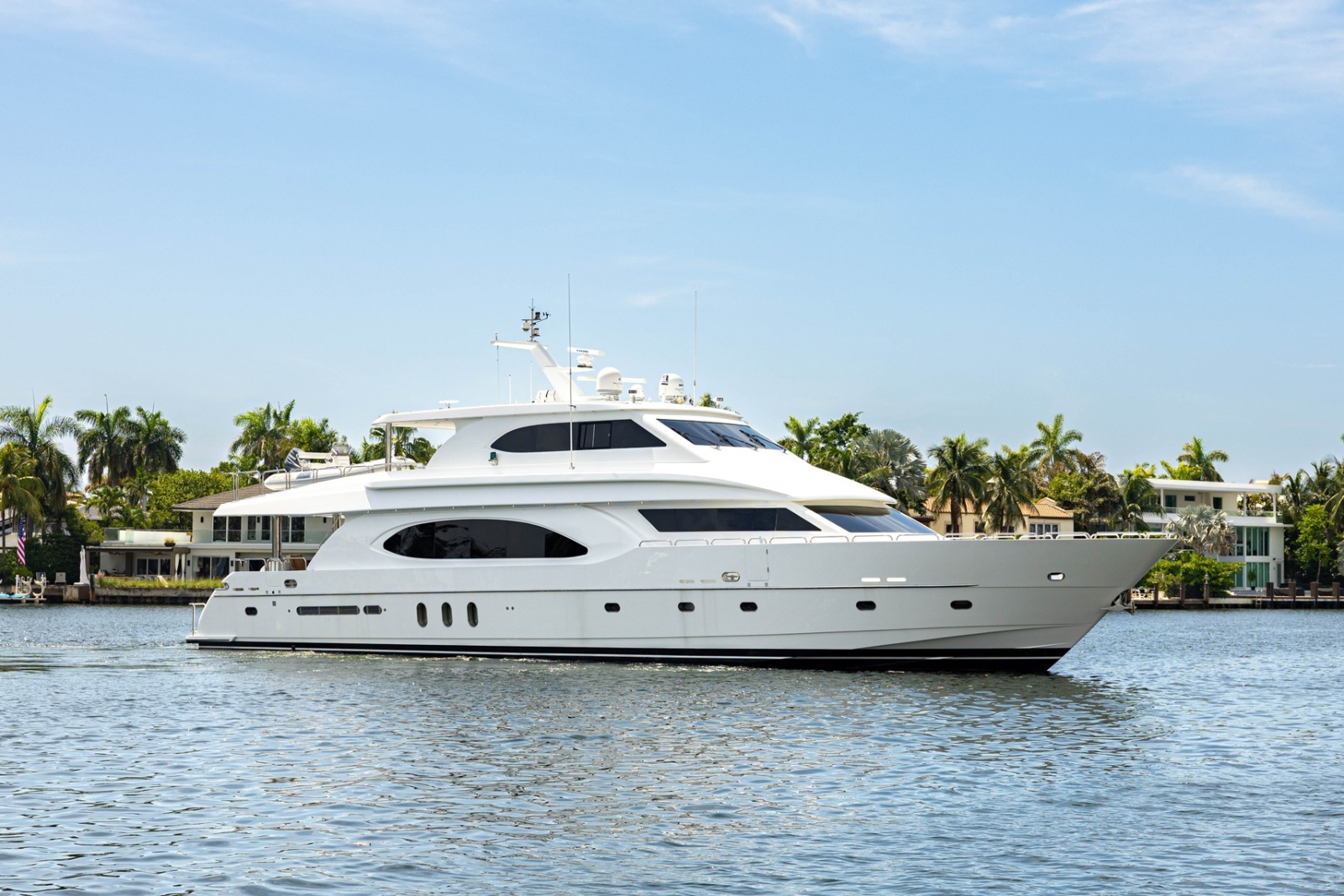

2008 Hargrave Enclosed Skylounge

Stabilizer Fins Seals Replaced Jan 2026New A/C Chiller 2024Bottom Paint and Propspeed Jan 2026Fire Suppression System Serviced 2026New Simrad Autopilot 2026

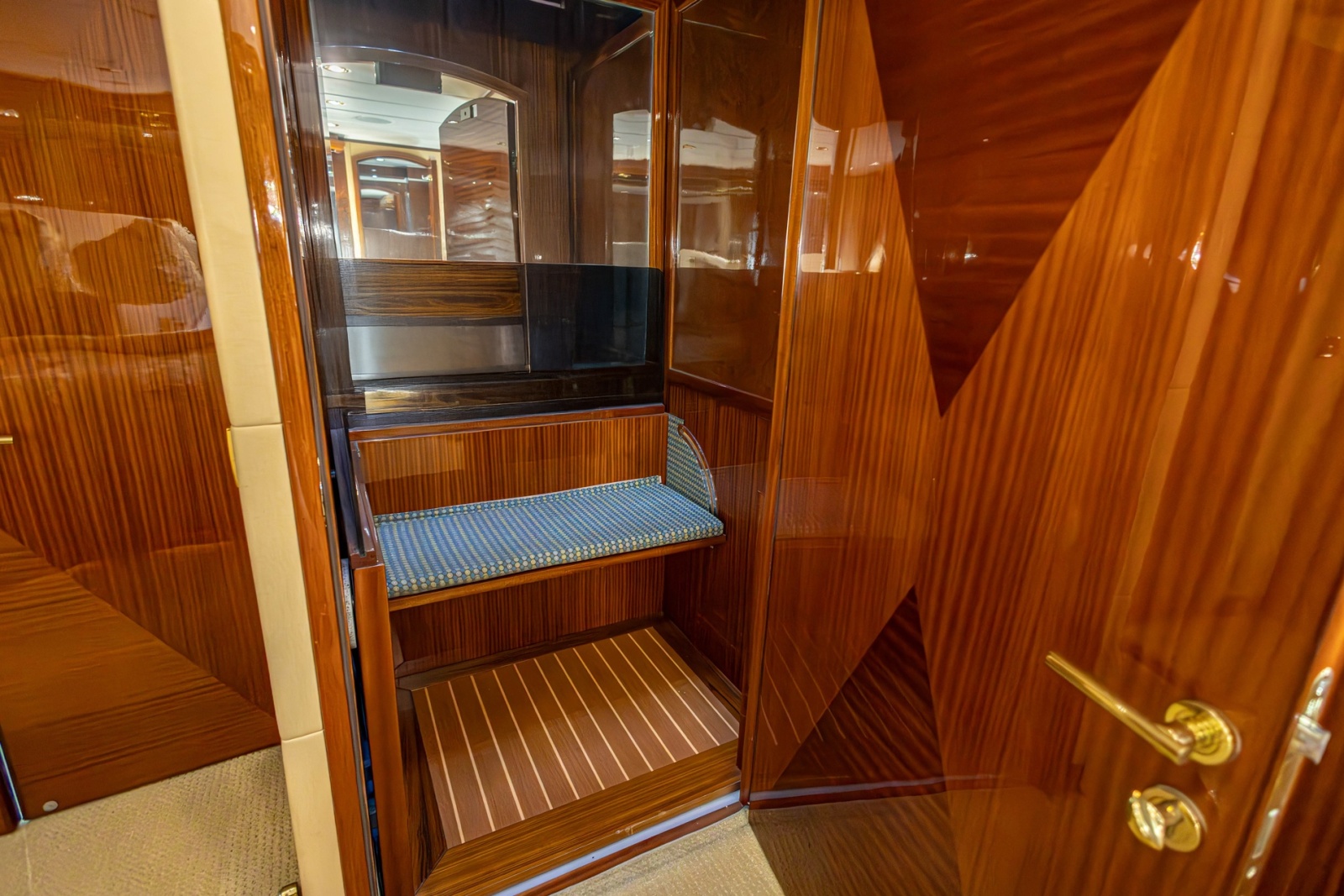

Interior soft goods replaced 2013Italian door handle package (gold)Push/Pull German latches (gold)Removable white vinyl headliner panel systemRecessed Tray ceiling in salonLights in closet on micro switchesCanaloupe 24v LED ceiling lights (gold)Roman Shades in each stateroom, main salon & galleyQuicklift Custom Elevator to all 3 decks w/one folding chair (serviced 8/2016)Sapele wood interiorHeadliner w/Foam throughout vesselSapele wood in Main Deck & Lower Cabins(12) Additional Cantalupi Viareggio Interior LightsCustom upholstery throughoutVimar light switches w/ 9 dimmersPersonal interior upgrade & additions over standard

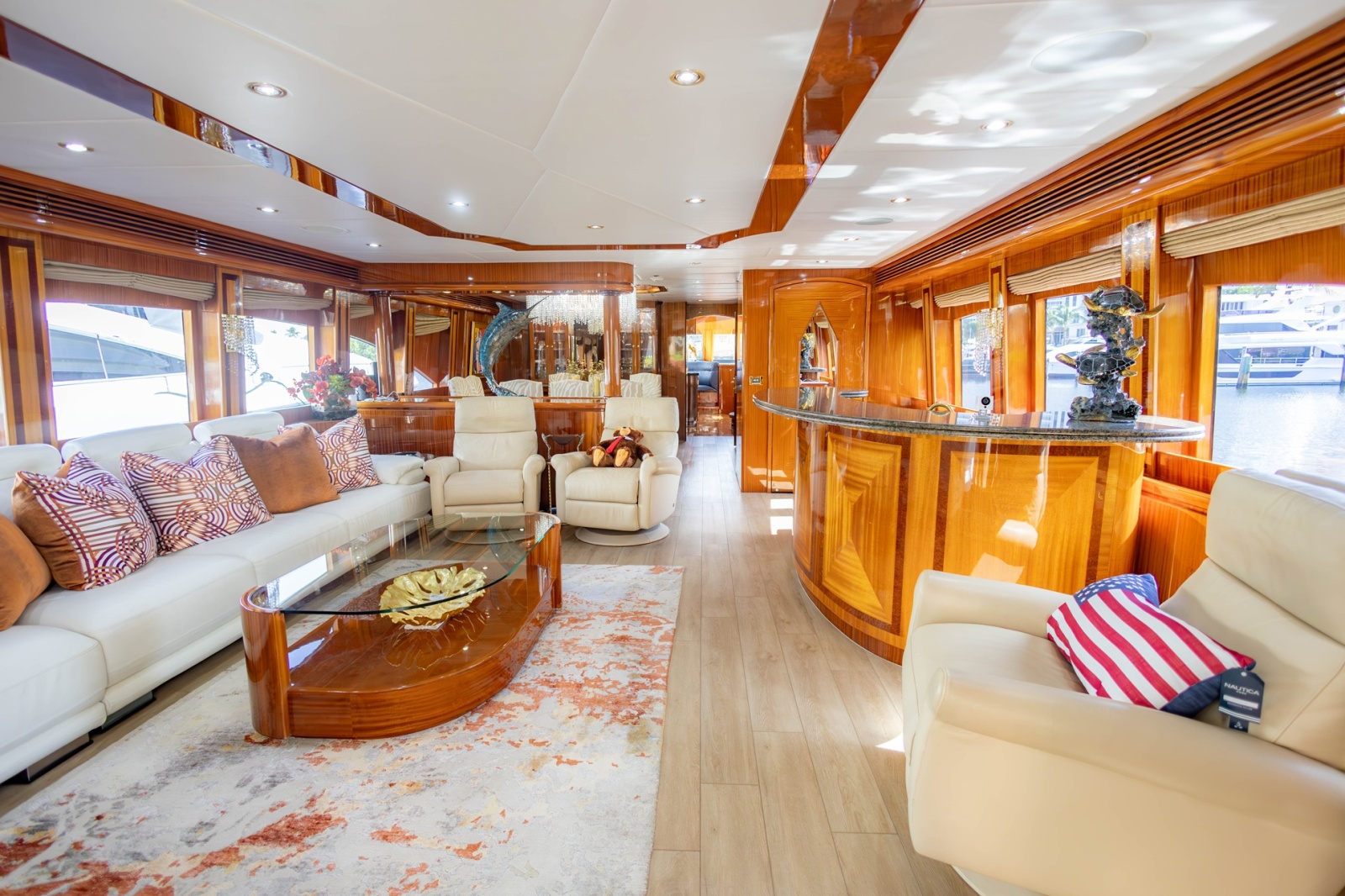

Granite Credenza & Bar Top in SalonGlass Cocktail Table in SalonGranite Bar Floor in Salon(2) Wooden Columns in Salon(2) 6" Columns at center console & buffet in SalonMarble Console Top w/columns in FoyerGE White Washer/Dryer in FoyerU-Line Black with Sapele Panel Ice Maker in SalonU-Line Wine Cooler S/S Glass Front w/Retractable Doors

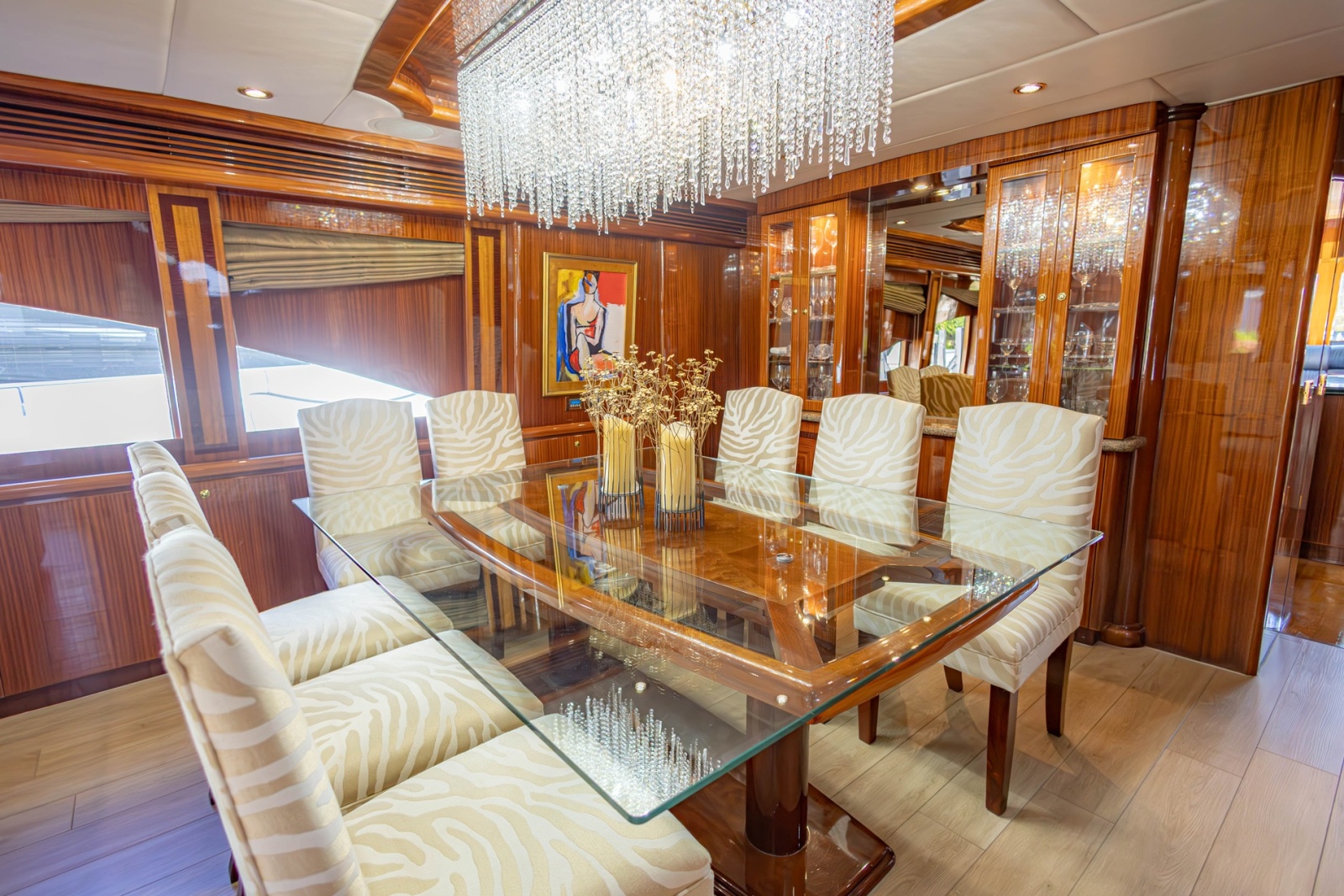

Glass Top for Dining Room Table(8) Dining Chairs

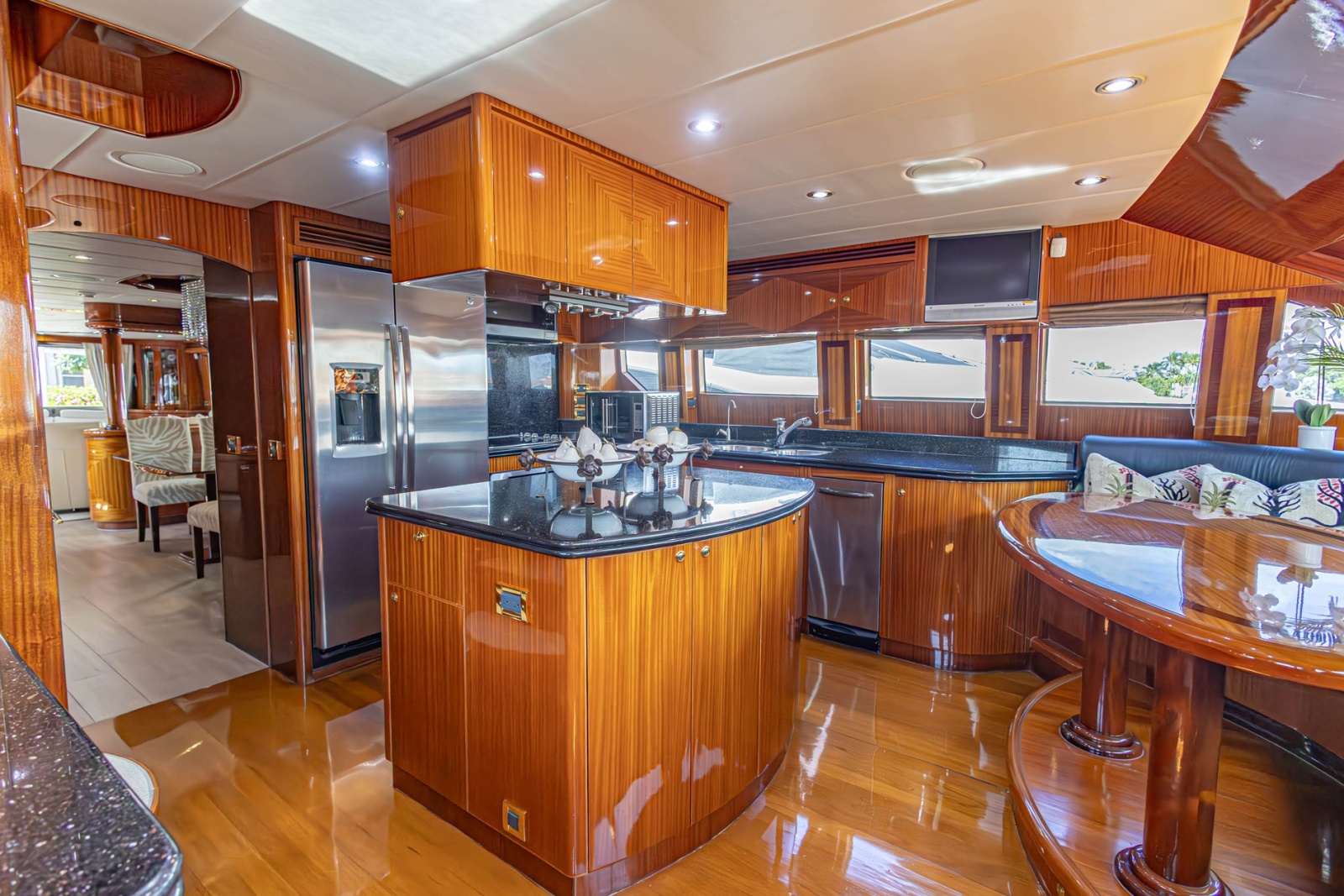

Granite counter top in galleyDouble S/S Sink in GalleySlider on Table in GalleyPocket Sliding Doors in GalleyCustom Pantry in GalleyUpgrade to GE Profile S/S Fridge above standard(2) Sub-Zero with Sapele Panel Fridge Drawers in Galley(2) Sub-Zero with Sapele Panel Fridge Freezer Drawers in GalleyUpgrade to GE Profile S/S Cooktop with S/S Oven in Galley above standardGE Profile S/S Telescopic Hood in GalleyGE Spacemaker S/S Microwave in GalleyBosch Dishwasher in GalleyISE Instant Hot Water Dispenser Chrome with S/S Hot Water Tank in GalleyGE S/S Trash Compactor in GalleyGE Black Disposal in Galley

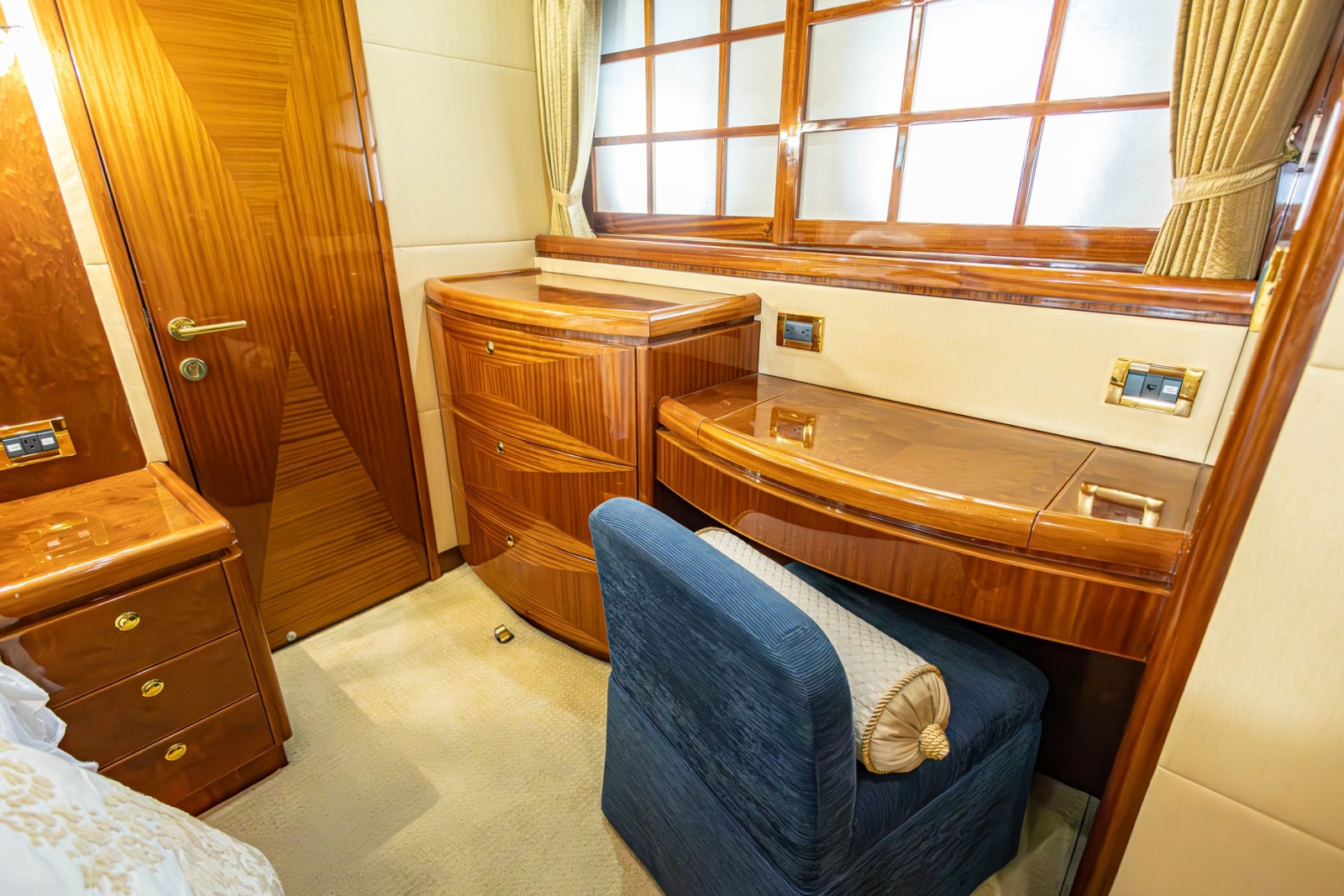

Full Walk-in ShowerAdditional layer of Insulation on Master Stateroom bulkheadSliding Shoji ScreensLights on vanity lift-up Mirrored TopMirror on back of double doors on the closetsFull extension slide for drawersRain Head shower head(2) Shelf in Shower for shampoos and bottles x 2Marble floor in headGrab Bars in Master BathCustom Shower w/marble walls & glass doors(2) His/Hers Headhunter toilets remote controlSafe

Walk-around Bed MajiliteBombay-Rattan with 1/8" Foam wall upholsteryFull extension slide for drawersRain Head shower head(2) Shelves in Shower Marble floor in head

Twin beds in starboard & guest cabinsPullman berth in Starboard guest cabinMarble floor in head

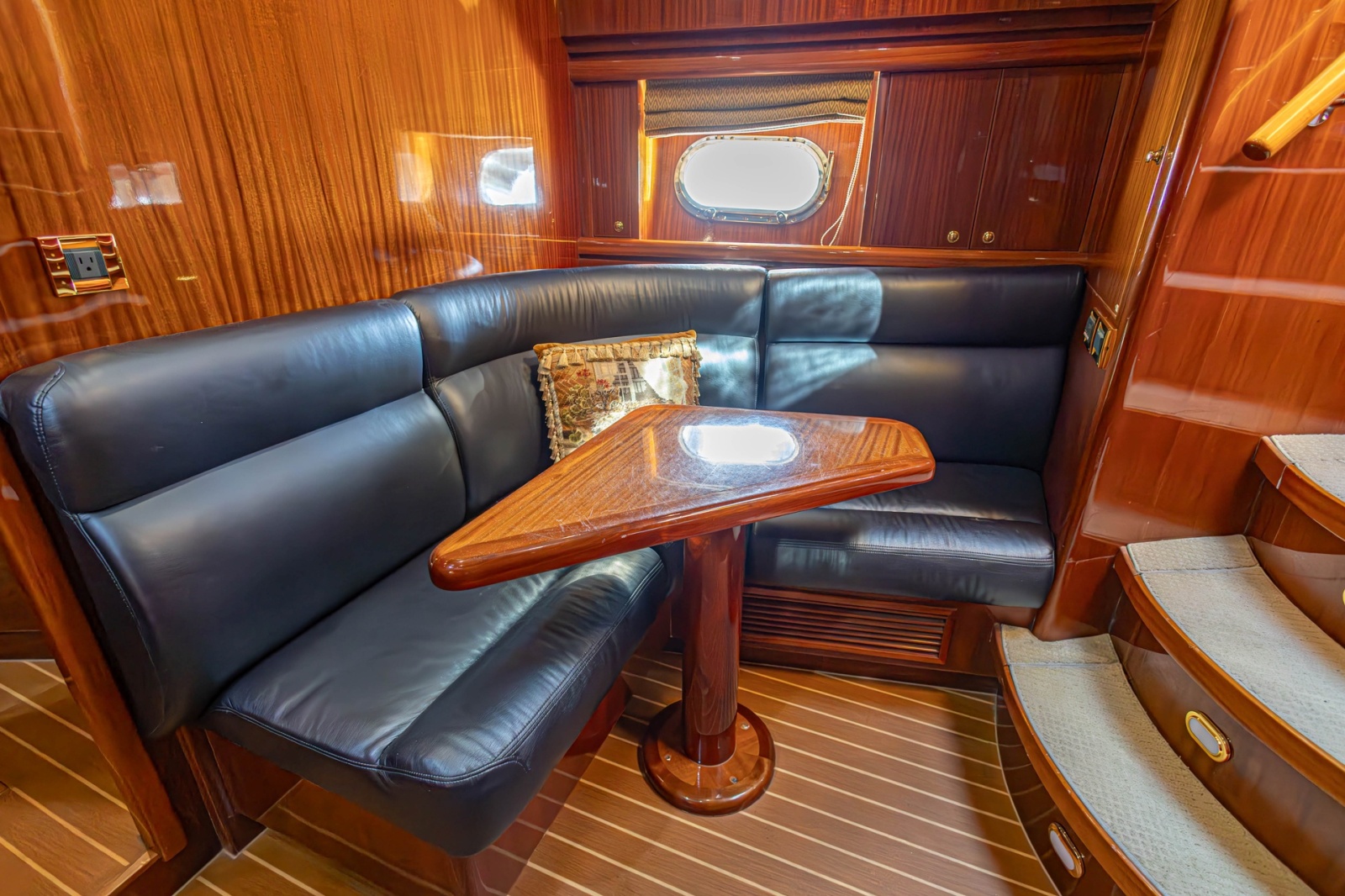

Aft Crew Cabin:Single berthPocket Door in Aft Crew CabinLift Up Steps to access storage under stairway in Crew CabinHanging Locker in Crew QuartersForward Crew Area:Kitchenette with L-shaped seatingGE White Washer/Dryer GE S/S Ice Maker/Fridge Bunk CabinDouble Captain's CabinShared head with shower

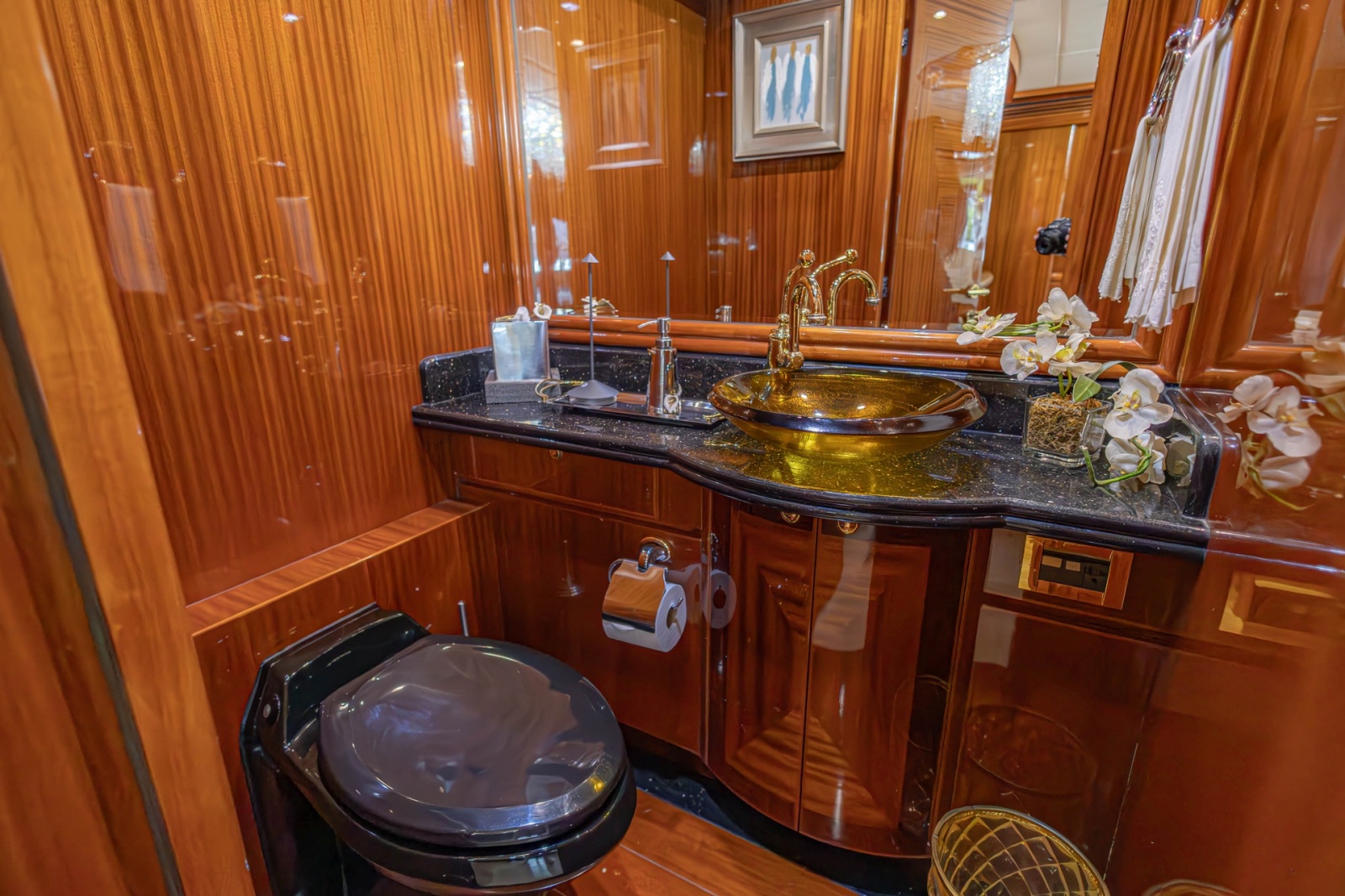

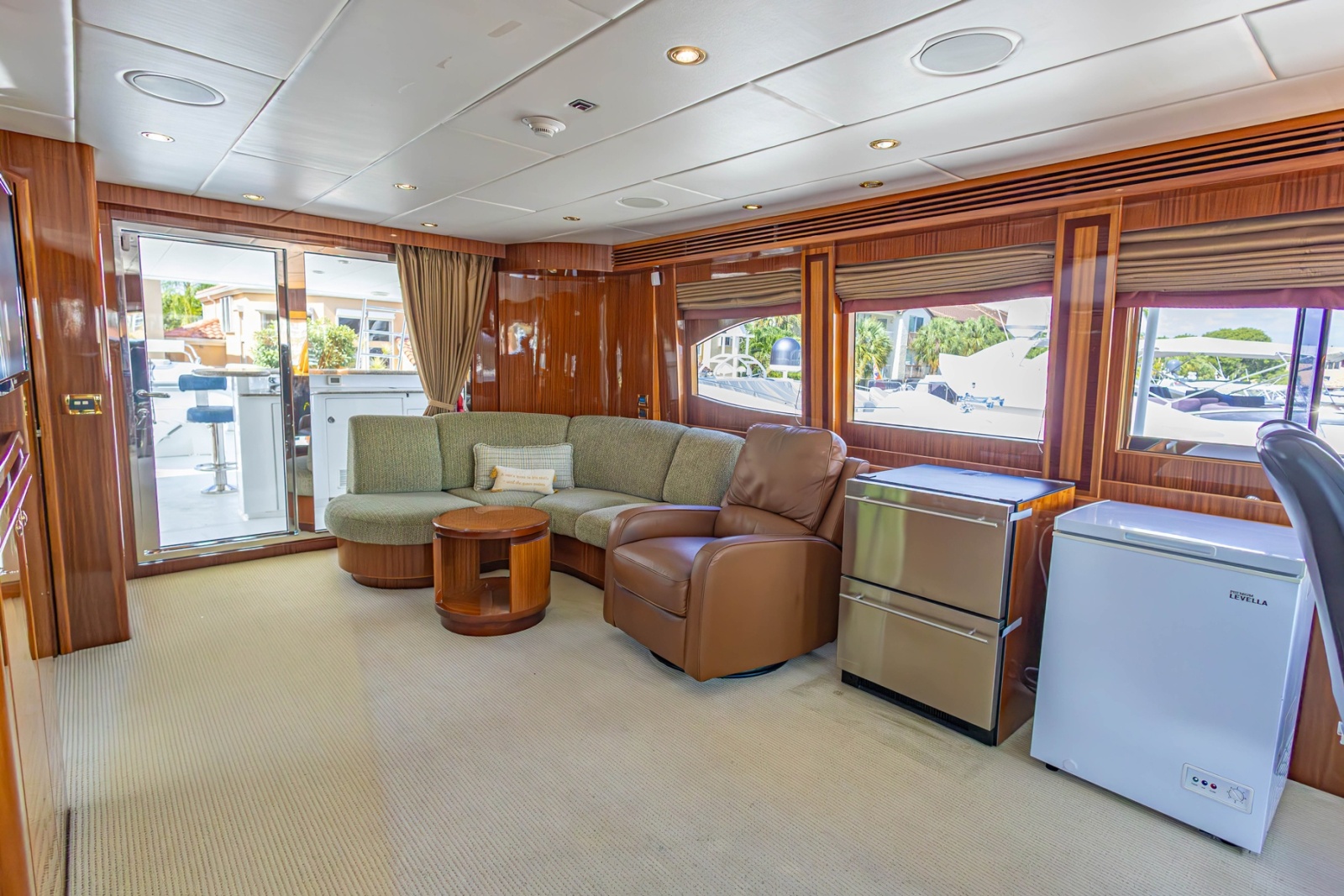

DayheadBuilt in corner couch w/storage(1) Mirror on the elevator door

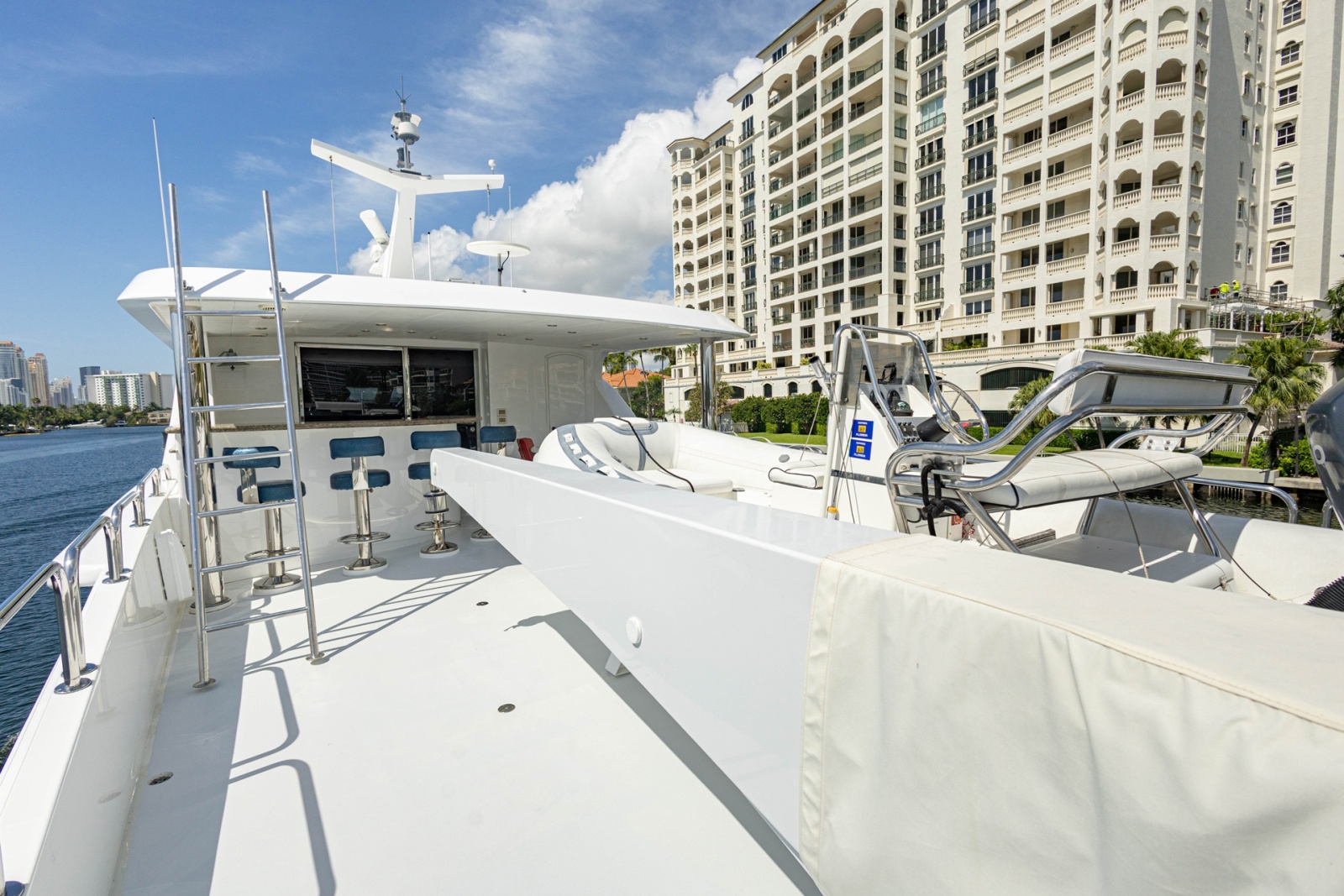

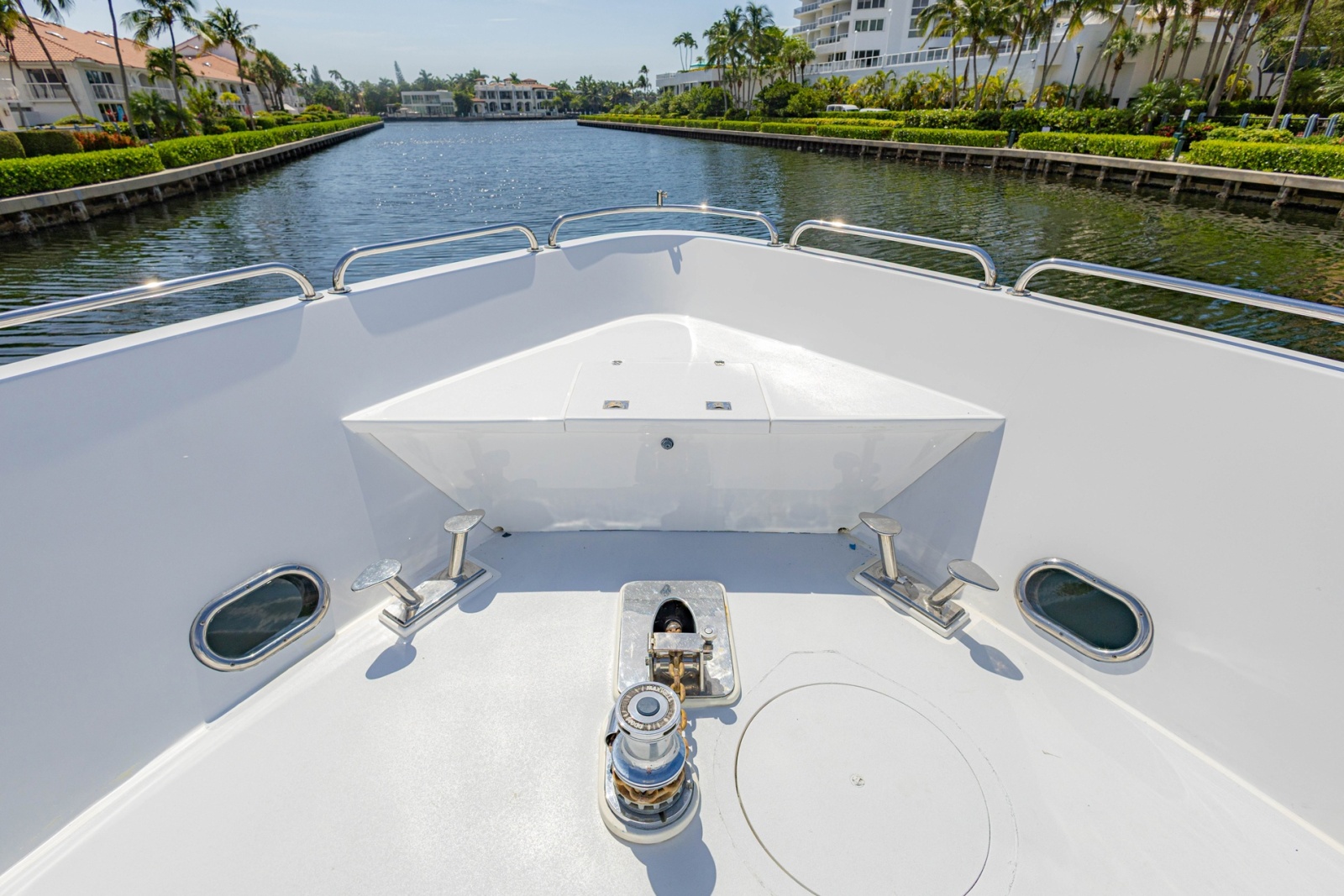

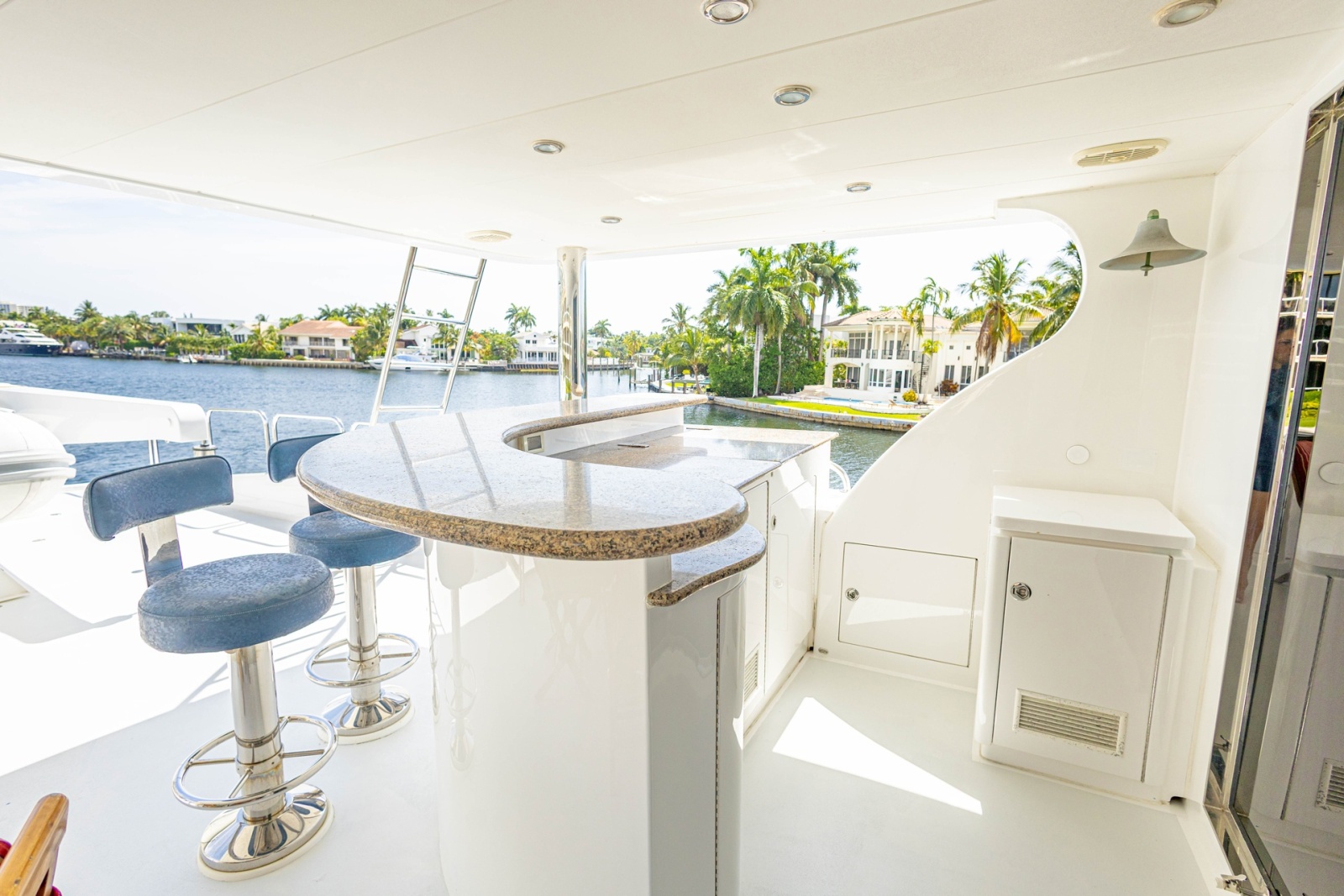

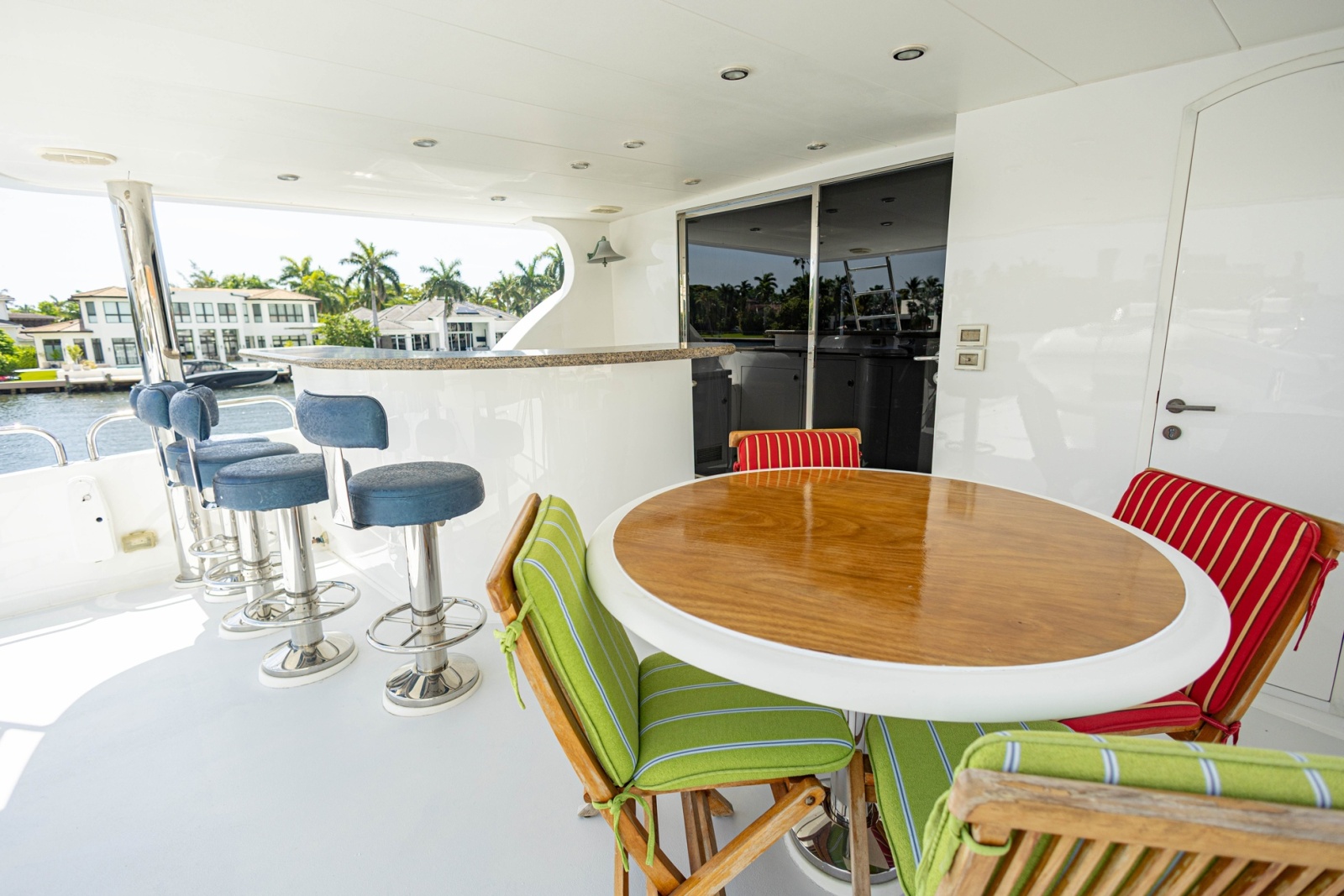

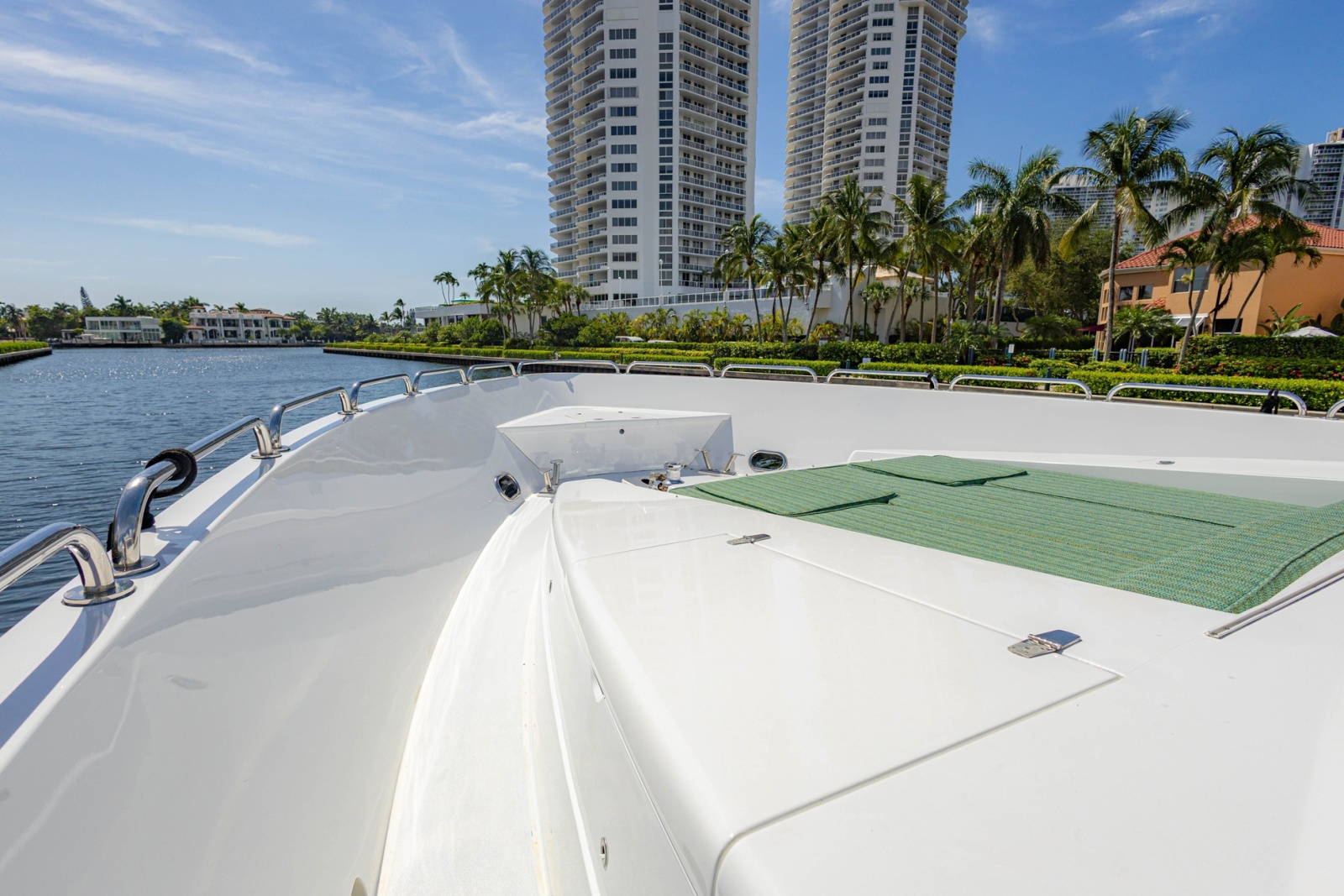

Fiberglass swim platform w/ ladderAll handrails, stanchions and fittings made of stainless steel 316 alloy1 1/2" stanchionsStainless steel cleats (8)Stainless Steel frame hatch on fore deck w/ grey lexan coverDual chrome plated hornBuilt in hand held shower on swim platformEasy access to all helm dashboard controls and gaugesRemote windlass operation from Pilothouse and FlybridgeLarge Storage areas forward deckFiberglass main and lower decksStainless steel aft deck door frameBlack Textile front window coversFlybridge Vinyl seat coversLexan hatch from aft deck to Fly Bridge deck(3) Freeman HatchesCity water inlets (2)TV / telephone inlet (2)Fresh water washdown (3) three locations - Bow / aft deck / flybridge(3) Windshield wipers with bladesMaxwell Nilson Bow Windlass 4000 w/250 lb Stainless Steel 316 plow Anchor & 300' Hi-Tensil Chain(2) Electric Chef stainless grills one at aft deck and one on boat deckWatertight Door w/Hargrave Backlit Name Plate at TransomHard top extention aft of Skylounge with (2) SS SupportsFlybridge barSS 6" Base for Table in Boat Deck(2) Handrails to slope downward from Boat DeckS/S Ladder from Boat Deck to RoofTeak Table Top in Boat Deck(6) Teak Chairs on Boat DeckNon-skid decks (forward, upper aft, transom)10" Wide Non-Skid Brow above windshieldAft deck bar cabinet w/GRP topTeak aft deck chairs x 5Aft deck Teak table with fixed pedestal and sliding hardware w/ hi-lo mechanismAft deck bench seatingAutomatic Electric Sliding Door on Aft DeckAdditional Divider at Chain LockerSS Backing Plate for anchor locker hatches, bow locker hatches and inspection hatch at swim platformCustom Storage Locker for Boarding Ladder(5) U shaped hand rails on swim platform(2) U shaped stanchions at the corners of the Swim PlatformPop-Up Cleat in center of Swim Platform(2) L shaped corner cleats at Swim PlatformLED Lights under fins of radar arch and on aft deckOutside Chrome Lights on outer deck overhang x 2 (one on each side)Roller Hawsers on Aft Deck (2)(6) Underwater lights Hargrave Style MastFreezer Box with 120 volt Power Outllet (new 2015)U-Line White Fridge at Aft DeckU-Line White Ice Maker at Boat Deck(2) 8 person Life RaftsSafety Package-Life Jackets/Fenders/Fire Extinguishers/Dock Lines/Flares/Dual plug phone/TV cordQuick Lift 2000 lb. Low profile davit w/hydraulic rotation (serviced 8/2016)Marquipt Sea StairsKahlenberg Air Horns

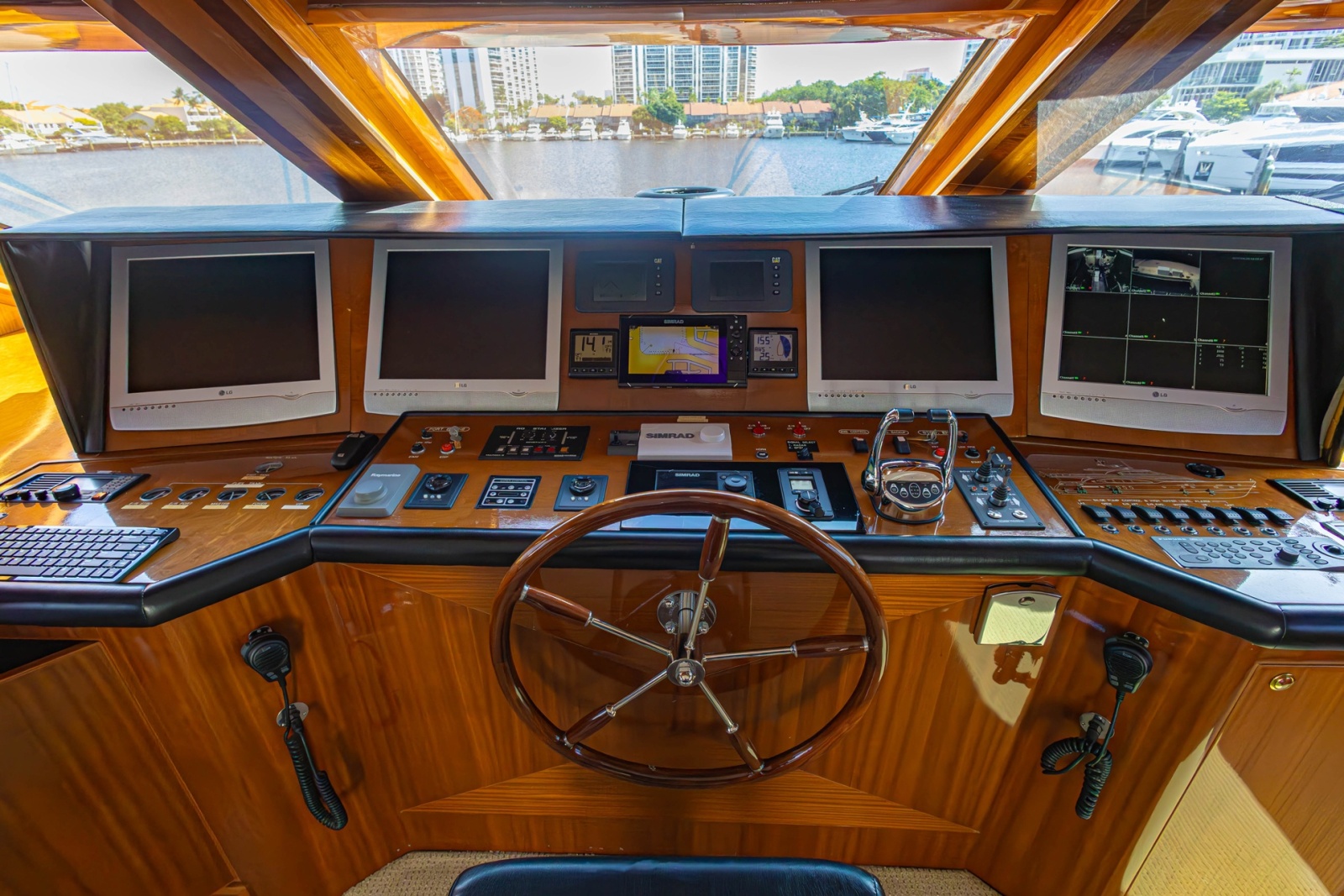

Simrad FU80 autopilot NEW 2025Danforth 6" compass(4) LG 24" Navigation DisplaysFuruno 48 mile radar(2) ICOM IC-M604(3) ICOM 72 VHFRudder angle indicatorWind/speed indicatorNobeltec GPSGarmin 545 GPSNobeltec speed & distance logsCat instruments at helm (Tach/Oil Pressure/Engine Temp/TransPressure/Hrs)ACR spotlights(4) monitors for electronicsFactory installation of all Audio Visual and Navigational EquipmentDirect TV SatelliteKVH Satellite for Wifi and phonesWave Wifi systemTelevisions throughoutGarmin Depth Display 2025Garmin Wind Speed Direction Display 2025

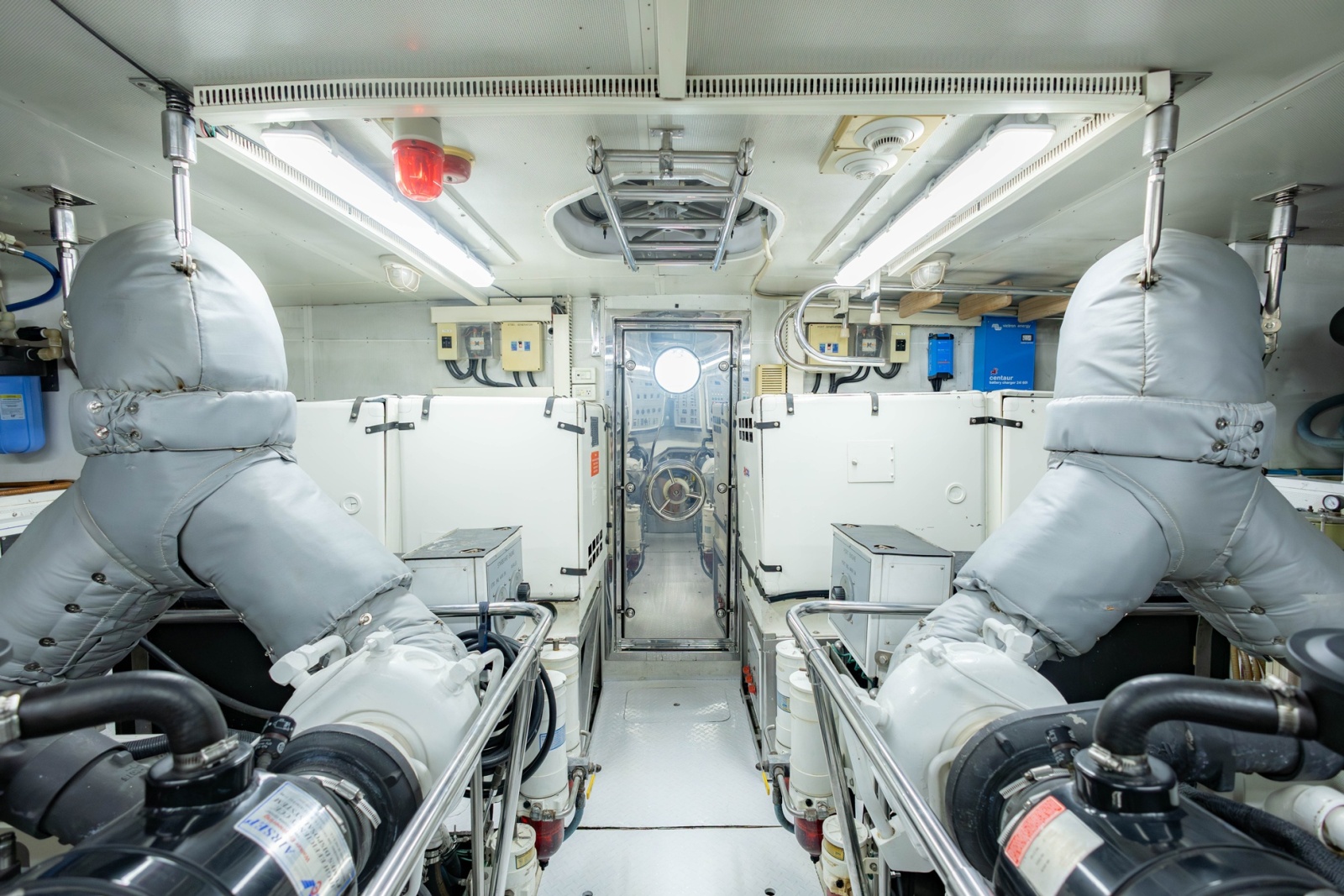

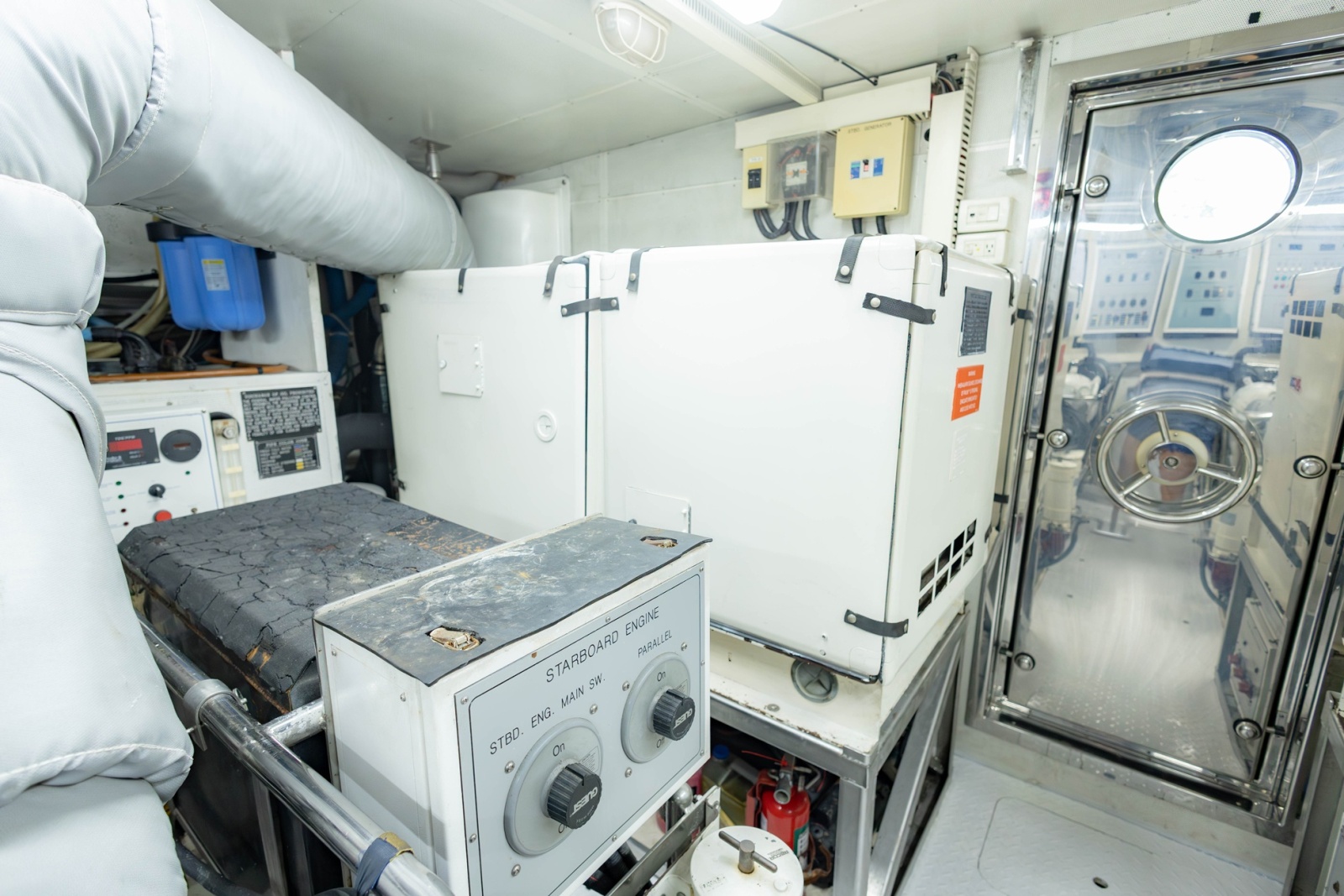

Warranties are good through Feb., 21, 2018 or 3,955 hours.  Full 2500 hour service has was completed 2/2016. Oil, air, and fuel filters just completed on engines 8/2016. 1 7/8 Deckfills for fuel and water600 Gallon Stainless Steel Water TankSingle layer of sound and heat insulation in Engine room bulkhead fwd, aft & ceiling(2) Raycor 1000 FG fuel filter/water separator for each engine(2) Racor 75/1000 MA fuel filter/ water separator for main enginesVaiad Hydraulic Bow Thruster HPS-36hpStern Thruster - 36 hpHydraulic steering by Hynautic, adaptable to auto-pilotEngine Alarm System for low pressure & high temperature supplied by CatFour (4) Jabsco Engine compartment blowers24v lights and 110v power receptacles in Engine room (4 each)Custom underwater engine exhaust w/idle by-passHigh volume 24v Groco Water Pressure Pump (30lb)100 Gallon Holding Tank w/ indicatorFresh water filling faucet in Engine roomLovett Sump Pumps (4)Y-Valve for dockside pump outWhite perforated insulation panels in Engine RoomUpgrade AC System from Standard to Cruise Air Chilled Water System (4) 3 Ton CompressorsInstall muffler on the exhaust By-PassDouble insulated engine roomWatertight bulkheads in engine roomNaiad stabilizer system Model 302 with 9 sq. ft. fin w/multisea 2000To Fit FRP Pipes for Stern Thruster at transomEngine room SeafireFire & Smoke Detectors, total 10 throughout boatFM 200 fire suppression systemWater Heaters x 2 to 40 Gal.Sump Tanks with Covers x 5Headhunter MSD system with jet pump waste water treatment(1) Glendinning CM8 100Amp Cablemaster w/ 125’ Cord Port side (new 8/2016)Glendinning remote control (new 8/2016)Tide Seal Dripless RuddersTide Seal dripless shaft logsIn-Line Recirculating "Hot Water" pumpJabsco Emergency Bilge Pump w/3 pick-upsSafety Handrails at sides of Main Engines(1) Fuel Transfer pumps, Orberdorfer PSRO 80(1) Additional Oberdorfer PSRO Fuel Transfer pumpReverso GP706-24 Oil Transfer pump for engines and generatorsWater Drop Exhaust to 2 generators4 engine room blowersEngine Room entry hatch w/ Ladder on Aft DeckSea Recovery Inc. 1400 GPD water makerSea ChestGlendenning Electronic Clutch Controls

V-Shaped Keel w/ Longitudinal stringersFiberglass hand laid hull & stringers vacuum bagged w/foam core reinforcementStringers bonded to hull encapsulated in several layers of glass cloth & resinDeck & superstructure w/ foam cored reinforcement under fiberglassFRP BulkheadsInterior structural components bonded to hull including bulkheads and framesFRP Main Deck and floorsNon-Skid on main exterior decks (except teak aft deck)Stainless Steel exterior Portholes3 1/2" stainless steel shafts equivalent to Aquamet 22Zincs on shafts, rudders and transom as needed4 Blade Faster bronze propellers with 3 1/2" spursMain bronze strutsEmergency tillerStainless steel ruddersFiberglass engine beds, bonded to hull w/ load distributed on steel channels2 Coats International Gel shield 100 amp galvanic isolatorOval 24" x 12" Port Holes x 6Hand rails to 1 1/2" SS hoop in main and on boat deck

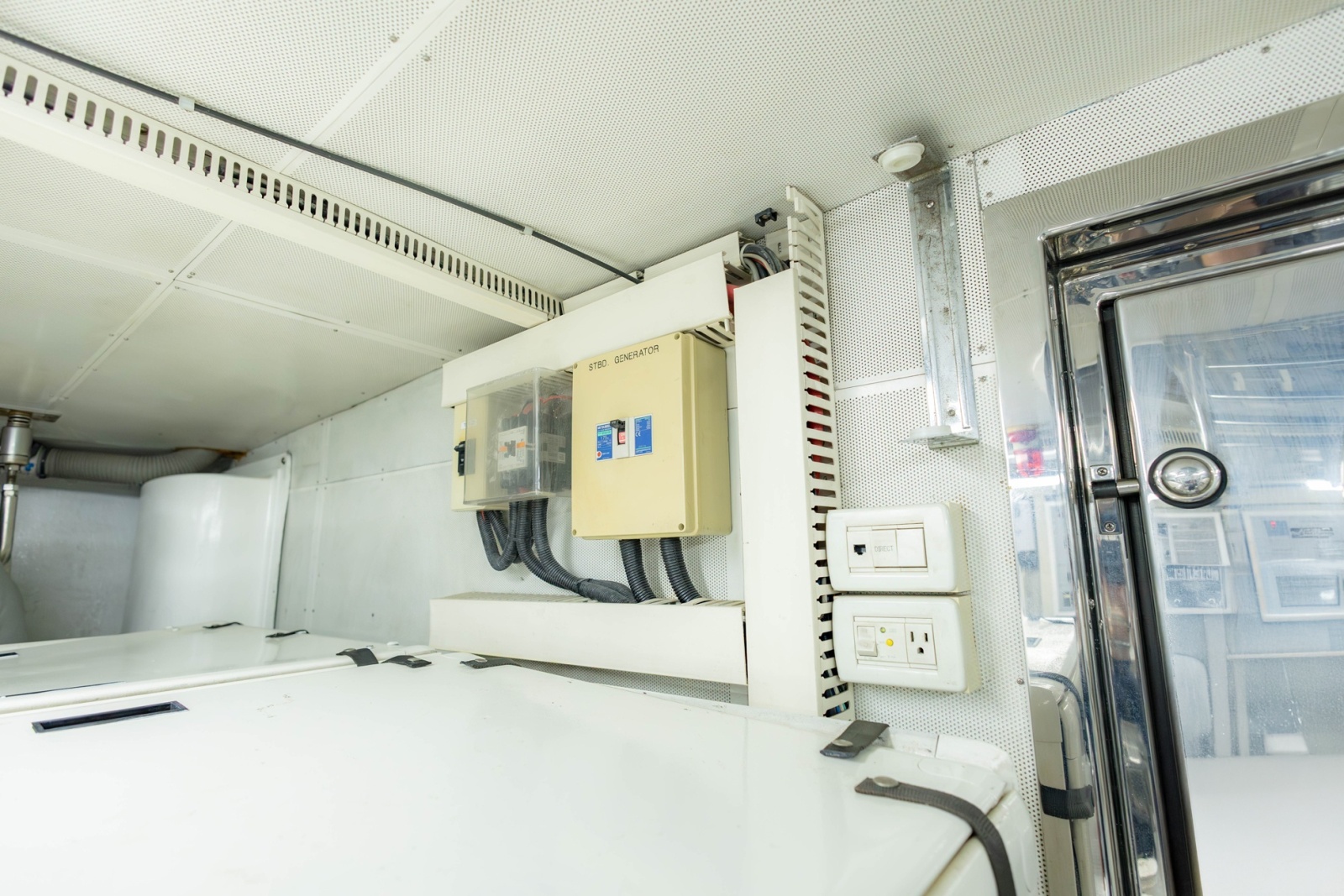

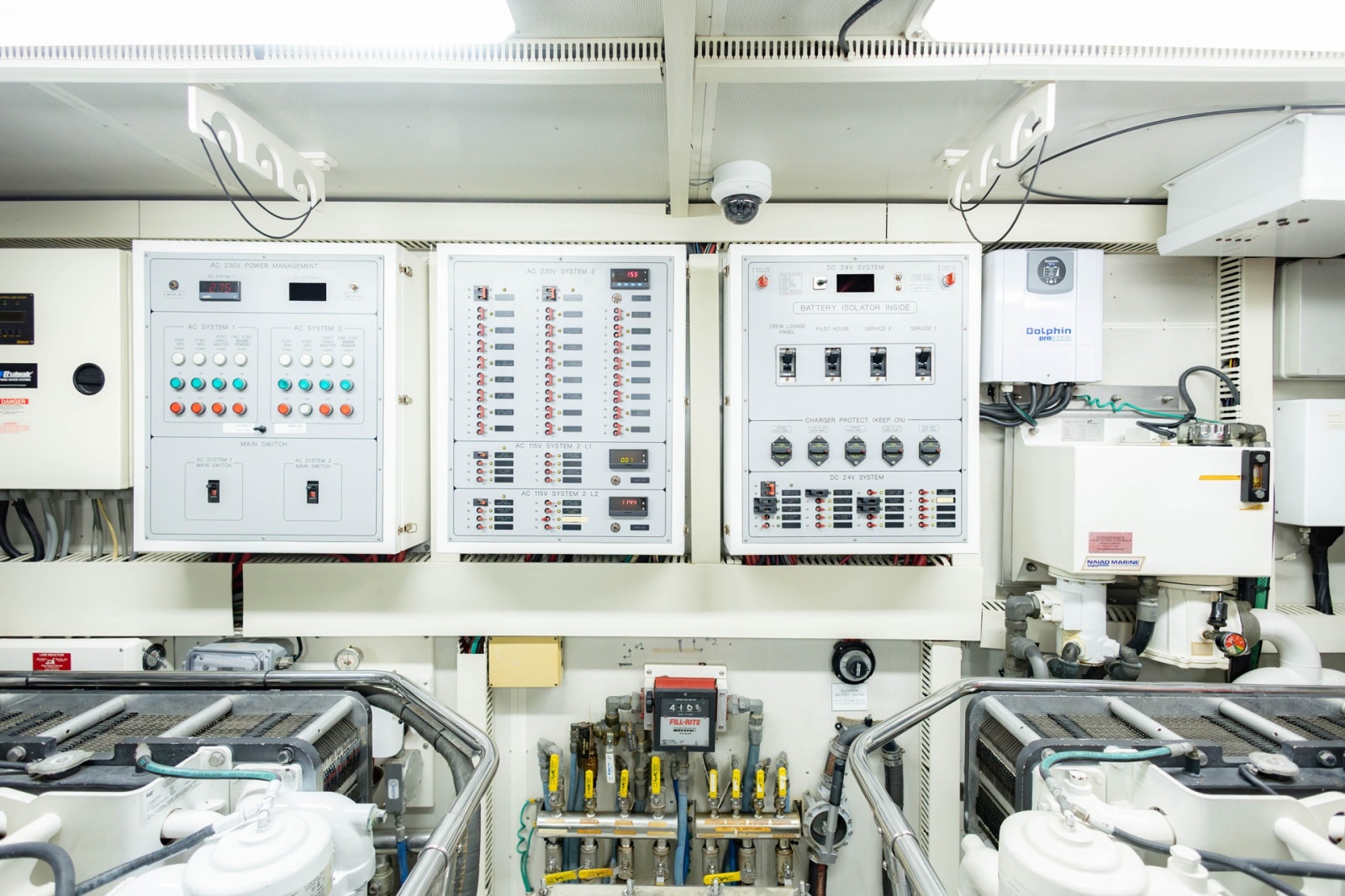

Leviton High quality sockets and switches in all rooms220v,110v and 60Hz Electrical SystemColor coded wiring throughoutCustom -built Helm Console when electronics (8) 200 amp/hr batteries for engine & ship power(3) Professional Mariner battery chargersSeparate 120 amp/hr battery for generatorAll batteries in FRP battery boxesAll batteries replaced 7/2015Main electrical panel w/ separate AC Power control and circuit breaker panel110 volt duplex receptacles located throughout vessel, including engine room100 amp shore power cable - 75' cord(2) shore power outlets - 1 forward and 1 aftIndirect rope lighting under valances in salon staterooms, sky lounge and galleyBoat panel indicatorSecurity breaker for AC power(2) 40 kW 60Hz Westerbeke 4.OBEDA Single Phase with soundshield (PORT: 3713, STBD: 3713)Stbd Side Forward Shore Power 100 Amp Connection w/75' of 100 amp cordWiring for TV under bunk in Crew and TV at aft deck(3) 120 AMP Sentry / Dolphin AC/DC light transformer 110 / 24VSentry battery chargers:1-80Amp (24V) / 1-30Amp (24V) / 1-30Amp (12V)(2) Newmar 50 Amp DC 24V to DC 12V converterUnderwater lights in stern

Personal items, tools, artwork. Full list to be supplied upon offer.
